kcenon::pacs::encoding::specific_character_set Struct Reference

Parsed representation of a multi-valued Specific Character Set. More...

#include <character_set.h>

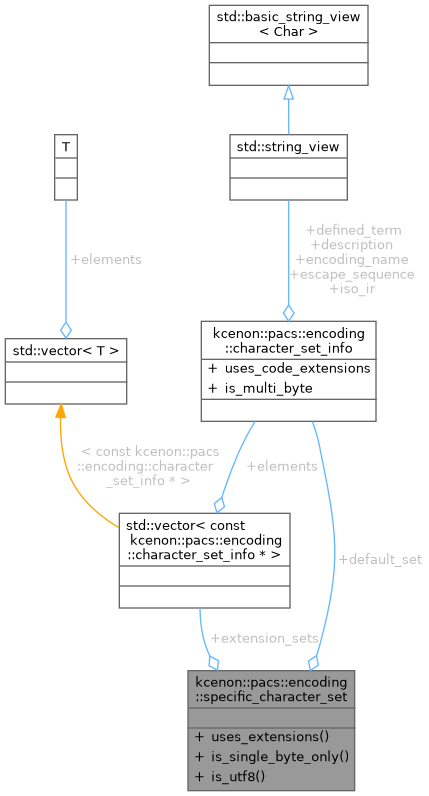

Collaboration diagram for kcenon::pacs::encoding::specific_character_set:

Public Member Functions
bool	uses_extensions () const noexcept
	Whether this uses ISO 2022 code extensions.
bool	is_single_byte_only () const noexcept
	Whether this is a single-byte-only configuration.
bool	is_utf8 () const noexcept
	Check if UTF-8 is the active character set.

Public Attributes
const character_set_info *	default_set
	Character set for default (G0) repertoire.
std::vector< const character_set_info * >	extension_sets
	Additional character sets activated by escape sequences.

Detailed Description

Parsed representation of a multi-valued Specific Character Set.

DICOM Specific Character Set (0008,0005) can be multi-valued with backslash separators. The first value is the default character set for G0, and subsequent values define character sets used via ISO 2022 escape sequences.

Example: "\\ISO 2022 IR 149" means:

• Component 0: empty → ASCII (ISO-IR 6) default
• Component 1: ISO 2022 IR 149 → Korean

Definition at line 113 of file character_set.h.

Member Function Documentation

is_single_byte_only()

bool kcenon::pacs::encoding::specific_character_set::is_single_byte_only ( ) const

nodiscardnoexcept

Whether this is a single-byte-only configuration.

Definition at line 455 of file character_set.cpp.

                                                                {
    if (default_set && default_set->is_multi_byte) {
        return false;
    }
    for (const auto* cs : extension_sets) {
        if (cs && cs->is_multi_byte) {
            return false;
        }
    }
    return true;
}

References default_set, extension_sets, and kcenon::pacs::encoding::character_set_info::is_multi_byte.

is_utf8()

bool kcenon::pacs::encoding::specific_character_set::is_utf8 ( ) const

nodiscardnoexcept

Check if UTF-8 is the active character set.

Definition at line 467 of file character_set.cpp.

                                                    {
    return default_set && default_set->defined_term == "ISO_IR 192";
}

References default_set, and kcenon::pacs::encoding::character_set_info::defined_term.

Referenced by kcenon::pacs::encoding::decode_to_utf8(), and kcenon::pacs::encoding::encode_from_utf8().

Here is the caller graph for this function:

uses_extensions()

bool kcenon::pacs::encoding::specific_character_set::uses_extensions ( ) const

nodiscardnoexcept

Whether this uses ISO 2022 code extensions.

Definition at line 451 of file character_set.cpp.

                                                            {
    return !extension_sets.empty();
}

References extension_sets.

Referenced by kcenon::pacs::encoding::decode_to_utf8(), kcenon::pacs::encoding::encode_from_utf8(), and kcenon::pacs::encoding::split_by_escape_sequences().

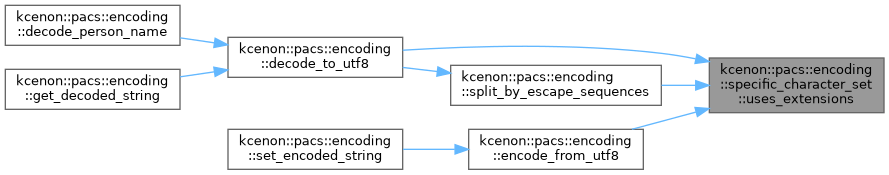

Here is the caller graph for this function:

Member Data Documentation

default_set

const character_set_info* kcenon::pacs::encoding::specific_character_set::default_set

Character set for default (G0) repertoire.

Definition at line 115 of file character_set.h.

Referenced by kcenon::pacs::encoding::decode_to_utf8(), kcenon::pacs::encoding::encode_from_utf8(), is_single_byte_only(), is_utf8(), kcenon::pacs::encoding::parse_specific_character_set(), and kcenon::pacs::encoding::split_by_escape_sequences().

extension_sets

std::vector<const character_set_info*> kcenon::pacs::encoding::specific_character_set::extension_sets

Additional character sets activated by escape sequences.

Definition at line 118 of file character_set.h.

Referenced by kcenon::pacs::encoding::encode_from_utf8(), is_single_byte_only(), kcenon::pacs::encoding::parse_specific_character_set(), and uses_extensions().

---

The documentation for this struct was generated from the following files:

• include/kcenon/pacs/encoding/character_set.h
• src/encoding/character_set.cpp
