gRPC protocol implementation More...

Namespaces
namespace	compression
	gRPC compression algorithms

namespace	header_names
	gRPC request header names

namespace	trailer_names
	gRPC trailing header names

Classes
class	bidi_stream_impl

struct	call_options
	Options for individual RPC calls. More...

struct	channel_credentials_config
	Configuration for gRPC channel credentials. More...

class	client_stream_writer_impl

class	generic_service
	A service that allows dynamic method registration. More...

struct	grpc_channel_config
	Configuration for gRPC channel. More...

class	grpc_client
	gRPC client for making RPC calls More...

struct	grpc_message
	gRPC message with compression flag and payload More...

class	grpc_server
	gRPC server for handling RPC requests More...

struct	grpc_server_config
	Configuration for gRPC server. More...

class	grpc_service
	Base class for gRPC service implementations. More...

struct	grpc_status
	gRPC status with code, message, and optional details More...

struct	grpc_trailers
	gRPC trailing metadata containing status information More...

class	health_service
	Implementation of gRPC health checking protocol. More...

struct	method_descriptor
	Describes a single RPC method within a service. More...

struct	method_handler

struct	registry_config
	Configuration for service registry. More...

class	server_context
	Context for handling a single RPC request. More...

class	server_reader
	Reader interface for client streaming. More...

class	server_reader_writer
	Reader/writer interface for bidirectional streaming. More...

class	server_stream_reader_impl

class	server_writer
	Writer interface for server streaming. More...

class	service_base
	Base class for all gRPC service implementations. More...

struct	service_descriptor
	Describes a gRPC service and its methods. More...

class	service_registry
	Central registry for managing gRPC services. More...

Typedefs
using	grpc_metadata = std::vector<std::pair<std::string, std::string>>
	Metadata key-value pair for gRPC requests/responses.

using	unary_handler
	Handler function type for unary RPC.

using	server_streaming_handler
	Handler function type for server streaming RPC.

using	client_streaming_handler
	Handler function type for client streaming RPC.

using	bidi_streaming_handler
	Handler function type for bidirectional streaming RPC.

Enumerations
enum class	method_type { unary , server_streaming , client_streaming , bidi_streaming , unary , server_streaming , client_streaming , bidi_streaming }
	Type of RPC method. More...

enum class	health_status { unknown , serving , not_serving , service_unknown }
	Health status for a service. More...

enum class	status_code : uint32_t { ok = 0 , cancelled = 1 , unknown = 2 , invalid_argument = 3 , deadline_exceeded = 4 , not_found = 5 , already_exists = 6 , permission_denied = 7 , resource_exhausted = 8 , failed_precondition = 9 , aborted = 10 , out_of_range = 11 , unimplemented = 12 , internal = 13 , unavailable = 14 , data_loss = 15 , unauthenticated = 16 }
	gRPC status codes (as defined in grpc/status.h) More...

enum class	method_type { unary , server_streaming , client_streaming , bidi_streaming , unary , server_streaming , client_streaming , bidi_streaming }

Functions
auto	parse_timeout (std::string_view timeout_str) -> uint64_t
	Parse timeout string (e.g., "10S", "100m", "1000u")

auto	format_timeout (uint64_t timeout_ms) -> std::string
	Format timeout as gRPC timeout string.

auto	parse_method_path (std::string_view full_path) -> std::optional< std::pair< std::string, std::string > >
	Parse full method path into service and method names.

auto	build_method_path (std::string_view service_name, std::string_view method_name) -> std::string
	Build full method path from service and method names.

constexpr auto	status_code_to_string (status_code code) -> std::string_view
	Convert status code to string.

Variables
constexpr size_t	grpc_header_size = 5
	gRPC message header size (5 bytes)

constexpr size_t	default_max_message_size = 4 * 1024 * 1024
	Maximum gRPC message size (default 4MB)

constexpr const char *	grpc_content_type = "application/grpc"
	gRPC content-type header value

constexpr const char *	grpc_content_type_proto = "application/grpc+proto"
	gRPC content-type with proto encoding

Detailed Description

gRPC protocol implementation

This namespace contains all gRPC-related types and functions:

Core types: grpc_status, grpc_message
Client types: grpc_client, call_options, grpc_channel_config
Server types: grpc_server, server_context, grpc_server_config
Service types: grpc_service, service_registry, generic_service
Handler types: unary_handler, server_streaming_handler, etc.

All types use the Result<T>/VoidResult pattern for error handling, providing consistent error reporting across the library.

Typedef Documentation

◆ bidi_streaming_handler

using kcenon::network::protocols::grpc::bidi_streaming_handler

Initial value:

 std::function<
        grpc_status(
            server_context& ctx,
            server_reader_writer& stream)>

Handler function type for bidirectional streaming RPC.

Parameters

ctx	Server context
stream	Reader/writer for messages

Returns: Final status

Definition at line 222 of file server.h.

◆ client_streaming_handler

using kcenon::network::protocols::grpc::client_streaming_handler

Initial value:

 std::function<
        std::pair<grpc_status, std::vector<uint8_t>>(
            server_context& ctx,
            server_reader& reader)>

Handler function type for client streaming RPC.

Parameters

ctx	Server context
reader	Reader for incoming messages

Returns: Pair of status and serialized response

Definition at line 197 of file server.h.

◆ grpc_metadata

using kcenon::network::protocols::grpc::grpc_metadata = std::vector<std::pair<std::string, std::string>>

Metadata key-value pair for gRPC requests/responses.

Definition at line 38 of file client.h.

◆ server_streaming_handler

using kcenon::network::protocols::grpc::server_streaming_handler

Initial value:

 std::function<
        grpc_status(
            server_context& ctx,
            const std::vector<uint8_t>& request,
            server_writer& writer)>

Handler function type for server streaming RPC.

Parameters

ctx	Server context
request	Serialized request message
writer	Writer to send response messages

Returns: Final status

Definition at line 163 of file server.h.

◆ unary_handler

using kcenon::network::protocols::grpc::unary_handler

Initial value:

 std::function<
        std::pair<grpc_status, std::vector<uint8_t>>(
            server_context& ctx,
            const std::vector<uint8_t>& request)>

Handler function type for unary RPC.

Parameters

ctx	Server context
request	Serialized request message

Returns: Pair of status and serialized response

Definition at line 134 of file server.h.

Enumeration Type Documentation

◆ health_status

enum class kcenon::network::protocols::grpc::health_status

strong

Health status for a service.

Enumerator
unknown	Status unknown.
serving	Service is serving.
not_serving	Service is not serving.
service_unknown	Service is not registered.

Definition at line 563 of file service_registry.h.

{
    unknown,
    serving,
    not_serving,
    service_unknown
};

◆ method_type [1/2]

enum class kcenon::network::protocols::grpc::method_type

strong

Type of RPC method.

Enumerator
unary	Unary RPC (single request, single response)
server_streaming	Server streaming (single request, multiple responses)
client_streaming	Client streaming (multiple requests, single response)
bidi_streaming	Bidirectional streaming (multiple requests and responses)
unary
server_streaming
client_streaming
bidi_streaming

Definition at line 60 of file service_registry.h.

{
    unary,
    server_streaming,
    client_streaming,
    bidi_streaming
};

◆ method_type [2/2]

enum class kcenon::network::protocols::grpc::method_type

strong

Enumerator
unary	Unary RPC (single request, single response)
server_streaming	Server streaming (single request, multiple responses)
client_streaming	Client streaming (multiple requests, single response)
bidi_streaming	Bidirectional streaming (multiple requests and responses)
unary
server_streaming
client_streaming
bidi_streaming

Definition at line 594 of file server.cpp.

{
    unary,
    server_streaming,
    client_streaming,
    bidi_streaming
};

◆ status_code

enum class kcenon::network::protocols::grpc::status_code : uint32_t

strong

gRPC status codes (as defined in grpc/status.h)

Standard gRPC status codes for RPC operations. See: https://grpc.github.io/grpc/core/md_doc_statuscodes.html

Enumerator
ok	Not an error; returned on success.
cancelled	The operation was cancelled.
unknown	Unknown error.
invalid_argument	Client specified an invalid argument.
deadline_exceeded	Deadline expired before operation completed.
not_found	Some requested entity was not found.
already_exists	Entity already exists.
permission_denied	Permission denied.
resource_exhausted	Resource exhausted.
failed_precondition	Operation rejected due to system state.
aborted	Operation aborted.
out_of_range	Operation attempted past valid range.
unimplemented	Operation not implemented.
internal	Internal error.
unavailable	Service unavailable.
data_loss	Unrecoverable data loss.
unauthenticated	Request lacks valid authentication.

Definition at line 35 of file status.h.

    {
        ok = 0,
        cancelled = 1,
        unknown = 2,
        invalid_argument = 3,
        deadline_exceeded = 4,
        not_found = 5,
        already_exists = 6,
        permission_denied = 7,
        resource_exhausted = 8,
        failed_precondition = 9,
        aborted = 10,
        out_of_range = 11,
        unimplemented = 12,
        internal = 13,
        unavailable = 14,
        data_loss = 15,
        unauthenticated = 16
    };

Function Documentation

◆ build_method_path()

auto kcenon::network::protocols::grpc::build_method_path	(	std::string_view	service_name,
		std::string_view	method_name ) -> std::string

Build full method path from service and method names.

Parameters

service_name	Full service name (e.g., "package.Service")
method_name	Method name

Returns: Full method path

Definition at line 58 of file service_registry.cpp.

{
    std::string result;
    result.reserve(1 + service_name.size() + 1 + method_name.size());
    result += '/';
    result += service_name;
    result += '/';
    result += method_name;
    return result;
}

Referenced by kcenon::network::protocols::grpc::generic_service::impl::register_bidi_streaming_method(), kcenon::network::protocols::grpc::generic_service::impl::register_client_streaming_method(), kcenon::network::protocols::grpc::generic_service::impl::register_server_streaming_method(), and kcenon::network::protocols::grpc::generic_service::impl::register_unary_method().

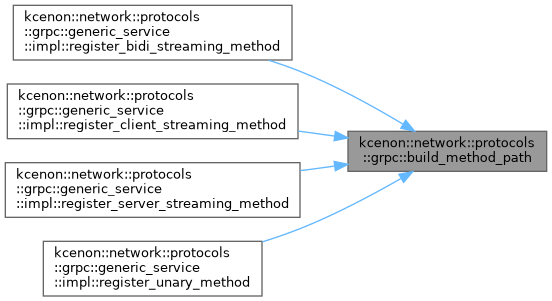

Here is the caller graph for this function:

◆ format_timeout()

auto kcenon::network::protocols::grpc::format_timeout ( uint64_t timeout_ms ) -> std::string

Format timeout as gRPC timeout string.

Parameters

timeout_ms Timeout in milliseconds

Returns: Formatted timeout string

Definition at line 131 of file frame.cpp.

{
    std::ostringstream oss;

    if (timeout_ms == 0)
    {
        return "0m";
    }

    // Use appropriate unit for best precision
    if (timeout_ms >= 3600000 && timeout_ms % 3600000 == 0)
    {
        oss << (timeout_ms / 3600000) << "H";
    }
    else if (timeout_ms >= 60000 && timeout_ms % 60000 == 0)
    {
        oss << (timeout_ms / 60000) << "M";
    }
    else if (timeout_ms >= 1000 && timeout_ms % 1000 == 0)
    {
        oss << (timeout_ms / 1000) << "S";
    }
    else
    {
        oss << timeout_ms << "m";
    }

    return oss.str();
}

Referenced by kcenon::network::protocols::grpc::grpc_client::impl::bidi_stream_raw(), kcenon::network::protocols::grpc::grpc_client::impl::call_raw(), kcenon::network::protocols::grpc::grpc_client::impl::client_stream_raw(), and kcenon::network::protocols::grpc::grpc_client::impl::server_stream_raw().

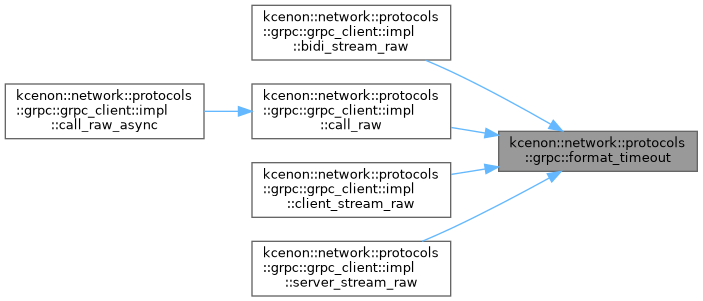

Here is the caller graph for this function:

◆ parse_method_path()

auto kcenon::network::protocols::grpc::parse_method_path ( std::string_view full_path ) -> std::optional<std::pair<std::string, std::string>>

Parse full method path into service and method names.

Parameters

full_path Full method path (e.g., "/package.Service/Method")

Returns: Pair of service name and method name, or nullopt if invalid

Definition at line 33 of file service_registry.cpp.

{
    // Expected format: "/package.Service/Method"
    if (full_path.empty() || full_path[0] != '/')
    {
        return std::nullopt;
    }

    // Remove leading slash
    auto path = full_path.substr(1);

    // Find the separator between service and method
    auto pos = path.rfind('/');
    if (pos == std::string_view::npos || pos == 0 || pos == path.size() - 1)
    {
        return std::nullopt;
    }

    std::string service_name(path.substr(0, pos));
    std::string method_name(path.substr(pos + 1));

    return std::make_pair(std::move(service_name), std::move(method_name));
}

Referenced by kcenon::network::protocols::grpc::service_registry::impl::find_method().

Here is the caller graph for this function:

◆ parse_timeout()

auto kcenon::network::protocols::grpc::parse_timeout ( std::string_view timeout_str ) -> uint64_t

Parse timeout string (e.g., "10S", "100m", "1000u")

Parameters

timeout_str Timeout string with unit suffix

Returns: Timeout in milliseconds, or 0 if invalid

Supported units:

H: Hours
M: Minutes
S: Seconds
m: Milliseconds
u: Microseconds
n: Nanoseconds

Definition at line 88 of file frame.cpp.

{
    if (timeout_str.empty())
    {
        return 0;
    }

    // Get the unit suffix
    char unit = timeout_str.back();

    // Parse the numeric value
    std::string_view num_str = timeout_str.substr(0, timeout_str.size() - 1);
    uint64_t value = 0;

    auto result = std::from_chars(num_str.data(),
                                  num_str.data() + num_str.size(),
                                  value);

    if (result.ec != std::errc{})
    {
        return 0;
    }

    // Convert to milliseconds based on unit
    switch (unit)
    {
        case 'H': // Hours
            return value * 3600000;
        case 'M': // Minutes
            return value * 60000;
        case 'S': // Seconds
            return value * 1000;
        case 'm': // Milliseconds
            return value;
        case 'u': // Microseconds
            return value / 1000;
        case 'n': // Nanoseconds
            return value / 1000000;
        default:
            return 0;
    }
}

◆ status_code_to_string()

auto kcenon::network::protocols::grpc::status_code_to_string ( status_code code ) -> std::string_view

constexpr

Convert status code to string.

Parameters

code	Status code to convert

Returns: String representation of the status code

Definition at line 61 of file status.h.

    {
        switch (code)
        {
            case status_code::ok:                  return "OK";
            case status_code::cancelled:           return "CANCELLED";
            case status_code::unknown:             return "UNKNOWN";
            case status_code::invalid_argument:    return "INVALID_ARGUMENT";
            case status_code::deadline_exceeded:   return "DEADLINE_EXCEEDED";
            case status_code::not_found:           return "NOT_FOUND";
            case status_code::already_exists:      return "ALREADY_EXISTS";
            case status_code::permission_denied:   return "PERMISSION_DENIED";
            case status_code::resource_exhausted:  return "RESOURCE_EXHAUSTED";
            case status_code::failed_precondition: return "FAILED_PRECONDITION";
            case status_code::aborted:             return "ABORTED";
            case status_code::out_of_range:        return "OUT_OF_RANGE";
            case status_code::unimplemented:       return "UNIMPLEMENTED";
            case status_code::internal:            return "INTERNAL";
            case status_code::unavailable:         return "UNAVAILABLE";
            case status_code::data_loss:           return "DATA_LOSS";
            case status_code::unauthenticated:     return "UNAUTHENTICATED";
            default:                               return "UNKNOWN";
        }
    }

References aborted, already_exists, cancelled, data_loss, deadline_exceeded, failed_precondition, internal, invalid_argument, not_found, ok, out_of_range, permission_denied, resource_exhausted, unauthenticated, unavailable, unimplemented, and unknown.

Referenced by kcenon::network::protocols::grpc::grpc_client::impl::call_raw(), and kcenon::network::protocols::grpc::grpc_status::code_string().

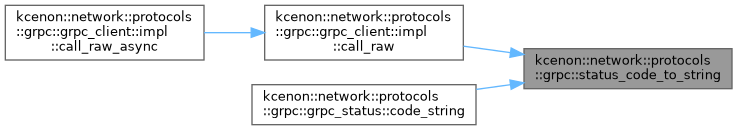

Here is the caller graph for this function:

Variable Documentation

◆ default_max_message_size

size_t kcenon::network::protocols::grpc::default_max_message_size = 4 * 1024 * 1024

constexpr

Maximum gRPC message size (default 4MB)

Definition at line 40 of file frame.h.

Referenced by kcenon::network::protocols::grpc::grpc_message::parse().

◆ grpc_content_type

const char* kcenon::network::protocols::grpc::grpc_content_type = "application/grpc"

constexpr

gRPC content-type header value

Definition at line 109 of file frame.h.

Referenced by kcenon::network::protocols::grpc::grpc_client::impl::bidi_stream_raw(), kcenon::network::protocols::grpc::grpc_client::impl::call_raw(), kcenon::network::protocols::grpc::grpc_client::impl::client_stream_raw(), and kcenon::network::protocols::grpc::grpc_client::impl::server_stream_raw().

◆ grpc_content_type_proto

const char* kcenon::network::protocols::grpc::grpc_content_type_proto = "application/grpc+proto"

constexpr

gRPC content-type with proto encoding

Definition at line 114 of file frame.h.

◆ grpc_header_size

size_t kcenon::network::protocols::grpc::grpc_header_size = 5

constexpr

gRPC message header size (5 bytes)

gRPC messages are prefixed with a 5-byte header:

1 byte: Compressed flag (0 = uncompressed, 1 = compressed)
4 bytes: Message length (big-endian)

Definition at line 35 of file frame.h.

Referenced by kcenon::network::protocols::grpc::grpc_message::parse(), kcenon::network::protocols::grpc::grpc_message::serialize(), and kcenon::network::protocols::grpc::grpc_message::serialized_size().

Namespaces

Classes

Typedefs

Enumerations

Functions

Variables

Detailed Description

Typedef Documentation

◆ bidi_streaming_handler

◆ client_streaming_handler

◆ grpc_metadata

◆ server_streaming_handler

◆ unary_handler

Enumeration Type Documentation

◆ health_status

◆ method_type [1/2]

◆ method_type [2/2]

◆ status_code

Function Documentation

◆ build_method_path()

◆ format_timeout()

◆ parse_method_path()

◆ parse_timeout()

◆ status_code_to_string()

Variable Documentation

◆ default_max_message_size

◆ grpc_content_type

◆ grpc_content_type_proto

◆ grpc_header_size
