kcenon::network::protocols::grpc::grpc_message Struct Reference

gRPC message with compression flag and payload More...

#include <frame.h>

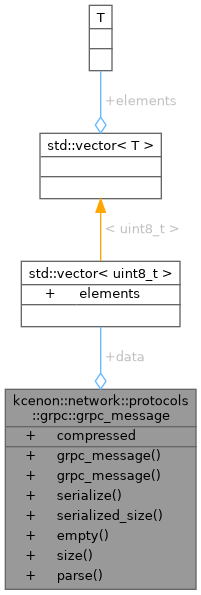

Collaboration diagram for kcenon::network::protocols::grpc::grpc_message:

Public Member Functions
	grpc_message ()=default
	Default constructor.
	grpc_message (std::vector< uint8_t > payload, bool is_compressed=false)
	Construct with data.
auto	serialize () const -> std::vector< uint8_t >
	Serialize message to bytes with length prefix.
auto	serialized_size () const -> size_t
	Get total serialized size including header.
auto	empty () const -> bool
	Check if message is empty.
auto	size () const -> size_t
	Get message size (payload only)

Static Public Member Functions
static auto	parse (std::span< const uint8_t > input) -> Result< grpc_message >
	Parse gRPC message from raw bytes.

Public Attributes
bool	compressed = false
	Whether payload is compressed.
std::vector< uint8_t >	data
	Message payload.

Detailed Description

gRPC message with compression flag and payload

Represents a gRPC message as transmitted over HTTP/2. Format: | Compressed-Flag (1 byte) | Message-Length (4 bytes) | Message |

Examples

grpc_service_example.cpp.

Definition at line 49 of file frame.h.

Constructor & Destructor Documentation

grpc_message() [1/2]

kcenon::network::protocols::grpc::grpc_message::grpc_message ( )

default

Default constructor.

grpc_message() [2/2]

kcenon::network::protocols::grpc::grpc_message::grpc_message ( std::vector< uint8_t > payload, bool is_compressed = false )

inlineexplicit

Construct with data.

Parameters

payload	Message data
is_compressed	Whether data is compressed

Definition at line 64 of file frame.h.

            : compressed(is_compressed), data(std::move(payload)) {}

Member Function Documentation

empty()

auto kcenon::network::protocols::grpc::grpc_message::empty ( ) const -> bool

inline

Check if message is empty.

Returns

True if data is empty

Definition at line 97 of file frame.h.

{ return data.empty(); }

References data.

parse()

auto kcenon::network::protocols::grpc::grpc_message::parse ( std::span< const uint8_t > input ) -> Result<grpc_message>

static

Parse gRPC message from raw bytes.

Parameters

input

Raw byte data (header + payload)

Returns

Result containing parsed message or error

Parses a gRPC length-prefixed message from the input buffer.

Definition at line 14 of file frame.cpp.

{
    // Check minimum header size
    if (input.size() < grpc_header_size)
    {
        return error<grpc_message>(
            error_codes::common_errors::invalid_argument,
            "Input too small for gRPC message header",
            "grpc::frame",
            "Expected at least 5 bytes, got " + std::to_string(input.size()));
    }

    // Parse compressed flag (1 byte)
    bool compressed = (input[0] != 0);

    // Parse message length (4 bytes, big-endian)
    uint32_t length = (static_cast<uint32_t>(input[1]) << 24) |
                      (static_cast<uint32_t>(input[2]) << 16) |
                      (static_cast<uint32_t>(input[3]) << 8) |
                      (static_cast<uint32_t>(input[4]));

    // Validate message length
    if (length > default_max_message_size)
    {
        return error<grpc_message>(
            error_codes::common_errors::invalid_argument,
            "gRPC message exceeds maximum size",
            "grpc::frame",
            "Max: " + std::to_string(default_max_message_size) +
            ", Got: " + std::to_string(length));
    }

    // Check if we have enough data
    size_t total_size = grpc_header_size + length;
    if (input.size() < total_size)
    {
        return error<grpc_message>(
            error_codes::common_errors::invalid_argument,
            "Input too small for gRPC message payload",
            "grpc::frame",
            "Expected " + std::to_string(total_size) +
            " bytes, got " + std::to_string(input.size()));
    }

    // Extract message data
    grpc_message msg;
    msg.compressed = compressed;
    msg.data.assign(input.begin() + grpc_header_size,
                    input.begin() + grpc_header_size + length);

    return ok(std::move(msg));
}

References compressed, data, kcenon::network::protocols::grpc::default_max_message_size, kcenon::network::error, kcenon::network::protocols::grpc::grpc_header_size, kcenon::network::error_codes::common_errors::invalid_argument, and kcenon::network::protocols::grpc::ok.

Referenced by kcenon::network::protocols::grpc::grpc_client::impl::call_raw(), kcenon::network::protocols::grpc::client_stream_writer_impl::on_complete(), kcenon::network::protocols::grpc::bidi_stream_impl::read(), and kcenon::network::protocols::grpc::server_stream_reader_impl::read().

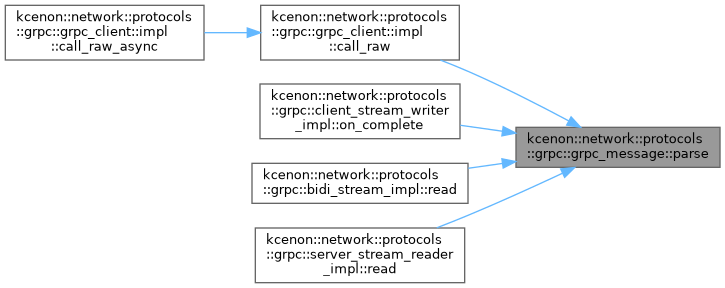

Here is the caller graph for this function:

serialize()

auto kcenon::network::protocols::grpc::grpc_message::serialize

(

)

const -> std::vector<uint8_t>

Serialize message to bytes with length prefix.

Returns

Byte vector containing header + payload

Serializes the message with a 5-byte header prefix.

Definition at line 67 of file frame.cpp.

{
    std::vector<uint8_t> result;
    result.reserve(grpc_header_size + data.size());

    // Compressed flag (1 byte)
    result.push_back(compressed ? 1 : 0);

    // Message length (4 bytes, big-endian)
    uint32_t length = static_cast<uint32_t>(data.size());
    result.push_back(static_cast<uint8_t>((length >> 24) & 0xFF));
    result.push_back(static_cast<uint8_t>((length >> 16) & 0xFF));
    result.push_back(static_cast<uint8_t>((length >> 8) & 0xFF));
    result.push_back(static_cast<uint8_t>(length & 0xFF));

    // Message data
    result.insert(result.end(), data.begin(), data.end());

    return result;
}

References compressed, data, and kcenon::network::protocols::grpc::grpc_header_size.

Referenced by kcenon::network::protocols::grpc::grpc_client::impl::call_raw(), kcenon::network::protocols::grpc::grpc_client::impl::server_stream_raw(), kcenon::network::protocols::grpc::bidi_stream_impl::write(), and kcenon::network::protocols::grpc::client_stream_writer_impl::write().

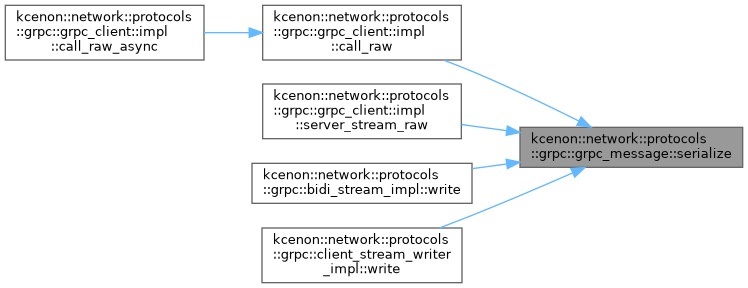

Here is the caller graph for this function:

serialized_size()

auto kcenon::network::protocols::grpc::grpc_message::serialized_size ( ) const -> size_t

inline

Get total serialized size including header.

Returns

Total size in bytes

Definition at line 88 of file frame.h.

        {
            return grpc_header_size + data.size();
        }

References data, and kcenon::network::protocols::grpc::grpc_header_size.

size()

auto kcenon::network::protocols::grpc::grpc_message::size ( ) const -> size_t

inline

Get message size (payload only)

Returns

Payload size in bytes

Definition at line 103 of file frame.h.

{ return data.size(); }

References data.

Member Data Documentation

compressed

bool kcenon::network::protocols::grpc::grpc_message::compressed = false

Whether payload is compressed.

Definition at line 51 of file frame.h.

Referenced by parse(), and serialize().

data

std::vector<uint8_t> kcenon::network::protocols::grpc::grpc_message::data

Message payload.

Examples

grpc_service_example.cpp.

Definition at line 52 of file frame.h.

Referenced by empty(), kcenon::network::protocols::grpc::client_stream_writer_impl::finish(), main(), parse(), serialize(), serialized_size(), and size().

---

The documentation for this struct was generated from the following files:

• include/kcenon/network/detail/protocols/grpc/frame.h
• src/protocols/grpc/frame.cpp
