kcenon::monitoring::plugins::container_plugin Class Reference

Container monitoring plugin aggregating Docker, Kubernetes, and cgroup collectors. More...

#include <container_plugin.h>

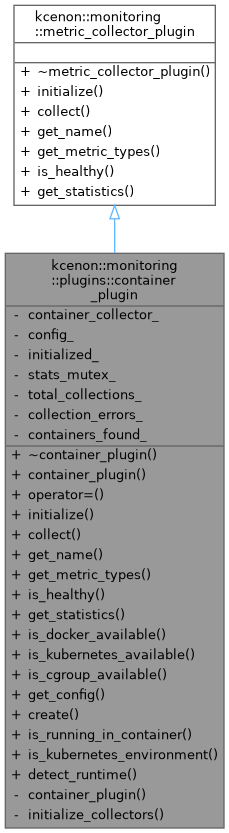

Inheritance diagram for kcenon::monitoring::plugins::container_plugin:

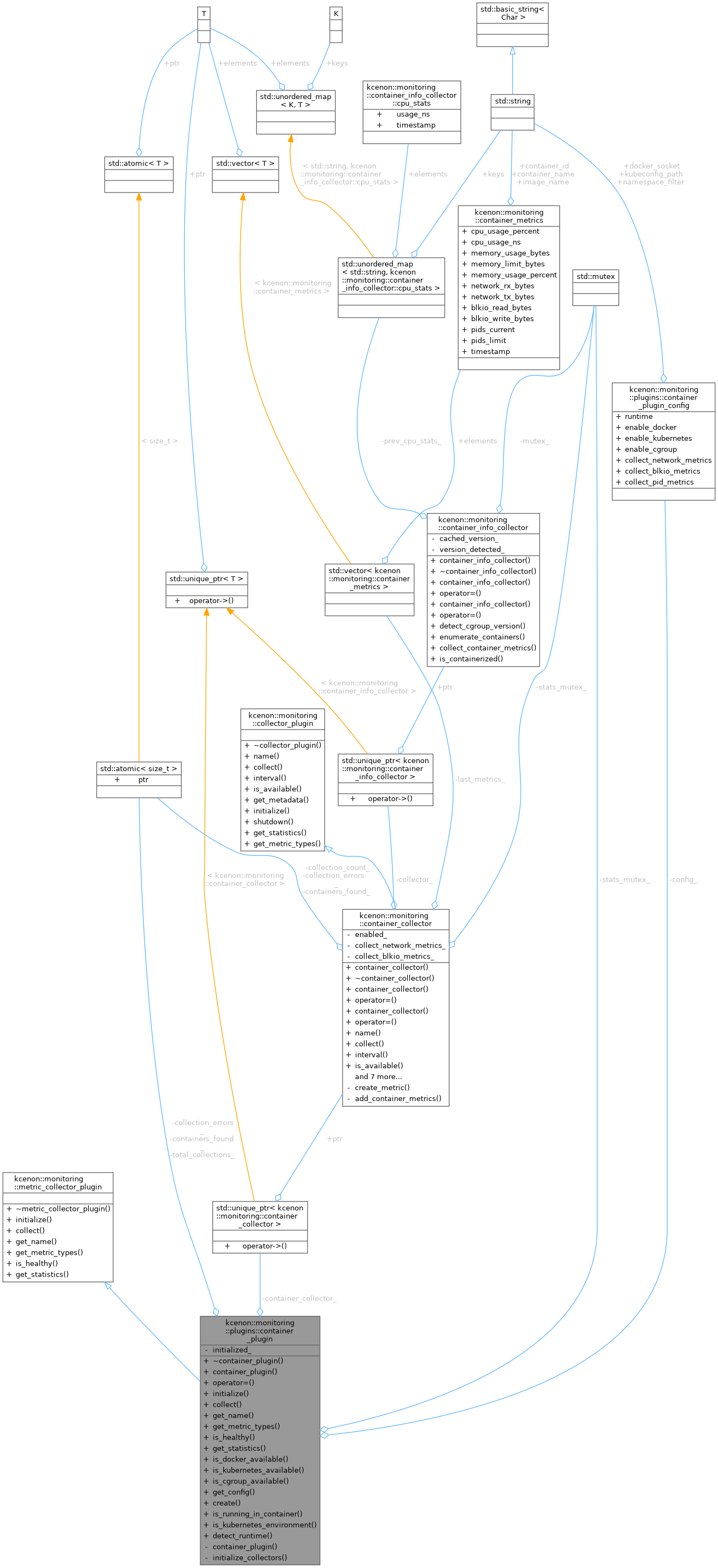

Collaboration diagram for kcenon::monitoring::plugins::container_plugin:

Public Member Functions
	~container_plugin () override
	container_plugin (const container_plugin &)=delete
container_plugin &	operator= (const container_plugin &)=delete
bool	initialize (const std::unordered_map< std::string, std::string > &config) override
std::vector< metric >	collect () override
std::string	get_name () const override
std::vector< std::string >	get_metric_types () const override
bool	is_healthy () const override
std::unordered_map< std::string, double >	get_statistics () const override
bool	is_docker_available () const
bool	is_kubernetes_available () const
bool	is_cgroup_available () const
container_plugin_config	get_config () const
Public Member Functions inherited from kcenon::monitoring::metric_collector_plugin
virtual	~metric_collector_plugin ()=default

Static Public Member Functions
static std::unique_ptr< container_plugin >	create (const container_plugin_config &config={})
static bool	is_running_in_container ()
static bool	is_kubernetes_environment ()
static container_runtime	detect_runtime ()

Private Member Functions
	container_plugin (const container_plugin_config &config)
void	initialize_collectors ()

Private Attributes
std::unique_ptr< container_collector >	container_collector_
container_plugin_config	config_
bool	initialized_ {false}
std::mutex	stats_mutex_
std::atomic< size_t >	total_collections_ {0}
std::atomic< size_t >	collection_errors_ {0}
std::atomic< size_t >	containers_found_ {0}

Detailed Description

Container monitoring plugin aggregating Docker, Kubernetes, and cgroup collectors.

This plugin provides container-specific metrics collection for containerized deployments. For bare-metal deployments, this plugin should not be loaded to reduce binary size and avoid unnecessary collection overhead.

Metrics provided:

• Docker: container CPU/memory/network/I/O, running containers count
• Kubernetes: pod count, restarts, deployment replicas, node resources
• cgroup: CPU time, memory usage/limits, I/O bytes

Definition at line 116 of file container_plugin.h.

Constructor & Destructor Documentation

~container_plugin()

kcenon::monitoring::plugins::container_plugin::~container_plugin ( )

override

container_plugin() [1/2]

kcenon::monitoring::plugins::container_plugin::container_plugin ( const container_plugin & )

delete

container_plugin() [2/2]

kcenon::monitoring::plugins::container_plugin::container_plugin ( const container_plugin_config & config )

explicitprivate

Member Function Documentation

collect()

std::vector< metric > kcenon::monitoring::plugins::container_plugin::collect ( )

overridevirtual

Collect metrics from the data source

Returns

Collection of metrics

Implements kcenon::monitoring::metric_collector_plugin.

create()

static std::unique_ptr< container_plugin > kcenon::monitoring::plugins::container_plugin::create ( const container_plugin_config & config = {} )

static

Create a container plugin instance with configuration

Parameters

config

Plugin configuration options

Returns

Unique pointer to container_plugin instance

detect_runtime()

static container_runtime kcenon::monitoring::plugins::container_plugin::detect_runtime ( )

static

Detect the container runtime in use

Returns

Detected container runtime type

get_config()

container_plugin_config kcenon::monitoring::plugins::container_plugin::get_config

(

)

const

Get the current configuration

Returns

Copy of current configuration

get_metric_types()

std::vector< std::string > kcenon::monitoring::plugins::container_plugin::get_metric_types ( ) const

overridevirtual

Get supported metric types

Returns

Vector of supported metric type names

Implements kcenon::monitoring::metric_collector_plugin.

get_name()

std::string kcenon::monitoring::plugins::container_plugin::get_name ( ) const

overridevirtual

Get the name of this plugin

Returns

Plugin name

Implements kcenon::monitoring::metric_collector_plugin.

get_statistics()

std::unordered_map< std::string, double > kcenon::monitoring::plugins::container_plugin::get_statistics ( ) const

overridevirtual

Get plugin-specific statistics

Returns

Map of statistic name to value

Implements kcenon::monitoring::metric_collector_plugin.

initialize()

bool kcenon::monitoring::plugins::container_plugin::initialize ( const std::unordered_map< std::string, std::string > & config )

overridevirtual

Initialize the plugin with configuration

Parameters

config

Plugin-specific configuration

Returns

true if initialization successful

Implements kcenon::monitoring::metric_collector_plugin.

initialize_collectors()

void kcenon::monitoring::plugins::container_plugin::initialize_collectors ( )

private

is_cgroup_available()

bool kcenon::monitoring::plugins::container_plugin::is_cgroup_available

(

)

const

Check if cgroup metrics are available

Returns

True if cgroup filesystem is accessible

is_docker_available()

bool kcenon::monitoring::plugins::container_plugin::is_docker_available

(

)

const

Check if Docker metrics are available

Returns

True if Docker daemon is accessible

is_healthy()

bool kcenon::monitoring::plugins::container_plugin::is_healthy ( ) const

overridevirtual

Check if the plugin is healthy

Returns

true if plugin is operational

Implements kcenon::monitoring::metric_collector_plugin.

is_kubernetes_available()

bool kcenon::monitoring::plugins::container_plugin::is_kubernetes_available

(

)

const

Check if Kubernetes metrics are available

Returns

True if Kubernetes API is accessible

is_kubernetes_environment()

static bool kcenon::monitoring::plugins::container_plugin::is_kubernetes_environment ( )

static

Check if running in a Kubernetes environment

Returns

True if Kubernetes environment variables are detected

is_running_in_container()

static bool kcenon::monitoring::plugins::container_plugin::is_running_in_container ( )

static

Check if running inside a container

Returns

True if the current process is running inside a container

operator=()

container_plugin & kcenon::monitoring::plugins::container_plugin::operator= ( const container_plugin & )

delete

Member Data Documentation

collection_errors_

std::atomic<size_t> kcenon::monitoring::plugins::container_plugin::collection_errors_ {0}

private

Definition at line 194 of file container_plugin.h.

{0};

config_

container_plugin_config kcenon::monitoring::plugins::container_plugin::config_

private

Definition at line 188 of file container_plugin.h.

container_collector_

std::unique_ptr<container_collector> kcenon::monitoring::plugins::container_plugin::container_collector_

private

Definition at line 185 of file container_plugin.h.

containers_found_

std::atomic<size_t> kcenon::monitoring::plugins::container_plugin::containers_found_ {0}

private

Definition at line 195 of file container_plugin.h.

{0};

initialized_

bool kcenon::monitoring::plugins::container_plugin::initialized_ {false}

private

Definition at line 189 of file container_plugin.h.

{false};

stats_mutex_

std::mutex kcenon::monitoring::plugins::container_plugin::stats_mutex_

mutableprivate

Definition at line 192 of file container_plugin.h.

total_collections_

std::atomic<size_t> kcenon::monitoring::plugins::container_plugin::total_collections_ {0}

private

Definition at line 193 of file container_plugin.h.

{0};

---

The documentation for this class was generated from the following file:

• include/kcenon/monitoring/plugins/container/container_plugin.h
