#include <container_collector.h>

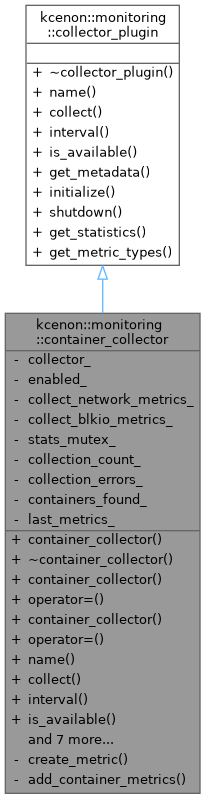

Inheritance diagram for kcenon::monitoring::container_collector:

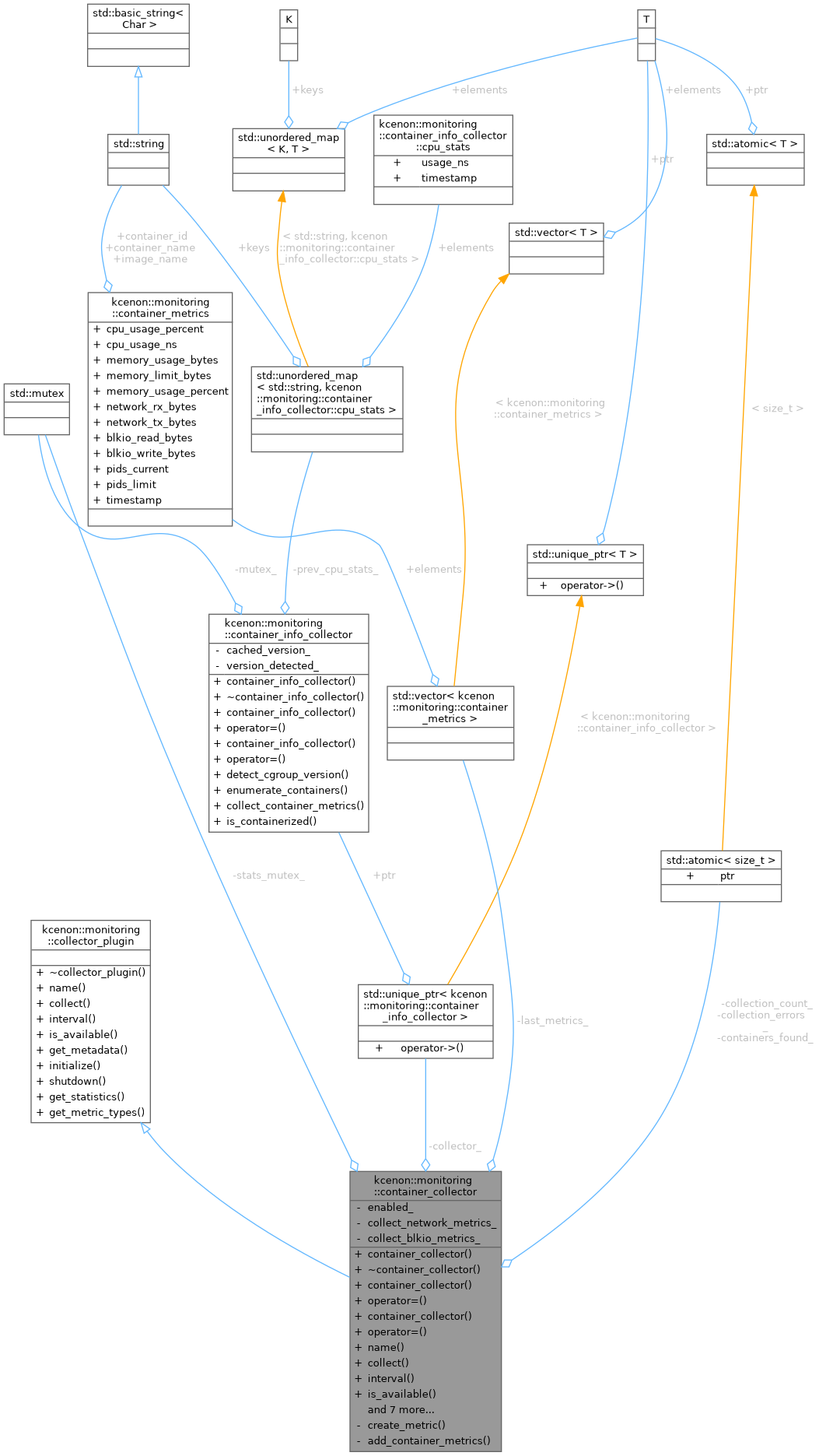

Collaboration diagram for kcenon::monitoring::container_collector:

Public Member Functions
	container_collector ()

	~container_collector () override=default

	container_collector (const container_collector &)=delete

container_collector &	operator= (const container_collector &)=delete

	container_collector (container_collector &&)=delete

container_collector &	operator= (container_collector &&)=delete

auto	name () const -> std::string_view override
	Get the unique name of this plugin.

auto	collect () -> std::vector< metric > override
	Collect current metrics from this plugin.

auto	interval () const -> std::chrono::milliseconds override
	Get the collection interval for this plugin.

auto	is_available () const -> bool override
	Check if this plugin is available on the current system.

auto	get_metric_types () const -> std::vector< std::string > override
	Get supported metric types.

auto	get_metadata () const -> plugin_metadata override
	Get plugin metadata.

auto	initialize (const config_map &config) -> bool override
	Initialize plugin with configuration.

void	shutdown () override
	Shutdown plugin and release resources.

auto	get_statistics () const -> stats_map override
	Get plugin statistics.

std::vector< container_metrics >	get_last_metrics () const

bool	is_container_environment () const

Public Member Functions inherited from kcenon::monitoring::collector_plugin
virtual	~collector_plugin ()=default

Private Member Functions
metric	create_metric (const std::string &name, double value, const container_metrics &container, const std::string &unit="") const

void	add_container_metrics (std::vector< metric > &metrics, const container_metrics &container)

Private Attributes
std::unique_ptr< container_info_collector >	collector_

bool	enabled_ {true}

bool	collect_network_metrics_ {true}

bool	collect_blkio_metrics_ {true}

std::mutex	stats_mutex_

std::atomic< size_t >	collection_count_ {0}

std::atomic< size_t >	collection_errors_ {0}

std::atomic< size_t >	containers_found_ {0}

std::vector< container_metrics >	last_metrics_

Detailed Description

Container metrics collector implementing the collector_plugin interface Collects metrics from Docker containers and cgroups

Definition at line 154 of file container_collector.h.

Constructor & Destructor Documentation

◆ container_collector() [1/3]

kcenon::monitoring::container_collector::container_collector ( )

◆ ~container_collector()

kcenon::monitoring::container_collector::~container_collector ( )

overridedefault

◆ container_collector() [2/3]

kcenon::monitoring::container_collector::container_collector ( const container_collector & )

delete

◆ container_collector() [3/3]

kcenon::monitoring::container_collector::container_collector ( container_collector && )

delete

Member Function Documentation

◆ add_container_metrics()

void kcenon::monitoring::container_collector::add_container_metrics	(	std::vector< metric > &	metrics,
		const container_metrics &	container )

private

◆ collect()

auto kcenon::monitoring::container_collector::collect ( ) -> std::vector< metric >

overridevirtual

Collect current metrics from this plugin.

Returns: Vector of collected metrics

This method is called periodically based on interval(). Implementations should:

Return quickly (< 100ms recommended)
Handle errors gracefully (return empty vector on failure)
Be thread-safe if concurrent collection is enabled
Avoid blocking I/O when possible

Implements kcenon::monitoring::collector_plugin.

◆ create_metric()

metric kcenon::monitoring::container_collector::create_metric	(	const std::string &	name,
		double	value,
		const container_metrics &	container,
		const std::string &	unit = "" ) const

private

◆ get_last_metrics()

std::vector< container_metrics > kcenon::monitoring::container_collector::get_last_metrics ( ) const

Get last collected container metrics

Returns: Vector of container metrics

◆ get_metadata()

auto kcenon::monitoring::container_collector::get_metadata ( ) const -> plugin_metadata

inlineoverridevirtual

Get plugin metadata.

Returns: Metadata describing this plugin

Default implementation returns minimal metadata. Override to provide rich plugin information.

Reimplemented from kcenon::monitoring::collector_plugin.

Definition at line 172 of file container_collector.h.

                                                          {
        return plugin_metadata{
            .name = name(),
            .description = "Container metrics from Docker and cgroups",
            .category = plugin_category::system,
            .version = "1.0.0",
            .dependencies = {},
            .requires_platform_support = true  // Linux-specific
        };
    }

References name(), and kcenon::monitoring::system.

Here is the call graph for this function:

◆ get_metric_types()

auto kcenon::monitoring::container_collector::get_metric_types ( ) const -> std::vector< std::string >

overridevirtual

Get supported metric types.

Returns: Vector of metric type names this plugin produces

Used for filtering and documentation.

Implements kcenon::monitoring::collector_plugin.

◆ get_statistics()

auto kcenon::monitoring::container_collector::get_statistics ( ) const -> stats_map

overridevirtual

Get plugin statistics.

Returns: Map of statistic name to value

Optional: Override to provide plugin-specific statistics.

Reimplemented from kcenon::monitoring::collector_plugin.

◆ initialize()

auto kcenon::monitoring::container_collector::initialize ( const config_map & ) -> bool

overridevirtual

Initialize plugin with configuration.

Parameters

config Configuration key-value pairs

Returns: True if initialization succeeded

Called once after plugin registration. Optional: Default implementation always succeeds.

Reimplemented from kcenon::monitoring::collector_plugin.

◆ interval()

auto kcenon::monitoring::container_collector::interval ( ) const -> std::chrono::milliseconds

inlineoverridevirtual

Get the collection interval for this plugin.

Returns: Collection interval in milliseconds

The registry uses this value to schedule collection tasks. Typical values:

Fast metrics (CPU, memory): 1-5 seconds
Slow metrics (disk, network): 10-60 seconds
Very slow metrics (SMART data): 5-15 minutes

Implements kcenon::monitoring::collector_plugin.

Definition at line 168 of file container_collector.h.

168{ return std::chrono::seconds(10); }

◆ is_available()

auto kcenon::monitoring::container_collector::is_available ( ) const -> bool

overridevirtual

Check if this plugin is available on the current system.

Returns: True if plugin can collect metrics, false otherwise

Availability checks may include:

Platform compatibility (Linux-only, Windows-only)
Hardware presence (GPU, sensors)
Permission checks (root required)
Resource availability (proc filesystem, WMI)

The registry may skip unavailable plugins during registration.

Implements kcenon::monitoring::collector_plugin.

◆ is_container_environment()

bool kcenon::monitoring::container_collector::is_container_environment ( ) const

Check if container metrics are available

Returns: True if running in a containerized environment

◆ name()

auto kcenon::monitoring::container_collector::name ( ) const -> std::string_view

inlineoverridevirtual

Get the unique name of this plugin.

Returns: Plugin name (must be unique within registry)

The name is used for:

Plugin lookup and discovery
Configuration mapping
Metric tagging (added as "collector" tag)

Implements kcenon::monitoring::collector_plugin.

Definition at line 166 of file container_collector.h.

166{ return "container"; }

Referenced by get_metadata().

Here is the caller graph for this function:

◆ operator=() [1/2]

container_collector & kcenon::monitoring::container_collector::operator= ( const container_collector & )

delete

◆ operator=() [2/2]

container_collector & kcenon::monitoring::container_collector::operator= ( container_collector && )

delete

◆ shutdown()

void kcenon::monitoring::container_collector::shutdown ( )

inlineoverridevirtual

Shutdown plugin and release resources.

Called before plugin destruction. Optional: Default implementation is no-op.

Reimplemented from kcenon::monitoring::collector_plugin.

Definition at line 184 of file container_collector.h.

184{}

Member Data Documentation

◆ collect_blkio_metrics_

bool kcenon::monitoring::container_collector::collect_blkio_metrics_ {true}

private

Definition at line 205 of file container_collector.h.

205{true};

◆ collect_network_metrics_

bool kcenon::monitoring::container_collector::collect_network_metrics_ {true}

private

Definition at line 204 of file container_collector.h.

204{true};

◆ collection_count_

std::atomic<size_t> kcenon::monitoring::container_collector::collection_count_ {0}

private

Definition at line 209 of file container_collector.h.

209{0};

◆ collection_errors_

std::atomic<size_t> kcenon::monitoring::container_collector::collection_errors_ {0}

private

Definition at line 210 of file container_collector.h.

210{0};

◆ collector_

std::unique_ptr<container_info_collector> kcenon::monitoring::container_collector::collector_

private

Definition at line 200 of file container_collector.h.

◆ containers_found_

std::atomic<size_t> kcenon::monitoring::container_collector::containers_found_ {0}

private

Definition at line 211 of file container_collector.h.

211{0};

◆ enabled_

bool kcenon::monitoring::container_collector::enabled_ {true}

private

Definition at line 203 of file container_collector.h.

203{true};

◆ last_metrics_

std::vector<container_metrics> kcenon::monitoring::container_collector::last_metrics_

private

Definition at line 212 of file container_collector.h.

◆ stats_mutex_

std::mutex kcenon::monitoring::container_collector::stats_mutex_

mutableprivate

Definition at line 208 of file container_collector.h.

The documentation for this class was generated from the following file:

include/kcenon/monitoring/collectors/container_collector.h
