kcenon::monitoring::metric Struct Reference

Basic metric structure for interface compatibility. More...

#include <metric_types_adapter.h>

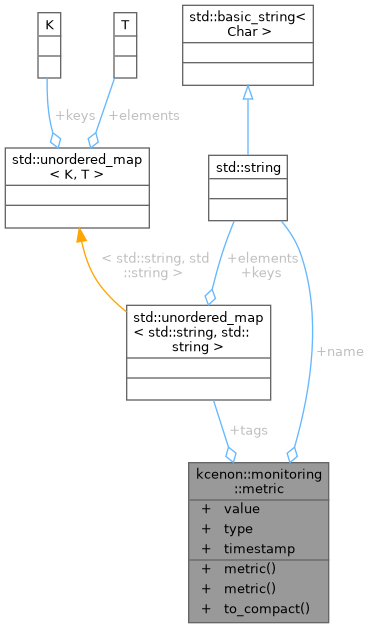

Collaboration diagram for kcenon::monitoring::metric:

Public Member Functions
	metric ()
	metric (const std::string &n, const std::variant< double, int64_t, std::string > &v, const std::unordered_map< std::string, std::string > &t, metric_type mt=metric_type::gauge)
compact_metric_value	to_compact () const

Public Attributes
std::string	name
std::variant< double, int64_t, std::string >	value
std::unordered_map< std::string, std::string >	tags
metric_type	type {metric_type::gauge}
std::chrono::system_clock::time_point	timestamp

Detailed Description

Basic metric structure for interface compatibility.

A generic metric container that can hold different value types (double, int64_t, or string) along with metadata tags and type information. Supports conversion to compact representation for efficient storage.

Thread Safety:

This struct is NOT thread-safe. External synchronization is required when accessed from multiple threads.

Examples

basic_monitoring_example.cpp, bidirectional_di_example.cpp, monitor_factory_pattern_example.cpp, plugin_collector_example.cpp, plugin_example/plugin_loader_example.cpp, and storage_example.cpp.

Definition at line 53 of file metric_types_adapter.h.

Constructor & Destructor Documentation

metric() [1/2]

kcenon::monitoring::metric::metric ( )

inline

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/metric_types_adapter.h.

Definition at line 60 of file metric_types_adapter.h.

: timestamp(std::chrono::system_clock::now()) {}

metric() [2/2]

kcenon::monitoring::metric::metric ( const std::string & n, const std::variant< double, int64_t, std::string > & v, const std::unordered_map< std::string, std::string > & t, metric_type mt = metric_type::gauge )

inline

Definition at line 62 of file metric_types_adapter.h.

        : name(n), value(v), tags(t), type(mt),
          timestamp(std::chrono::system_clock::now()) {}

Member Function Documentation

to_compact()

compact_metric_value kcenon::monitoring::metric::to_compact ( ) const

inline

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/metric_types_adapter.h.

Definition at line 69 of file metric_types_adapter.h.

                                            {
        // Simple hash function for name
        uint32_t hash = 0;
        for (char c : name) {
            hash = hash * 31 + static_cast<uint32_t>(c);
        }

        metric_metadata meta(hash, type, static_cast<uint8_t>(tags.size()));

        if (std::holds_alternative<double>(value)) {
            return compact_metric_value(meta, std::get<double>(value));
        } else if (std::holds_alternative<int64_t>(value)) {
            return compact_metric_value(meta, std::get<int64_t>(value));
        } else {
            return compact_metric_value(meta, std::get<std::string>(value));
        }
    }

References name, tags, type, and value.

Member Data Documentation

name

std::string kcenon::monitoring::metric::name

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/metric_types_adapter.h, basic_monitoring_example.cpp, bidirectional_di_example.cpp, plugin_collector_example.cpp, plugin_example/plugin_loader_example.cpp, and storage_example.cpp.

Definition at line 54 of file metric_types_adapter.h.

Referenced by kcenon::monitoring::logger_to_monitoring_adapter::collect_metrics(), kcenon::monitoring::opentelemetry_metrics_adapter::convert_metrics(), kcenon::monitoring::opentelemetry_metrics_adapter::convert_monitoring_data(), kcenon::monitoring::prometheus_exporter::convert_monitoring_data(), kcenon::monitoring::statsd_exporter::convert_monitoring_data(), kcenon::monitoring::prometheus_exporter::convert_snapshot(), kcenon::monitoring::statsd_exporter::convert_snapshot(), demo_bidirectional_integration(), demo_logger_with_monitor(), kcenon::monitoring::performance_monitor_adapter::get_metrics(), main(), main(), kcenon::monitoring::otlp_metrics_exporter::serialize_metrics(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and to_compact().

tags

std::unordered_map<std::string, std::string> kcenon::monitoring::metric::tags

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/metric_types_adapter.h, and storage_example.cpp.

Definition at line 56 of file metric_types_adapter.h.

Referenced by kcenon::monitoring::statsd_exporter::convert_monitoring_data(), kcenon::monitoring::statsd_exporter::convert_snapshot(), kcenon::monitoring::performance_monitor_adapter::get_metrics(), main(), TEST_F(), and to_compact().

timestamp

std::chrono::system_clock::time_point kcenon::monitoring::metric::timestamp

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/metric_types_adapter.h, and storage_example.cpp.

Definition at line 58 of file metric_types_adapter.h.

Referenced by kcenon::monitoring::logger_to_monitoring_adapter::collect_metrics(), kcenon::monitoring::opentelemetry_metrics_adapter::convert_metrics(), kcenon::monitoring::opentelemetry_metrics_adapter::convert_monitoring_data(), kcenon::monitoring::prometheus_exporter::convert_monitoring_data(), kcenon::monitoring::prometheus_exporter::convert_snapshot(), kcenon::monitoring::performance_monitor_adapter::get_metrics(), main(), TEST_F(), and TEST_F().

type

metric_type kcenon::monitoring::metric::type {metric_type::gauge}

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/metric_types_adapter.h.

Definition at line 57 of file metric_types_adapter.h.

{metric_type::gauge};

Referenced by kcenon::monitoring::prometheus_exporter::convert_monitoring_data(), kcenon::monitoring::statsd_exporter::convert_monitoring_data(), kcenon::monitoring::prometheus_exporter::convert_snapshot(), kcenon::monitoring::statsd_exporter::convert_snapshot(), TEST_F(), and to_compact().

value

std::variant<double, int64_t, std::string> kcenon::monitoring::metric::value

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/metric_types_adapter.h, bidirectional_di_example.cpp, monitor_factory_pattern_example.cpp, plugin_collector_example.cpp, plugin_example/plugin_loader_example.cpp, and storage_example.cpp.

Definition at line 55 of file metric_types_adapter.h.

Referenced by kcenon::monitoring::logger_to_monitoring_adapter::collect_metrics(), kcenon::monitoring::opentelemetry_metrics_adapter::convert_metrics(), kcenon::monitoring::opentelemetry_metrics_adapter::convert_monitoring_data(), kcenon::monitoring::prometheus_exporter::convert_monitoring_data(), kcenon::monitoring::statsd_exporter::convert_monitoring_data(), kcenon::monitoring::prometheus_exporter::convert_snapshot(), kcenon::monitoring::statsd_exporter::convert_snapshot(), demo_bidirectional_integration(), demo_logger_with_monitor(), aggregating_monitor::get_metrics(), kcenon::monitoring::performance_monitor_adapter::get_metrics(), main(), main(), kcenon::monitoring::otlp_metrics_exporter::serialize_metrics(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and to_compact().

---

The documentation for this struct was generated from the following file:

• include/kcenon/monitoring/interfaces/metric_types_adapter.h
