Event data for job execution tracing. More...

#include <execution_event.h>

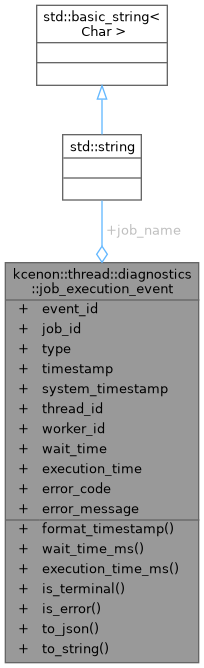

Collaboration diagram for kcenon::thread::diagnostics::job_execution_event:

Public Member Functions
auto	format_timestamp () const -> std::string
	Formats the event timestamp as ISO 8601 string.

auto	wait_time_ms () const -> double
	Converts wait_time to milliseconds.

auto	execution_time_ms () const -> double
	Converts execution_time to milliseconds.

auto	is_terminal () const -> bool
	Checks if this is a terminal event (job finished).

auto	is_error () const -> bool
	Checks if this event indicates an error.

auto	to_json () const -> std::string
	Converts the event to a JSON string.

auto	to_string () const -> std::string
	Converts the event to a human-readable string.

Public Attributes
std::uint64_t	event_id {0}
	Unique identifier for this event.

std::uint64_t	job_id {0}
	ID of the job this event relates to.

std::string	job_name
	Human-readable name of the job.

event_type	type {event_type::enqueued}
	Type of event that occurred.

std::chrono::steady_clock::time_point	timestamp
	Time when the event occurred.

std::chrono::system_clock::time_point	system_timestamp
	System time when the event occurred.

std::thread::id	thread_id
	ID of the thread that processed this event.

std::size_t	worker_id {0}
	Worker ID that processed this job.

std::chrono::nanoseconds	wait_time {0}
	Time spent waiting in queue before dequeue.

std::chrono::nanoseconds	execution_time {0}
	Time spent executing the job.

std::optional< int >	error_code
	Error code if the job failed.

std::optional< std::string >	error_message
	Error message if the job failed.

Detailed Description

Event data for job execution tracing.

Contains detailed information about a job execution event, suitable for logging, tracing, and monitoring purposes.

Event Flow

enqueued → dequeued → started → completed/failed/cancelled
                                 ↓
                              retried → started → ...

Usage Example

pool->diagnostics().add_event_listener(
    std::make_shared<MyEventLogger>()
);

// In MyEventLogger::on_event
void on_event(const job_execution_event& event) override {
    LOG_INFO("{} [job:{}] {}",
             event.format_timestamp(),
             event.job_name,
             event_type_to_string(event.type));
}

Definition at line 97 of file execution_event.h.

Member Function Documentation

◆ execution_time_ms()

auto kcenon::thread::diagnostics::job_execution_event::execution_time_ms ( ) const -> double

inlinenodiscard

Converts execution_time to milliseconds.

Returns: Execution time in milliseconds.

Definition at line 212 of file execution_event.h.

        {
            return std::chrono::duration<double, std::milli>(execution_time).count();
        }

References execution_time.

Referenced by to_json(), and to_string().

Here is the caller graph for this function:

◆ format_timestamp()

auto kcenon::thread::diagnostics::job_execution_event::format_timestamp ( ) const -> std::string

inlinenodiscard

Formats the event timestamp as ISO 8601 string.

Returns: Formatted timestamp string.

Definition at line 185 of file execution_event.h.

        {
            auto time_t = std::chrono::system_clock::to_time_t(system_timestamp);
            auto ms = std::chrono::duration_cast<std::chrono::milliseconds>(
                system_timestamp.time_since_epoch()) % 1000;

            char buffer[32];
            std::strftime(buffer, sizeof(buffer), "%Y-%m-%dT%H:%M:%S",
                          std::gmtime(&time_t));

            return std::string(buffer) + "." +
                   std::to_string(ms.count()) + "Z";
        }

References system_timestamp.

Referenced by to_json(), and to_string().

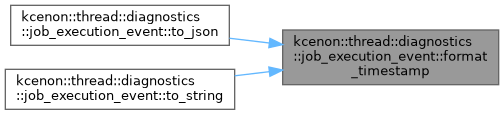

Here is the caller graph for this function:

◆ is_error()

auto kcenon::thread::diagnostics::job_execution_event::is_error ( ) const -> bool

inlinenodiscard

Checks if this event indicates an error.

Returns: true if failed or cancelled.

Definition at line 232 of file execution_event.h.

        {
            return type == event_type::failed ||
                   type == event_type::cancelled;
        }

References kcenon::thread::diagnostics::cancelled, kcenon::thread::diagnostics::failed, and type.

◆ is_terminal()

auto kcenon::thread::diagnostics::job_execution_event::is_terminal ( ) const -> bool

inlinenodiscard

Checks if this is a terminal event (job finished).

Returns: true if completed, failed, or cancelled.

Definition at line 221 of file execution_event.h.

        {
            return type == event_type::completed ||
                   type == event_type::failed ||
                   type == event_type::cancelled;
        }

References kcenon::thread::diagnostics::cancelled, kcenon::thread::diagnostics::completed, kcenon::thread::diagnostics::failed, and type.

◆ to_json()

auto kcenon::thread::diagnostics::job_execution_event::to_json ( ) const -> std::string

inlinenodiscard

Converts the event to a JSON string.

Returns: JSON representation of the event.

Output format:

{
  "event_id": 123,
  "job_id": 456,
  "job_name": "ProcessOrder",
  "type": "completed",
  "timestamp": "2025-01-08T10:30:00.123Z",
  "thread_id": "12345",
  "worker_id": 0,
  "wait_time_ms": 1.5,
  "execution_time_ms": 10.2,
  "error_code": null,
  "error_message": null
}

Definition at line 259 of file execution_event.h.

        {
            std::ostringstream oss;
            oss << "{\n";
            oss << "  \"event_id\": " << event_id << ",\n";
            oss << "  \"job_id\": " << job_id << ",\n";
            oss << "  \"job_name\": \"" << job_name << "\",\n";
            oss << "  \"type\": \"" << event_type_to_string(type) << "\",\n";
            oss << "  \"timestamp\": \"" << format_timestamp() << "\",\n";

            // Format thread_id as string
            std::ostringstream tid_oss;
            tid_oss << thread_id;
            oss << "  \"thread_id\": \"" << tid_oss.str() << "\",\n";

            oss << "  \"worker_id\": " << worker_id << ",\n";
            oss << std::fixed << std::setprecision(3);
            oss << "  \"wait_time_ms\": " << wait_time_ms() << ",\n";
            oss << "  \"execution_time_ms\": " << execution_time_ms();

            if (error_code.has_value())
            {
                oss << ",\n  \"error_code\": " << error_code.value();
            }
            else
            {
                oss << ",\n  \"error_code\": null";
            }

            if (error_message.has_value())
            {
                oss << ",\n  \"error_message\": \"" << error_message.value() << "\"";
            }
            else
            {
                oss << ",\n  \"error_message\": null";
            }

            oss << "\n}";
            return oss.str();
        }

References error_message, event_id, kcenon::thread::diagnostics::event_type_to_string(), execution_time_ms(), format_timestamp(), job_name, thread_id, type, wait_time_ms(), and worker_id.

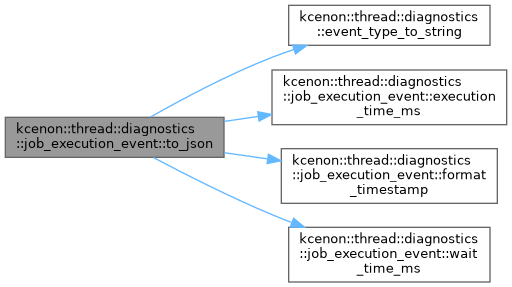

Here is the call graph for this function:

◆ to_string()

auto kcenon::thread::diagnostics::job_execution_event::to_string ( ) const -> std::string

inlinenodiscard

Converts the event to a human-readable string.

Returns: String representation of the event.

Output format:

[2025-01-08T10:30:00.123Z] Event#123 job:ProcessOrder#456 type:completed

worker:0 thread:12345 wait:1.500ms exec:10.200ms

kcenon::thread::job

Represents a unit of work (task) to be executed, typically by a job queue.

Definition job.h:136

Definition at line 311 of file execution_event.h.

        {
            std::ostringstream oss;

            // First line: timestamp, event info, job info, type
            oss << "[" << format_timestamp() << "] ";
            oss << "Event#" << event_id << " ";
            oss << "job:" << job_name << "#" << job_id << " ";
            oss << "type:" << event_type_to_string(type) << "\n";

            // Second line: worker, thread, timing
            oss << "  worker:" << worker_id << " ";
            oss << "thread:" << thread_id << " ";
            oss << std::fixed << std::setprecision(3);
            oss << "wait:" << wait_time_ms() << "ms ";
            oss << "exec:" << execution_time_ms() << "ms";

            // Error info if present
            if (error_code.has_value() || error_message.has_value())
            {
                oss << "\n  error:";
                if (error_code.has_value())
                {
                    oss << " code=" << error_code.value();
                }
                if (error_message.has_value())
                {
                    oss << " msg=\"" << error_message.value() << "\"";
                }
            }

            return oss.str();
        }

References error_message, event_id, kcenon::thread::diagnostics::event_type_to_string(), execution_time_ms(), format_timestamp(), job_name, thread_id, type, wait_time_ms(), and worker_id.

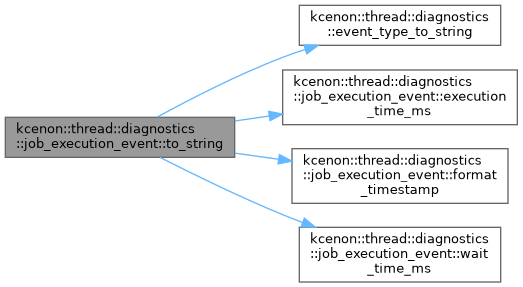

Here is the call graph for this function:

◆ wait_time_ms()

auto kcenon::thread::diagnostics::job_execution_event::wait_time_ms ( ) const -> double

inlinenodiscard

Converts wait_time to milliseconds.

Returns: Wait time in milliseconds.

Definition at line 203 of file execution_event.h.

        {
            return std::chrono::duration<double, std::milli>(wait_time).count();
        }

References wait_time.

Referenced by to_json(), and to_string().

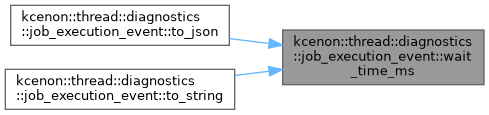

Here is the caller graph for this function:

Member Data Documentation

◆ error_code

std::optional<int> kcenon::thread::diagnostics::job_execution_event::error_code

Error code if the job failed.

Definition at line 170 of file execution_event.h.

Referenced by kcenon::thread::thread_worker::do_work().

◆ error_message

std::optional<std::string> kcenon::thread::diagnostics::job_execution_event::error_message

Error message if the job failed.

Definition at line 175 of file execution_event.h.

Referenced by kcenon::thread::thread_worker::do_work(), to_json(), and to_string().

◆ event_id

std::uint64_t kcenon::thread::diagnostics::job_execution_event::event_id {0}

Unique identifier for this event.

Monotonically increasing within the thread pool lifetime.

Definition at line 104 of file execution_event.h.

104{0};

Referenced by to_json(), and to_string().

◆ execution_time

std::chrono::nanoseconds kcenon::thread::diagnostics::job_execution_event::execution_time {0}

Time spent executing the job.

Only valid for completed, failed, cancelled events.

Definition at line 161 of file execution_event.h.

161{0};

Referenced by kcenon::thread::thread_worker::do_work(), and execution_time_ms().

◆ job_id

std::uint64_t kcenon::thread::diagnostics::job_execution_event::job_id {0}

ID of the job this event relates to.

Definition at line 109 of file execution_event.h.

109{0};

Referenced by kcenon::thread::thread_worker::do_work().

◆ job_name

std::string kcenon::thread::diagnostics::job_execution_event::job_name

Human-readable name of the job.

Definition at line 114 of file execution_event.h.

Referenced by kcenon::thread::thread_worker::do_work(), to_json(), and to_string().

◆ system_timestamp

std::chrono::system_clock::time_point kcenon::thread::diagnostics::job_execution_event::system_timestamp

System time when the event occurred.

Used for logging and correlation with external systems.

Definition at line 131 of file execution_event.h.

Referenced by kcenon::thread::thread_worker::do_work(), and format_timestamp().

◆ thread_id

std::thread::id kcenon::thread::diagnostics::job_execution_event::thread_id

ID of the thread that processed this event.

May be empty for enqueued events.

Definition at line 138 of file execution_event.h.

Referenced by kcenon::thread::thread_worker::do_work(), to_json(), and to_string().

◆ timestamp

std::chrono::steady_clock::time_point kcenon::thread::diagnostics::job_execution_event::timestamp

Time when the event occurred.

Definition at line 124 of file execution_event.h.

Referenced by kcenon::thread::thread_worker::do_work().

◆ type

event_type kcenon::thread::diagnostics::job_execution_event::type {event_type::enqueued}

Type of event that occurred.

Definition at line 119 of file execution_event.h.

119{event_type::enqueued};

Referenced by kcenon::thread::thread_worker::do_work(), is_error(), is_terminal(), to_json(), and to_string().

◆ wait_time

std::chrono::nanoseconds kcenon::thread::diagnostics::job_execution_event::wait_time {0}

Time spent waiting in queue before dequeue.

Only valid for dequeued, started events and later.

Definition at line 154 of file execution_event.h.

154{0};

Referenced by kcenon::thread::thread_worker::do_work(), and wait_time_ms().

◆ worker_id

std::size_t kcenon::thread::diagnostics::job_execution_event::worker_id {0}

Worker ID that processed this job.

Definition at line 143 of file execution_event.h.

143{0};

Referenced by kcenon::thread::thread_worker::do_work(), to_json(), and to_string().

The documentation for this struct was generated from the following file:

include/kcenon/thread/diagnostics/execution_event.h

Public Member Functions

Public Attributes

Detailed Description

Event Flow

Usage Example

Member Function Documentation

◆ execution_time_ms()

◆ format_timestamp()

◆ is_error()

◆ is_terminal()

◆ to_json()

◆ to_string()

◆ wait_time_ms()

Member Data Documentation

◆ error_code

◆ error_message

◆ event_id

◆ execution_time

◆ job_id

◆ job_name

◆ system_timestamp

◆ thread_id

◆ timestamp

◆ type

◆ wait_time

◆ worker_id
