kcenon::thread::token_bucket Class Reference

Lock-free token bucket rate limiter for controlling throughput. More...

#include <token_bucket.h>

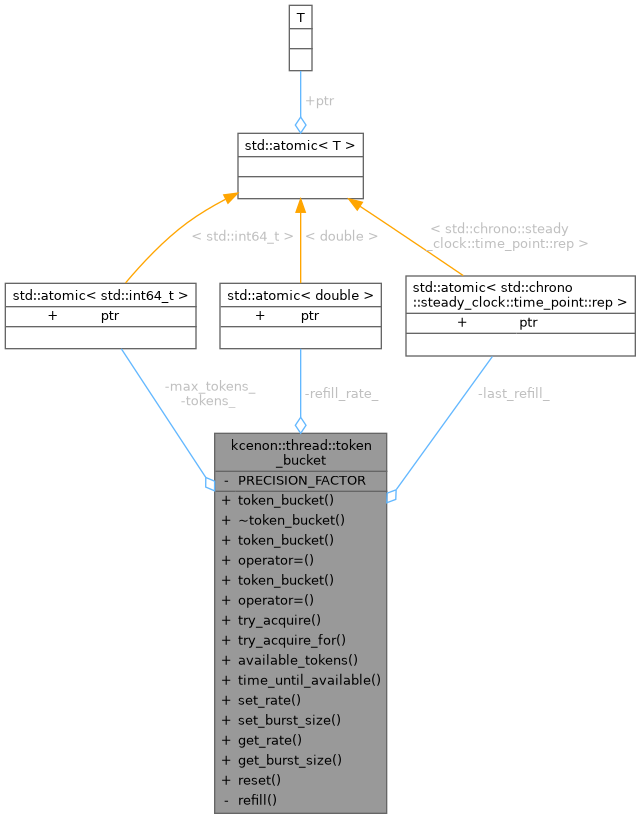

Collaboration diagram for kcenon::thread::token_bucket:

Public Member Functions
	token_bucket (std::size_t tokens_per_second, std::size_t burst_size)
	Constructs a token bucket with the specified rate and burst size.
	~token_bucket ()=default
	Default destructor.
	token_bucket (const token_bucket &)=delete
token_bucket &	operator= (const token_bucket &)=delete
	token_bucket (token_bucket &&)=delete
token_bucket &	operator= (token_bucket &&)=delete
auto	try_acquire (std::size_t tokens=1) -> bool
	Attempts to acquire tokens without waiting.
auto	try_acquire_for (std::size_t tokens, std::chrono::milliseconds timeout) -> bool
	Attempts to acquire tokens with a timeout.
auto	available_tokens () const -> std::size_t
	Returns the current number of available tokens.
auto	time_until_available (std::size_t tokens) const -> std::chrono::nanoseconds
	Calculates time until the specified tokens become available.
auto	set_rate (std::size_t tokens_per_second) -> void
	Updates the token refill rate.
auto	set_burst_size (std::size_t burst_size) -> void
	Updates the maximum bucket capacity.
auto	get_rate () const -> std::size_t
	Returns the current refill rate.
auto	get_burst_size () const -> std::size_t
	Returns the maximum bucket capacity.
auto	reset () -> void
	Resets the bucket to full capacity.

Private Member Functions
auto	refill () -> void
	Refills tokens based on elapsed time since last refill.

Private Attributes
std::atomic< std::int64_t >	tokens_
	Current token count (scaled by 1000 for sub-token precision).
std::atomic< std::int64_t >	max_tokens_
	Maximum tokens (burst size) scaled by precision factor.
std::atomic< double >	refill_rate_
	Token refill rate in nano-tokens per nanosecond.
std::atomic< std::chrono::steady_clock::time_point::rep >	last_refill_
	Timestamp of last token refill.

Static Private Attributes
static constexpr std::int64_t	PRECISION_FACTOR = 1000
	Precision factor for fixed-point token calculations.

Detailed Description

Lock-free token bucket rate limiter for controlling throughput.

The token bucket algorithm is a metering mechanism that controls the rate at which operations can proceed. Tokens are added to a bucket at a fixed rate, and operations consume tokens. If no tokens are available, the operation either waits or is rejected.

Design Principles

• Lock-free: Uses atomic operations for thread-safe token management
• Continuous Refill: Tokens are calculated on-demand, not via timer
• Burst Support: Allows bursts up to bucket capacity
• Configurable: Rate and burst size can be adjusted at runtime

Algorithm

tokens = min(max_tokens, tokens + elapsed_time * refill_rate)
if (tokens >= requested) {
    tokens -= requested
    return success
}
return failure

Thread Safety

All methods are thread-safe and lock-free. Multiple threads can concurrently acquire tokens without blocking each other.

Usage Example

// Create bucket: 1000 tokens/sec, burst of 100
token_bucket bucket(1000, 100);

// Try to acquire token (non-blocking)
if (bucket.try_acquire()) {
    process_request();
}

// Wait up to 100ms for token
if (bucket.try_acquire_for(1, std::chrono::milliseconds{100})) {
    process_request();
}

See also

backpressure_config For integration with job queues

Definition at line 68 of file token_bucket.h.

Constructor & Destructor Documentation

token_bucket() [1/3]

kcenon::thread::token_bucket::token_bucket	(	std::size_t	tokens_per_second,
		std::size_t	burst_size )

Constructs a token bucket with the specified rate and burst size.

Constructs a token bucket with the specified rate and capacity.

Parameters

tokens_per_second	Number of tokens added per second.
burst_size	Maximum tokens that can accumulate (bucket capacity).

The bucket starts full (burst_size tokens available).

Implementation details:

• Initializes tokens to maximum capacity (full bucket)
• Calculates refill rate as tokens per nanosecond (for high precision)
• Records initial timestamp for refill calculations
• Uses fixed-point arithmetic (PRECISION_FACTOR = 1000) for sub-token precision

Parameters

tokens_per_second	Number of tokens to add per second
burst_size	Maximum tokens that can accumulate

Definition at line 33 of file token_bucket.cpp.

        : tokens_(static_cast<std::int64_t>(burst_size) * PRECISION_FACTOR)
        , max_tokens_(static_cast<std::int64_t>(burst_size) * PRECISION_FACTOR)
        , refill_rate_(static_cast<double>(tokens_per_second) * PRECISION_FACTOR / 1e9)
        , last_refill_(std::chrono::steady_clock::now().time_since_epoch().count())
    {
    }

~token_bucket()

kcenon::thread::token_bucket::~token_bucket ( )

default

Default destructor.

token_bucket() [2/3]

kcenon::thread::token_bucket::token_bucket ( const token_bucket & )

delete

token_bucket() [3/3]

kcenon::thread::token_bucket::token_bucket ( token_bucket && )

delete

Member Function Documentation

available_tokens()

auto kcenon::thread::token_bucket::available_tokens ( ) const -> std::size_t

nodiscard

Returns the current number of available tokens.

Returns current available tokens.

Returns

Current token count (may be fractional, returned as integer).

This is a snapshot that may become stale immediately in a multi-threaded environment.

Thread Safety: Lock-free read.

Implementation details:

• First refills to get accurate count
• Converts from fixed-point to integer
• Returns 0 if tokens are negative (shouldn't happen)

Returns

Available token count

Definition at line 201 of file token_bucket.cpp.

    {
        // Need non-const refill, but we're returning a snapshot anyway
        const_cast<token_bucket*>(this)->refill();

        std::int64_t current = tokens_.load(std::memory_order_acquire);
        if (current <= 0)
        {
            return 0;
        }
        return static_cast<std::size_t>(current / PRECISION_FACTOR);
    }

References PRECISION_FACTOR, refill(), and tokens_.

Here is the call graph for this function:

get_burst_size()

auto kcenon::thread::token_bucket::get_burst_size ( ) const -> std::size_t

nodiscard

Returns the maximum bucket capacity.

Returns

Maximum tokens (burst size).

Burst size (maximum tokens)

Definition at line 316 of file token_bucket.cpp.

    {
        std::int64_t max = max_tokens_.load(std::memory_order_acquire);
        return static_cast<std::size_t>(max / PRECISION_FACTOR);
    }

References max_tokens_, and PRECISION_FACTOR.

get_rate()

auto kcenon::thread::token_bucket::get_rate ( ) const -> std::size_t

nodiscard

Returns the current refill rate.

Returns

Tokens per second.

Tokens per second

Definition at line 305 of file token_bucket.cpp.

    {
        double rate = refill_rate_.load(std::memory_order_acquire);
        // Convert back: rate * 1e9 / PRECISION_FACTOR
        return static_cast<std::size_t>(rate * 1e9 / PRECISION_FACTOR);
    }

References PRECISION_FACTOR, and refill_rate_.

operator=() [1/2]

token_bucket & kcenon::thread::token_bucket::operator= ( const token_bucket & )

delete

operator=() [2/2]

token_bucket & kcenon::thread::token_bucket::operator= ( token_bucket && )

delete

refill()

auto kcenon::thread::token_bucket::refill ( ) -> void

private

Refills tokens based on elapsed time since last refill.

Uses CAS loop to atomically update both tokens and timestamp. Called internally before each token acquisition attempt.

Implementation details:

• Uses CAS loop to atomically update tokens and timestamp
• Calculates tokens to add based on elapsed nanoseconds
• Caps tokens at max_tokens_ to prevent overflow
• Lock-free: multiple threads can refill concurrently

Algorithm:

1. Read current timestamp
2. Calculate elapsed time since last_refill_
3. Calculate new tokens = current + (elapsed * rate)
4. Cap at max_tokens_
5. CAS update (retry if another thread modified)

Definition at line 57 of file token_bucket.cpp.

    {
        auto now = std::chrono::steady_clock::now().time_since_epoch().count();
        auto last = last_refill_.load(std::memory_order_acquire);

        // Calculate elapsed nanoseconds
        auto elapsed_ns = now - last;
        if (elapsed_ns <= 0)
        {
            return;  // No time passed, nothing to refill
        }

        // Try to update last_refill_ atomically
        if (!last_refill_.compare_exchange_weak(
                last, now,
                std::memory_order_acq_rel,
                std::memory_order_relaxed))
        {
            // Another thread updated, our calculation is stale
            return;
        }

        // Calculate tokens to add
        double rate = refill_rate_.load(std::memory_order_relaxed);
        auto new_tokens = static_cast<std::int64_t>(elapsed_ns * rate);

        if (new_tokens <= 0)
        {
            return;
        }

        // Add tokens (capped at max)
        std::int64_t max = max_tokens_.load(std::memory_order_relaxed);
        std::int64_t current = tokens_.load(std::memory_order_relaxed);
        std::int64_t updated = std::min(current + new_tokens, max);

        // Relaxed CAS is fine here since we're just accumulating
        tokens_.compare_exchange_weak(
            current, updated,
            std::memory_order_relaxed,
            std::memory_order_relaxed);
    }

Referenced by available_tokens().

Here is the caller graph for this function:

reset()

auto kcenon::thread::token_bucket::reset

(

)

-> void

Resets the bucket to full capacity.

Restores tokens to burst_size and resets the last refill time.

Thread Safety: Lock-free write.

Implementation details:

• Sets tokens to max_tokens_
• Updates last_refill_ to current time
• Useful for manual intervention or testing

Definition at line 330 of file token_bucket.cpp.

    {
        std::int64_t max = max_tokens_.load(std::memory_order_acquire);
        tokens_.store(max, std::memory_order_release);
        last_refill_.store(
            std::chrono::steady_clock::now().time_since_epoch().count(),
            std::memory_order_release);
    }

set_burst_size()

auto kcenon::thread::token_bucket::set_burst_size

(

std::size_t

burst_size

)

-> void

Updates the maximum bucket capacity.

Parameters

burst_size

New maximum tokens.

If current tokens exceed new capacity, excess tokens are discarded.

Thread Safety: Lock-free write.

Implementation details:

• Updates max_tokens_ atomically
• If current tokens exceed new max, caps them

Parameters

burst_size

New maximum capacity

Definition at line 282 of file token_bucket.cpp.

    {
        std::int64_t new_max = static_cast<std::int64_t>(burst_size) * PRECISION_FACTOR;
        max_tokens_.store(new_max, std::memory_order_release);

        // Cap current tokens if they exceed new max
        std::int64_t current = tokens_.load(std::memory_order_acquire);
        while (current > new_max)
        {
            if (tokens_.compare_exchange_weak(
                    current, new_max,
                    std::memory_order_acq_rel,
                    std::memory_order_acquire))
            {
                break;
            }
        }
    }

set_rate()

auto kcenon::thread::token_bucket::set_rate

(

std::size_t

tokens_per_second

)

-> void

Updates the token refill rate.

Parameters

tokens_per_second

New tokens per second rate.

Takes effect immediately. Does not affect currently accumulated tokens.

Thread Safety: Lock-free write.

Implementation details:

• First refills with old rate to preserve accumulated tokens
• Then updates rate for future refills
• Converts tokens/second to tokens/nanosecond

Parameters

tokens_per_second

New refill rate

Definition at line 263 of file token_bucket.cpp.

    {
        // Refill with current rate before changing
        refill();

        // Update rate (tokens per nanosecond, scaled by precision)
        double new_rate = static_cast<double>(tokens_per_second) * PRECISION_FACTOR / 1e9;
        refill_rate_.store(new_rate, std::memory_order_release);
    }

time_until_available()

auto kcenon::thread::token_bucket::time_until_available ( std::size_t tokens ) const -> std::chrono::nanoseconds

nodiscard

Calculates time until the specified tokens become available.

Calculates time until tokens become available.

Parameters

tokens

Number of tokens needed.

Returns

Duration until tokens will be available (0 if already available).

Useful for implementing waiting strategies or displaying estimated wait times to users.

Thread Safety: Lock-free calculation.

Implementation details:

• If sufficient tokens exist, returns 0
• Otherwise, calculates time based on deficit and refill rate
• Returns duration in nanoseconds for maximum precision

Parameters

tokens

Number of tokens needed

Returns

Duration until tokens available (0 if already available)

Definition at line 225 of file token_bucket.cpp.

    {
        const_cast<token_bucket*>(this)->refill();

        std::int64_t needed = static_cast<std::int64_t>(tokens) * PRECISION_FACTOR;
        std::int64_t current = tokens_.load(std::memory_order_acquire);

        if (current >= needed)
        {
            return std::chrono::nanoseconds{0};
        }

        // Calculate deficit
        std::int64_t deficit = needed - current;

        // Time = deficit / rate (rate is in tokens per nanosecond)
        double rate = refill_rate_.load(std::memory_order_relaxed);
        if (rate <= 0)
        {
            // Infinite wait if rate is zero
            return std::chrono::nanoseconds::max();
        }

        auto wait_ns = static_cast<std::int64_t>(deficit / rate);
        return std::chrono::nanoseconds{wait_ns};
    }

try_acquire()

auto kcenon::thread::token_bucket::try_acquire ( std::size_t tokens = 1 ) -> bool

nodiscard

Attempts to acquire tokens without waiting.

Parameters

tokens

Number of tokens to acquire (default: 1).

Returns

true if tokens were acquired, false if insufficient tokens.

This method is non-blocking and returns immediately. If the bucket doesn't have enough tokens, the operation fails without waiting.

Thread Safety: Lock-free, safe for concurrent calls.

Implementation details:

• First refills bucket based on elapsed time
• Then attempts atomic decrement if sufficient tokens
• Uses CAS loop to handle concurrent acquisitions
• Returns immediately if insufficient tokens

Thread Safety:

• Lock-free via CAS loop
• Multiple threads can acquire concurrently
• Fair in the sense that all competing threads have equal chance

Parameters

tokens

Number of tokens to acquire

Returns

true if acquired, false if insufficient

Definition at line 117 of file token_bucket.cpp.

    {
        // First, refill based on elapsed time
        refill();

        // Scale requested tokens by precision factor
        std::int64_t needed = static_cast<std::int64_t>(tokens) * PRECISION_FACTOR;

        // CAS loop to atomically decrement tokens
        std::int64_t current = tokens_.load(std::memory_order_acquire);
        while (current >= needed)
        {
            if (tokens_.compare_exchange_weak(
                    current, current - needed,
                    std::memory_order_acq_rel,
                    std::memory_order_acquire))
            {
                return true;  // Successfully acquired
            }
            // CAS failed, current has been updated, retry
        }

        return false;  // Insufficient tokens
    }

try_acquire_for()

auto kcenon::thread::token_bucket::try_acquire_for ( std::size_t tokens, std::chrono::milliseconds timeout ) -> bool

nodiscard

Attempts to acquire tokens with a timeout.

Attempts to acquire tokens with timeout and backoff.

Parameters

tokens	Number of tokens to acquire.
timeout	Maximum time to wait for tokens.

Returns

true if tokens were acquired within timeout, false otherwise.

This method will spin-wait (with backoff) until either:

• Enough tokens become available (returns true)
• The timeout expires (returns false)

Implementation uses exponential backoff to reduce CPU usage while waiting for token refill.

Thread Safety: Lock-free with cooperative spin-waiting.

Implementation details:

• Uses exponential backoff to reduce CPU usage while waiting
• Backoff starts at 1μs, doubles each iteration, caps at 1ms
• Checks deadline after each failed attempt
• Returns as soon as tokens are acquired

Backoff Strategy:

• Initial: 1μs sleep
• Max: 1ms sleep
• Multiplier: 2x per iteration
• Purpose: Balance responsiveness vs CPU usage

Parameters

tokens	Number of tokens to acquire
timeout	Maximum time to wait

Returns

true if acquired within timeout, false otherwise

Definition at line 161 of file token_bucket.cpp.

    {
        auto deadline = std::chrono::steady_clock::now() + timeout;

        // Start with small backoff, increase exponentially
        auto backoff = std::chrono::microseconds{1};
        constexpr auto max_backoff = std::chrono::milliseconds{1};

        while (std::chrono::steady_clock::now() < deadline)
        {
            if (try_acquire(tokens))
            {
                return true;
            }

            // Sleep with exponential backoff
            std::this_thread::sleep_for(backoff);

            // Double backoff, cap at max
            backoff = std::min(
                backoff * 2,
                std::chrono::duration_cast<std::chrono::microseconds>(max_backoff));
        }

        // Final attempt after loop
        return try_acquire(tokens);
    }

Member Data Documentation

last_refill_

std::atomic<std::chrono::steady_clock::time_point::rep> kcenon::thread::token_bucket::last_refill_

private

Timestamp of last token refill.

Definition at line 219 of file token_bucket.h.

max_tokens_

std::atomic<std::int64_t> kcenon::thread::token_bucket::max_tokens_

private

Maximum tokens (burst size) scaled by precision factor.

Definition at line 207 of file token_bucket.h.

Referenced by get_burst_size().

PRECISION_FACTOR

std::int64_t kcenon::thread::token_bucket::PRECISION_FACTOR = 1000

staticconstexprprivate

Precision factor for fixed-point token calculations.

Using 1000 allows for milli-token precision without floating point.

Definition at line 226 of file token_bucket.h.

Referenced by available_tokens(), get_burst_size(), and get_rate().

refill_rate_

std::atomic<double> kcenon::thread::token_bucket::refill_rate_

private

Token refill rate in nano-tokens per nanosecond.

Calculated as: (tokens_per_second * PRECISION_FACTOR) / 1e9

Definition at line 214 of file token_bucket.h.

Referenced by get_rate().

tokens_

std::atomic<std::int64_t> kcenon::thread::token_bucket::tokens_

private

Current token count (scaled by 1000 for sub-token precision).

We use fixed-point arithmetic to avoid floating-point atomics. Actual tokens = tokens_ / PRECISION_FACTOR

Definition at line 202 of file token_bucket.h.

Referenced by available_tokens().

---

The documentation for this class was generated from the following files:

• include/kcenon/thread/core/token_bucket.h
• src/core/token_bucket.cpp
