Abstract base class for thread pool metrics. More...

#include <metrics_base.h>

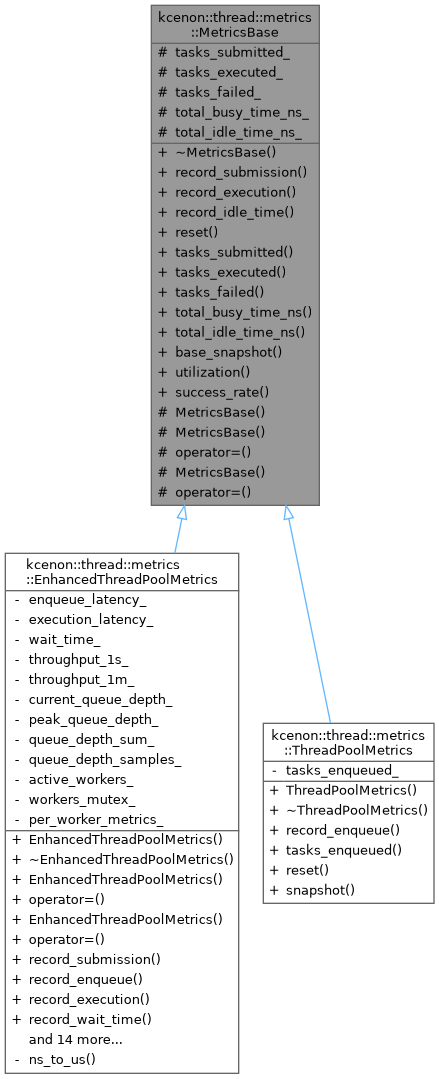

Inheritance diagram for kcenon::thread::metrics::MetricsBase:

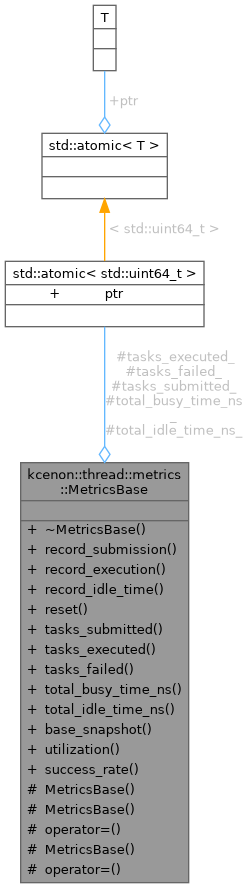

Collaboration diagram for kcenon::thread::metrics::MetricsBase:

Public Member Functions
virtual	~MetricsBase ()=default
	Virtual destructor for proper cleanup in derived classes.

void	record_submission (std::size_t count=1)
	Record task submission(s).

void	record_execution (std::uint64_t duration_ns, bool success)
	Record task execution completion.

void	record_idle_time (std::uint64_t duration_ns)
	Record idle time.

virtual void	reset ()
	Reset all metrics to their initial state.

std::uint64_t	tasks_submitted () const
	Get the total number of tasks submitted.

std::uint64_t	tasks_executed () const
	Get the total number of tasks successfully executed.

std::uint64_t	tasks_failed () const
	Get the total number of failed tasks.

std::uint64_t	total_busy_time_ns () const
	Get the total busy time in nanoseconds.

std::uint64_t	total_idle_time_ns () const
	Get the total idle time in nanoseconds.

BaseSnapshot	base_snapshot () const
	Get a base snapshot of common metrics.

double	utilization () const
	Calculate worker utilization ratio.

double	success_rate () const
	Calculate task success rate.

Protected Member Functions
	MetricsBase ()=default
	Default constructor.

	MetricsBase (const MetricsBase &)=delete
	Copy constructor (deleted for thread safety).

MetricsBase &	operator= (const MetricsBase &)=delete
	Copy assignment operator (deleted for thread safety).

	MetricsBase (MetricsBase &&)=delete
	Move constructor (deleted for thread safety).

MetricsBase &	operator= (MetricsBase &&)=delete
	Move assignment operator (deleted for thread safety).

Protected Attributes
std::atomic< std::uint64_t >	tasks_submitted_ {0}
	Counter for submitted tasks.

std::atomic< std::uint64_t >	tasks_executed_ {0}
	Counter for successfully executed tasks.

std::atomic< std::uint64_t >	tasks_failed_ {0}
	Counter for failed tasks.

std::atomic< std::uint64_t >	total_busy_time_ns_ {0}
	Accumulated busy time in nanoseconds.

std::atomic< std::uint64_t >	total_idle_time_ns_ {0}
	Accumulated idle time in nanoseconds.

Detailed Description

Abstract base class for thread pool metrics.

This class provides the common atomic counters and recording methods shared between ThreadPoolMetrics and EnhancedThreadPoolMetrics, eliminating code duplication while maintaining a consistent interface.

Thread Safety

All methods are thread-safe using lock-free atomic operations with relaxed memory ordering for optimal performance.

Performance Characteristics

record_* overhead: < 50ns (single atomic fetch_add)
Memory footprint: 40 bytes (5 atomic counters)

Usage

This class is not intended to be used directly. Use ThreadPoolMetrics for lightweight metrics or EnhancedThreadPoolMetrics for full-featured production observability.

See also: ThreadPoolMetrics; EnhancedThreadPoolMetrics

Definition at line 84 of file metrics_base.h.

Constructor & Destructor Documentation

◆ ~MetricsBase()

virtual kcenon::thread::metrics::MetricsBase::~MetricsBase ( )

virtualdefault

Virtual destructor for proper cleanup in derived classes.

◆ MetricsBase() [1/3]

kcenon::thread::metrics::MetricsBase::MetricsBase ( )

protecteddefault

Default constructor.

◆ MetricsBase() [2/3]

kcenon::thread::metrics::MetricsBase::MetricsBase ( const MetricsBase & )

protecteddelete

Copy constructor (deleted for thread safety).

◆ MetricsBase() [3/3]

kcenon::thread::metrics::MetricsBase::MetricsBase ( MetricsBase && )

protecteddelete

Move constructor (deleted for thread safety).

Member Function Documentation

◆ base_snapshot()

BaseSnapshot kcenon::thread::metrics::MetricsBase::base_snapshot ( ) const

inlinenodiscard

Get a base snapshot of common metrics.

Returns: BaseSnapshot with current metric values.

Definition at line 187 of file metrics_base.h.

                                                     {
        return BaseSnapshot{
            tasks_submitted_.load(std::memory_order_relaxed),
            tasks_executed_.load(std::memory_order_relaxed),
            tasks_failed_.load(std::memory_order_relaxed),
            total_busy_time_ns_.load(std::memory_order_relaxed),
            total_idle_time_ns_.load(std::memory_order_relaxed),
        };
    }

References tasks_executed_, tasks_failed_, tasks_submitted_, total_busy_time_ns_, and total_idle_time_ns_.

◆ operator=() [1/2]

MetricsBase & kcenon::thread::metrics::MetricsBase::operator= ( const MetricsBase & )

protecteddelete

Copy assignment operator (deleted for thread safety).

◆ operator=() [2/2]

MetricsBase & kcenon::thread::metrics::MetricsBase::operator= ( MetricsBase && )

protecteddelete

Move assignment operator (deleted for thread safety).

◆ record_execution()

void kcenon::thread::metrics::MetricsBase::record_execution	(	std::uint64_t	duration_ns,
		bool	success )

inline

Record task execution completion.

Parameters

duration_ns	Execution duration in nanoseconds.
success	Whether the task completed successfully.

Definition at line 108 of file metrics_base.h.

                                                                 {
        if (success) {
            tasks_executed_.fetch_add(1, std::memory_order_relaxed);
        } else {
            tasks_failed_.fetch_add(1, std::memory_order_relaxed);
        }
        total_busy_time_ns_.fetch_add(duration_ns, std::memory_order_relaxed);
    }

References kcenon::thread::success, tasks_executed_, tasks_failed_, and total_busy_time_ns_.

◆ record_idle_time()

void kcenon::thread::metrics::MetricsBase::record_idle_time ( std::uint64_t duration_ns )

inline

Record idle time.

Parameters

duration_ns Idle duration in nanoseconds.

Definition at line 121 of file metrics_base.h.

                                                   {
        total_idle_time_ns_.fetch_add(duration_ns, std::memory_order_relaxed);
    }

References total_idle_time_ns_.

◆ record_submission()

void kcenon::thread::metrics::MetricsBase::record_submission ( std::size_t count = 1 )

inline

Record task submission(s).

Parameters

count Number of tasks submitted (default: 1).

Definition at line 99 of file metrics_base.h.

                                                {
        tasks_submitted_.fetch_add(count, std::memory_order_relaxed);
    }

References tasks_submitted_.

◆ reset()

virtual void kcenon::thread::metrics::MetricsBase::reset ( )

inlinevirtual

Reset all metrics to their initial state.

Derived classes should override this method to reset their additional metrics, but must call the base implementation.

Reimplemented in kcenon::thread::metrics::EnhancedThreadPoolMetrics, and kcenon::thread::metrics::ThreadPoolMetrics.

Definition at line 131 of file metrics_base.h.

                         {
        tasks_submitted_.store(0, std::memory_order_relaxed);
        tasks_executed_.store(0, std::memory_order_relaxed);
        tasks_failed_.store(0, std::memory_order_relaxed);
        total_busy_time_ns_.store(0, std::memory_order_relaxed);
        total_idle_time_ns_.store(0, std::memory_order_relaxed);
    }

References tasks_executed_, tasks_failed_, tasks_submitted_, total_busy_time_ns_, and total_idle_time_ns_.

Referenced by kcenon::thread::metrics::EnhancedThreadPoolMetrics::reset(), and kcenon::thread::metrics::ThreadPoolMetrics::reset().

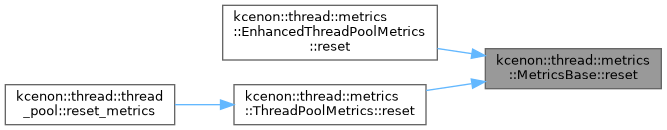

Here is the caller graph for this function:

◆ success_rate()

double kcenon::thread::metrics::MetricsBase::success_rate ( ) const

inlinenodiscard

Calculate task success rate.

Returns: Success rate (0.0 - 1.0), or 1.0 if no tasks executed.

Calculated as: executed / (executed + failed)

Definition at line 216 of file metrics_base.h.

                                              {
        const auto executed = tasks_executed_.load(std::memory_order_relaxed);
        const auto failed = tasks_failed_.load(std::memory_order_relaxed);
        const auto total = executed + failed;
        return (total > 0) ? static_cast<double>(executed) / static_cast<double>(total) : 1.0;
    }

References kcenon::thread::failed, tasks_executed_, and tasks_failed_.

◆ tasks_executed()

std::uint64_t kcenon::thread::metrics::MetricsBase::tasks_executed ( ) const

inlinenodiscard

Get the total number of tasks successfully executed.

Returns: Number of executed tasks.

Definition at line 155 of file metrics_base.h.

                                                     {
        return tasks_executed_.load(std::memory_order_relaxed);
    }

References tasks_executed_.

Referenced by kcenon::thread::metrics::EnhancedThreadPoolMetrics::snapshot(), and kcenon::thread::metrics::ThreadPoolMetrics::snapshot().

Here is the caller graph for this function:

◆ tasks_failed()

std::uint64_t kcenon::thread::metrics::MetricsBase::tasks_failed ( ) const

inlinenodiscard

Get the total number of failed tasks.

Returns: Number of failed tasks.

Definition at line 163 of file metrics_base.h.

                                                   {
        return tasks_failed_.load(std::memory_order_relaxed);
    }

References tasks_failed_.

Referenced by kcenon::thread::metrics::EnhancedThreadPoolMetrics::snapshot(), and kcenon::thread::metrics::ThreadPoolMetrics::snapshot().

Here is the caller graph for this function:

◆ tasks_submitted()

std::uint64_t kcenon::thread::metrics::MetricsBase::tasks_submitted ( ) const

inlinenodiscard

Get the total number of tasks submitted.

Returns: Number of submitted tasks.

Definition at line 147 of file metrics_base.h.

                                                      {
        return tasks_submitted_.load(std::memory_order_relaxed);
    }

References tasks_submitted_.

Referenced by kcenon::thread::metrics::EnhancedThreadPoolMetrics::snapshot(), and kcenon::thread::metrics::ThreadPoolMetrics::snapshot().

Here is the caller graph for this function:

◆ total_busy_time_ns()

std::uint64_t kcenon::thread::metrics::MetricsBase::total_busy_time_ns ( ) const

inlinenodiscard

Get the total busy time in nanoseconds.

Returns: Total busy time across all workers.

Definition at line 171 of file metrics_base.h.

                                                         {
        return total_busy_time_ns_.load(std::memory_order_relaxed);
    }

References total_busy_time_ns_.

Referenced by kcenon::thread::metrics::EnhancedThreadPoolMetrics::snapshot(), and kcenon::thread::metrics::ThreadPoolMetrics::snapshot().

Here is the caller graph for this function:

◆ total_idle_time_ns()

std::uint64_t kcenon::thread::metrics::MetricsBase::total_idle_time_ns ( ) const

inlinenodiscard

Get the total idle time in nanoseconds.

Returns: Total idle time across all workers.

Definition at line 179 of file metrics_base.h.

                                                         {
        return total_idle_time_ns_.load(std::memory_order_relaxed);
    }

References total_idle_time_ns_.

Referenced by kcenon::thread::metrics::EnhancedThreadPoolMetrics::snapshot(), and kcenon::thread::metrics::ThreadPoolMetrics::snapshot().

Here is the caller graph for this function:

◆ utilization()

double kcenon::thread::metrics::MetricsBase::utilization ( ) const

inlinenodiscard

Calculate worker utilization ratio.

Returns: Utilization ratio (0.0 - 1.0), or 0.0 if no time recorded.

Calculated as: busy_time / (busy_time + idle_time)

Definition at line 203 of file metrics_base.h.

                                             {
        const auto busy = total_busy_time_ns_.load(std::memory_order_relaxed);
        const auto idle = total_idle_time_ns_.load(std::memory_order_relaxed);
        const auto total = busy + idle;
        return (total > 0) ? static_cast<double>(busy) / static_cast<double>(total) : 0.0;
    }

References kcenon::thread::idle, total_busy_time_ns_, and total_idle_time_ns_.

Member Data Documentation

◆ tasks_executed_

std::atomic<std::uint64_t> kcenon::thread::metrics::MetricsBase::tasks_executed_ {0}

protected

Counter for successfully executed tasks.

Definition at line 261 of file metrics_base.h.

261{0};

Referenced by base_snapshot(), kcenon::thread::metrics::EnhancedThreadPoolMetrics::record_execution(), record_execution(), reset(), success_rate(), and tasks_executed().

◆ tasks_failed_

std::atomic<std::uint64_t> kcenon::thread::metrics::MetricsBase::tasks_failed_ {0}

protected

Counter for failed tasks.

Definition at line 266 of file metrics_base.h.

266{0};

Referenced by base_snapshot(), kcenon::thread::metrics::EnhancedThreadPoolMetrics::record_execution(), record_execution(), reset(), success_rate(), and tasks_failed().

◆ tasks_submitted_

std::atomic<std::uint64_t> kcenon::thread::metrics::MetricsBase::tasks_submitted_ {0}

protected

Counter for submitted tasks.

Definition at line 256 of file metrics_base.h.

256{0};

Referenced by base_snapshot(), kcenon::thread::metrics::EnhancedThreadPoolMetrics::record_submission(), record_submission(), reset(), and tasks_submitted().

◆ total_busy_time_ns_

std::atomic<std::uint64_t> kcenon::thread::metrics::MetricsBase::total_busy_time_ns_ {0}

protected

Accumulated busy time in nanoseconds.

Definition at line 271 of file metrics_base.h.

271{0};

Referenced by base_snapshot(), record_execution(), kcenon::thread::metrics::EnhancedThreadPoolMetrics::record_worker_state(), reset(), total_busy_time_ns(), and utilization().

◆ total_idle_time_ns_

std::atomic<std::uint64_t> kcenon::thread::metrics::MetricsBase::total_idle_time_ns_ {0}

protected

Accumulated idle time in nanoseconds.

Definition at line 276 of file metrics_base.h.

276{0};

Referenced by base_snapshot(), record_idle_time(), kcenon::thread::metrics::EnhancedThreadPoolMetrics::record_worker_state(), reset(), total_idle_time_ns(), and utilization().

The documentation for this class was generated from the following file:

include/kcenon/thread/metrics/metrics_base.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Thread Safety

Performance Characteristics

Usage

Constructor & Destructor Documentation

◆ ~MetricsBase()

◆ MetricsBase() [1/3]

◆ MetricsBase() [2/3]

◆ MetricsBase() [3/3]

Member Function Documentation

◆ base_snapshot()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ record_execution()

◆ record_idle_time()

◆ record_submission()

◆ reset()

◆ success_rate()

◆ tasks_executed()

◆ tasks_failed()

◆ tasks_submitted()

◆ total_busy_time_ns()

◆ total_idle_time_ns()

◆ utilization()

Member Data Documentation

◆ tasks_executed_

◆ tasks_failed_

◆ tasks_submitted_

◆ total_busy_time_ns_

◆ total_idle_time_ns_
