wsi_iod_validator.h File Reference

VL Whole Slide Microscopy Image IOD Validator. More...

#include "kcenon/pacs/core/dicom_dataset.h"
#include "kcenon/pacs/core/dicom_tag.h"
#include "kcenon/pacs/services/validation/us_iod_validator.h"
#include <string>
#include <vector>

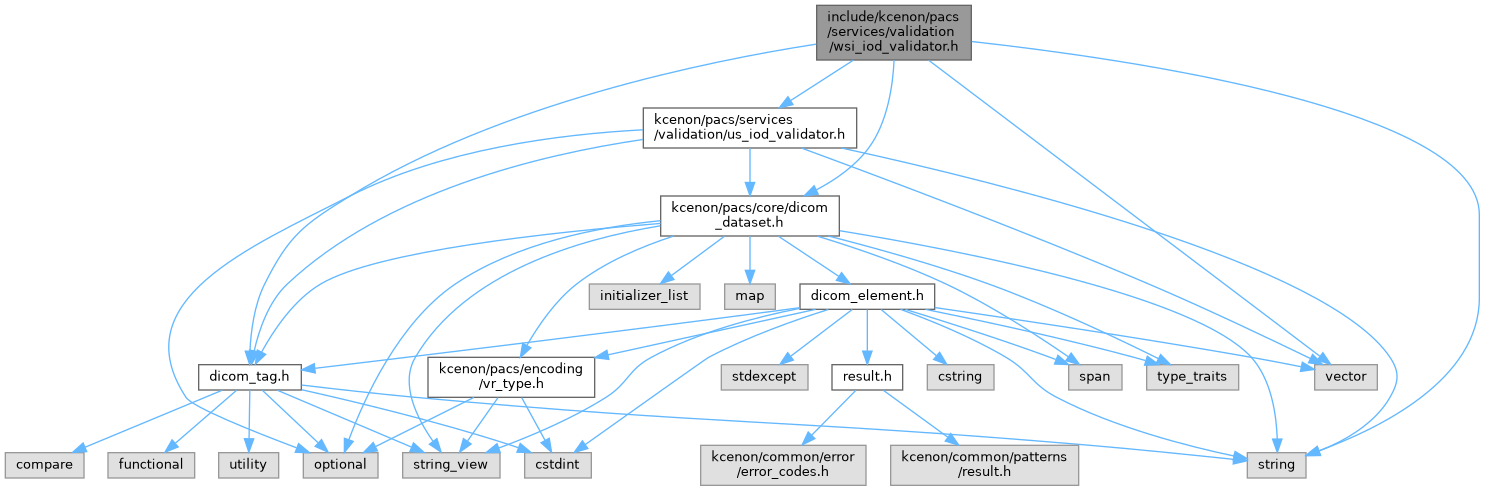

Include dependency graph for wsi_iod_validator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::validation::wsi_validation_options
	Options for WSI IOD validation. More...
class	kcenon::pacs::services::validation::wsi_iod_validator

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::validation
namespace	kcenon::pacs::services::validation::wsi_iod_tags

Functions
validation_result	kcenon::pacs::services::validation::validate_wsi_iod (const core::dicom_dataset &dataset)
	Validate a WSI dataset with default options.
bool	kcenon::pacs::services::validation::is_valid_wsi_dataset (const core::dicom_dataset &dataset)
	Quick check if a dataset is a valid WSI image.

Variables
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::total_pixel_matrix_columns {0x0048, 0x0006}
	Total Pixel Matrix Columns (0048,0006)
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::total_pixel_matrix_rows {0x0048, 0x0007}
	Total Pixel Matrix Rows (0048,0007)
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::total_pixel_matrix_focal_planes {0x0048, 0x0008}
	Total Pixel Matrix Focal Planes (0048,0008)
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::image_orientation_slide {0x0048, 0x0102}
	Image Orientation (Slide) (0048,0102)
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::dimension_organization_type {0x0020, 0x9311}
	Dimension Organization Type (0020,9311)
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::number_of_frames {0x0028, 0x0008}
	Number of Frames (0028,0008)
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::imaged_volume_width {0x0048, 0x0001}
	Imaged Volume Width (0048,0001) — physical width in mm.
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::imaged_volume_height {0x0048, 0x0002}
	Imaged Volume Height (0048,0002) — physical height in mm.
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::optical_path_identifier {0x0048, 0x0105}
	Optical Path Identifier (0048,0105)
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::optical_path_description {0x0048, 0x0106}
	Optical Path Description (0048,0106)
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::specimen_identifier {0x0040, 0x0551}
	Specimen Identifier (0040,0551)
constexpr core::dicom_tag	kcenon::pacs::services::validation::wsi_iod_tags::container_identifier {0x0040, 0x0512}
	Container Identifier (0040,0512)

Detailed Description

VL Whole Slide Microscopy Image IOD Validator.

Provides validation for VL Whole Slide Microscopy Image Information Object Definitions as specified in DICOM PS3.3 Section A.32.8.

WSI images are gigapixel-scale, tiled multi-frame images used in digital pathology. They have unique structural requirements including tile dimensions, optical paths, and specimen identification.

See also

DICOM PS3.3 Section A.32.8 - VL Whole Slide Microscopy Image IOD

DICOM PS3.3 Section C.8.12.4 - Whole Slide Microscopy Image Module

Issue #826 - Add WSI IOD validator

Author

kcenon

Since

1.0.0

Definition in file wsi_iod_validator.h.
