test_fixtures.h File Reference

Common test fixtures and utilities for integration tests. More...

#include "kcenon/pacs/core/dicom_dataset.h"
#include "kcenon/pacs/core/dicom_file.h"
#include "kcenon/pacs/core/dicom_tag_constants.h"
#include "kcenon/pacs/network/association.h"
#include "kcenon/pacs/network/dicom_server.h"
#include "kcenon/pacs/network/server_config.h"
#include "kcenon/pacs/services/storage_scp.h"
#include "kcenon/pacs/services/storage_scu.h"
#include "kcenon/pacs/services/verification_scp.h"
#include "test_data_generator.h"
#include <array>
#include <atomic>
#include <chrono>
#include <cstdio>
#include <cstdlib>
#include <filesystem>
#include <memory>
#include <random>
#include <sstream>
#include <string>
#include <thread>
#include <vector>
#include <arpa/inet.h>
#include <cerrno>
#include <csignal>
#include <fcntl.h>
#include <netinet/in.h>
#include <sys/socket.h>
#include <sys/wait.h>
#include <unistd.h>

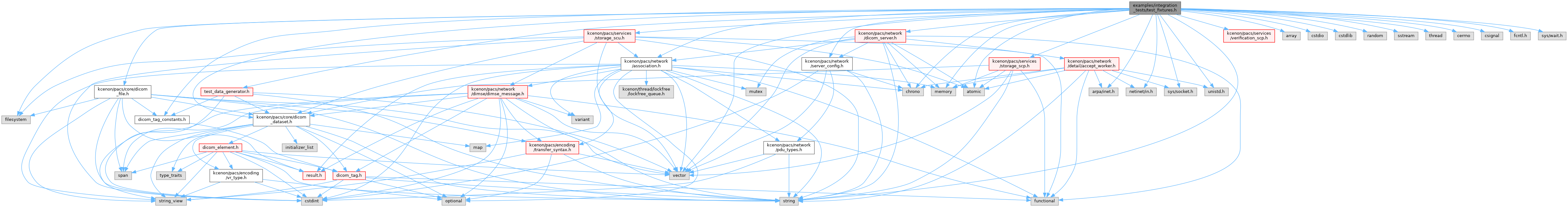

Include dependency graph for test_fixtures.h:

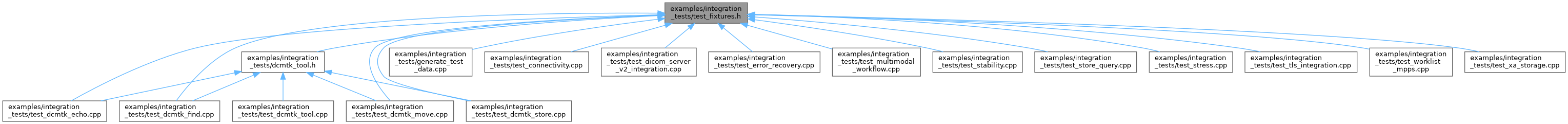

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	kcenon::pacs::integration_test::test_server
	RAII wrapper for a test DICOM server. More...
class	kcenon::pacs::integration_test::test_association
	Helper for establishing test associations. More...
class	kcenon::pacs::integration_test::test_directory
	RAII wrapper for temporary test directory. More...
class	kcenon::pacs::integration_test::test_counter
	Thread-safe test result counter. More...
struct	kcenon::pacs::integration_test::process_result
	Result of a process execution. More...
class	kcenon::pacs::integration_test::process_launcher
	Cross-platform process launcher for binary integration testing. More...
class	kcenon::pacs::integration_test::background_process_guard
	RAII wrapper for a background process. More...

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::integration_test

Functions
bool	kcenon::pacs::integration_test::is_ci_environment ()
	Check if running in a CI environment.
std::chrono::milliseconds	kcenon::pacs::integration_test::default_timeout ()
	Default timeout for test operations (5s normal, 30s CI)
std::chrono::milliseconds	kcenon::pacs::integration_test::server_ready_timeout ()
	Port listening timeout for pacs_system servers (5s normal, 30s CI)
std::chrono::milliseconds	kcenon::pacs::integration_test::dcmtk_server_ready_timeout ()
	Port listening timeout for DCMTK servers (10s normal, 60s CI)
bool	kcenon::pacs::integration_test::supports_real_tcp_dicom ()
	Check if pacs_system supports real TCP DICOM connections.
std::string	kcenon::pacs::integration_test::generate_uid (const std::string &root="1.2.826.0.1.3680043.9.9999")
	Generate a unique UID for testing.
bool	kcenon::pacs::integration_test::is_port_available (uint16_t port)
	Check if a port is actually available by attempting to bind.
uint16_t	kcenon::pacs::integration_test::find_available_port (uint16_t start=default_test_port, int max_attempts=200)
	Find an available port for testing.
template<typename Func >
bool	kcenon::pacs::integration_test::wait_for (Func &&condition, std::chrono::milliseconds timeout, std::chrono::milliseconds interval=std::chrono::milliseconds{50})
	Wait for a condition with timeout.
template<typename Func >
bool	kcenon::pacs::integration_test::wait_for (Func &&condition)
	Wait for a condition with default timeout.
core::dicom_dataset	kcenon::pacs::integration_test::generate_ct_dataset (const std::string &study_uid="", const std::string &series_uid="", const std::string &instance_uid="")
	Generate a minimal CT image dataset for testing.
core::dicom_dataset	kcenon::pacs::integration_test::generate_mr_dataset (const std::string &study_uid="")
	Generate a MR image dataset for testing.
core::dicom_dataset	kcenon::pacs::integration_test::generate_xa_dataset (const std::string &study_uid="")
	Generate a XA (X-Ray Angiographic) image dataset for testing.
core::dicom_dataset	kcenon::pacs::integration_test::generate_worklist_item ()
	Generate a worklist item dataset.

Variables
constexpr uint16_t	kcenon::pacs::integration_test::default_test_port = 41104
	Default test port range start (use high ports to avoid conflicts)
constexpr const char *	kcenon::pacs::integration_test::test_scp_ae_title = "TEST_SCP"
	Default AE titles.
constexpr const char *	kcenon::pacs::integration_test::test_scu_ae_title = "TEST_SCU"

Detailed Description

Common test fixtures and utilities for integration tests.

Provides reusable test fixtures, DICOM data generators, and utility functions for integration testing of PACS system components.

For comprehensive DICOM data generation, see test_data_generator.h which provides the test_data_generator class with support for:

• All modalities (CT, MR, XA, US)
• Multi-frame datasets (XA cine, US cine, Enhanced CT/MR)
• Clinical workflow generation (multi-modal studies)
• Edge cases (large datasets, Unicode, private tags, invalid datasets)

See also

Issue #111 - Integration Test Suite

Issue #137 - Test Fixtures Extension

test_data_generator.h

Definition in file test_fixtures.h.
