kcenon::pacs::integration_test::test_server Class Reference

RAII wrapper for a test DICOM server. More...

#include <test_fixtures.h>

Collaboration diagram for kcenon::pacs::integration_test::test_server:

Public Member Functions
	test_server (uint16_t port=0, const std::string &ae_title=test_scp_ae_title)
	Construct and start a test server.
	~test_server ()
	test_server (const test_server &)=delete
test_server &	operator= (const test_server &)=delete
	test_server (test_server &&)=delete
test_server &	operator= (test_server &&)=delete
template<typename Service >
void	register_service (std::shared_ptr< Service > service)
	Register a service provider.
bool	start ()
	Start the server and wait for it to be ready.
void	stop ()
	Stop the server.
uint16_t	port () const noexcept
const std::string &	ae_title () const noexcept
bool	is_running () const noexcept
network::dicom_server &	server ()

Static Private Member Functions
static bool	check_port_listening (uint16_t port)
	Check if a port is listening (inline implementation)

Private Attributes
uint16_t	port_
std::string	ae_title_
std::unique_ptr< network::dicom_server >	server_
bool	running_ {false}

Detailed Description

RAII wrapper for a test DICOM server.

Provides automatic server lifecycle management for tests. Server is started on construction and stopped on destruction.

Definition at line 530 of file test_fixtures.h.

Constructor & Destructor Documentation

test_server() [1/3]

kcenon::pacs::integration_test::test_server::test_server ( uint16_t port = 0, const std::string & ae_title = test_scp_ae_title )

inlineexplicit

Construct and start a test server.

Parameters

port	Port to listen on (0 = auto-select)
ae_title	AE title for server

Definition at line 537 of file test_fixtures.h.

        : port_(port == 0 ? find_available_port() : port)
        , ae_title_(ae_title) {

        network::server_config config;
        config.ae_title = ae_title_;
        config.port = port_;
        config.max_associations = 20;
        config.idle_timeout = std::chrono::seconds{60};
        config.implementation_class_uid = "1.2.826.0.1.3680043.9.9999.1";
        config.implementation_version_name = "TEST_SCP";

        server_ = std::make_unique<network::dicom_server>(config);
    }

References kcenon::pacs::network::server_config::ae_title, ae_title_, kcenon::pacs::network::server_config::idle_timeout, kcenon::pacs::network::server_config::implementation_class_uid, kcenon::pacs::network::server_config::implementation_version_name, kcenon::pacs::network::server_config::max_associations, kcenon::pacs::network::server_config::port, port_, and server_.

~test_server()

kcenon::pacs::integration_test::test_server::~test_server ( )

inline

Definition at line 554 of file test_fixtures.h.

                   {
        stop();
    }

References stop().

Here is the call graph for this function:

test_server() [2/3]

kcenon::pacs::integration_test::test_server::test_server ( const test_server & )

delete

test_server() [3/3]

kcenon::pacs::integration_test::test_server::test_server ( test_server && )

delete

Member Function Documentation

ae_title()

const std::string & kcenon::pacs::integration_test::test_server::ae_title ( ) const

inlinenodiscardnoexcept

Returns

Server AE title

Definition at line 625 of file test_fixtures.h.

{ return ae_title_; }

References ae_title_.

Referenced by TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

Here is the caller graph for this function:

check_port_listening()

static bool kcenon::pacs::integration_test::test_server::check_port_listening ( uint16_t port )

inlinestaticprivate

Check if a port is listening (inline implementation)

This is a simplified version for use within test_server::start() since process_launcher is defined later in this file.

Definition at line 640 of file test_fixtures.h.

                                                    {
        const long timeout_us = is_ci_environment() ? 1000000 : 200000;

#ifdef _WIN32
        WSADATA wsa_data;
        if (WSAStartup(MAKEWORD(2, 2), &wsa_data) != 0) return false;

        SOCKET sock = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP);
        if (sock == INVALID_SOCKET) { WSACleanup(); return false; }

        u_long mode = 1;
        ioctlsocket(sock, FIONBIO, &mode);

        sockaddr_in addr{};
        addr.sin_family = AF_INET;
        addr.sin_port = htons(port);
        addr.sin_addr.s_addr = inet_addr("127.0.0.1");

        connect(sock, reinterpret_cast<sockaddr*>(&addr), sizeof(addr));

        fd_set writefds;
        FD_ZERO(&writefds);
        FD_SET(sock, &writefds);

        timeval tv{};
        tv.tv_sec = static_cast<decltype(tv.tv_sec)>(timeout_us / 1000000);
        tv.tv_usec = static_cast<decltype(tv.tv_usec)>(timeout_us % 1000000);
        int result = select(0, nullptr, &writefds, nullptr, &tv);

        bool listening = false;
        if (result > 0) {
            int error = 0;
            int len = sizeof(error);
            getsockopt(sock, SOL_SOCKET, SO_ERROR, reinterpret_cast<char*>(&error), &len);
            listening = (error == 0);
        }
        closesocket(sock);
        WSACleanup();
        return listening;
#else
        int sock = socket(AF_INET, SOCK_STREAM, 0);
        if (sock < 0) return false;

        int flags = fcntl(sock, F_GETFL, 0);
        fcntl(sock, F_SETFL, flags | O_NONBLOCK);

        sockaddr_in addr{};
        addr.sin_family = AF_INET;
        addr.sin_port = htons(port);
        addr.sin_addr.s_addr = inet_addr("127.0.0.1");

        connect(sock, reinterpret_cast<sockaddr*>(&addr), sizeof(addr));

        fd_set writefds;
        FD_ZERO(&writefds);
        FD_SET(sock, &writefds);

        timeval tv{};
        tv.tv_sec = static_cast<decltype(tv.tv_sec)>(timeout_us / 1000000);
        tv.tv_usec = static_cast<decltype(tv.tv_usec)>(timeout_us % 1000000);
        int result = select(sock + 1, nullptr, &writefds, nullptr, &tv);

        bool listening = false;
        if (result > 0) {
            int error = 0;
            socklen_t len = sizeof(error);
            getsockopt(sock, SOL_SOCKET, SO_ERROR, &error, &len);
            listening = (error == 0);
        }
        close(sock);
        return listening;
#endif
    }

References kcenon::pacs::integration_test::is_ci_environment(), and port().

Referenced by start().

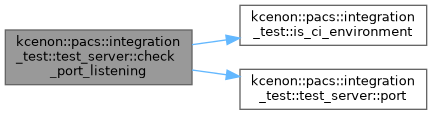

Here is the call graph for this function:

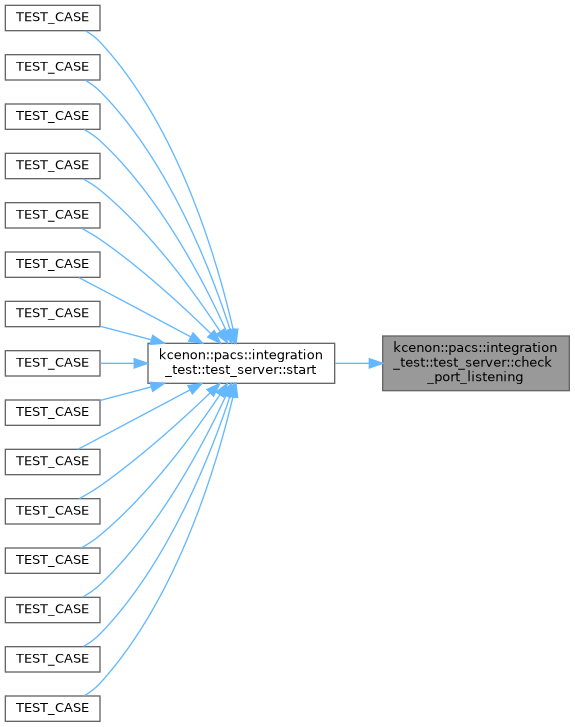

Here is the caller graph for this function:

is_running()

bool kcenon::pacs::integration_test::test_server::is_running ( ) const

inlinenodiscardnoexcept

Returns

true if server is running

Definition at line 628 of file test_fixtures.h.

{ return running_; }

References running_.

Referenced by TEST_CASE().

Here is the caller graph for this function:

operator=() [1/2]

test_server & kcenon::pacs::integration_test::test_server::operator= ( const test_server & )

delete

operator=() [2/2]

test_server & kcenon::pacs::integration_test::test_server::operator= ( test_server && )

delete

port()

uint16_t kcenon::pacs::integration_test::test_server::port ( ) const

inlinenodiscardnoexcept

Returns

Server port

Definition at line 622 of file test_fixtures.h.

{ return port_; }

References port_.

Referenced by check_port_listening().

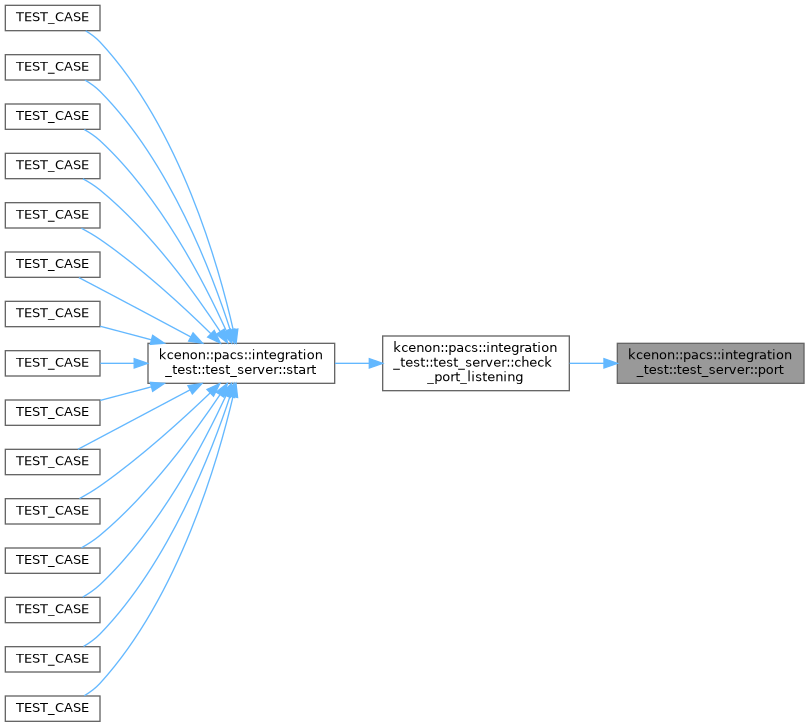

Here is the caller graph for this function:

register_service()

template<typename Service >

void kcenon::pacs::integration_test::test_server::register_service ( std::shared_ptr< Service > service )

inline

Register a service provider.

Parameters

service

Service provider to register

Definition at line 569 of file test_fixtures.h.

                                                          {
        server_->register_service(std::move(service));
    }

References server_.

Referenced by TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

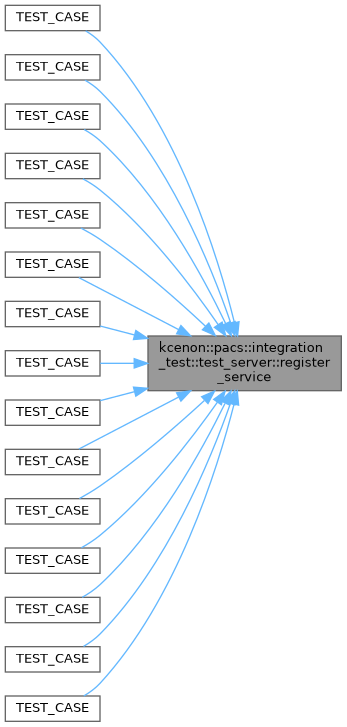

Here is the caller graph for this function:

server()

network::dicom_server & kcenon::pacs::integration_test::test_server::server ( )

inlinenodiscard

Returns

Reference to underlying server

Definition at line 631 of file test_fixtures.h.

{ return *server_; }

References server_.

start()

bool kcenon::pacs::integration_test::test_server::start ( )

inlinenodiscard

Start the server and wait for it to be ready.

Returns

true if server started and is accepting connections

This method:

1. Starts the underlying DICOM server
2. Waits for the port to actually be listening (with adaptive timeout)

The port listening check ensures the server is truly ready to accept connections, which is critical for reliable tests in CI environments where process startup can be slower.

Definition at line 585 of file test_fixtures.h.

                               {
        auto result = server_->start();
        if (!result.is_ok()) {
            return false;
        }

        running_ = true;

        // Wait for port to actually be listening
        // This is more reliable than a fixed delay, especially in CI
        auto timeout = server_ready_timeout();
        auto start_time = std::chrono::steady_clock::now();

        while (std::chrono::steady_clock::now() - start_time < timeout) {
            if (check_port_listening(port_)) {
                return true;
            }
            std::this_thread::sleep_for(std::chrono::milliseconds{50});
        }

        // Timeout waiting for port - stop the server and return failure
        server_->stop();
        running_ = false;
        return false;
    }

References check_port_listening(), port_, running_, server_, and kcenon::pacs::integration_test::server_ready_timeout().

Referenced by TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

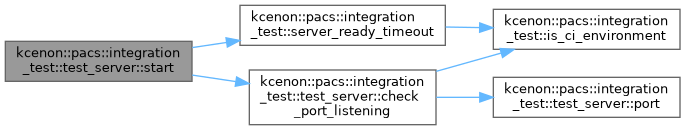

Here is the call graph for this function:

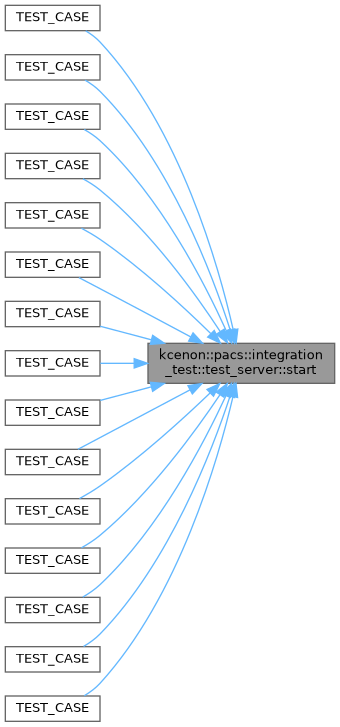

Here is the caller graph for this function:

stop()

void kcenon::pacs::integration_test::test_server::stop ( )

inline

Stop the server.

Definition at line 614 of file test_fixtures.h.

                {
        if (running_) {
            server_->stop();
            running_ = false;
        }
    }

References running_, and server_.

Referenced by TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and ~test_server().

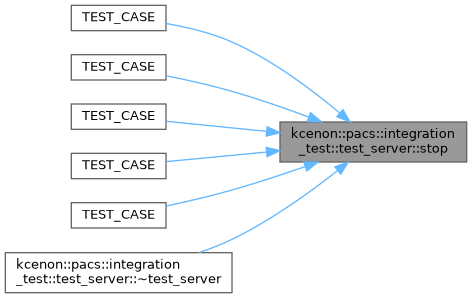

Here is the caller graph for this function:

Member Data Documentation

ae_title_

std::string kcenon::pacs::integration_test::test_server::ae_title_

private

Definition at line 715 of file test_fixtures.h.

Referenced by ae_title(), and test_server().

port_

uint16_t kcenon::pacs::integration_test::test_server::port_

private

Definition at line 714 of file test_fixtures.h.

Referenced by port(), start(), and test_server().

running_

bool kcenon::pacs::integration_test::test_server::running_ {false}

private

Definition at line 717 of file test_fixtures.h.

{false};

Referenced by is_running(), start(), and stop().

server_

std::unique_ptr<network::dicom_server> kcenon::pacs::integration_test::test_server::server_

private

Definition at line 716 of file test_fixtures.h.

Referenced by register_service(), server(), start(), stop(), and test_server().

---

The documentation for this class was generated from the following file:

• examples/integration_tests/test_fixtures.h
