study_lock_manager.h File Reference

Study lock manager for modification control and concurrent access. More...

#include <atomic>
#include <chrono>
#include <cstdint>
#include <functional>
#include <map>
#include <memory>
#include <mutex>
#include <optional>
#include <shared_mutex>
#include <string>
#include <vector>

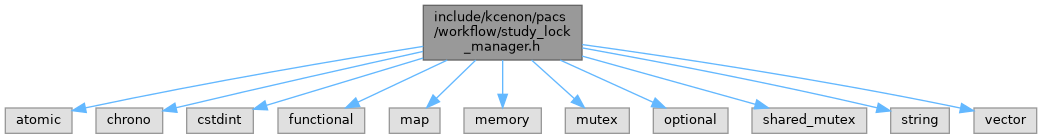

Include dependency graph for study_lock_manager.h:

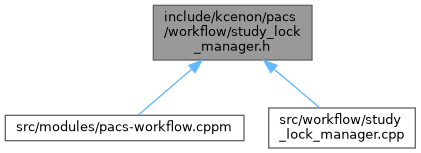

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::workflow::lock_token
	Unique identifier for a lock. More...
struct	kcenon::pacs::workflow::lock_info
	Detailed information about a lock on a study. More...
struct	kcenon::pacs::workflow::study_lock_manager_config
	Configuration for the study lock manager. More...
struct	kcenon::pacs::workflow::lock_manager_stats
	Statistics for lock manager operations. More...
class	kcenon::pacs::workflow::study_lock_manager
	Manages locks on DICOM studies for concurrent access control. More...
struct	kcenon::pacs::workflow::study_lock_manager::lock_entry

Namespaces
namespace	kcenon
namespace	kcenon::common
namespace	kcenon::pacs
namespace	kcenon::pacs::workflow
namespace	kcenon::pacs::workflow::lock_error
	Error codes for lock operations.

Enumerations
enum class	kcenon::pacs::workflow::lock_type { kcenon::pacs::workflow::exclusive , kcenon::pacs::workflow::shared , kcenon::pacs::workflow::migration }
	Type of lock to acquire on a study. More...

Functions
auto	kcenon::pacs::workflow::to_string (lock_type type) -> std::string
	Convert lock_type to string.
auto	kcenon::pacs::workflow::parse_lock_type (const std::string &str) -> std::optional< lock_type >
	Parse lock_type from string.

Variables
constexpr int	kcenon::pacs::workflow::lock_error::already_locked = -100
	Lock already held by another holder.
constexpr int	kcenon::pacs::workflow::lock_error::not_found = -101
	Lock not found.
constexpr int	kcenon::pacs::workflow::lock_error::invalid_token = -102
	Invalid token.
constexpr int	kcenon::pacs::workflow::lock_error::timeout = -103
	Lock timeout exceeded.
constexpr int	kcenon::pacs::workflow::lock_error::expired = -104
	Lock has expired.
constexpr int	kcenon::pacs::workflow::lock_error::permission_denied = -105
	Permission denied (force unlock not allowed)
constexpr int	kcenon::pacs::workflow::lock_error::invalid_type = -106
	Invalid lock type.
constexpr int	kcenon::pacs::workflow::lock_error::max_shared_exceeded = -107
	Maximum shared locks exceeded.
constexpr int	kcenon::pacs::workflow::lock_error::upgrade_failed = -108
	Cannot upgrade lock (shared to exclusive)

Detailed Description

Study lock manager for modification control and concurrent access.

This file provides the study_lock_manager class which manages locks on DICOM studies to prevent concurrent modifications and ensure data integrity during operations like migrations and updates.

See also

SRS-WKF-003 - Study Lock Manager Specification

FR-4.8 - Study Modification Control

Author

kcenon

Since

1.0.0

Definition in file study_lock_manager.h.
