kcenon::pacs::workflow Namespace Reference

Namespaces
namespace	lock_error
	Error codes for lock operations.

Classes
struct	archive_config
	Configuration for archive scheduling. More...
class	auto_prefetch_service
struct	cleanup_config
	Configuration for cleanup scheduling. More...
struct	cron_schedule
	Cron-like schedule expression. More...
struct	interval_schedule
	Simple interval-based schedule. More...
struct	lock_info
	Detailed information about a lock on a study. More...
struct	lock_manager_stats
	Statistics for lock manager operations. More...
struct	lock_token
	Unique identifier for a lock. More...
struct	one_time_schedule
	One-time execution at specific time. More...
struct	prefetch_criteria
	Prefetch selection criteria. More...
struct	prefetch_request
	Prefetch request for a single patient. More...
struct	prefetch_result
	Prefetch result statistics. More...
struct	prefetch_service_config
	Configuration for the auto prefetch service. More...
struct	prior_study_info
	Prior study information. More...
struct	remote_pacs_config
	Remote PACS connection configuration. More...
class	Result
struct	scheduled_task
	Scheduled task definition. More...
struct	scheduler_stats
	Statistics for task scheduler operations. More...
class	study_lock_manager
	Manages locks on DICOM studies for concurrent access control. More...
struct	study_lock_manager_config
	Configuration for the study lock manager. More...
struct	task_execution_record
	Record of a single task execution. More...
class	task_scheduler
struct	task_scheduler_config
	Configuration for the task scheduler service. More...
struct	verification_config
	Configuration for verification scheduling. More...

Typedefs
using	schedule = std::variant<interval_schedule, cron_schedule, one_time_schedule>
	Combined schedule type.
using	task_id = std::string
	Unique task identifier.
using	task_callback = std::function<bool()>
	Task callback function type.
using	task_callback_with_result = std::function<std::optional<std::string>()>
	Task callback with result details.

Enumerations
enum class	lock_type { exclusive , shared , migration }
	Type of lock to acquire on a study. More...
enum class	task_type { cleanup , archive , verification , custom }
	Task type enumeration. More...
enum class	task_state {   pending , running , completed , failed ,   cancelled , paused }
	Task execution state. More...
enum class	archive_destination_type {   local_path , network_share , cloud_s3 , cloud_azure ,   tape }
	Archive destination type. More...

Functions
auto	to_string (lock_type type) -> std::string
	Convert lock_type to string.
auto	parse_lock_type (const std::string &str) -> std::optional< lock_type >
	Parse lock_type from string.
auto	to_string (task_state state) -> std::string
	Convert task_state to string.
auto	to_string (task_type type) -> std::string
	Convert task_type to string.

Typedef Documentation

schedule

using kcenon::pacs::workflow::schedule = std::variant<interval_schedule, cron_schedule, one_time_schedule>

Combined schedule type.

Definition at line 149 of file task_scheduler_config.h.

task_callback

using kcenon::pacs::workflow::task_callback = std::function<bool()>

Task callback function type.

Returns

true if task completed successfully, false otherwise

Definition at line 262 of file task_scheduler_config.h.

task_callback_with_result

using kcenon::pacs::workflow::task_callback_with_result = std::function<std::optional<std::string>()>

Task callback with result details.

Returns

Optional error message (nullopt = success)

Definition at line 269 of file task_scheduler_config.h.

task_id

using kcenon::pacs::workflow::task_id = std::string

Unique task identifier.

Definition at line 255 of file task_scheduler_config.h.

Enumeration Type Documentation

archive_destination_type

enum class kcenon::pacs::workflow::archive_destination_type

strong

Archive destination type.

Enumerator
local_path	Local filesystem path.
network_share	Network share (SMB/NFS)
cloud_s3	AWS S3 or compatible.
cloud_azure	Azure Blob Storage.
tape	Tape library.

Definition at line 390 of file task_scheduler_config.h.

                                    {
    local_path,
    network_share,
    cloud_s3,
    cloud_azure,
    tape
};

lock_type

enum class kcenon::pacs::workflow::lock_type

strong

Type of lock to acquire on a study.

Enumerator
exclusive	No other access allowed (for modifications)
shared	Read-only access allowed (for read operations)
migration	Special lock for migration operations (highest priority)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/workflow/study_lock_manager.h.

Definition at line 49 of file study_lock_manager.h.

                     {
    exclusive,
    shared,
    migration
};

task_state

enum class kcenon::pacs::workflow::task_state

strong

Task execution state.

Enumerator
pending	Waiting for scheduled time.
running	Currently executing.
completed	Completed successfully.
failed	Execution failed.
cancelled	Cancelled by user.
paused	Temporarily paused.

Definition at line 168 of file task_scheduler_config.h.

                      {
    pending,
    running,
    completed,
    failed,
    cancelled,
    paused
};

task_type

enum class kcenon::pacs::workflow::task_type

strong

Task type enumeration.

Enumerator
cleanup	Storage cleanup task.
archive	Study archival task.
verification	Data integrity verification.
custom	User-defined task.

Definition at line 158 of file task_scheduler_config.h.

                     {
    cleanup,
    archive,
    verification,
    custom
};

Function Documentation

parse_lock_type()

auto kcenon::pacs::workflow::parse_lock_type ( const std::string & str ) -> std::optional<lock_type>

inlinenodiscard

Parse lock_type from string.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/workflow/study_lock_manager.h.

Definition at line 70 of file study_lock_manager.h.

                              {
    if (str == "exclusive") return lock_type::exclusive;
    if (str == "shared") return lock_type::shared;
    if (str == "migration") return lock_type::migration;
    return std::nullopt;
}

References exclusive, migration, and shared.

to_string() [1/3]

auto kcenon::pacs::workflow::to_string ( lock_type type ) -> std::string

inlinenodiscard

Convert lock_type to string.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/workflow/study_lock_manager.h.

Definition at line 58 of file study_lock_manager.h.

                                                                 {
    switch (type) {
        case lock_type::exclusive: return "exclusive";
        case lock_type::shared: return "shared";
        case lock_type::migration: return "migration";
        default: return "unknown";
    }
}

References exclusive, migration, and shared.

Referenced by kcenon::pacs::workflow::study_lock_manager::lock(), and kcenon::pacs::workflow::task_scheduler::serialize_tasks().

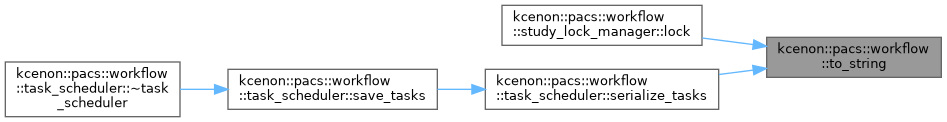

Here is the caller graph for this function:

to_string() [2/3]

auto kcenon::pacs::workflow::to_string ( task_state state ) -> std::string

inlinenodiscard

Convert task_state to string.

Definition at line 180 of file task_scheduler_config.h.

                                                                   {
    switch (state) {
        case task_state::pending: return "pending";
        case task_state::running: return "running";
        case task_state::completed: return "completed";
        case task_state::failed: return "failed";
        case task_state::cancelled: return "cancelled";
        case task_state::paused: return "paused";
        default: return "unknown";
    }
}

References cancelled, completed, failed, paused, pending, and running.

to_string() [3/3]

auto kcenon::pacs::workflow::to_string ( task_type type ) -> std::string

inlinenodiscard

Convert task_type to string.

Definition at line 195 of file task_scheduler_config.h.

                                                                 {
    switch (type) {
        case task_type::cleanup: return "cleanup";
        case task_type::archive: return "archive";
        case task_type::verification: return "verification";
        case task_type::custom: return "custom";
        default: return "unknown";
    }
}

References archive, cleanup, custom, and verification.
