kcenon::pacs::encoding::simd::vec256_int Struct Reference

Portable 256-bit integer vector wrapper. More...

#include <simd_types.h>

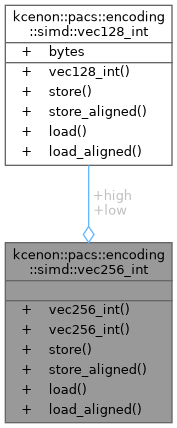

Collaboration diagram for kcenon::pacs::encoding::simd::vec256_int:

Public Member Functions
	vec256_int () noexcept=default
	vec256_int (vec128_int l, vec128_int h) noexcept
void	store (void *ptr) const noexcept
void	store_aligned (void *ptr) const noexcept

Static Public Member Functions
static vec256_int	load (const void *ptr) noexcept
static vec256_int	load_aligned (const void *ptr) noexcept

Public Attributes
vec128_int	low
vec128_int	high

Detailed Description

Portable 256-bit integer vector wrapper.

Definition at line 149 of file simd_types.h.

Constructor & Destructor Documentation

vec256_int() [1/2]

kcenon::pacs::encoding::simd::vec256_int::vec256_int ( )

defaultnoexcept

vec256_int() [2/2]

kcenon::pacs::encoding::simd::vec256_int::vec256_int ( vec128_int l, vec128_int h )

inlinenoexcept

Definition at line 180 of file simd_types.h.

: low(l), high(h) {}

Member Function Documentation

load()

static vec256_int kcenon::pacs::encoding::simd::vec256_int::load ( const void * ptr )

inlinestaticnoexcept

Definition at line 182 of file simd_types.h.

                                                     {
        const auto* p = reinterpret_cast<const uint8_t*>(ptr);
        return vec256_int(vec128_int::load(p), vec128_int::load(p + 16));
    }

load_aligned()

static vec256_int kcenon::pacs::encoding::simd::vec256_int::load_aligned ( const void * ptr )

inlinestaticnoexcept

Definition at line 187 of file simd_types.h.

                                                             {
        const auto* p = reinterpret_cast<const uint8_t*>(ptr);
        return vec256_int(vec128_int::load_aligned(p),
                          vec128_int::load_aligned(p + 16));
    }

store()

void kcenon::pacs::encoding::simd::vec256_int::store ( void * ptr ) const

inlinenoexcept

Definition at line 193 of file simd_types.h.

                                         {
        auto* p = reinterpret_cast<uint8_t*>(ptr);
        low.store(p);
        high.store(p + 16);
    }

store_aligned()

void kcenon::pacs::encoding::simd::vec256_int::store_aligned ( void * ptr ) const

inlinenoexcept

Definition at line 199 of file simd_types.h.

                                                 {
        auto* p = reinterpret_cast<uint8_t*>(ptr);
        low.store_aligned(p);
        high.store_aligned(p + 16);
    }

Member Data Documentation

high

vec128_int kcenon::pacs::encoding::simd::vec256_int::high

Definition at line 177 of file simd_types.h.

low

vec128_int kcenon::pacs::encoding::simd::vec256_int::low

Definition at line 176 of file simd_types.h.

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/encoding/simd/simd_types.h
