Data types for DICOM Storage Commitment Push Model Service. More...

#include <chrono>
#include <cstdint>
#include <string>
#include <string_view>
#include <utility>
#include <vector>

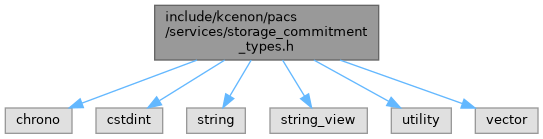

Include dependency graph for storage_commitment_types.h:

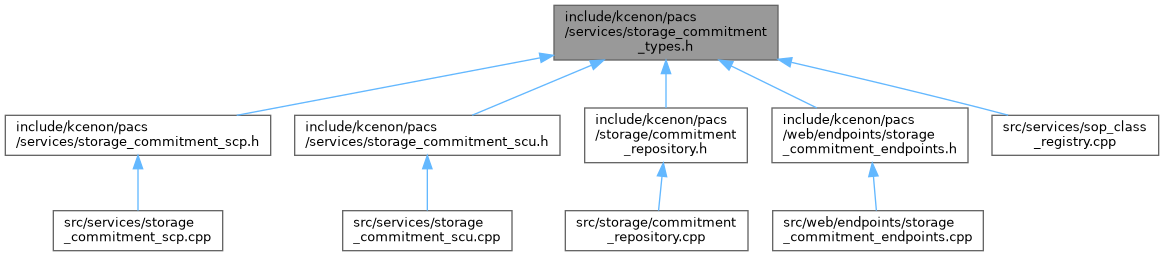

This graph shows which files directly or indirectly include this file:

Classes
struct	kcenon::pacs::services::sop_reference
	Reference to a SOP Instance in a commitment request. More...

struct	kcenon::pacs::services::commitment_result
	Result of a Storage Commitment verification. More...

Enumerations
enum class	kcenon::pacs::services::commitment_failure_reason : uint16_t { kcenon::pacs::services::processing_failure = 0x0110 , kcenon::pacs::services::no_such_object_instance = 0x0112 , kcenon::pacs::services::resource_limitation = 0x0213 , kcenon::pacs::services::referenced_sop_class_not_supported = 0x0122 , kcenon::pacs::services::class_instance_conflict = 0x0119 , kcenon::pacs::services::duplicate_transaction_uid = 0xA770 }
	Failure reason codes for Storage Commitment. More...

Functions
std::string_view	kcenon::pacs::services::to_string (commitment_failure_reason reason) noexcept
	Convert failure reason to human-readable string.

Variables
constexpr std::string_view	kcenon::pacs::services::storage_commitment_push_model_sop_class_uid
	Storage Commitment Push Model SOP Class UID (PS3.4 Table J.3-1)

constexpr std::string_view	kcenon::pacs::services::storage_commitment_push_model_sop_instance_uid
	Storage Commitment Push Model SOP Instance UID (Well-Known)

constexpr uint16_t	kcenon::pacs::services::storage_commitment_action_type_request = 1
	N-ACTION: Request Storage Commitment (Action Type ID = 1)

constexpr uint16_t	kcenon::pacs::services::storage_commitment_event_type_success = 1
	N-EVENT-REPORT: Storage Commitment Request Successful (Event Type ID = 1)

constexpr uint16_t	kcenon::pacs::services::storage_commitment_event_type_failure = 2
	N-EVENT-REPORT: Storage Commitment Request Complete - Failures Exist (Event Type ID = 2)

Detailed Description

Data types for DICOM Storage Commitment Push Model Service.

Defines the shared data structures used by both the Storage Commitment SCP and SCU implementations, as specified in DICOM PS3.4 Annex J.

See also: DICOM PS3.4 Annex J - Storage Commitment Push Model Service Class; DICOM PS3.4 Table J.3-1 - Storage Commitment Request
