routing_types.h File Reference

Routing types and structures for auto-forwarding DICOM images. More...

#include "kcenon/pacs/client/job_types.h"
#include <chrono>
#include <functional>
#include <optional>
#include <string>
#include <string_view>
#include <vector>

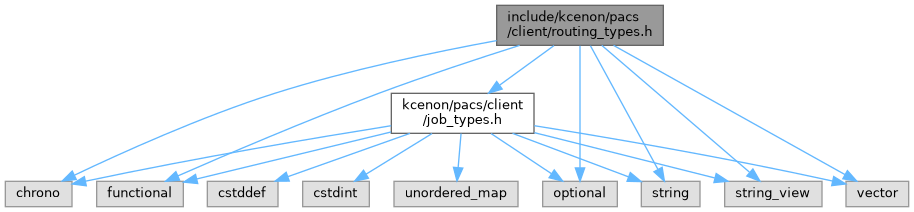

Include dependency graph for routing_types.h:

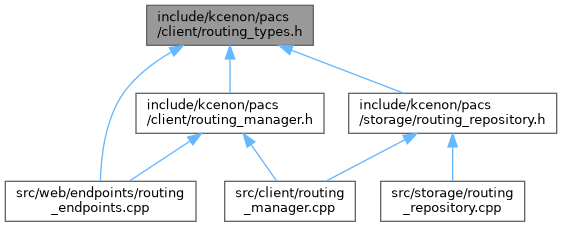

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::client::routing_condition
	A single condition for routing rule evaluation. More...
struct	kcenon::pacs::client::routing_action
	Action to perform when a routing rule matches. More...
struct	kcenon::pacs::client::routing_rule
	A complete routing rule with conditions and actions. More...
struct	kcenon::pacs::client::routing_manager_config
	Configuration for the routing manager. More...
struct	kcenon::pacs::client::routing_statistics
	Statistics for routing operations. More...
struct	kcenon::pacs::client::routing_test_result
	Result of testing rules against a dataset (dry run) More...

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::client

Typedefs
using	kcenon::pacs::client::routing_event_callback
	Callback type for routing events.

Enumerations
enum class	kcenon::pacs::client::routing_field {   kcenon::pacs::client::modality , kcenon::pacs::client::station_ae , kcenon::pacs::client::institution , kcenon::pacs::client::department ,   kcenon::pacs::client::referring_physician , kcenon::pacs::client::study_description , kcenon::pacs::client::series_description , kcenon::pacs::client::body_part ,   kcenon::pacs::client::patient_id_pattern , kcenon::pacs::client::sop_class_uid }
	DICOM field to match in routing conditions. More...

Functions
constexpr const char *	kcenon::pacs::client::to_string (routing_field field) noexcept
	Convert routing_field to string representation.
routing_field	kcenon::pacs::client::routing_field_from_string (std::string_view str) noexcept
	Parse routing_field from string.

Detailed Description

Routing types and structures for auto-forwarding DICOM images.

This file provides data structures for representing routing rules, conditions, actions, and related types for automatic DICOM image forwarding.

See also

Issue #539 - Implement Routing Manager for Auto-Forwarding

Issue #530 - PACS Client System Support (Parent Epic)

Author

kcenon

Since

1.0.0

Definition in file routing_types.h.
