kcenon::pacs::client::routing_rule Struct Reference

A complete routing rule with conditions and actions. More...

#include <routing_types.h>

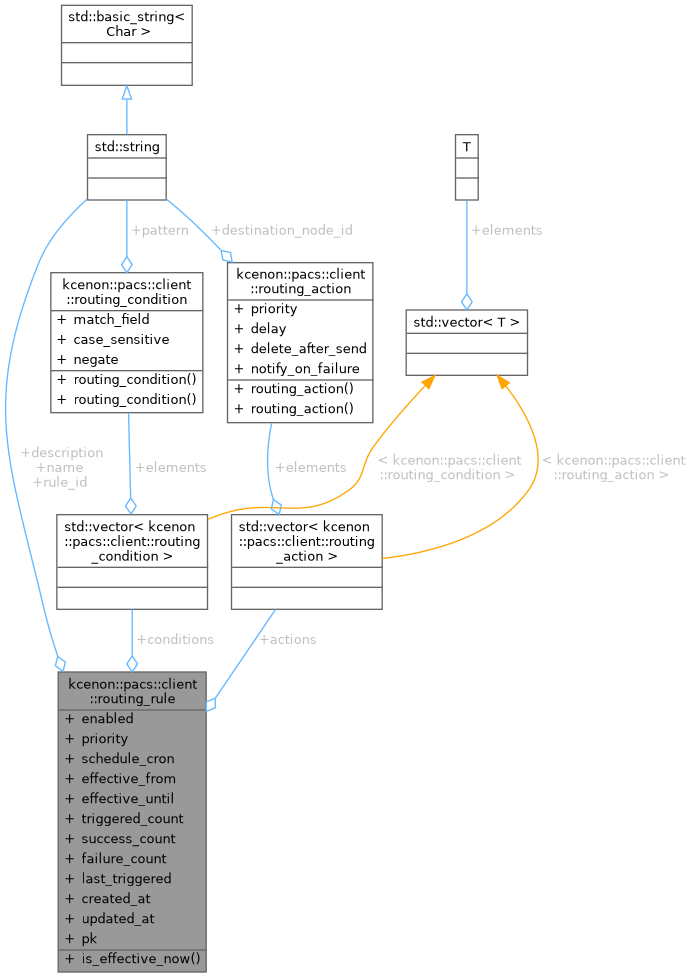

Collaboration diagram for kcenon::pacs::client::routing_rule:

Public Member Functions
bool	is_effective_now () const noexcept
	Check if the rule is currently effective based on schedule.

Public Attributes
std::string	rule_id
	Unique rule identifier.
std::string	name
	Human-readable name.
std::string	description
	Detailed description.
bool	enabled {true}
	Whether the rule is active.
int	priority {0}
	Evaluation priority (higher = first)
std::vector< routing_condition >	conditions
	Conditions (AND logic)
std::vector< routing_action >	actions
	Actions to execute on match.
std::optional< std::string >	schedule_cron
	Cron expression for scheduling.
std::optional< std::chrono::system_clock::time_point >	effective_from
std::optional< std::chrono::system_clock::time_point >	effective_until
size_t	triggered_count {0}
	Number of times the rule was triggered.
size_t	success_count {0}
	Successful forwarding count.
size_t	failure_count {0}
	Failed forwarding count.
std::chrono::system_clock::time_point	last_triggered
std::chrono::system_clock::time_point	created_at
std::chrono::system_clock::time_point	updated_at
int64_t	pk {0}
	Primary key (0 if not persisted)

Detailed Description

A complete routing rule with conditions and actions.

Rules are evaluated in priority order (higher priority first). All conditions must match (AND logic) for actions to be triggered.

Definition at line 176 of file routing_types.h.

Member Function Documentation

is_effective_now()

bool kcenon::pacs::client::routing_rule::is_effective_now ( ) const

inlinenodiscardnoexcept

Check if the rule is currently effective based on schedule.

Returns

true if the rule can be applied now

Definition at line 232 of file routing_types.h.

                                                         {
        if (!enabled) return false;

        auto now = std::chrono::system_clock::now();

        if (effective_from.has_value() && now < effective_from.value()) {
            return false;
        }

        if (effective_until.has_value() && now > effective_until.value()) {
            return false;
        }

        return true;
    }

References effective_from, effective_until, and enabled.

Member Data Documentation

actions

std::vector<routing_action> kcenon::pacs::client::routing_rule::actions

Actions to execute on match.

Definition at line 197 of file routing_types.h.

conditions

std::vector<routing_condition> kcenon::pacs::client::routing_rule::conditions

Conditions (AND logic)

Definition at line 196 of file routing_types.h.

created_at

std::chrono::system_clock::time_point kcenon::pacs::client::routing_rule::created_at

Definition at line 215 of file routing_types.h.

description

std::string kcenon::pacs::client::routing_rule::description

Detailed description.

Definition at line 183 of file routing_types.h.

effective_from

std::optional<std::chrono::system_clock::time_point> kcenon::pacs::client::routing_rule::effective_from

Definition at line 204 of file routing_types.h.

Referenced by is_effective_now().

effective_until

std::optional<std::chrono::system_clock::time_point> kcenon::pacs::client::routing_rule::effective_until

Definition at line 205 of file routing_types.h.

Referenced by is_effective_now().

enabled

bool kcenon::pacs::client::routing_rule::enabled {true}

Whether the rule is active.

Definition at line 189 of file routing_types.h.

{true};

Referenced by is_effective_now().

failure_count

size_t kcenon::pacs::client::routing_rule::failure_count {0}

Failed forwarding count.

Definition at line 213 of file routing_types.h.

{0};

last_triggered

std::chrono::system_clock::time_point kcenon::pacs::client::routing_rule::last_triggered

Definition at line 214 of file routing_types.h.

name

std::string kcenon::pacs::client::routing_rule::name

Human-readable name.

Definition at line 182 of file routing_types.h.

Referenced by kcenon::pacs::client::routing_manager::add_rule(), and kcenon::pacs::client::routing_manager::update_rule().

pk

int64_t kcenon::pacs::client::routing_rule::pk {0}

Primary key (0 if not persisted)

Definition at line 222 of file routing_types.h.

{0};

priority

int kcenon::pacs::client::routing_rule::priority {0}

Evaluation priority (higher = first)

Definition at line 190 of file routing_types.h.

{0};

rule_id

std::string kcenon::pacs::client::routing_rule::rule_id

Unique rule identifier.

Definition at line 181 of file routing_types.h.

Referenced by kcenon::pacs::client::routing_manager::add_rule(), and kcenon::pacs::client::routing_manager::update_rule().

schedule_cron

std::optional<std::string> kcenon::pacs::client::routing_rule::schedule_cron

Cron expression for scheduling.

Definition at line 203 of file routing_types.h.

success_count

size_t kcenon::pacs::client::routing_rule::success_count {0}

Successful forwarding count.

Definition at line 212 of file routing_types.h.

{0};

triggered_count

size_t kcenon::pacs::client::routing_rule::triggered_count {0}

Number of times the rule was triggered.

Definition at line 211 of file routing_types.h.

{0};

updated_at

std::chrono::system_clock::time_point kcenon::pacs::client::routing_rule::updated_at

Definition at line 216 of file routing_types.h.

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/client/routing_types.h
