parametric_map_iod_validator.h File Reference

Parametric Map IOD Validator. More...

#include "kcenon/pacs/core/dicom_dataset.h"
#include "kcenon/pacs/core/dicom_tag.h"
#include "kcenon/pacs/services/validation/us_iod_validator.h"
#include <string>
#include <vector>

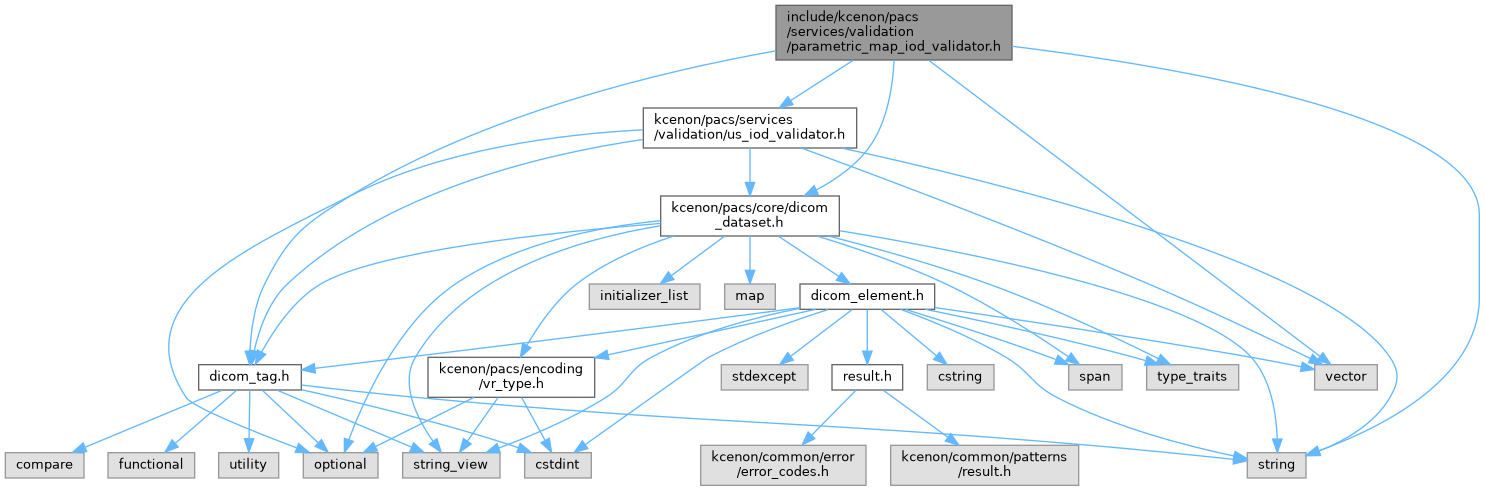

Include dependency graph for parametric_map_iod_validator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::validation::pmap_validation_options
	Options for Parametric Map IOD validation. More...
class	kcenon::pacs::services::validation::parametric_map_iod_validator

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::validation
namespace	kcenon::pacs::services::validation::pmap_iod_tags

Functions
validation_result	kcenon::pacs::services::validation::validate_parametric_map_iod (const core::dicom_dataset &dataset)
	Validate a Parametric Map dataset with default options.
bool	kcenon::pacs::services::validation::is_valid_parametric_map_dataset (const core::dicom_dataset &dataset)
	Quick check if a dataset is a valid Parametric Map object.

Variables
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::real_world_value_mapping_sequence {0x0040, 0x9096}
	Real World Value Mapping Sequence (0040,9096)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::real_world_value_intercept {0x0040, 0x9224}
	Real World Value Intercept (0040,9224)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::real_world_value_slope {0x0040, 0x9225}
	Real World Value Slope (0040,9225)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::measurement_units_code_sequence {0x0040, 0x08EA}
	Measurement Units Code Sequence (0040,08EA)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::content_label {0x0070, 0x0080}
	Content Label (0070,0080) — Type 1.
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::content_description {0x0070, 0x0081}
	Content Description (0070,0081) — Type 2.
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::content_creator_name {0x0070, 0x0084}
	Content Creator's Name (0070,0084) — Type 2.
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::number_of_frames {0x0028, 0x0008}
	Number of Frames (0028,0008)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::shared_functional_groups_sequence {0x5200, 0x9229}
	Shared Functional Groups Sequence (5200,9229)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::per_frame_functional_groups_sequence {0x5200, 0x9230}
	Per-Frame Functional Groups Sequence (5200,9230)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::dimension_organization_sequence {0x0020, 0x9221}
	Dimension Organization Sequence (0020,9221)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::dimension_index_sequence {0x0020, 0x9222}
	Dimension Index Sequence (0020,9222)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::referenced_series_sequence {0x0008, 0x1115}
	Referenced Series Sequence (0008,1115)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::manufacturer {0x0008, 0x0070}
	Manufacturer (0008,0070)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::manufacturer_model_name {0x0008, 0x1090}
	Manufacturer's Model Name (0008,1090)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::device_serial_number {0x0018, 0x1000}
	Device Serial Number (0018,1000)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::software_versions {0x0018, 0x1020}
	Software Versions (0018,1020)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::float_pixel_data {0x7FE0, 0x0008}
	Float Pixel Data (7FE0,0008)
constexpr core::dicom_tag	kcenon::pacs::services::validation::pmap_iod_tags::double_float_pixel_data {0x7FE0, 0x0009}
	Double Float Pixel Data (7FE0,0009)

Detailed Description

Parametric Map IOD Validator.

Provides validation for Parametric Map Information Object Definitions as specified in DICOM PS3.3 Section A.75 (Parametric Map IOD).

Parametric Maps encode voxel-level quantitative data (ADC maps, perfusion maps, T1/T2 relaxometry maps) using IEEE 754 float or double pixel values. They are always multi-frame and require Real World Value Mapping sequences.

See also

DICOM PS3.3 Section A.75 - Parametric Map IOD

DICOM PS3.3 Section C.7.6.16.2.17 - Real World Value Mapping

Issue #834 - Add Parametric Map IOD validator

Author

kcenon

Since

1.0.0

Definition in file parametric_map_iod_validator.h.
