n_event_report.h File Reference

N-EVENT-REPORT DIMSE service. More...

#include "dimse_message.h"

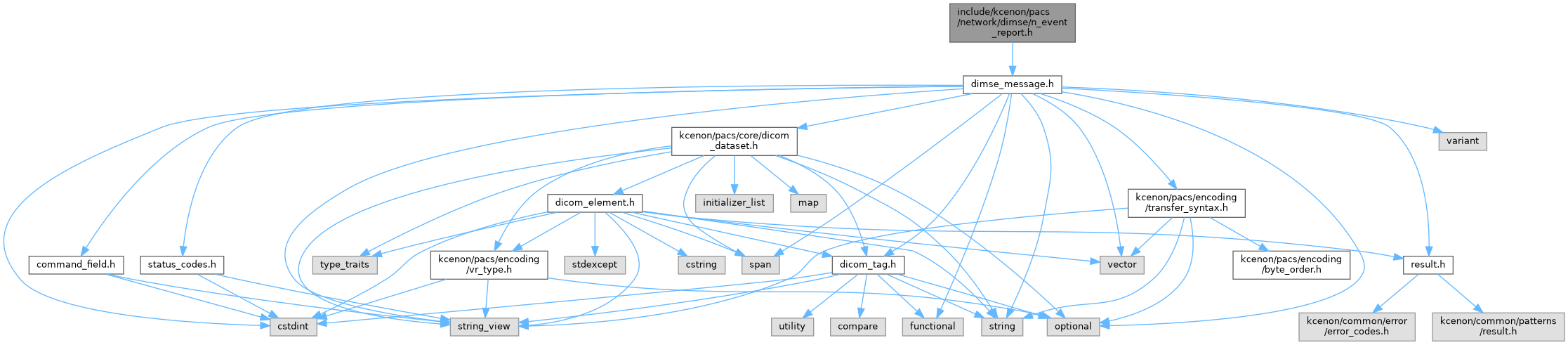

Include dependency graph for n_event_report.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::network
namespace	kcenon::pacs::network::dimse

Detailed Description

N-EVENT-REPORT DIMSE service.

N-EVENT-REPORT is used to report an event that has occurred on a managed SOP Instance. It is primarily used for Storage Commitment to report the success or failure of committing images to permanent storage.

See also

DICOM PS3.7 Section 10.1.1 - N-EVENT-REPORT Service

Usage Example

// SCP reports storage commitment result
auto rq = make_n_event_report_rq(
    1,
    storage_commitment_sop_class_uid,
    transaction_uid,
    1  // Event Type ID: Storage Commitment Request Successful
);
rq.set_dataset(event_information);

// SCU acknowledges
auto rsp = make_n_event_report_rsp(
    1, storage_commitment_sop_class_uid, transaction_uid, 1, status_success);

Event Type IDs (Storage Commitment)

ID	Meaning
1	Storage Commitment Request Successful
2	Storage Commitment Request Complete - Failures Exist

Command Elements

Tag	Keyword	Request	Response
(0000,0002)	AffectedSOPClassUID	M	M
(0000,0100)	CommandField	M (0x0100/0x8100)	M
(0000,0110)	MessageID	M	-
(0000,0120)	MessageIDBeingRespondedTo	-	M
(0000,0800)	CommandDataSetType	M	M
(0000,0900)	Status	-	M
(0000,1000)	AffectedSOPInstanceUID	M	M
(0000,1002)	EventTypeID	M	C

M = Mandatory, C = Conditional

Author

kcenon

Since

1.0.0

Definition in file n_event_report.h.
