n_delete.h File Reference

N-DELETE DIMSE service. More...

#include "dimse_message.h"

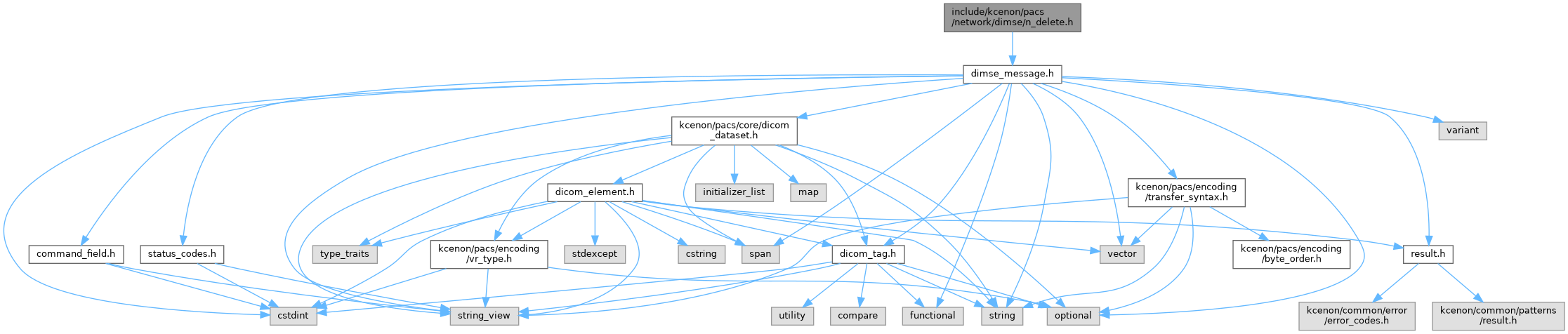

Include dependency graph for n_delete.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::network
namespace	kcenon::pacs::network::dimse

Detailed Description

N-DELETE DIMSE service.

N-DELETE is used to delete a managed SOP Instance. It is primarily used for Print Management to delete print jobs and related objects.

See also

DICOM PS3.7 Section 10.1.6 - N-DELETE Service

Usage Example

// SCU requests deletion of a print job
auto rq = make_n_delete_rq(1, print_job_sop_class_uid, job_instance_uid);

// SCP responds
auto rsp = make_n_delete_rsp(1, print_job_sop_class_uid, job_instance_uid, status_success);

Command Elements

Tag	Keyword	Request	Response
(0000,0003)	RequestedSOPClassUID	M	-
(0000,0002)	AffectedSOPClassUID	-	M
(0000,0100)	CommandField	M (0x0150/0x8150)	M
(0000,0110)	MessageID	M	-
(0000,0120)	MessageIDBeingRespondedTo	-	M
(0000,0800)	CommandDataSetType	M (0x0101)	M (0x0101)
(0000,0900)	Status	-	M
(0000,1001)	RequestedSOPInstanceUID	M	-
(0000,1000)	AffectedSOPInstanceUID	-	M

M = Mandatory

Note: N-DELETE has no data set (CommandDataSetType = 0x0101)

Author

kcenon

Since

1.0.0

Definition in file n_delete.h.
