n_create.h File Reference

N-CREATE DIMSE service. More...

#include "dimse_message.h"

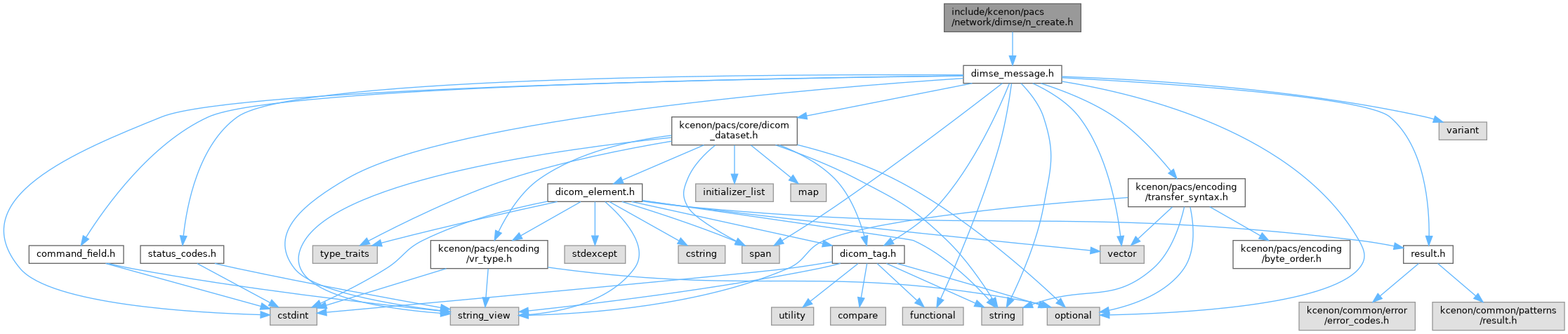

Include dependency graph for n_create.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::network
namespace	kcenon::pacs::network::dimse

Detailed Description

N-CREATE DIMSE service.

N-CREATE is used to create a new managed SOP Instance. It is primarily used for normalized SOP Classes such as MPPS (Modality Performed Procedure Step).

See also

DICOM PS3.7 Section 10.1.5 - N-CREATE Service

Usage Example

// SCU creates an MPPS instance
auto rq = make_n_create_rq(1, mpps_sop_class_uid, instance_uid);
rq.set_dataset(initial_attributes);

// SCP responds with created instance
auto rsp = make_n_create_rsp(1, mpps_sop_class_uid, instance_uid, status_success);
rsp.set_dataset(returned_attributes);

Command Elements

Tag	Keyword	Request	Response
(0000,0002)	AffectedSOPClassUID	M	M
(0000,0100)	CommandField	M (0x0140/0x8140)	M
(0000,0110)	MessageID	M	-
(0000,0120)	MessageIDBeingRespondedTo	-	M
(0000,0800)	CommandDataSetType	M	M
(0000,0900)	Status	-	M
(0000,1000)	AffectedSOPInstanceUID	U	C

M = Mandatory, U = User option, C = Conditional

Author

kcenon

Since

1.0.0

Definition in file n_create.h.
