n_action.h File Reference

N-ACTION DIMSE service. More...

#include "dimse_message.h"

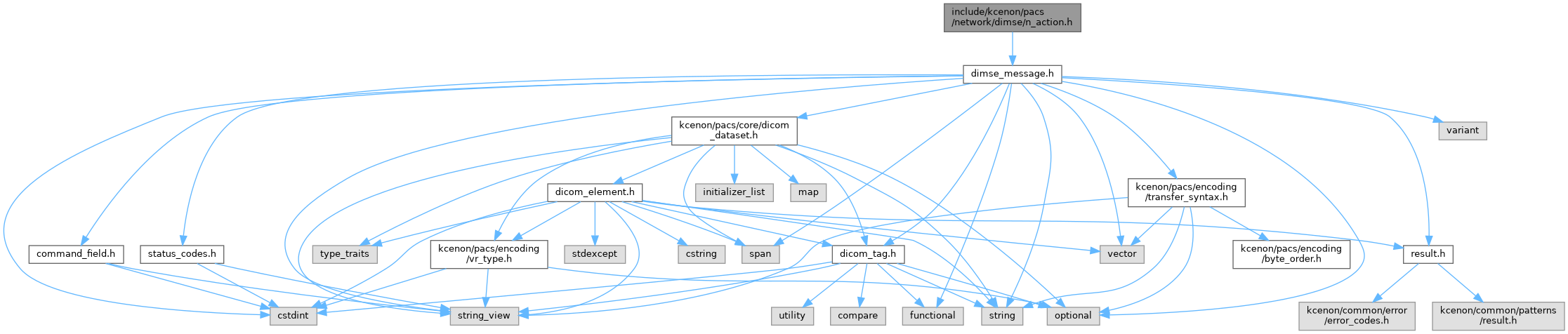

Include dependency graph for n_action.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::network
namespace	kcenon::pacs::network::dimse

Detailed Description

N-ACTION DIMSE service.

N-ACTION is used to request that an action be performed on a managed SOP Instance. It is primarily used for Storage Commitment to request commitment of images to permanent storage.

See also

DICOM PS3.7 Section 10.1.4 - N-ACTION Service

Usage Example

// SCU requests storage commitment
auto rq = make_n_action_rq(
    1,
    storage_commitment_sop_class_uid,
    storage_commitment_sop_instance_uid,
    1  // Action Type ID: Request Storage Commitment
);
rq.set_dataset(action_information);  // Contains list of SOP instances

// SCP responds
auto rsp = make_n_action_rsp(
    1, storage_commitment_sop_class_uid, transaction_uid, 1, status_success);

Action Type IDs (Storage Commitment)

ID	Meaning
1	Request Storage Commitment

Command Elements

Tag	Keyword	Request	Response
(0000,0003)	RequestedSOPClassUID	M	-
(0000,0002)	AffectedSOPClassUID	-	M
(0000,0100)	CommandField	M (0x0130/0x8130)	M
(0000,0110)	MessageID	M	-
(0000,0120)	MessageIDBeingRespondedTo	-	M
(0000,0800)	CommandDataSetType	M	M
(0000,0900)	Status	-	M
(0000,1001)	RequestedSOPInstanceUID	M	-
(0000,1000)	AffectedSOPInstanceUID	-	M
(0000,1008)	ActionTypeID	M	C

M = Mandatory, C = Conditional

Author

kcenon

Since

1.0.0

Definition in file n_action.h.
