mr_iod_validator.h File Reference

MR Image IOD Validator. More...

#include "kcenon/pacs/core/dicom_dataset.h"
#include "kcenon/pacs/core/dicom_tag.h"
#include "kcenon/pacs/services/validation/us_iod_validator.h"
#include <string>
#include <vector>

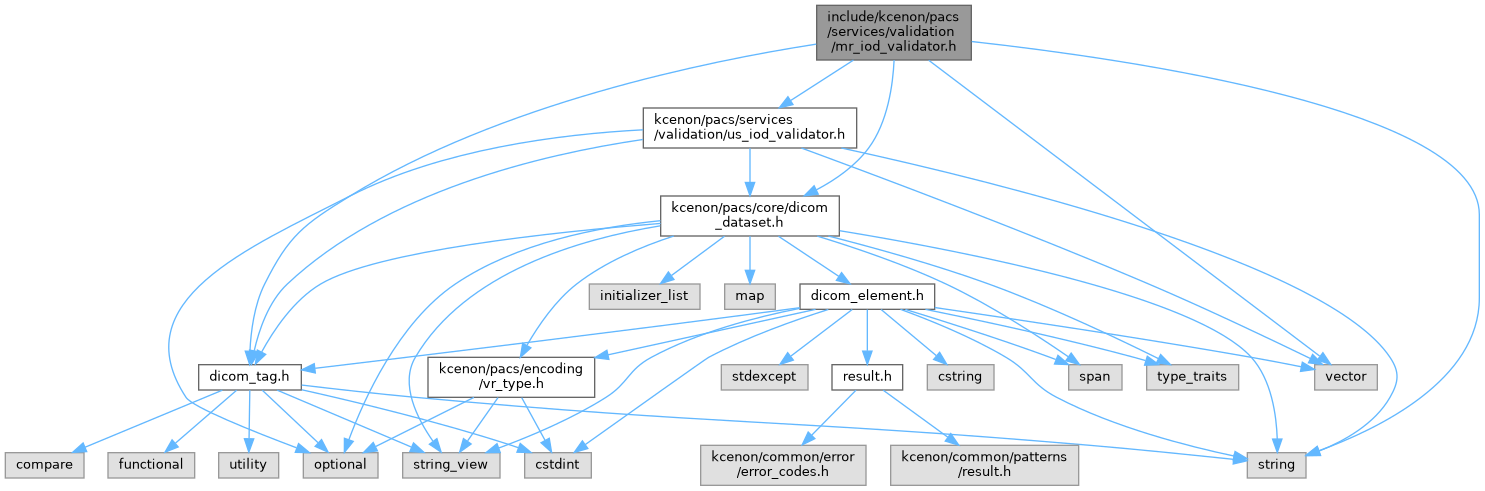

Include dependency graph for mr_iod_validator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::validation::mr_validation_options
	Options for MR IOD validation. More...
class	kcenon::pacs::services::validation::mr_iod_validator

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::validation
namespace	kcenon::pacs::services::validation::mr_tags

Functions
validation_result	kcenon::pacs::services::validation::validate_mr_iod (const core::dicom_dataset &dataset)
	Validate an MR dataset with default options.
bool	kcenon::pacs::services::validation::is_valid_mr_dataset (const core::dicom_dataset &dataset)
	Quick check if a dataset is a valid MR image.

Variables
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::scanning_sequence {0x0018, 0x0020}
	Scanning Sequence (0018,0020) - Type 1 Identifies the type of MR data acquisition sequence: SE, IR, GR, EP, RM.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::sequence_variant {0x0018, 0x0021}
	Sequence Variant (0018,0021) - Type 1 Variant of the scanning sequence: SK, MTC, SS, TRSS, SP, MP, OSP, NONE.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::scan_options {0x0018, 0x0022}
	Scan Options (0018,0022) - Type 2 Additional scan parameters: PER, RG, CG, PPG, FC, PFF, PFP, SP, FS.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::mr_acquisition_type {0x0018, 0x0023}
	MR Acquisition Type (0018,0023) - Type 2 Identifies the spatial data encoding scheme: 2D or 3D.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::repetition_time {0x0018, 0x0080}
	Repetition Time (0018,0080) - Type 2C Time in ms between successive pulse sequences.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::echo_time {0x0018, 0x0081}
	Echo Time (0018,0081) - Type 2 Time in ms between the middle of the excitation pulse and peak of echo.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::echo_train_length {0x0018, 0x0091}
	Echo Train Length (0018,0091) - Type 2 Number of echoes in a multi-echo acquisition.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::inversion_time {0x0018, 0x0082}
	Inversion Time (0018,0082) - Type 2C Time in ms between the inversion and excitation pulses.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::magnetic_field_strength {0x0018, 0x0087}
	Magnetic Field Strength (0018,0087) - Type 2 Nominal field strength of MR magnet in Tesla.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::spacing_between_slices {0x0018, 0x0088}
	Spacing Between Slices (0018,0088) - Type 2 Distance between adjacent slices in mm.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::number_of_phase_encoding_steps {0x0018, 0x0089}
	Number of Phase Encoding Steps (0018,0089) - Type 2.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::percent_sampling {0x0018, 0x0093}
	Percent Sampling (0018,0093) - Type 2.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::percent_phase_fov {0x0018, 0x0094}
	Percent Phase Field of View (0018,0094) - Type 2.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::pixel_bandwidth {0x0018, 0x0095}
	Pixel Bandwidth (0018,0095) - Type 2.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::flip_angle {0x0018, 0x1314}
	Flip Angle (0018,1314) - Type 2 Steady state angle in degrees.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::sar {0x0018, 0x1316}
	SAR (Specific Absorption Rate) (0018,1316) - Type 2.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::slice_thickness {0x0018, 0x0050}
	Slice Thickness (0018,0050) - Type 2.
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::image_position_patient {0x0020, 0x0032}
	Image Position (Patient) (0020,0032)
constexpr core::dicom_tag	kcenon::pacs::services::validation::mr_tags::image_orientation_patient {0x0020, 0x0037}
	Image Orientation (Patient) (0020,0037)

Detailed Description

MR Image IOD Validator.

Provides validation for MR Image Information Object Definitions as specified in DICOM PS3.3 Section A.4 (MR Image IOD).

MR images include Frame of Reference for spatial registration and MR-specific acquisition parameters (MagneticFieldStrength, EchoTime, RepetitionTime, ScanningSequence, etc.).

See also

DICOM PS3.3 Section A.4 - MR Image IOD

DICOM PS3.3 Table A.4-1 - MR Image IOD Modules

Issue #718 - Add MR Image IOD Validator

Author

kcenon

Since

1.0.0

Definition in file mr_iod_validator.h.
