label_map_seg_iod_validator.h File Reference

Label Map Segmentation IOD Validator. More...

#include "kcenon/pacs/core/dicom_dataset.h"
#include "kcenon/pacs/core/dicom_tag.h"
#include "kcenon/pacs/services/validation/us_iod_validator.h"
#include <string>
#include <vector>

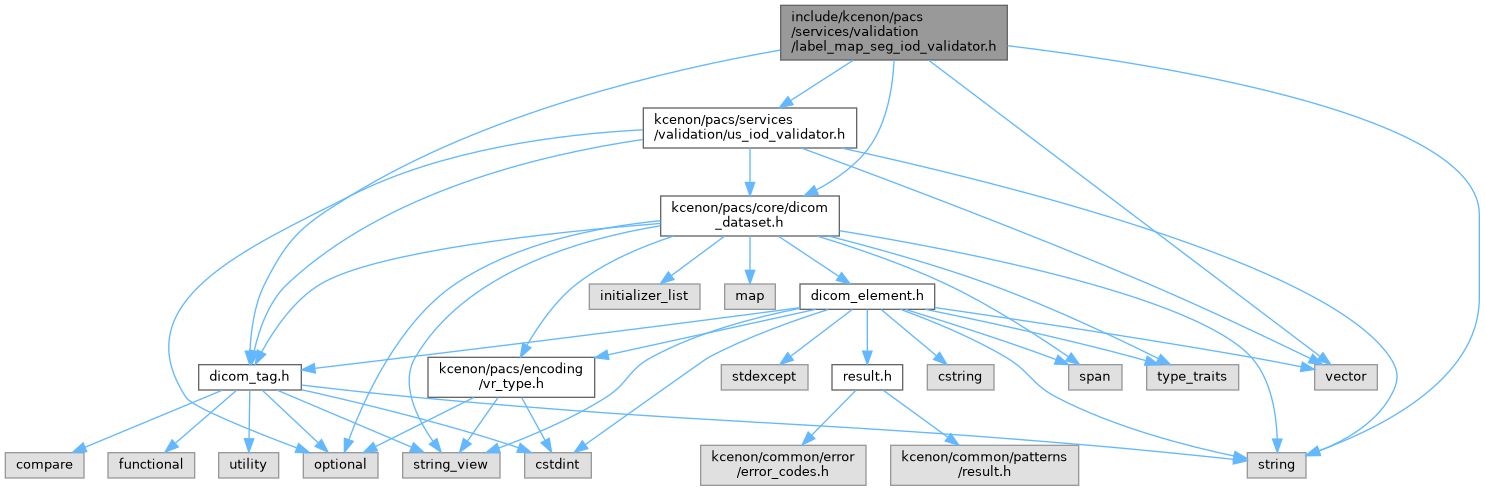

Include dependency graph for label_map_seg_iod_validator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::validation::label_map_seg_validation_options
	Options for Label Map Segmentation IOD validation. More...
class	kcenon::pacs::services::validation::label_map_seg_iod_validator

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::validation
namespace	kcenon::pacs::services::validation::label_map_seg_tags

Functions
validation_result	kcenon::pacs::services::validation::validate_label_map_seg_iod (const core::dicom_dataset &dataset)
	Validate a Label Map Segmentation dataset with default options.
bool	kcenon::pacs::services::validation::is_valid_label_map_seg_dataset (const core::dicom_dataset &dataset)
	Quick check if a dataset is a valid Label Map Segmentation object.
bool	kcenon::pacs::services::validation::is_label_map_segmentation (const core::dicom_dataset &dataset)
	Check if dataset is a label map segmentation.

Variables
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::segmentation_type {0x0062, 0x0001}
	Segmentation Type (0062,0001) - must be "LABELMAP".
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::segment_sequence {0x0062, 0x0002}
	Segment Sequence (0062,0002)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::segment_number {0x0062, 0x0004}
	Segment Number (0062,0004)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::segment_label {0x0062, 0x0005}
	Segment Label (0062,0005)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::segment_algorithm_type {0x0062, 0x0008}
	Segment Algorithm Type (0062,0008)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::segmented_property_category_code_sequence
	Segmented Property Category Code Sequence (0062,0003)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::segmented_property_type_code_sequence
	Segmented Property Type Code Sequence (0062,000F)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::number_of_frames {0x0028, 0x0008}
	Number of Frames (0028,0008)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::shared_functional_groups_sequence
	Shared Functional Groups Sequence (5200,9229)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::per_frame_functional_groups_sequence
	Per-Frame Functional Groups Sequence (5200,9230)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::dimension_organization_sequence
	Dimension Organization Sequence (0020,9221)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::dimension_index_sequence {0x0020, 0x9222}
	Dimension Index Sequence (0020,9222)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::referenced_series_sequence {0x0008, 0x1115}
	Referenced Series Sequence (0008,1115)
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::manufacturer {0x0008, 0x0070}
	Enhanced General Equipment Module tags.
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::manufacturer_model_name {0x0008, 0x1090}
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::device_serial_number {0x0018, 0x1000}
constexpr core::dicom_tag	kcenon::pacs::services::validation::label_map_seg_tags::software_versions {0x0018, 0x1020}

Detailed Description

Label Map Segmentation IOD Validator.

Provides validation for Label Map Segmentation Information Object Definitions as specified in DICOM Supplement 243. Label Map segmentation stores a single integer label per voxel for non-overlapping, mutually exclusive classification of all segments in one frame set.

See also

DICOM Supplement 243 - Label Map Segmentation IOD

DICOM PS3.3 - Segmentation IOD (existing binary segmentation)

Issue #850 - Add Label Map Segmentation IOD support

Author

kcenon

Since

1.0.0

Definition in file label_map_seg_iod_validator.h.
