heightmap_seg_iod_validator.h File Reference

Heightmap Segmentation IOD Validator. More...

#include "kcenon/pacs/core/dicom_dataset.h"
#include "kcenon/pacs/core/dicom_tag.h"
#include "kcenon/pacs/services/validation/us_iod_validator.h"
#include <string>
#include <vector>

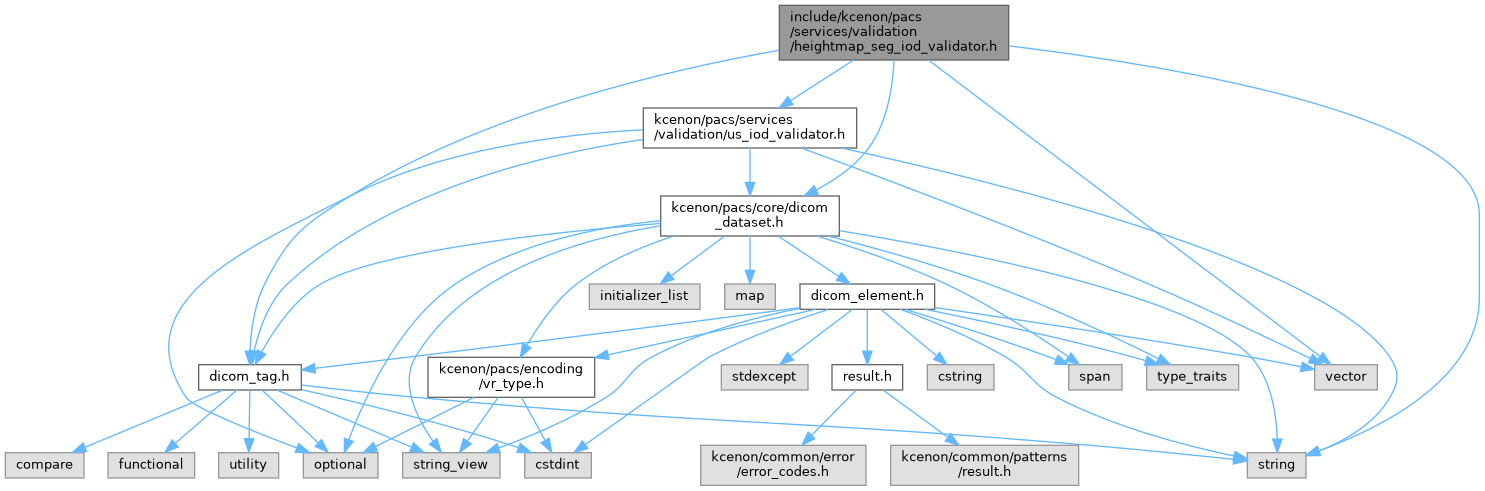

Include dependency graph for heightmap_seg_iod_validator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::validation::heightmap_seg_validation_options
	Options for Heightmap Segmentation IOD validation. More...
class	kcenon::pacs::services::validation::heightmap_seg_iod_validator

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::validation
namespace	kcenon::pacs::services::validation::heightmap_seg_tags

Functions
validation_result	kcenon::pacs::services::validation::validate_heightmap_seg_iod (const core::dicom_dataset &dataset)
	Validate a Heightmap Segmentation dataset with default options.
bool	kcenon::pacs::services::validation::is_valid_heightmap_seg_dataset (const core::dicom_dataset &dataset)
	Quick check if a dataset is a valid Heightmap Segmentation object.
bool	kcenon::pacs::services::validation::is_heightmap_segmentation (const core::dicom_dataset &dataset)
	Check if dataset is a heightmap segmentation.

Variables
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::modality {0x0008, 0x0060}
	Heightmap Segmentation Series Module - Modality (0008,0060) must be "SEG".
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::segmentation_type {0x0062, 0x0001}
	Segmentation Type (0062,0001) - must be "HEIGHTMAP".
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::segment_sequence {0x0062, 0x0002}
	Segment Sequence (0062,0002)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::segment_number {0x0062, 0x0004}
	Segment Number (0062,0004)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::segment_label {0x0062, 0x0005}
	Segment Label (0062,0005)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::segment_algorithm_type {0x0062, 0x0008}
	Segment Algorithm Type (0062,0008)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::segmented_property_category_code_sequence {0x0062, 0x0003}
	Segmented Property Category Code Sequence (0062,0003)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::segmented_property_type_code_sequence {0x0062, 0x000F}
	Segmented Property Type Code Sequence (0062,000F)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::number_of_frames {0x0028, 0x0008}
	Number of Frames (0028,0008)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::shared_functional_groups_sequence {0x5200, 0x9229}
	Shared Functional Groups Sequence (5200,9229)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::per_frame_functional_groups_sequence {0x5200, 0x9230}
	Per-Frame Functional Groups Sequence (5200,9230)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::dimension_organization_sequence {0x0020, 0x9221}
	Dimension Organization Sequence (0020,9221)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::dimension_index_sequence {0x0020, 0x9222}
	Dimension Index Sequence (0020,9222)
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::referenced_series_sequence {0x0008, 0x1115}
	Referenced Series Sequence (0008,1115) - Common Instance Reference Module.
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::manufacturer {0x0008, 0x0070}
	Enhanced General Equipment Module tags.
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::manufacturer_model_name {0x0008, 0x1090}
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::device_serial_number {0x0018, 0x1000}
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::software_versions {0x0018, 0x1020}
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::image_laterality {0x0020, 0x0062}
	Image Laterality (0020,0062) - required for ophthalmic context.
constexpr core::dicom_tag	kcenon::pacs::services::validation::heightmap_seg_tags::anatomic_region_sequence {0x0008, 0x2218}
	Anatomic Region Sequence (0008,2218)

Detailed Description

Heightmap Segmentation IOD Validator.

Provides validation for Heightmap Segmentation Information Object Definitions as specified in DICOM Supplement 240 (DICOM 2024d). Heightmap segmentation stores boundary positions as scalar height values per A-scan column, enabling compact representation of retinal layer boundaries in ophthalmic OCT imaging.

See also

DICOM Supplement 240 - Heightmap Segmentation IOD

DICOM PS3.3 - Heightmap Segmentation IOD Definition

Issue #849 - Add Heightmap Segmentation IOD support

Author

kcenon

Since

1.0.0

Definition in file heightmap_seg_iod_validator.h.
