ct_processing_iod_validator.h File Reference

CT For Processing Image IOD Validator. More...

#include "kcenon/pacs/core/dicom_dataset.h"
#include "kcenon/pacs/core/dicom_tag.h"
#include "kcenon/pacs/services/validation/us_iod_validator.h"
#include <string>
#include <vector>

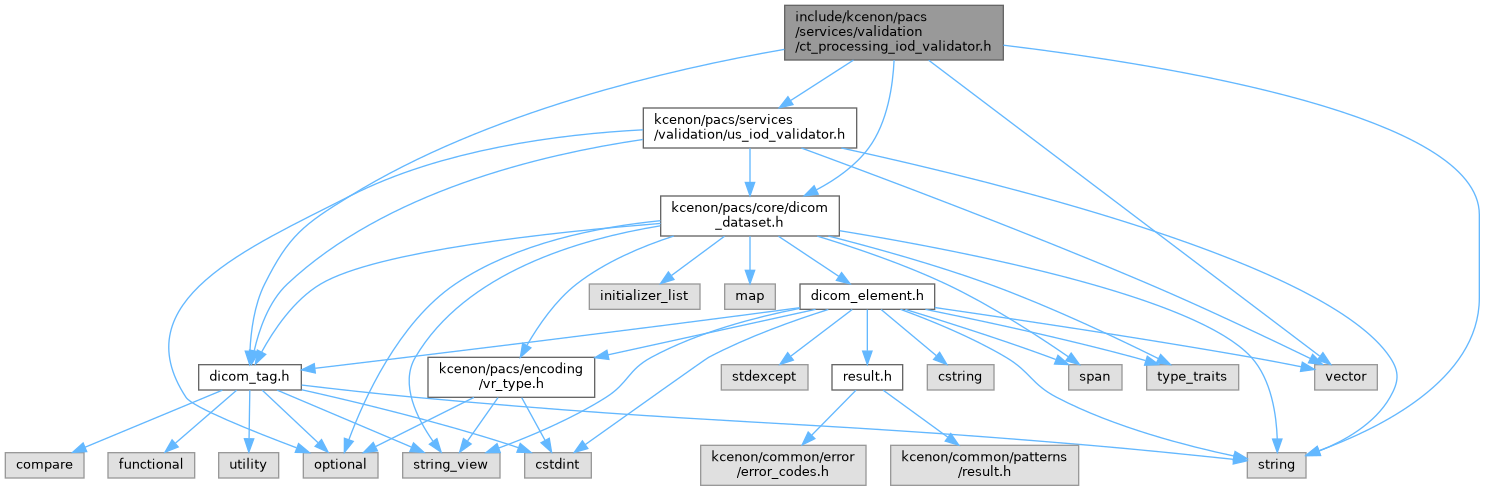

Include dependency graph for ct_processing_iod_validator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::validation::ct_processing_validation_options
	Options for CT For Processing IOD validation. More...
class	kcenon::pacs::services::validation::ct_processing_iod_validator

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::validation
namespace	kcenon::pacs::services::validation::ct_processing_tags

Functions
validation_result	kcenon::pacs::services::validation::validate_ct_processing_iod (const core::dicom_dataset &dataset)
	Validate a CT For Processing dataset with default options.
bool	kcenon::pacs::services::validation::is_valid_ct_processing_dataset (const core::dicom_dataset &dataset)
	Quick check if a dataset is a valid CT For Processing image.

Variables
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_processing_tags::kvp {0x0018, 0x0060}
	KVP (0018,0060)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_processing_tags::slice_thickness {0x0018, 0x0050}
	Slice Thickness (0018,0050)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_processing_tags::convolution_kernel {0x0018, 0x1210}
	Convolution Kernel (0018,1210)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_processing_tags::image_position_patient {0x0020, 0x0032}
	Image Position (Patient) (0020,0032)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_processing_tags::image_orientation_patient {0x0020, 0x0037}
	Image Orientation (Patient) (0020,0037)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_processing_tags::decomposition_description {0x0018, 0x9380}
	Decomposition Description (0018,9380) - describes the material decomposition.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_processing_tags::decomposition_algorithm_id_seq {0x0018, 0x9381}
	Decomposition Algorithm Identification Sequence (0018,9381)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_processing_tags::acquisition_type {0x0018, 0x9302}
	Acquisition Type (0018,9302)

Detailed Description

CT For Processing Image IOD Validator.

Provides validation for CT For Processing Image Information Object Definitions as specified in DICOM PS3.3. CT For Processing images store basis material decomposition images from multi-energy/spectral CT acquisitions (dual-energy, photon-counting CT).

See also

DICOM PS3.3 - CT For Processing IOD

DICOM PS3.4 Section B - Storage Service Class

Issue #848 - Add CT For Processing SOP Classes

Author

kcenon

Since

1.0.0

Definition in file ct_processing_iod_validator.h.
