ct_iod_validator.h File Reference

CT Image IOD Validator. More...

#include "kcenon/pacs/core/dicom_dataset.h"
#include "kcenon/pacs/core/dicom_tag.h"
#include "kcenon/pacs/services/validation/us_iod_validator.h"
#include <string>
#include <vector>

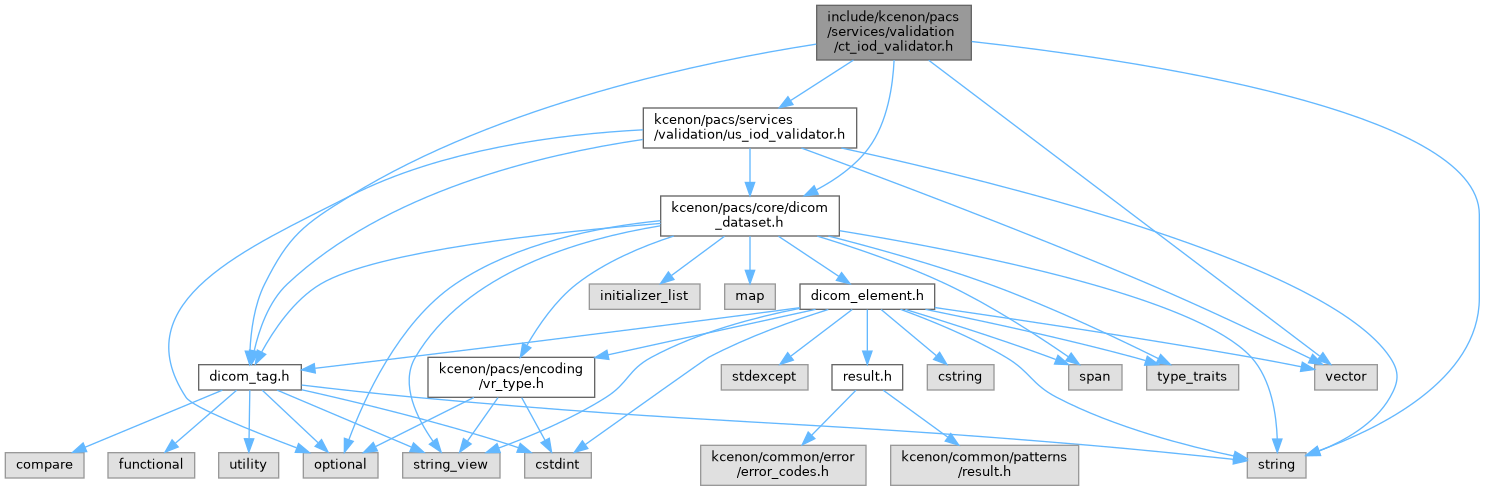

Include dependency graph for ct_iod_validator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::validation::ct_validation_options
	Options for CT IOD validation. More...
class	kcenon::pacs::services::validation::ct_iod_validator

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::validation
namespace	kcenon::pacs::services::validation::ct_tags

Functions
validation_result	kcenon::pacs::services::validation::validate_ct_iod (const core::dicom_dataset &dataset)
	Validate a CT dataset with default options.
bool	kcenon::pacs::services::validation::is_valid_ct_dataset (const core::dicom_dataset &dataset)
	Quick check if a dataset is a valid CT image.

Variables
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::kvp {0x0018, 0x0060}
	KVP (0018,0060) - Peak kilo voltage output of the X-Ray generator.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::slice_thickness {0x0018, 0x0050}
	Slice Thickness (0018,0050) - Nominal slice thickness in mm.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::gantry_detector_tilt {0x0018, 0x1120}
	Gantry/Detector Tilt (0018,1120) - Gantry tilt in degrees.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::table_height {0x0018, 0x1130}
	Table Height (0018,1130) - Table height in mm.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::rotation_direction {0x0018, 0x1140}
	Rotation Direction (0018,1140) - Direction of rotation (CW/CC)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::exposure_time {0x0018, 0x1150}
	Exposure Time (0018,1150) - Duration of X-Ray exposure in ms.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::xray_tube_current {0x0018, 0x1151}
	X-Ray Tube Current (0018,1151) - in mA.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::exposure {0x0018, 0x1152}
	Exposure (0018,1152) - in mAs (milliampere seconds)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::filter_type {0x0018, 0x1160}
	Filter Type (0018,1160) - Type of filter inserted into X-Ray beam.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::generator_power {0x0018, 0x1170}
	Generator Power (0018,1170) - Power in kW applied to generator.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::focal_spots {0x0018, 0x1190}
	Focal Spots (0018,1190) - Size of the focal spot in mm.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::convolution_kernel {0x0018, 0x1210}
	Convolution Kernel (0018,1210) - Reconstruction algorithm.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::reconstruction_diameter {0x0018, 0x1100}
	Reconstruction Diameter (0018,1100) - Diameter of reconstruction in mm.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::data_collection_diameter {0x0018, 0x0090}
	Data Collection Diameter (0018,0090) - in mm.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::patient_position {0x0018, 0x5100}
	Patient Position (0018,5100)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::image_position_patient {0x0020, 0x0032}
	Image Position (Patient) (0020,0032)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::image_orientation_patient {0x0020, 0x0037}
	Image Orientation (Patient) (0020,0037)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ct_tags::slice_location {0x0020, 0x1041}
	Slice Location (0020,1041)

Detailed Description

CT Image IOD Validator.

Provides validation for CT Image Information Object Definitions as specified in DICOM PS3.3 Section A.3 (CT Image IOD).

CT images include Frame of Reference for spatial registration and CT-specific acquisition parameters (KVP, SliceThickness, etc.).

See also

DICOM PS3.3 Section A.3 - CT Image IOD

DICOM PS3.3 Table A.3-1 - CT Image IOD Modules

Issue #717 - Add CT Image IOD Validator

Author

kcenon

Since

1.0.0

Definition in file ct_iod_validator.h.
