kcenon::pacs::integration::monitoring_adapter::span Class Reference

Represents a unit of work in distributed tracing. More...

#include <monitoring_adapter.h>

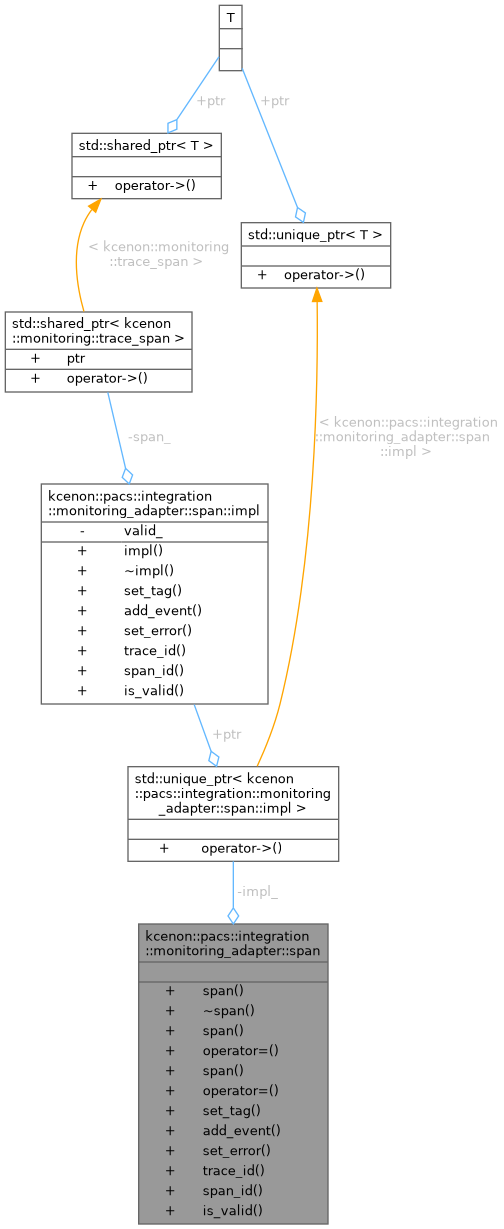

Collaboration diagram for kcenon::pacs::integration::monitoring_adapter::span:

Classes
class	impl

Public Member Functions
	span (std::string_view operation_name)
	Construct a new span.
	~span ()
	Destructor - automatically finishes the span.
	span (const span &)=delete
span &	operator= (const span &)=delete
	span (span &&other) noexcept
span &	operator= (span &&other) noexcept
void	set_tag (std::string_view key, std::string_view value)
	Set a tag on the span.
void	add_event (std::string_view name)
	Add an event to the span.
void	set_error (const std::exception &e)
	Mark the span as an error.
auto	trace_id () const -> std::string
	Get the trace ID.
auto	span_id () const -> std::string
	Get the span ID.
auto	is_valid () const noexcept -> bool
	Check if span is valid (properly initialized)

Private Attributes
std::unique_ptr< impl >	impl_

Detailed Description

Represents a unit of work in distributed tracing.

A span tracks the execution of a single operation, recording timing, tags, and events. Spans are automatically finished when they go out of scope (RAII pattern).

Definition at line 274 of file monitoring_adapter.h.

Constructor & Destructor Documentation

span() [1/3]

kcenon::pacs::integration::monitoring_adapter::span::span ( std::string_view operation_name )

explicit

Construct a new span.

Parameters

operation_name

Name of the operation being traced

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 117 of file monitoring_adapter.cpp.

    : impl_(std::make_unique<impl>(operation_name)) {}

~span()

kcenon::pacs::integration::monitoring_adapter::span::~span ( )

default

Destructor - automatically finishes the span.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

span() [2/3]

kcenon::pacs::integration::monitoring_adapter::span::span ( const span & )

delete

span() [3/3]

kcenon::pacs::integration::monitoring_adapter::span::span ( span && other )

defaultnoexcept

Member Function Documentation

add_event()

void kcenon::pacs::integration::monitoring_adapter::span::add_event

(

std::string_view

name

)

Add an event to the span.

Parameters

name	Event name

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 132 of file monitoring_adapter.cpp.

                                                          {
    if (impl_) {
        impl_->add_event(name);
    }
}

References name.

is_valid()

auto kcenon::pacs::integration::monitoring_adapter::span::is_valid ( ) const -> bool

nodiscardnoexcept

Check if span is valid (properly initialized)

Returns

true if span is valid

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 158 of file monitoring_adapter.cpp.

                                                             {
    return impl_ && impl_->is_valid();
}

References is_valid().

Referenced by is_valid().

Here is the call graph for this function:

Here is the caller graph for this function:

operator=() [1/2]

span & kcenon::pacs::integration::monitoring_adapter::span::operator= ( const span & )

delete

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

operator=() [2/2]

monitoring_adapter::span & kcenon::pacs::integration::monitoring_adapter::span::operator= ( span && other )

defaultnoexcept

set_error()

void kcenon::pacs::integration::monitoring_adapter::span::set_error

(

const std::exception &

e

)

Mark the span as an error.

Parameters

e	The exception that occurred

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 138 of file monitoring_adapter.cpp.

                                                            {
    if (impl_) {
        impl_->set_error(e);
    }
}

set_tag()

void kcenon::pacs::integration::monitoring_adapter::span::set_tag	(	std::string_view	key,
		std::string_view	value )

Set a tag on the span.

Parameters

key	Tag name
value	Tag value

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 126 of file monitoring_adapter.cpp.

                                                                             {
    if (impl_) {
        impl_->set_tag(key, value);
    }
}

span_id()

auto kcenon::pacs::integration::monitoring_adapter::span::span_id ( ) const -> std::string

nodiscard

Get the span ID.

Returns

The span identifier

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 151 of file monitoring_adapter.cpp.

                                                        {
    if (impl_) {
        return impl_->span_id();
    }
    return "";
}

trace_id()

auto kcenon::pacs::integration::monitoring_adapter::span::trace_id ( ) const -> std::string

nodiscard

Get the trace ID.

Returns

The trace identifier

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 144 of file monitoring_adapter.cpp.

                                                         {
    if (impl_) {
        return impl_->trace_id();
    }
    return "";
}

Member Data Documentation

impl_

std::unique_ptr<impl> kcenon::pacs::integration::monitoring_adapter::span::impl_

private

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 334 of file monitoring_adapter.h.

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/integration/monitoring_adapter.h
• src/integration/monitoring_adapter.cpp
