Adapter for PACS performance metrics and distributed tracing. More...

#include <monitoring_adapter.h>

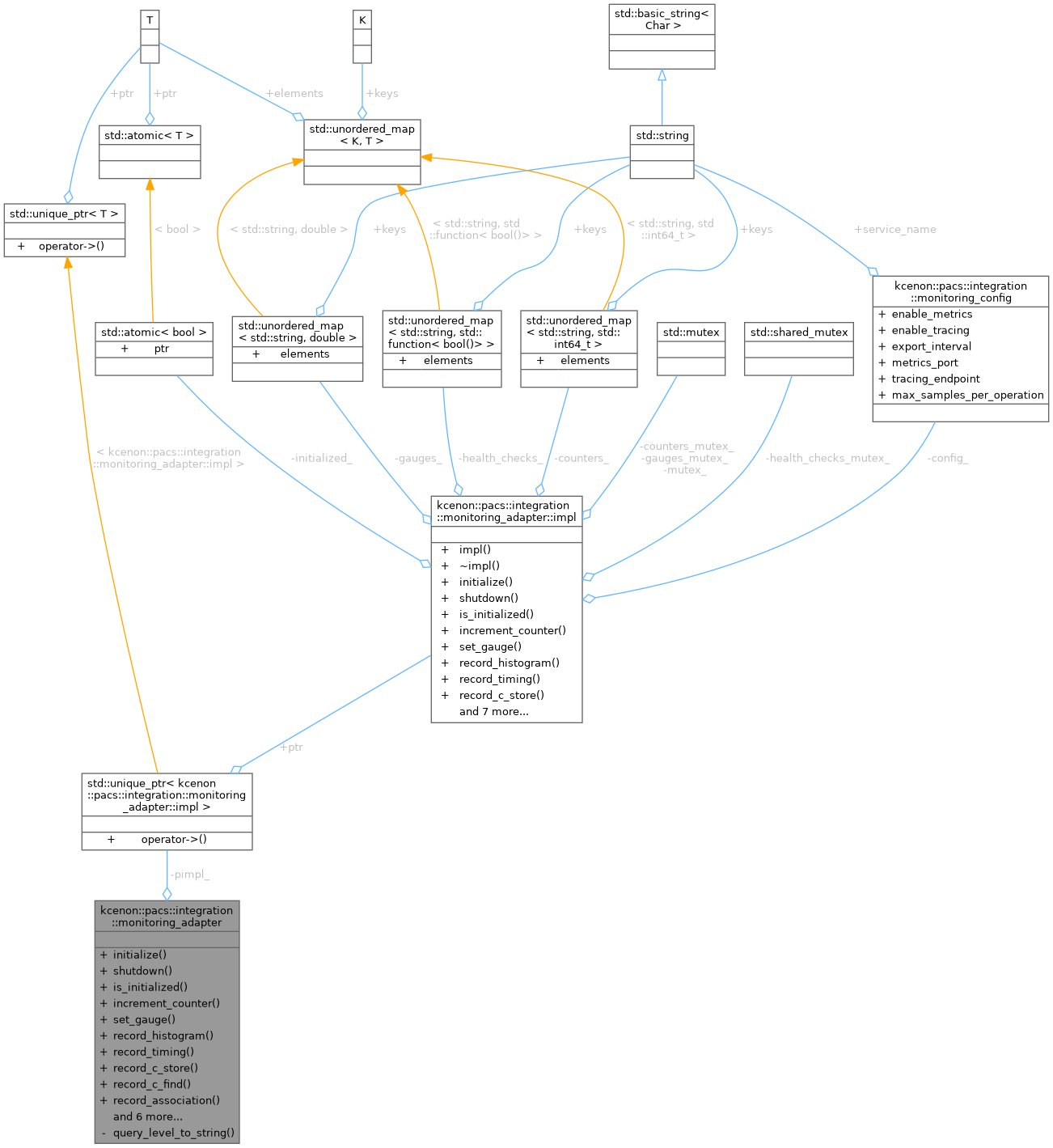

Collaboration diagram for kcenon::pacs::integration::monitoring_adapter:

Classes
struct	health_status
	Health check result containing component status. More...

class	impl

class	span
	Represents a unit of work in distributed tracing. More...

Static Public Member Functions
static void	initialize (const monitoring_config &config)
	Initialize the monitoring adapter with configuration.

static void	shutdown ()
	Shutdown the monitoring adapter.

static auto	is_initialized () noexcept -> bool
	Check if the monitoring adapter is initialized.

static void	increment_counter (std::string_view name, std::int64_t value=1)
	Increment a counter metric.

static void	set_gauge (std::string_view name, double value)
	Set a gauge metric value.

static void	record_histogram (std::string_view name, double value)
	Record a histogram sample.

static void	record_timing (std::string_view name, std::chrono::nanoseconds duration)
	Record a timing measurement.

static void	record_c_store (std::chrono::nanoseconds duration, std::size_t bytes, bool success)
	Record C-STORE operation metrics.

static void	record_c_find (std::chrono::nanoseconds duration, std::size_t matches, query_level level)
	Record C-FIND operation metrics.

static void	record_association (const std::string &calling_ae, bool established)
	Record DICOM association metrics.

static void	update_storage_stats (std::size_t total_instances, std::size_t total_bytes)
	Update storage statistics.

static auto	start_span (std::string_view operation) -> span
	Start a new trace span.

static auto	get_health () -> health_status
	Get current health status.

static void	register_health_check (std::string_view component, std::function< bool()> check)
	Register a health check for a component.

static void	unregister_health_check (std::string_view component)
	Unregister a health check.

static auto	get_config () -> const monitoring_config &
	Get the current configuration.

Static Private Member Functions
static auto	query_level_to_string (query_level level) -> std::string

Static Private Attributes
static std::unique_ptr< impl >	pimpl_

Detailed Description

Adapter for PACS performance metrics and distributed tracing.

This class provides a unified interface for monitoring in the PACS system, including:

Performance metrics (counters, gauges, histograms, timing)
DICOM-specific metrics (C-STORE, C-FIND, associations, storage)
Distributed tracing for request tracking across services
Health check endpoints for component status

The adapter uses monitoring_system's high-performance profiling internally while providing a PACS-specific API.

Thread Safety: All methods are thread-safe.

Definition at line 128 of file monitoring_adapter.h.

Member Function Documentation

◆ get_config()

auto kcenon::pacs::integration::monitoring_adapter::get_config ( ) -> const monitoring_config&

staticnodiscard

Get the current configuration.

Returns: Current monitoring configuration

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 489 of file monitoring_adapter.cpp.

                                                                {
    return pimpl_->get_config();
}

References kcenon::pacs::integration::monitoring_adapter::impl::get_config(), and pimpl_.

Here is the call graph for this function:

◆ get_health()

auto kcenon::pacs::integration::monitoring_adapter::get_health ( ) -> health_status

staticnodiscard

Get current health status.

Returns: Health status of all registered components

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 472 of file monitoring_adapter.cpp.

                                                     {
    return pimpl_->get_health();
}

References kcenon::pacs::integration::monitoring_adapter::impl::get_health(), and pimpl_.

Here is the call graph for this function:

◆ increment_counter()

void kcenon::pacs::integration::monitoring_adapter::increment_counter	(	std::string_view	name,
		std::int64_t	value = 1 )

static

Increment a counter metric.

Parameters

name	The counter name
value	The value to add (default: 1)

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 416 of file monitoring_adapter.cpp.

                                                             {
    pimpl_->increment_counter(name, value);
}

References kcenon::pacs::integration::monitoring_adapter::impl::increment_counter(), name, and pimpl_.

Referenced by kcenon::pacs::workflow::auto_prefetch_service::execute_cycle(), kcenon::pacs::workflow::task_scheduler::execute_cycle(), kcenon::pacs::workflow::task_scheduler::execute_task(), ai_service_connector::impl::request_inference(), and job_tracker::update_status().

Here is the call graph for this function:

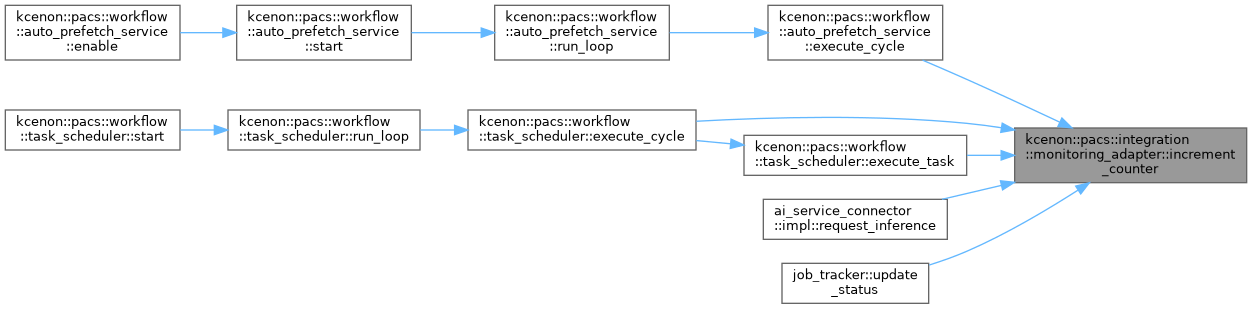

Here is the caller graph for this function:

◆ initialize()

void kcenon::pacs::integration::monitoring_adapter::initialize ( const monitoring_config & config )

static

Initialize the monitoring adapter with configuration.

Must be called before any monitoring operations. Sets up metrics collection, tracing, and health check endpoints if configured.

Parameters

config Configuration options

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 402 of file monitoring_adapter.cpp.

                                                                   {
    pimpl_->initialize(config);
}

References kcenon::pacs::integration::monitoring_adapter::impl::initialize(), and pimpl_.

Here is the call graph for this function:

◆ is_initialized()

auto kcenon::pacs::integration::monitoring_adapter::is_initialized ( ) -> bool

staticnodiscardnoexcept

Check if the monitoring adapter is initialized.

Returns: true if initialized, false otherwise

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 408 of file monitoring_adapter.cpp.

                                                         {
    return pimpl_->is_initialized();
}

References kcenon::pacs::integration::monitoring_adapter::impl::is_initialized(), and pimpl_.

Here is the call graph for this function:

◆ query_level_to_string()

auto kcenon::pacs::integration::monitoring_adapter::query_level_to_string ( query_level level ) -> std::string

staticnodiscardprivate

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 497 of file monitoring_adapter.cpp.

                                                                             {
    switch (level) {
        case query_level::patient:
            return "PATIENT";
        case query_level::study:
            return "STUDY";
        case query_level::series:
            return "SERIES";
        case query_level::image:
            return "IMAGE";
        default:
            return "UNKNOWN";
    }
}

References kcenon::pacs::integration::image, kcenon::pacs::integration::patient, kcenon::pacs::integration::series, and kcenon::pacs::integration::study.

◆ record_association()

void kcenon::pacs::integration::monitoring_adapter::record_association	(	const std::string &	calling_ae,
		bool	established )

static

Record DICOM association metrics.

Records metrics for DICOM association establishment/release.

Metrics recorded:

pacs_associations_total (counter)
pacs_associations_active (gauge)

Parameters

calling_ae	AE title of the remote system
established	true if association was established, false if released

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 450 of file monitoring_adapter.cpp.

                                                              {
    pimpl_->record_association(calling_ae, established);
}

References pimpl_, and kcenon::pacs::integration::monitoring_adapter::impl::record_association().

Here is the call graph for this function:

◆ record_c_find()

void kcenon::pacs::integration::monitoring_adapter::record_c_find	(	std::chrono::nanoseconds	duration,
		std::size_t	matches,
		query_level	level )

static

Record C-FIND operation metrics.

Records performance metrics for a DICOM C-FIND query operation.

Metrics recorded:

pacs_c_find_total (counter)
pacs_c_find_duration_seconds (histogram)
pacs_c_find_matches (histogram)

Parameters

duration	Time taken for the query
matches	Number of matching records returned
level	Query retrieve level (patient, study, series, image)

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 444 of file monitoring_adapter.cpp.

                                                          {
    pimpl_->record_c_find(duration, matches, level);
}

References pimpl_, and kcenon::pacs::integration::monitoring_adapter::impl::record_c_find().

Here is the call graph for this function:

◆ record_c_store()

void kcenon::pacs::integration::monitoring_adapter::record_c_store	(	std::chrono::nanoseconds	duration,
		std::size_t	bytes,
		bool	success )

static

Record C-STORE operation metrics.

Records performance metrics for a DICOM C-STORE operation including duration, bytes transferred, and success/failure status.

Metrics recorded:

pacs_c_store_total (counter)
pacs_c_store_duration_seconds (histogram)
pacs_c_store_bytes_total (counter)

Parameters

duration	Time taken for the operation
bytes	Number of bytes transferred
success	Whether the operation succeeded

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 438 of file monitoring_adapter.cpp.

                                                      {
    pimpl_->record_c_store(duration, bytes, success);
}

References pimpl_, kcenon::pacs::integration::monitoring_adapter::impl::record_c_store(), and kcenon::pacs::integration::success.

Here is the call graph for this function:

◆ record_histogram()

void kcenon::pacs::integration::monitoring_adapter::record_histogram	(	std::string_view	name,
		double	value )

static

Record a histogram sample.

Parameters

name	The histogram name
value	The sample value

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 425 of file monitoring_adapter.cpp.

                                                                           {
    pimpl_->record_histogram(name, value);
}

References name, pimpl_, and kcenon::pacs::integration::monitoring_adapter::impl::record_histogram().

Referenced by kcenon::pacs::workflow::auto_prefetch_service::execute_cycle(), and kcenon::pacs::workflow::task_scheduler::execute_task().

Here is the call graph for this function:

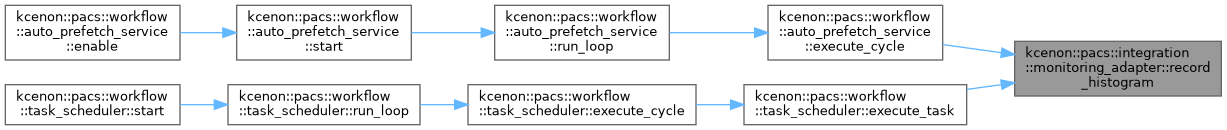

Here is the caller graph for this function:

◆ record_timing()

void kcenon::pacs::integration::monitoring_adapter::record_timing	(	std::string_view	name,
		std::chrono::nanoseconds	duration )

static

Record a timing measurement.

Parameters

name	The timing metric name
duration	The duration to record

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 429 of file monitoring_adapter.cpp.

                                                                      {
    pimpl_->record_timing(name, duration);
}

References name, pimpl_, and kcenon::pacs::integration::monitoring_adapter::impl::record_timing().

Referenced by job_tracker::update_status().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ register_health_check()

void kcenon::pacs::integration::monitoring_adapter::register_health_check	(	std::string_view	component,
		std::function< bool()>	check )

static

Register a health check for a component.

The provided function will be called during health checks. It should return true if the component is healthy.

Parameters

component	Name of the component
check	Function that returns true if healthy

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 476 of file monitoring_adapter.cpp.

                                                                          {
    pimpl_->register_health_check(component, std::move(check));
}

References pimpl_, and kcenon::pacs::integration::monitoring_adapter::impl::register_health_check().

Here is the call graph for this function:

◆ set_gauge()

void kcenon::pacs::integration::monitoring_adapter::set_gauge	(	std::string_view	name,
		double	value )

static

Set a gauge metric value.

Parameters

name	The gauge name
value	The current value

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 421 of file monitoring_adapter.cpp.

                                                                    {
    pimpl_->set_gauge(name, value);
}

References name, pimpl_, and kcenon::pacs::integration::monitoring_adapter::impl::set_gauge().

Referenced by job_tracker::add_job(), ai_service_connector::impl::initialize(), and job_tracker::remove_job().

Here is the call graph for this function:

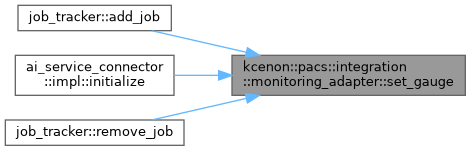

Here is the caller graph for this function:

◆ shutdown()

void kcenon::pacs::integration::monitoring_adapter::shutdown ( )

static

Shutdown the monitoring adapter.

Flushes all pending metrics and releases resources. Should be called before application exit.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 406 of file monitoring_adapter.cpp.

406{ pimpl_->shutdown(); }

kcenon::pacs::integration::monitoring_adapter::impl::shutdown

void shutdown()

Definition monitoring_adapter.cpp:207

References pimpl_, and kcenon::pacs::integration::monitoring_adapter::impl::shutdown().

Here is the call graph for this function:

◆ start_span()

auto kcenon::pacs::integration::monitoring_adapter::start_span ( std::string_view operation ) -> span

staticnodiscard

Start a new trace span.

Parameters

operation Name of the operation

Returns: A new span for the operation

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 464 of file monitoring_adapter.cpp.

                                                                    {
    return span(operation);
}

◆ unregister_health_check()

void kcenon::pacs::integration::monitoring_adapter::unregister_health_check ( std::string_view component )

static

Unregister a health check.

Parameters

component Name of the component to unregister

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 481 of file monitoring_adapter.cpp.

                                                                         {
    pimpl_->unregister_health_check(component);
}

References pimpl_, and kcenon::pacs::integration::monitoring_adapter::impl::unregister_health_check().

Here is the call graph for this function:

◆ update_storage_stats()

void kcenon::pacs::integration::monitoring_adapter::update_storage_stats	(	std::size_t	total_instances,
		std::size_t	total_bytes )

static

Update storage statistics.

Updates gauge metrics for storage usage.

Metrics recorded:

pacs_storage_instances (gauge)
pacs_storage_bytes (gauge)

Parameters

total_instances	Total number of stored DICOM instances
total_bytes	Total storage used in bytes

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 455 of file monitoring_adapter.cpp.

                                                                     {
    pimpl_->update_storage_stats(total_instances, total_bytes);
}

References pimpl_, and kcenon::pacs::integration::monitoring_adapter::impl::update_storage_stats().

Here is the call graph for this function:

Member Data Documentation

◆ pimpl_

std::unique_ptr< monitoring_adapter::impl > kcenon::pacs::integration::monitoring_adapter::pimpl_

staticprivate

Initial value:

=

std::make_unique<monitoring_adapter::impl>()

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/monitoring_adapter.h.

Definition at line 404 of file monitoring_adapter.h.

Referenced by get_config(), get_health(), increment_counter(), initialize(), is_initialized(), record_association(), record_c_find(), record_c_store(), record_histogram(), record_timing(), register_health_check(), set_gauge(), shutdown(), unregister_health_check(), and update_storage_stats().

The documentation for this class was generated from the following files:

include/kcenon/pacs/integration/monitoring_adapter.h
src/integration/monitoring_adapter.cpp

Classes

Static Public Member Functions

Static Private Member Functions

Static Private Attributes

Detailed Description

Member Function Documentation

◆ get_config()

◆ get_health()

◆ increment_counter()

◆ initialize()

◆ is_initialized()

◆ query_level_to_string()

◆ record_association()

◆ record_c_find()

◆ record_c_store()

◆ record_histogram()

◆ record_timing()

◆ register_health_check()

◆ set_gauge()

◆ shutdown()

◆ start_span()

◆ unregister_health_check()

◆ update_storage_stats()

Member Data Documentation

◆ pimpl_
