kcenon::pacs::ihe::xds::document_source Class Reference

ITI-41 Document Source actor. More...

#include <document_source.h>

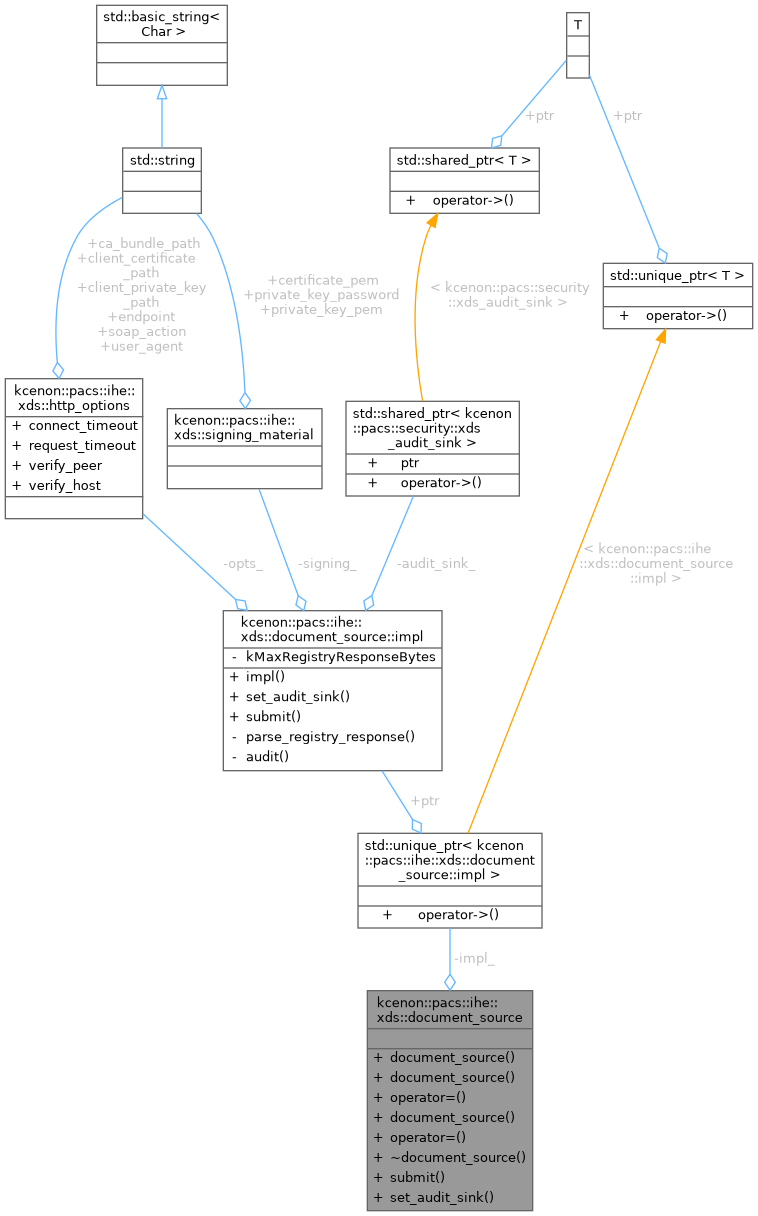

Collaboration diagram for kcenon::pacs::ihe::xds::document_source:

Classes
class	impl

Public Member Functions
	document_source (http_options opts, signing_material signing)
	Construct an ITI-41 Document Source bound to an endpoint and a signing credential.
	document_source (document_source &&) noexcept
document_source &	operator= (document_source &&) noexcept
	document_source (const document_source &)=delete
document_source &	operator= (const document_source &)=delete
	~document_source ()
kcenon::common::Result< submit_response >	submit (const submission_set &s)
	Submit an XDS.b submission set.
void	set_audit_sink (std::shared_ptr< kcenon::pacs::security::xds_audit_sink > sink)
	Install an ATNA audit sink.

Private Attributes
std::unique_ptr< impl >	impl_

Detailed Description

ITI-41 Document Source actor.

The instance is bound to one endpoint and one signing credential. To submit to different registries or sign with different certificates, instantiate multiple document_source objects.

Thread-safety: a single instance is safe to destroy but submit() is NOT reentrant - callers must serialize submit calls per instance, or create one instance per worker thread. libcurl handles are owned by the impl and may not be shared between threads.

Definition at line 84 of file document_source.h.

Constructor & Destructor Documentation

document_source() [1/3]

kcenon::pacs::ihe::xds::document_source::document_source	(	http_options	opts,
		signing_material	signing )

Construct an ITI-41 Document Source bound to an endpoint and a signing credential.

Signing material is copied into the instance; the caller may then zeroize the original buffer. The constructor never throws - any material validation failure is deferred to submit() and surfaces as a typed error_code.

Definition at line 219 of file document_source.cpp.

    : impl_(std::make_unique<impl>(std::move(opts), std::move(signing))) {}

document_source() [2/3]

kcenon::pacs::ihe::xds::document_source::document_source ( document_source && )

defaultnoexcept

document_source() [3/3]

kcenon::pacs::ihe::xds::document_source::document_source ( const document_source & )

delete

~document_source()

kcenon::pacs::ihe::xds::document_source::~document_source ( )

default

Member Function Documentation

operator=() [1/2]

document_source & kcenon::pacs::ihe::xds::document_source::operator= ( const document_source & )

delete

operator=() [2/2]

document_source & kcenon::pacs::ihe::xds::document_source::operator= ( document_source && )

defaultnoexcept

set_audit_sink()

void kcenon::pacs::ihe::xds::document_source::set_audit_sink

(

std::shared_ptr< kcenon::pacs::security::xds_audit_sink >

sink

)

Install an ATNA audit sink.

When set, submit() emits exactly one audit event per invocation - success or failure - carrying the submission_set unique id, patient id, registry endpoint, and the outcome code. A null sink (the default) disables emission. The sink is shared ownership so the same sink instance can be installed on multiple actors feeding a single auditor.

See also

kcenon::pacs::security::xds_audit_sink

Issue #1131

Definition at line 232 of file document_source.cpp.

                                                          {
    impl_->set_audit_sink(std::move(sink));
}

References impl_, and kcenon::pacs::ihe::xds::document_source::impl::set_audit_sink().

Here is the call graph for this function:

submit()

kcenon::common::Result< submit_response > kcenon::pacs::ihe::xds::document_source::submit

(

const submission_set &

s

)

Submit an XDS.b submission set.

Sequence: validate metadata -> build ebRIM SubmitObjectsRequest SOAP envelope -> WS-Security sign Timestamp+Body -> wrap body parts in multipart/related MTOM payload -> POST to configured endpoint over HTTPS -> parse RegistryResponse.

All failure modes surface as typed error_code values; the function never throws across the API boundary. On success, the returned submit_response echoes the registry's Success status and the submission set unique id.

Definition at line 227 of file document_source.cpp.

                             {
    return impl_->submit(s);
}

References submit().

Referenced by submit().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

impl_

std::unique_ptr<impl> kcenon::pacs::ihe::xds::document_source::impl_

private

Definition at line 138 of file document_source.h.

Referenced by set_audit_sink().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/ihe/xds/document_source.h
• src/ihe/xds/document_source.cpp
