DICOM RLE Lossless codec implementation. More...

#include <rle_codec.h>

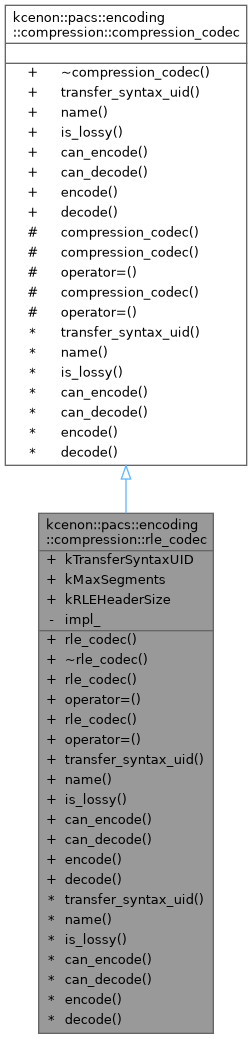

Inheritance diagram for kcenon::pacs::encoding::compression::rle_codec:

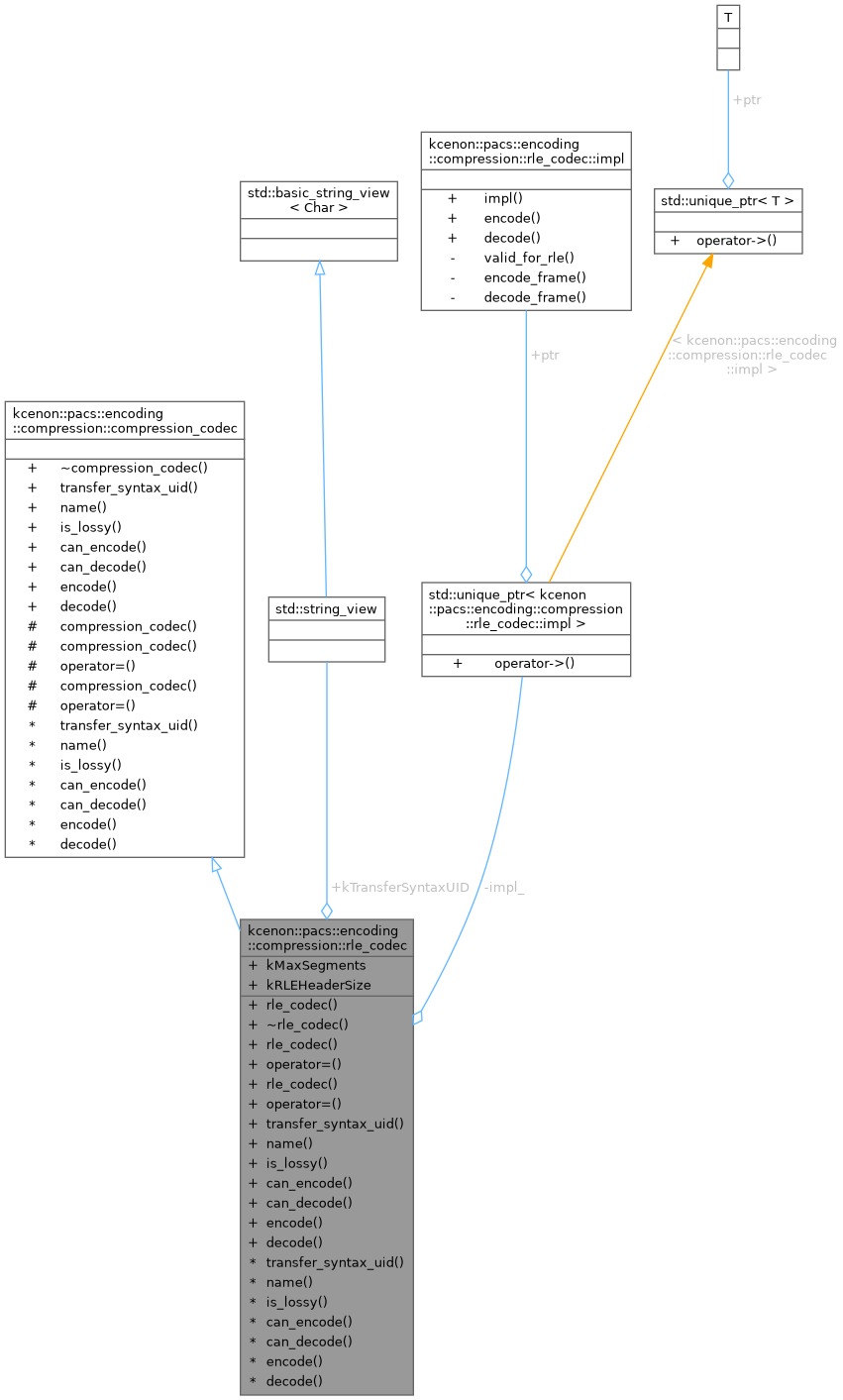

Collaboration diagram for kcenon::pacs::encoding::compression::rle_codec:

Classes
class	impl
	PIMPL implementation for rle_codec. More...

Public Member Functions
	rle_codec ()
	Constructs an RLE codec instance.

	~rle_codec () override

	rle_codec (const rle_codec &)=delete

rle_codec &	operator= (const rle_codec &)=delete

	rle_codec (rle_codec &&) noexcept

rle_codec &	operator= (rle_codec &&) noexcept

Codec Information
std::string_view	transfer_syntax_uid () const noexcept override
	Returns the Transfer Syntax UID supported by this codec.

std::string_view	name () const noexcept override
	Returns a human-readable name for the codec.

bool	is_lossy () const noexcept override
	Checks if this codec produces lossy compression.

bool	can_encode (const image_params &params) const noexcept override
	Checks if this codec supports the given image parameters.

bool	can_decode (const image_params &params) const noexcept override
	Checks if this codec can decode data with given parameters.

Compression Operations
codec_result	encode (std::span< const uint8_t > pixel_data, const image_params &params, const compression_options &options={}) const override
	Compresses pixel data to RLE format.

codec_result	decode (std::span< const uint8_t > compressed_data, const image_params &params) const override
	Decompresses RLE data.

Public Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
virtual	~compression_codec ()=default

Static Public Attributes
static constexpr std::string_view	kTransferSyntaxUID = "1.2.840.10008.1.2.5"
	DICOM Transfer Syntax UID for RLE Lossless.

static constexpr int	kMaxSegments = 15
	Maximum number of RLE segments allowed by DICOM specification.

static constexpr size_t	kRLEHeaderSize = 64
	RLE header size (64 bytes: 16 x 4-byte offsets)

Private Attributes
std::unique_ptr< impl >	impl_

Additional Inherited Members
Protected Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
	compression_codec ()=default

	compression_codec (const compression_codec &)=default

compression_codec &	operator= (const compression_codec &)=default

	compression_codec (compression_codec &&)=default

compression_codec &	operator= (compression_codec &&)=default

Detailed Description

DICOM RLE Lossless codec implementation.

Implements DICOM Transfer Syntax 1.2.840.10008.1.2.5. Uses pure C++ implementation without external library dependencies.

DICOM RLE uses a segment-based approach where each sample is encoded separately, allowing for efficient lossless compression of medical images.

Supported Features:

8-bit grayscale and color images
16-bit grayscale images (stored as two 8-bit segments)
RGB color images (3 samples per pixel)
Multi-frame images (via external frame-by-frame processing)

Limitations:

Maximum 15 segments (DICOM RLE specification)
Maximum image size: 65535 x 65535 pixels
No support for signed pixel representation in encoding

Thread Safety:

This class is NOT thread-safe
Create separate instances per thread for concurrent operations

Integration:

Uses thread_system for parallel batch encoding (via thread_pool_adapter)
Logs operations via logger_system (via logger_adapter)
Reports metrics to monitoring_system (via monitoring_adapter)

See also: DICOM PS3.5 Annex G - RLE Lossless Compression

Definition at line 49 of file rle_codec.h.

Constructor & Destructor Documentation

◆ rle_codec() [1/3]

kcenon::pacs::encoding::compression::rle_codec::rle_codec ( )

Constructs an RLE codec instance.

Definition at line 543 of file rle_codec.cpp.

543: impl_(std::make_unique<impl>()) {}

kcenon::pacs::encoding::compression::rle_codec::impl_

std::unique_ptr< impl > impl_

Definition rle_codec.h:125

◆ ~rle_codec()

kcenon::pacs::encoding::compression::rle_codec::~rle_codec ( )

overridedefault

◆ rle_codec() [2/3]

kcenon::pacs::encoding::compression::rle_codec::rle_codec ( const rle_codec & )

delete

◆ rle_codec() [3/3]

kcenon::pacs::encoding::compression::rle_codec::rle_codec ( rle_codec && )

defaultnoexcept

Member Function Documentation

◆ can_decode()

bool kcenon::pacs::encoding::compression::rle_codec::can_decode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec can decode data with given parameters.

Parameters

params The image parameters

Returns: true if decoding is supported

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 585 of file rle_codec.cpp.

                                                                    {
    // Can decode if parameters are valid for RLE
    // Width/height can be 0 (unknown) for partial validation
    if (params.bits_allocated != 0 &&
        params.bits_allocated != 8 &&
        params.bits_allocated != 16) {
        return false;
    }
    if (params.samples_per_pixel != 0 &&
        (params.samples_per_pixel < 1 || params.samples_per_pixel > 3)) {
        return false;
    }
    return true;
}

◆ can_encode()

bool kcenon::pacs::encoding::compression::rle_codec::can_encode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec supports the given image parameters.

Parameters

params The image parameters to check

Returns: true if the codec can handle these parameters

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 563 of file rle_codec.cpp.

                                                                    {
    // RLE supports 8-bit and 16-bit samples
    if (params.bits_allocated != 8 && params.bits_allocated != 16) {
        return false;
    }
    // 1-3 samples per pixel
    if (params.samples_per_pixel < 1 || params.samples_per_pixel > 3) {
        return false;
    }
    // Check segment count limit
    int bytes_per_sample = (params.bits_allocated + 7) / 8;
    int num_segments = params.samples_per_pixel * bytes_per_sample;
    if (num_segments > kMaxSegments) {
        return false;
    }
    // Valid dimensions
    if (params.width == 0 || params.height == 0) {
        return false;
    }
    return true;
}

◆ decode()

codec_result kcenon::pacs::encoding::compression::rle_codec::decode	(	std::span< const uint8_t >	compressed_data,
		const image_params &	params ) const

nodiscardoverridevirtual

Decompresses RLE data.

Parameters

compressed_data	RLE compressed data (including header)
params	Image parameters (width, height, samples_per_pixel)

Returns: Decompressed pixel data or error

Output format matches the original bit depth:

8-bit: single byte per sample
16-bit: two bytes per sample (little-endian)

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 607 of file rle_codec.cpp.

                                      {
    return impl_->decode(compressed_data, params);
}

References kcenon::pacs::encoding::compression::rle_codec::impl::decode(), and impl_.

Here is the call graph for this function:

◆ encode()

codec_result kcenon::pacs::encoding::compression::rle_codec::encode	(	std::span< const uint8_t >	pixel_data,
		const image_params &	params,
		const compression_options &	options = {} ) const

nodiscardoverridevirtual

Compresses pixel data to RLE format.

Parameters

pixel_data	Uncompressed pixel data
params	Image parameters
options	Compression options (lossless flag is ignored, always lossless)

Returns: Compressed RLE data or error

The output is guaranteed to be exactly reconstructible (lossless). The output includes the 64-byte RLE header followed by segment data.

For 16-bit images, each pixel is split into high byte and low byte, creating twice the number of segments as 8-bit images.

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 600 of file rle_codec.cpp.

                                              {
    return impl_->encode(pixel_data, params, options);
}

References kcenon::pacs::encoding::compression::rle_codec::impl::encode(), and impl_.

Here is the call graph for this function:

◆ is_lossy()

bool kcenon::pacs::encoding::compression::rle_codec::is_lossy ( ) const

nodiscardoverridevirtualnoexcept

Checks if this codec produces lossy compression.

Returns: true if lossy, false if lossless

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 559 of file rle_codec.cpp.

                                        {
    return false;
}

◆ name()

std::string_view kcenon::pacs::encoding::compression::rle_codec::name ( ) const

nodiscardoverridevirtualnoexcept

Returns a human-readable name for the codec.

Returns: The codec name (e.g., "JPEG Baseline")

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 555 of file rle_codec.cpp.

                                              {
    return "RLE Lossless";
}

◆ operator=() [1/2]

rle_codec & kcenon::pacs::encoding::compression::rle_codec::operator= ( const rle_codec & )

delete

◆ operator=() [2/2]

rle_codec & kcenon::pacs::encoding::compression::rle_codec::operator= ( rle_codec && )

defaultnoexcept

◆ transfer_syntax_uid()

std::string_view kcenon::pacs::encoding::compression::rle_codec::transfer_syntax_uid ( ) const

nodiscardoverridevirtualnoexcept

Returns the Transfer Syntax UID supported by this codec.

Returns: The DICOM Transfer Syntax UID

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 551 of file rle_codec.cpp.

                                                             {
    return kTransferSyntaxUID;
}

Member Data Documentation

◆ impl_

std::unique_ptr<impl> kcenon::pacs::encoding::compression::rle_codec::impl_

private

Definition at line 125 of file rle_codec.h.

Referenced by decode(), and encode().

◆ kMaxSegments

int kcenon::pacs::encoding::compression::rle_codec::kMaxSegments = 15

staticconstexpr

Maximum number of RLE segments allowed by DICOM specification.

Definition at line 55 of file rle_codec.h.

Referenced by kcenon::pacs::encoding::compression::rle_codec::impl::decode_frame(), and kcenon::pacs::encoding::compression::rle_codec::impl::valid_for_rle().

◆ kRLEHeaderSize

size_t kcenon::pacs::encoding::compression::rle_codec::kRLEHeaderSize = 64

staticconstexpr

RLE header size (64 bytes: 16 x 4-byte offsets)

Definition at line 58 of file rle_codec.h.

Referenced by kcenon::pacs::encoding::compression::rle_codec::impl::decode(), and kcenon::pacs::encoding::compression::rle_codec::impl::encode_frame().

◆ kTransferSyntaxUID

std::string_view kcenon::pacs::encoding::compression::rle_codec::kTransferSyntaxUID = "1.2.840.10008.1.2.5"

staticconstexpr

DICOM Transfer Syntax UID for RLE Lossless.

Definition at line 52 of file rle_codec.h.

Referenced by kcenon::pacs::encoding::compression::codec_factory::create().

The documentation for this class was generated from the following files:

include/kcenon/pacs/encoding/compression/rle_codec.h
src/encoding/compression/rle_codec.cpp
