JPEG XL codec implementation (Supplement 232). More...

#include <jpegxl_codec.h>

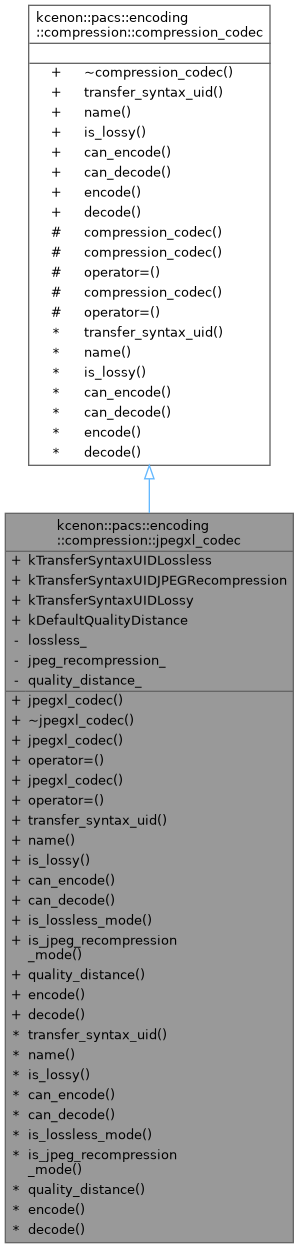

Inheritance diagram for kcenon::pacs::encoding::compression::jpegxl_codec:

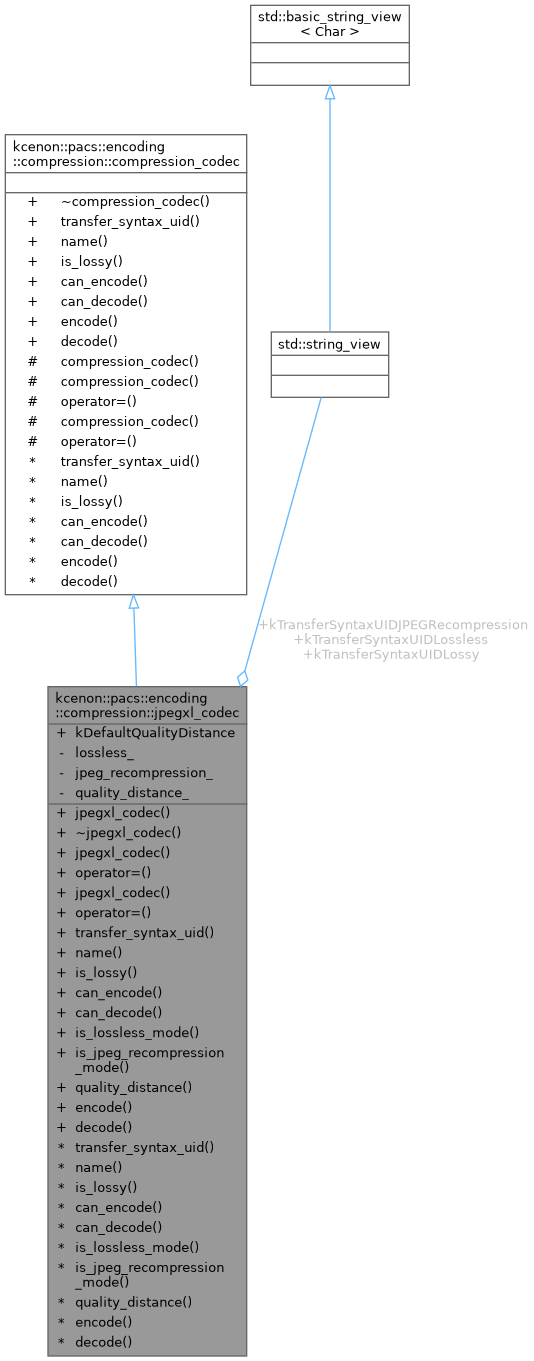

Collaboration diagram for kcenon::pacs::encoding::compression::jpegxl_codec:

Public Member Functions
	jpegxl_codec (bool lossless=true, bool jpeg_recompression=false, float quality_distance=kDefaultQualityDistance)
	Constructs a JPEG XL codec instance.

	~jpegxl_codec () override

	jpegxl_codec (const jpegxl_codec &)=delete

jpegxl_codec &	operator= (const jpegxl_codec &)=delete

	jpegxl_codec (jpegxl_codec &&) noexcept

jpegxl_codec &	operator= (jpegxl_codec &&) noexcept

Codec Information
std::string_view	transfer_syntax_uid () const noexcept override
	Returns the Transfer Syntax UID supported by this codec.

std::string_view	name () const noexcept override
	Returns a human-readable name for the codec.

bool	is_lossy () const noexcept override
	Checks if this codec produces lossy compression.

bool	can_encode (const image_params &params) const noexcept override
	Checks if this codec supports the given image parameters.

bool	can_decode (const image_params &params) const noexcept override
	Checks if this codec can decode data with given parameters.

Configuration
bool	is_lossless_mode () const noexcept

bool	is_jpeg_recompression_mode () const noexcept

float	quality_distance () const noexcept

Compression Operations
codec_result	encode (std::span< const uint8_t > pixel_data, const image_params &params, const compression_options &options={}) const override
	Compresses uncompressed pixel data.

codec_result	decode (std::span< const uint8_t > compressed_data, const image_params &params) const override
	Decompresses compressed pixel data.

Public Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
virtual	~compression_codec ()=default

Static Public Attributes
static constexpr std::string_view	kTransferSyntaxUIDLossless
	DICOM Transfer Syntax UID for JPEG XL Lossless.

static constexpr std::string_view	kTransferSyntaxUIDJPEGRecompression
	DICOM Transfer Syntax UID for JPEG XL JPEG Recompression.

static constexpr std::string_view	kTransferSyntaxUIDLossy
	DICOM Transfer Syntax UID for JPEG XL (any mode)

static constexpr float	kDefaultQualityDistance = 1.0f
	Default quality distance for lossy mode (1.0 = visually lossless)

Private Attributes
bool	lossless_

bool	jpeg_recompression_

float	quality_distance_

Additional Inherited Members
Protected Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
	compression_codec ()=default

	compression_codec (const compression_codec &)=default

compression_codec &	operator= (const compression_codec &)=default

	compression_codec (compression_codec &&)=default

compression_codec &	operator= (compression_codec &&)=default

Detailed Description

JPEG XL codec implementation (Supplement 232).

Implements DICOM Transfer Syntaxes for JPEG XL:

1.2.840.10008.1.2.4.110 (JPEG XL Lossless)
1.2.840.10008.1.2.4.111 (JPEG XL JPEG Recompression – zero generation loss)
1.2.840.10008.1.2.4.112 (JPEG XL – any mode)

JPEG XL provides superior compression compared to JPEG 2000 and PNG, with a unique ability to losslessly recompress existing JPEG data without any generation loss – critical for legacy archive migration.

Supported Features:

8-bit and 16-bit grayscale images
8-bit color images (RGB)
Lossless mode
JPEG recompression (reversible, no generation loss)
Lossy mode with configurable quality

Thread Safety:

This class is NOT thread-safe
Create separate instances per thread for concurrent operations

Note: Actual encode/decode operations require libjxl integration. Without libjxl, encode/decode return an error.

See also: DICOM Supplement 232 – JPEG XL Transfer Syntaxes; ISO/IEC 18181 – JPEG XL Image Coding System

Definition at line 47 of file jpegxl_codec.h.

Constructor & Destructor Documentation

◆ jpegxl_codec() [1/3]

kcenon::pacs::encoding::compression::jpegxl_codec::jpegxl_codec	(	bool	lossless = true,
		bool	jpeg_recompression = false,
		float	quality_distance = kDefaultQualityDistance )

explicit

Constructs a JPEG XL codec instance.

Parameters

lossless	If true, use lossless mode (UID .110).
jpeg_recompression	If true, use JPEG recompression mode (UID .111). Only meaningful when lossless is true.
quality_distance	Butteraugli distance for lossy mode (0.0 = lossless, 1.0 = visually lossless). Ignored in lossless mode.

Definition at line 10 of file jpegxl_codec.cpp.

    : lossless_(lossless),
      jpeg_recompression_(jpeg_recompression),
      quality_distance_(quality_distance) {}

◆ ~jpegxl_codec()

kcenon::pacs::encoding::compression::jpegxl_codec::~jpegxl_codec ( )

overridedefault

◆ jpegxl_codec() [2/3]

kcenon::pacs::encoding::compression::jpegxl_codec::jpegxl_codec ( const jpegxl_codec & )

delete

◆ jpegxl_codec() [3/3]

kcenon::pacs::encoding::compression::jpegxl_codec::jpegxl_codec ( jpegxl_codec && )

defaultnoexcept

Member Function Documentation

◆ can_decode()

bool kcenon::pacs::encoding::compression::jpegxl_codec::can_decode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec can decode data with given parameters.

Parameters

params The image parameters

Returns: true if decoding is supported

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 60 of file jpegxl_codec.cpp.

                                                                       {
    return can_encode(params);
}

◆ can_encode()

bool kcenon::pacs::encoding::compression::jpegxl_codec::can_encode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec supports the given image parameters.

Parameters

params The image parameters to check

Returns: true if the codec can handle these parameters

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 44 of file jpegxl_codec.cpp.

                                                                       {
    if (params.width == 0 || params.height == 0) {
        return false;
    }

    if (params.samples_per_pixel != 1 && params.samples_per_pixel != 3) {
        return false;
    }

    if (params.bits_stored < 1 || params.bits_stored > 16) {
        return false;
    }

    return true;
}

◆ decode()

codec_result kcenon::pacs::encoding::compression::jpegxl_codec::decode	(	std::span< const uint8_t >	compressed_data,
		const image_params &	params ) const

nodiscardoverridevirtual

Decompresses compressed pixel data.

Parameters

compressed_data	The compressed pixel data (single frame)
params	Image parameters (width, height, samples_per_pixel)

Returns: codec_result containing decompressed data or error

The output pixel data is always in interleaved format (planar_configuration=0).

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 88 of file jpegxl_codec.cpp.

                                                       {
    return kcenon::pacs::pacs_error<compression_result>(
        kcenon::pacs::error_codes::decompression_error,
        "JPEG XL codec not available: libjxl library not found at build time. "
        "Build with PACS_WITH_JPEGXL=ON to enable.");
}

References kcenon::pacs::error_codes::decompression_error, and kcenon::pacs::pacs_error().

Here is the call graph for this function:

◆ encode()

codec_result kcenon::pacs::encoding::compression::jpegxl_codec::encode	(	std::span< const uint8_t >	pixel_data,
		const image_params &	params,
		const compression_options &	options = {} ) const

nodiscardoverridevirtual

Compresses uncompressed pixel data.

Parameters

pixel_data	The raw, uncompressed pixel data
params	Image parameters describing the pixel data
options	Compression settings

Returns: codec_result containing compressed data or error

The input pixel_data must match the format specified by params:

For planar_configuration=0: interleaved (RGBRGB...)
For planar_configuration=1: separate planes (RRR...GGG...BBB...)

Note: This is a potentially expensive operation. Consider using thread_pool_adapter for batch processing.

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 78 of file jpegxl_codec.cpp.

                                                               {
    return kcenon::pacs::pacs_error<compression_result>(
        kcenon::pacs::error_codes::compression_error,
        "JPEG XL codec not available: libjxl library not found at build time. "
        "Build with PACS_WITH_JPEGXL=ON to enable.");
}

References kcenon::pacs::error_codes::compression_error, and kcenon::pacs::pacs_error().

Here is the call graph for this function:

◆ is_jpeg_recompression_mode()

bool kcenon::pacs::encoding::compression::jpegxl_codec::is_jpeg_recompression_mode ( ) const

nodiscardnoexcept

Definition at line 68 of file jpegxl_codec.cpp.

                                                             {
    return jpeg_recompression_;
}

References jpeg_recompression_.

◆ is_lossless_mode()

bool kcenon::pacs::encoding::compression::jpegxl_codec::is_lossless_mode ( ) const

nodiscardnoexcept

Definition at line 64 of file jpegxl_codec.cpp.

                                                   {
    return lossless_;
}

References lossless_.

◆ is_lossy()

bool kcenon::pacs::encoding::compression::jpegxl_codec::is_lossy ( ) const

nodiscardoverridevirtualnoexcept

Checks if this codec produces lossy compression.

Returns: true if lossy, false if lossless

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 40 of file jpegxl_codec.cpp.

                                           {
    return !lossless_;
}

References lossless_.

◆ name()

std::string_view kcenon::pacs::encoding::compression::jpegxl_codec::name ( ) const

nodiscardoverridevirtualnoexcept

Returns a human-readable name for the codec.

Returns: The codec name (e.g., "JPEG Baseline")

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 31 of file jpegxl_codec.cpp.

                                                 {
    if (lossless_) {
        return jpeg_recompression_
            ? "JPEG XL JPEG Recompression"
            : "JPEG XL (Lossless)";
    }
    return "JPEG XL (Lossy)";
}

References jpeg_recompression_, and lossless_.

◆ operator=() [1/2]

jpegxl_codec & kcenon::pacs::encoding::compression::jpegxl_codec::operator= ( const jpegxl_codec & )

delete

◆ operator=() [2/2]

jpegxl_codec & kcenon::pacs::encoding::compression::jpegxl_codec::operator= ( jpegxl_codec && )

defaultnoexcept

◆ quality_distance()

float kcenon::pacs::encoding::compression::jpegxl_codec::quality_distance ( ) const

nodiscardnoexcept

Definition at line 72 of file jpegxl_codec.cpp.

                                                    {
    return quality_distance_;
}

References quality_distance_.

◆ transfer_syntax_uid()

std::string_view kcenon::pacs::encoding::compression::jpegxl_codec::transfer_syntax_uid ( ) const

nodiscardoverridevirtualnoexcept

Returns the Transfer Syntax UID supported by this codec.

Returns: The DICOM Transfer Syntax UID

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 22 of file jpegxl_codec.cpp.

                                                                {
    if (lossless_) {
        return jpeg_recompression_
            ? kTransferSyntaxUIDJPEGRecompression
            : kTransferSyntaxUIDLossless;
    }
    return kTransferSyntaxUIDLossy;
}

Member Data Documentation

◆ jpeg_recompression_

bool kcenon::pacs::encoding::compression::jpegxl_codec::jpeg_recompression_

private

Definition at line 121 of file jpegxl_codec.h.

Referenced by is_jpeg_recompression_mode(), and name().

◆ kDefaultQualityDistance

float kcenon::pacs::encoding::compression::jpegxl_codec::kDefaultQualityDistance = 1.0f

staticconstexpr

Default quality distance for lossy mode (1.0 = visually lossless)

Definition at line 62 of file jpegxl_codec.h.

◆ kTransferSyntaxUIDJPEGRecompression

std::string_view kcenon::pacs::encoding::compression::jpegxl_codec::kTransferSyntaxUIDJPEGRecompression

staticconstexpr

Initial value:

=

"1.2.840.10008.1.2.4.111"

DICOM Transfer Syntax UID for JPEG XL JPEG Recompression.

Definition at line 54 of file jpegxl_codec.h.

Referenced by kcenon::pacs::encoding::compression::codec_factory::create().

◆ kTransferSyntaxUIDLossless

std::string_view kcenon::pacs::encoding::compression::jpegxl_codec::kTransferSyntaxUIDLossless

staticconstexpr

Initial value:

=

"1.2.840.10008.1.2.4.110"

DICOM Transfer Syntax UID for JPEG XL Lossless.

Definition at line 50 of file jpegxl_codec.h.

Referenced by kcenon::pacs::encoding::compression::codec_factory::create().

◆ kTransferSyntaxUIDLossy

std::string_view kcenon::pacs::encoding::compression::jpegxl_codec::kTransferSyntaxUIDLossy

staticconstexpr

Initial value:

=

"1.2.840.10008.1.2.4.112"

DICOM Transfer Syntax UID for JPEG XL (any mode)

Definition at line 58 of file jpegxl_codec.h.

Referenced by kcenon::pacs::encoding::compression::codec_factory::create().

◆ lossless_

bool kcenon::pacs::encoding::compression::jpegxl_codec::lossless_

private

Definition at line 120 of file jpegxl_codec.h.

Referenced by is_lossless_mode(), is_lossy(), and name().

◆ quality_distance_

float kcenon::pacs::encoding::compression::jpegxl_codec::quality_distance_

private

Definition at line 122 of file jpegxl_codec.h.

Referenced by quality_distance().

The documentation for this class was generated from the following files:

include/kcenon/pacs/encoding/compression/jpegxl_codec.h
src/encoding/compression/jpegxl_codec.cpp

Public Member Functions

Static Public Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ jpegxl_codec() [1/3]

◆ ~jpegxl_codec()

◆ jpegxl_codec() [2/3]

◆ jpegxl_codec() [3/3]

Member Function Documentation

◆ can_decode()

◆ can_encode()

◆ decode()

◆ encode()

◆ is_jpeg_recompression_mode()

◆ is_lossless_mode()

◆ is_lossy()

◆ name()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ quality_distance()

◆ transfer_syntax_uid()

Member Data Documentation

◆ jpeg_recompression_

◆ kDefaultQualityDistance

◆ kTransferSyntaxUIDJPEGRecompression

◆ kTransferSyntaxUIDLossless

◆ kTransferSyntaxUIDLossy

◆ lossless_

◆ quality_distance_
