JPEG Lossless (Process 14, Selection Value 1) codec implementation. More...

#include <jpeg_lossless_codec.h>

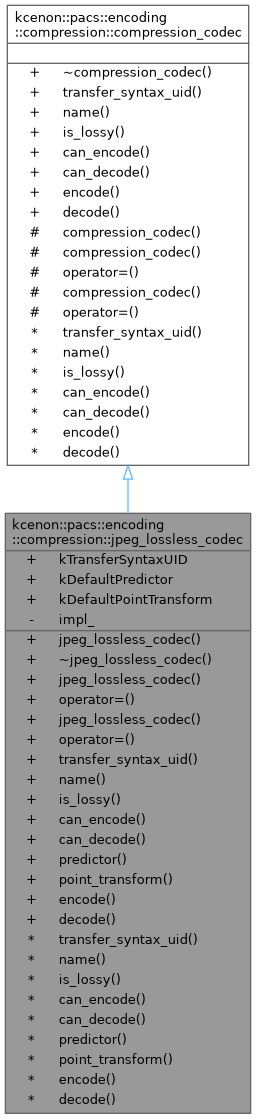

Inheritance diagram for kcenon::pacs::encoding::compression::jpeg_lossless_codec:

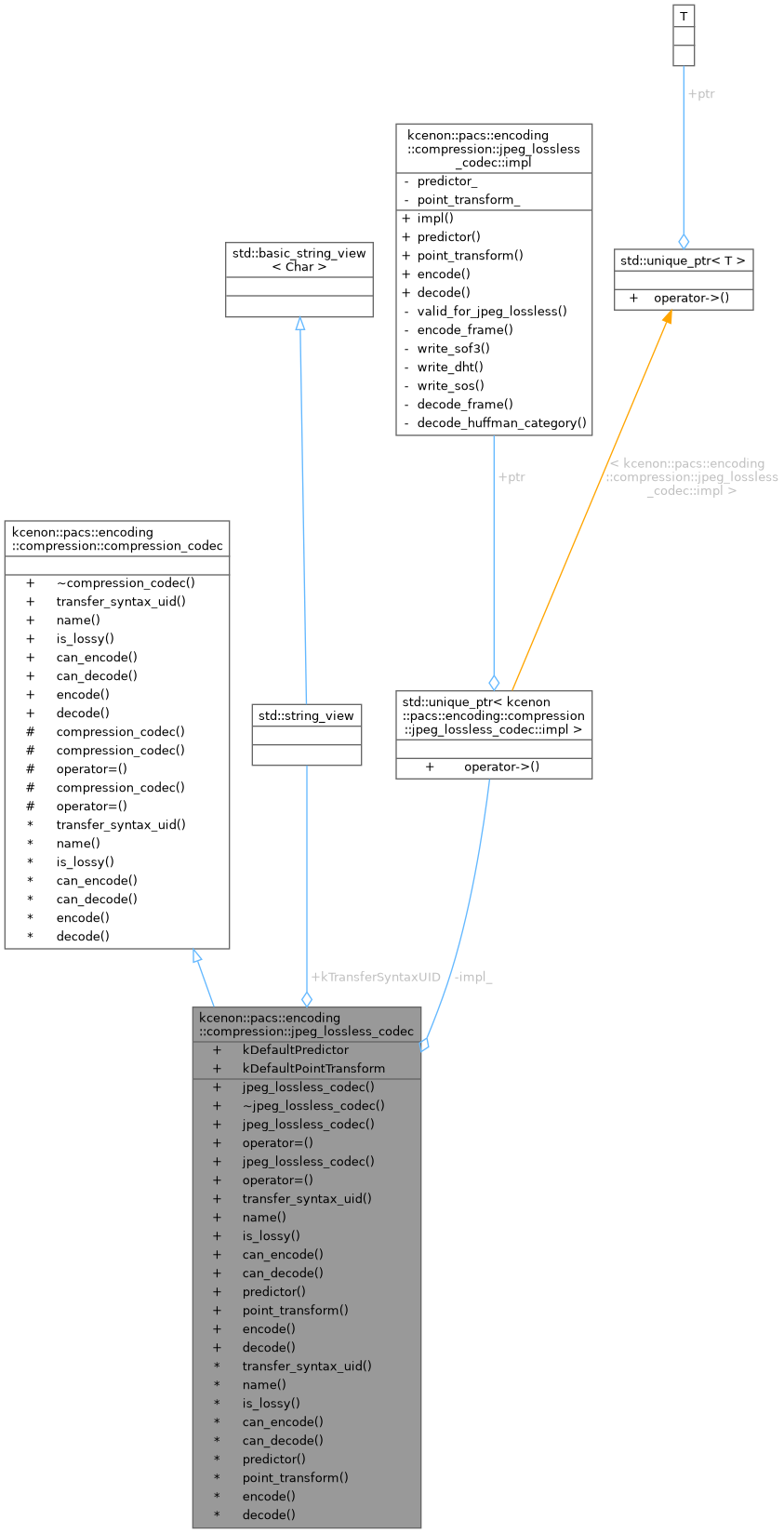

Collaboration diagram for kcenon::pacs::encoding::compression::jpeg_lossless_codec:

Classes
class	impl
	PIMPL implementation for jpeg_lossless_codec. More...

Public Member Functions
	jpeg_lossless_codec (int predictor=kDefaultPredictor, int point_transform=kDefaultPointTransform)
	Constructs a JPEG Lossless codec instance.

	~jpeg_lossless_codec () override

	jpeg_lossless_codec (const jpeg_lossless_codec &)=delete

jpeg_lossless_codec &	operator= (const jpeg_lossless_codec &)=delete

	jpeg_lossless_codec (jpeg_lossless_codec &&) noexcept

jpeg_lossless_codec &	operator= (jpeg_lossless_codec &&) noexcept

Codec Information
std::string_view	transfer_syntax_uid () const noexcept override
	Returns the Transfer Syntax UID supported by this codec.

std::string_view	name () const noexcept override
	Returns a human-readable name for the codec.

bool	is_lossy () const noexcept override
	Checks if this codec produces lossy compression.

bool	can_encode (const image_params &params) const noexcept override
	Checks if this codec supports the given image parameters.

bool	can_decode (const image_params &params) const noexcept override
	Checks if this codec can decode data with given parameters.

Configuration
int	predictor () const noexcept
	Gets the current predictor selection value.

int	point_transform () const noexcept
	Gets the current point transform value.

Compression Operations
codec_result	encode (std::span< const uint8_t > pixel_data, const image_params &params, const compression_options &options={}) const override
	Compresses pixel data to JPEG Lossless format.

codec_result	decode (std::span< const uint8_t > compressed_data, const image_params &params) const override
	Decompresses JPEG Lossless data.

Public Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
virtual	~compression_codec ()=default

Static Public Attributes
static constexpr std::string_view	kTransferSyntaxUID = "1.2.840.10008.1.2.4.70"
	DICOM Transfer Syntax UID for JPEG Lossless (Process 14, Selection Value 1)

static constexpr int	kDefaultPredictor = 1
	Default predictor selection value (1 = Ra, left neighbor prediction)

static constexpr int	kDefaultPointTransform = 0
	Default point transform (0 = no scaling)

Private Attributes
std::unique_ptr< impl >	impl_

Additional Inherited Members
Protected Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
	compression_codec ()=default

	compression_codec (const compression_codec &)=default

compression_codec &	operator= (const compression_codec &)=default

	compression_codec (compression_codec &&)=default

compression_codec &	operator= (compression_codec &&)=default

Detailed Description

JPEG Lossless (Process 14, Selection Value 1) codec implementation.

Implements DICOM Transfer Syntax 1.2.840.10008.1.2.4.70. Uses libjpeg-turbo for high-performance SIMD-accelerated lossless encoding/decoding.

Supported Features:

8-bit grayscale images
12-bit grayscale images (medical imaging)
16-bit grayscale images
First-order prediction (Selection Value 1: Ra = left neighbor)
Huffman coding

Limitations:

Maximum image size: 65535 x 65535 pixels
Grayscale only (color not supported for lossless in DICOM)
Requires libjpeg-turbo 3.0+ for native lossless support

Thread Safety:

This class is NOT thread-safe
Create separate instances per thread for concurrent operations

Integration:

Uses thread_system for parallel batch encoding (via thread_pool_adapter)
Logs operations via logger_system (via logger_adapter)
Reports metrics to monitoring_system (via monitoring_adapter)

See also: DICOM PS3.5 Annex A.4.2 - JPEG Lossless Image Compression; ITU-T T.81 - JPEG specification

Definition at line 48 of file jpeg_lossless_codec.h.

Constructor & Destructor Documentation

◆ jpeg_lossless_codec() [1/3]

kcenon::pacs::encoding::compression::jpeg_lossless_codec::jpeg_lossless_codec	(	int	predictor = kDefaultPredictor,
		int	point_transform = kDefaultPointTransform )

explicit

Constructs a JPEG Lossless codec instance.

Parameters

predictor	Predictor selection (1-7, default: 1) 1: Ra (left neighbor) 2: Rb (above neighbor) 3: Rc (diagonal upper-left neighbor) 4: Ra + Rb - Rc 5: Ra + (Rb - Rc) / 2 6: Rb + (Ra - Rc) / 2 7: (Ra + Rb) / 2
point_transform	Point transform value (0-15, default: 0)

Definition at line 741 of file jpeg_lossless_codec.cpp.

742 : impl_(std::make_unique<impl>(predictor, point_transform)) {}

kcenon::pacs::encoding::compression::jpeg_lossless_codec::predictor

int predictor() const noexcept

Gets the current predictor selection value.

Definition jpeg_lossless_codec.cpp:784

kcenon::pacs::encoding::compression::jpeg_lossless_codec::impl_

std::unique_ptr< impl > impl_

Definition jpeg_lossless_codec.h:149

kcenon::pacs::encoding::compression::jpeg_lossless_codec::point_transform

int point_transform() const noexcept

Gets the current point transform value.

Definition jpeg_lossless_codec.cpp:788

◆ ~jpeg_lossless_codec()

kcenon::pacs::encoding::compression::jpeg_lossless_codec::~jpeg_lossless_codec ( )

overridedefault

◆ jpeg_lossless_codec() [2/3]

kcenon::pacs::encoding::compression::jpeg_lossless_codec::jpeg_lossless_codec ( const jpeg_lossless_codec & )

delete

◆ jpeg_lossless_codec() [3/3]

kcenon::pacs::encoding::compression::jpeg_lossless_codec::jpeg_lossless_codec ( jpeg_lossless_codec && )

defaultnoexcept

Member Function Documentation

◆ can_decode()

bool kcenon::pacs::encoding::compression::jpeg_lossless_codec::can_decode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec can decode data with given parameters.

Parameters

params The image parameters

Returns: true if decoding is supported

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 770 of file jpeg_lossless_codec.cpp.

                                                                              {
    // Can decode any grayscale JPEG Lossless
    // Width/height can be 0 (unknown) - will read from JPEG header
    if (params.bits_allocated != 0 &&
        params.bits_allocated != 8 &&
        params.bits_allocated != 16) {
        return false;
    }
    if (params.samples_per_pixel != 0 && params.samples_per_pixel != 1) {
        return false;
    }
    return true;
}

◆ can_encode()

bool kcenon::pacs::encoding::compression::jpeg_lossless_codec::can_encode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec supports the given image parameters.

Parameters

params The image parameters to check

Returns: true if the codec can handle these parameters

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 762 of file jpeg_lossless_codec.cpp.

                                                                              {
    // JPEG Lossless supports 2-16 bit precision, grayscale only
    if (params.bits_stored < 2 || params.bits_stored > 16) return false;
    if (params.bits_allocated != 8 && params.bits_allocated != 16) return false;
    if (params.samples_per_pixel != 1) return false;
    return true;
}

◆ decode()

codec_result kcenon::pacs::encoding::compression::jpeg_lossless_codec::decode	(	std::span< const uint8_t >	compressed_data,
		const image_params &	params ) const

nodiscardoverridevirtual

Decompresses JPEG Lossless data.

Parameters

compressed_data	JPEG lossless compressed data
params	Image parameters (width/height for validation)

Returns: Decompressed pixel data or error

Output format matches the original bit depth:

8-bit: single byte per sample
12/16-bit: two bytes per sample (little-endian)

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 799 of file jpeg_lossless_codec.cpp.

                                      {
    return impl_->decode(compressed_data, params);
}

References kcenon::pacs::encoding::compression::jpeg_lossless_codec::impl::decode(), and impl_.

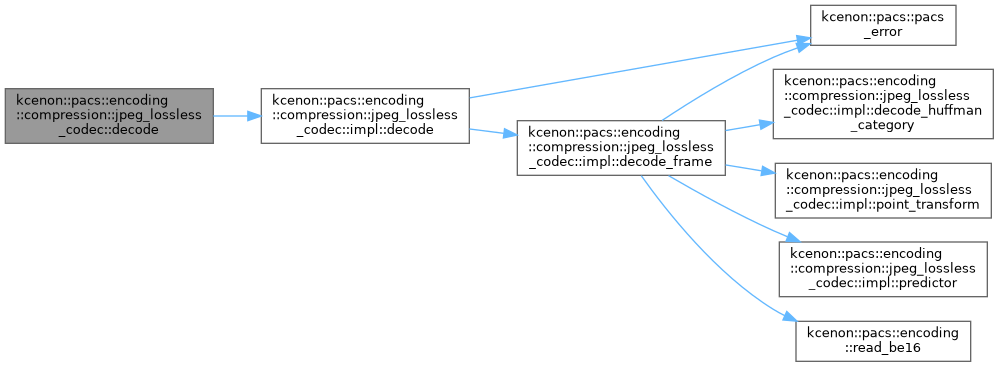

Here is the call graph for this function:

◆ encode()

codec_result kcenon::pacs::encoding::compression::jpeg_lossless_codec::encode	(	std::span< const uint8_t >	pixel_data,
		const image_params &	params,
		const compression_options &	options = {} ) const

nodiscardoverridevirtual

Compresses pixel data to JPEG Lossless format.

Parameters

pixel_data	Uncompressed pixel data (8/12/16-bit)
params	Image parameters
options	Compression options (lossless flag is ignored, always lossless)

Returns: Compressed JPEG data or error

The output is guaranteed to be exactly reconstructible (lossless). Quality setting in options is ignored for lossless compression.

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 792 of file jpeg_lossless_codec.cpp.

                                              {
    return impl_->encode(pixel_data, params, options);
}

References kcenon::pacs::encoding::compression::jpeg_lossless_codec::impl::encode(), and impl_.

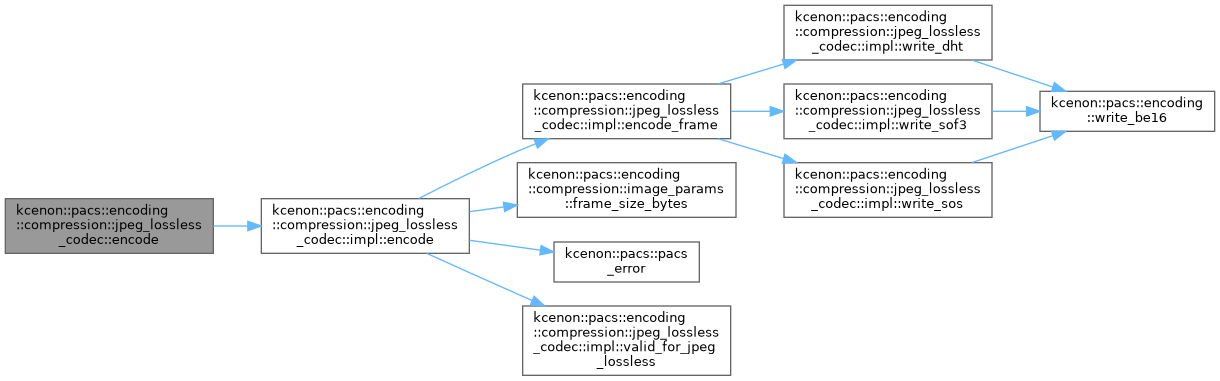

Here is the call graph for this function:

◆ is_lossy()

bool kcenon::pacs::encoding::compression::jpeg_lossless_codec::is_lossy ( ) const

nodiscardoverridevirtualnoexcept

Checks if this codec produces lossy compression.

Returns: true if lossy, false if lossless

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 758 of file jpeg_lossless_codec.cpp.

                                                  {
    return false;
}

◆ name()

std::string_view kcenon::pacs::encoding::compression::jpeg_lossless_codec::name ( ) const

nodiscardoverridevirtualnoexcept

Returns a human-readable name for the codec.

Returns: The codec name (e.g., "JPEG Baseline")

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 754 of file jpeg_lossless_codec.cpp.

                                                        {
    return "JPEG Lossless (Process 14, SV1)";
}

◆ operator=() [1/2]

jpeg_lossless_codec & kcenon::pacs::encoding::compression::jpeg_lossless_codec::operator= ( const jpeg_lossless_codec & )

delete

◆ operator=() [2/2]

jpeg_lossless_codec & kcenon::pacs::encoding::compression::jpeg_lossless_codec::operator= ( jpeg_lossless_codec && )

defaultnoexcept

◆ point_transform()

int kcenon::pacs::encoding::compression::jpeg_lossless_codec::point_transform ( ) const

nodiscardnoexcept

Gets the current point transform value.

Returns: Point transform value (0-15)

Definition at line 788 of file jpeg_lossless_codec.cpp.

                                                        {
    return impl_->point_transform();
}

References impl_, and kcenon::pacs::encoding::compression::jpeg_lossless_codec::impl::point_transform().

Here is the call graph for this function:

◆ predictor()

int kcenon::pacs::encoding::compression::jpeg_lossless_codec::predictor ( ) const

nodiscardnoexcept

Gets the current predictor selection value.

Returns: Predictor value (1-7)

Definition at line 784 of file jpeg_lossless_codec.cpp.

                                                  {
    return impl_->predictor();
}

References impl_, and kcenon::pacs::encoding::compression::jpeg_lossless_codec::impl::predictor().

Here is the call graph for this function:

◆ transfer_syntax_uid()

std::string_view kcenon::pacs::encoding::compression::jpeg_lossless_codec::transfer_syntax_uid ( ) const

nodiscardoverridevirtualnoexcept

Returns the Transfer Syntax UID supported by this codec.

Returns: The DICOM Transfer Syntax UID

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 750 of file jpeg_lossless_codec.cpp.

                                                                       {
    return kTransferSyntaxUID;
}

Member Data Documentation

◆ impl_

std::unique_ptr<impl> kcenon::pacs::encoding::compression::jpeg_lossless_codec::impl_

private

Definition at line 149 of file jpeg_lossless_codec.h.

Referenced by decode(), encode(), point_transform(), and predictor().

◆ kDefaultPointTransform

int kcenon::pacs::encoding::compression::jpeg_lossless_codec::kDefaultPointTransform = 0

staticconstexpr

Default point transform (0 = no scaling)

Definition at line 57 of file jpeg_lossless_codec.h.

◆ kDefaultPredictor

int kcenon::pacs::encoding::compression::jpeg_lossless_codec::kDefaultPredictor = 1

staticconstexpr

Default predictor selection value (1 = Ra, left neighbor prediction)

Definition at line 54 of file jpeg_lossless_codec.h.

◆ kTransferSyntaxUID

std::string_view kcenon::pacs::encoding::compression::jpeg_lossless_codec::kTransferSyntaxUID = "1.2.840.10008.1.2.4.70"

staticconstexpr

DICOM Transfer Syntax UID for JPEG Lossless (Process 14, Selection Value 1)

Definition at line 51 of file jpeg_lossless_codec.h.

Referenced by kcenon::pacs::encoding::compression::codec_factory::create().

The documentation for this class was generated from the following files:

include/kcenon/pacs/encoding/compression/jpeg_lossless_codec.h
src/encoding/compression/jpeg_lossless_codec.cpp

Classes

Public Member Functions

Static Public Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ jpeg_lossless_codec() [1/3]

◆ ~jpeg_lossless_codec()

◆ jpeg_lossless_codec() [2/3]

◆ jpeg_lossless_codec() [3/3]

Member Function Documentation

◆ can_decode()

◆ can_encode()

◆ decode()

◆ encode()

◆ is_lossy()

◆ name()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ point_transform()

◆ predictor()

◆ transfer_syntax_uid()

Member Data Documentation

◆ impl_

◆ kDefaultPointTransform

◆ kDefaultPredictor

◆ kTransferSyntaxUID
