kcenon::pacs::encoding::compression::jpeg_baseline_codec Class Reference

JPEG Baseline (Process 1) codec implementation. More...

#include <jpeg_baseline_codec.h>

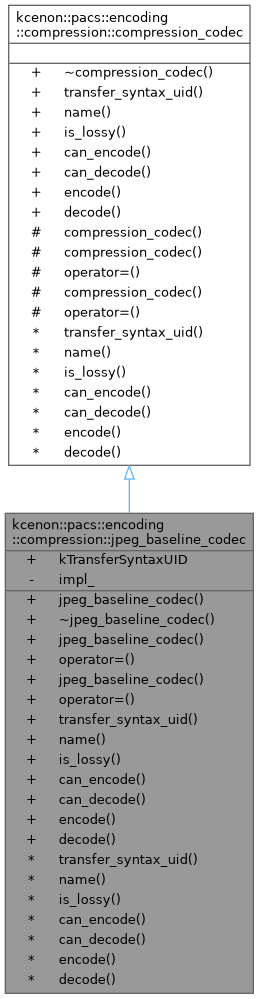

Inheritance diagram for kcenon::pacs::encoding::compression::jpeg_baseline_codec:

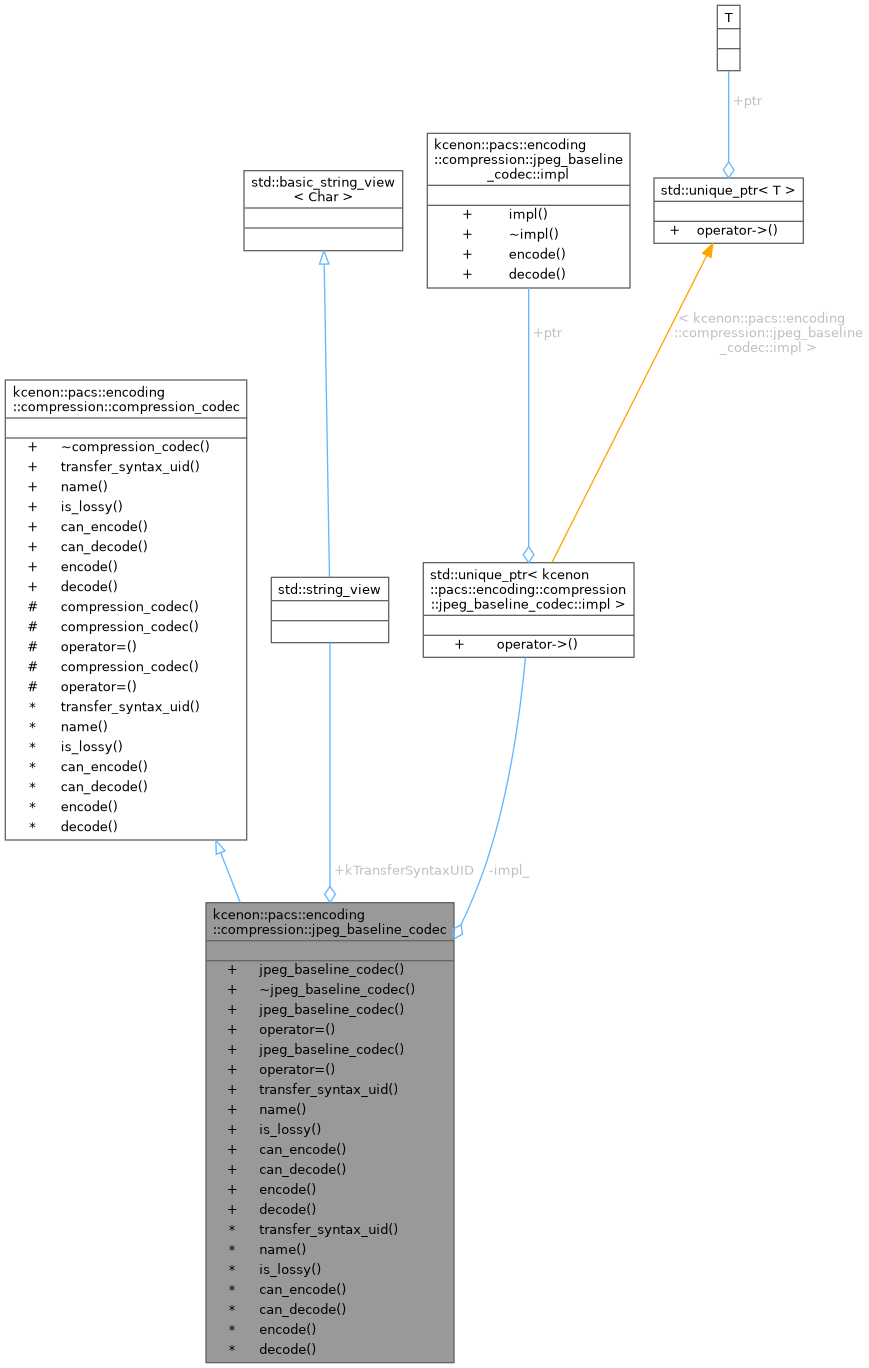

Collaboration diagram for kcenon::pacs::encoding::compression::jpeg_baseline_codec:

Classes
class	impl
	PIMPL implementation for jpeg_baseline_codec. More...

Public Member Functions
	jpeg_baseline_codec ()
	Constructs a JPEG Baseline codec instance.
	~jpeg_baseline_codec () override
	jpeg_baseline_codec (const jpeg_baseline_codec &)=delete
jpeg_baseline_codec &	operator= (const jpeg_baseline_codec &)=delete
	jpeg_baseline_codec (jpeg_baseline_codec &&) noexcept
jpeg_baseline_codec &	operator= (jpeg_baseline_codec &&) noexcept
Codec Information
std::string_view	transfer_syntax_uid () const noexcept override
	Returns the Transfer Syntax UID supported by this codec.
std::string_view	name () const noexcept override
	Returns a human-readable name for the codec.
bool	is_lossy () const noexcept override
	Checks if this codec produces lossy compression.
bool	can_encode (const image_params &params) const noexcept override
	Checks if this codec supports the given image parameters.
bool	can_decode (const image_params &params) const noexcept override
	Checks if this codec can decode data with given parameters.
Compression Operations
codec_result	encode (std::span< const uint8_t > pixel_data, const image_params &params, const compression_options &options={}) const override
	Compresses pixel data to JPEG Baseline format.
codec_result	decode (std::span< const uint8_t > compressed_data, const image_params &params) const override
	Decompresses JPEG Baseline data.
Public Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
virtual	~compression_codec ()=default

Static Public Attributes
static constexpr std::string_view	kTransferSyntaxUID = "1.2.840.10008.1.2.4.50"
	DICOM Transfer Syntax UID for JPEG Baseline.

Private Attributes
std::unique_ptr< impl >	impl_

Additional Inherited Members
Protected Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
	compression_codec ()=default
	compression_codec (const compression_codec &)=default
compression_codec &	operator= (const compression_codec &)=default
	compression_codec (compression_codec &&)=default
compression_codec &	operator= (compression_codec &&)=default

Detailed Description

JPEG Baseline (Process 1) codec implementation.

Implements DICOM Transfer Syntax 1.2.840.10008.1.2.4.50. Uses libjpeg-turbo for high-performance SIMD-accelerated encoding/decoding.

Supported Features:

• 8-bit grayscale images
• 8-bit RGB/YCbCr color images
• Quality settings from 1-100
• Chroma subsampling (4:4:4, 4:2:2, 4:2:0)

Limitations:

• Maximum image size: 65535 x 65535 pixels
• Only 8-bit depth (JPEG Baseline limitation)
• Lossy compression only

Thread Safety:

• This class is NOT thread-safe
• Create separate instances per thread for concurrent operations

Integration:

• Uses thread_system for parallel batch encoding (via thread_pool_adapter)
• Logs operations via logger_system (via logger_adapter)
• Reports metrics to monitoring_system (via monitoring_adapter)

See also

DICOM PS3.5 Annex A.4.1 - JPEG Image Compression

ITU-T T.81 - JPEG specification

Definition at line 47 of file jpeg_baseline_codec.h.

Constructor & Destructor Documentation

jpeg_baseline_codec() [1/3]

kcenon::pacs::encoding::compression::jpeg_baseline_codec::jpeg_baseline_codec

(

)

Constructs a JPEG Baseline codec instance.

Definition at line 365 of file jpeg_baseline_codec.cpp.

    : impl_(std::make_unique<impl>()) {}

~jpeg_baseline_codec()

kcenon::pacs::encoding::compression::jpeg_baseline_codec::~jpeg_baseline_codec ( )

overridedefault

jpeg_baseline_codec() [2/3]

kcenon::pacs::encoding::compression::jpeg_baseline_codec::jpeg_baseline_codec ( const jpeg_baseline_codec & )

delete

jpeg_baseline_codec() [3/3]

kcenon::pacs::encoding::compression::jpeg_baseline_codec::jpeg_baseline_codec ( jpeg_baseline_codec && )

defaultnoexcept

Member Function Documentation

can_decode()

bool kcenon::pacs::encoding::compression::jpeg_baseline_codec::can_decode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec can decode data with given parameters.

Parameters

params

The image parameters

Returns

true if decoding is supported

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 390 of file jpeg_baseline_codec.cpp.

                                                                              {
    // Can decode any 8-bit grayscale or color JPEG
    // Width/height can be 0 (unknown) for decode - will read from JPEG header
    if (params.bits_allocated != 0 && params.bits_allocated != 8) return false;
    if (params.samples_per_pixel != 0 &&
        params.samples_per_pixel != 1 &&
        params.samples_per_pixel != 3) {
        return false;
    }
    return true;
}

can_encode()

bool kcenon::pacs::encoding::compression::jpeg_baseline_codec::can_encode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec supports the given image parameters.

Parameters

params

The image parameters to check

Returns

true if the codec can handle these parameters

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 386 of file jpeg_baseline_codec.cpp.

                                                                              {
    return params.valid_for_jpeg_baseline();
}

decode()

codec_result kcenon::pacs::encoding::compression::jpeg_baseline_codec::decode ( std::span< const uint8_t > compressed_data, const image_params & params ) const

nodiscardoverridevirtual

Decompresses JPEG Baseline data.

Parameters

compressed_data	JPEG compressed data
params	Image parameters (width/height for validation)

Returns

Decompressed pixel data or error

Output format:

• Grayscale: 8-bit samples
• Color: Interleaved RGB (converted from YCbCr)

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 409 of file jpeg_baseline_codec.cpp.

                                      {
    return impl_->decode(compressed_data, params);
}

References kcenon::pacs::encoding::compression::jpeg_baseline_codec::impl::decode(), and impl_.

Here is the call graph for this function:

encode()

codec_result kcenon::pacs::encoding::compression::jpeg_baseline_codec::encode ( std::span< const uint8_t > pixel_data, const image_params & params, const compression_options & options = {} ) const

nodiscardoverridevirtual

Compresses pixel data to JPEG Baseline format.

Parameters

pixel_data	Uncompressed pixel data (8-bit)
params	Image parameters
options	Compression options (quality, subsampling)

Returns

Compressed JPEG data or error

Quality mapping:

• 100: Highest quality, largest file size
• 75: Good balance (default)
• 50: Medium quality
• 25: Lower quality, smaller file

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 402 of file jpeg_baseline_codec.cpp.

                                              {
    return impl_->encode(pixel_data, params, options);
}

References kcenon::pacs::encoding::compression::jpeg_baseline_codec::impl::encode(), and impl_.

Referenced by kcenon::pacs::web::dicomweb::render_dicom_image().

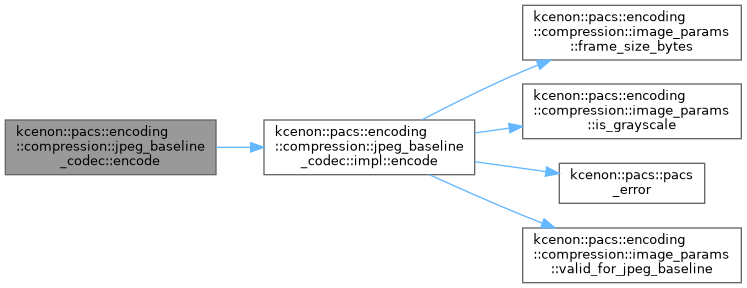

Here is the call graph for this function:

Here is the caller graph for this function:

is_lossy()

bool kcenon::pacs::encoding::compression::jpeg_baseline_codec::is_lossy ( ) const

nodiscardoverridevirtualnoexcept

Checks if this codec produces lossy compression.

Returns

true if lossy, false if lossless

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 382 of file jpeg_baseline_codec.cpp.

                                                  {
    return true;
}

name()

std::string_view kcenon::pacs::encoding::compression::jpeg_baseline_codec::name ( ) const

nodiscardoverridevirtualnoexcept

Returns a human-readable name for the codec.

Returns

The codec name (e.g., "JPEG Baseline")

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 378 of file jpeg_baseline_codec.cpp.

                                                        {
    return "JPEG Baseline (Process 1)";
}

operator=() [1/2]

jpeg_baseline_codec & kcenon::pacs::encoding::compression::jpeg_baseline_codec::operator= ( const jpeg_baseline_codec & )

delete

operator=() [2/2]

jpeg_baseline_codec & kcenon::pacs::encoding::compression::jpeg_baseline_codec::operator= ( jpeg_baseline_codec && )

defaultnoexcept

transfer_syntax_uid()

std::string_view kcenon::pacs::encoding::compression::jpeg_baseline_codec::transfer_syntax_uid ( ) const

nodiscardoverridevirtualnoexcept

Returns the Transfer Syntax UID supported by this codec.

Returns

The DICOM Transfer Syntax UID

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 374 of file jpeg_baseline_codec.cpp.

                                                                       {
    return kTransferSyntaxUID;
}

Member Data Documentation

impl_

std::unique_ptr<impl> kcenon::pacs::encoding::compression::jpeg_baseline_codec::impl_

private

Definition at line 117 of file jpeg_baseline_codec.h.

Referenced by decode(), and encode().

kTransferSyntaxUID

std::string_view kcenon::pacs::encoding::compression::jpeg_baseline_codec::kTransferSyntaxUID = "1.2.840.10008.1.2.4.50"

staticconstexpr

DICOM Transfer Syntax UID for JPEG Baseline.

Definition at line 50 of file jpeg_baseline_codec.h.

Referenced by kcenon::pacs::encoding::compression::codec_factory::create().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/encoding/compression/jpeg_baseline_codec.h
• src/encoding/compression/jpeg_baseline_codec.cpp
