JPEG 2000 codec implementation supporting both lossless and lossy modes. More...

#include <jpeg2000_codec.h>

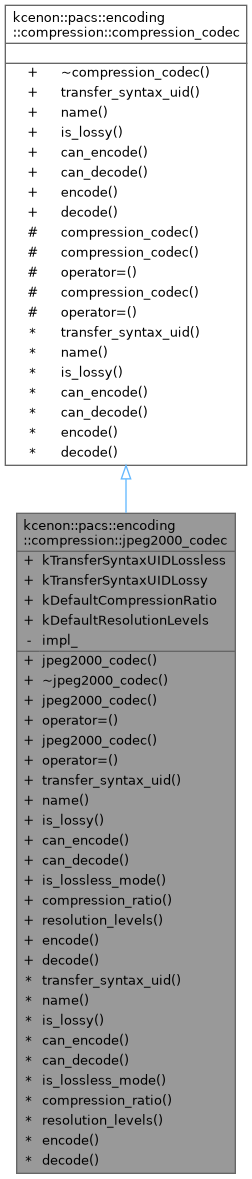

Inheritance diagram for kcenon::pacs::encoding::compression::jpeg2000_codec:

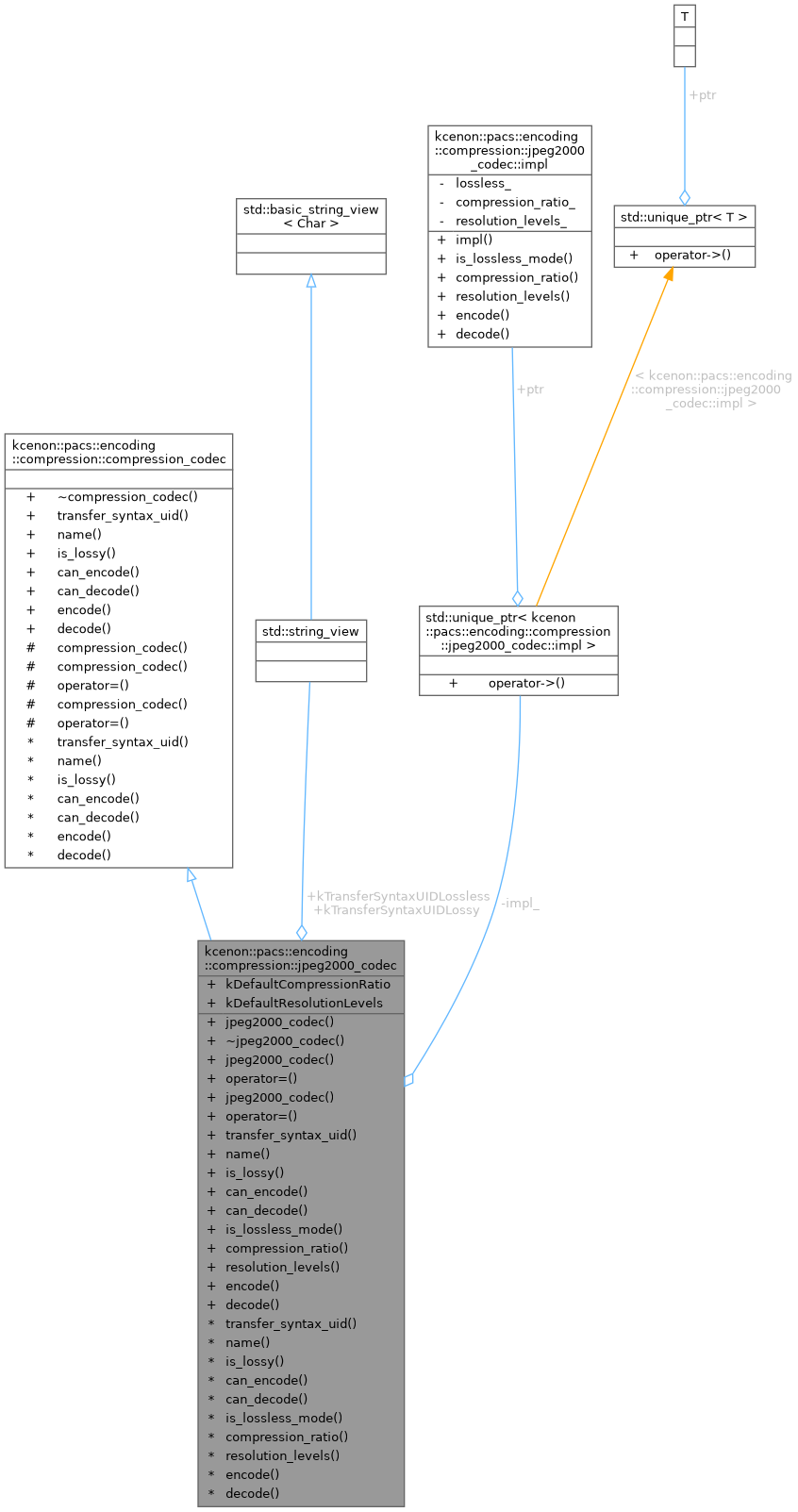

Collaboration diagram for kcenon::pacs::encoding::compression::jpeg2000_codec:

Classes
class	impl
	PIMPL implementation for jpeg2000_codec. More...

Public Member Functions
	jpeg2000_codec (bool lossless=true, float compression_ratio=kDefaultCompressionRatio, int resolution_levels=kDefaultResolutionLevels)
	Constructs a JPEG 2000 codec instance.

	~jpeg2000_codec () override

	jpeg2000_codec (const jpeg2000_codec &)=delete

jpeg2000_codec &	operator= (const jpeg2000_codec &)=delete

	jpeg2000_codec (jpeg2000_codec &&) noexcept

jpeg2000_codec &	operator= (jpeg2000_codec &&) noexcept

Codec Information
std::string_view	transfer_syntax_uid () const noexcept override
	Returns the Transfer Syntax UID supported by this codec.

std::string_view	name () const noexcept override
	Returns a human-readable name for the codec.

bool	is_lossy () const noexcept override
	Checks if this codec produces lossy compression.

bool	can_encode (const image_params &params) const noexcept override
	Checks if this codec supports the given image parameters.

bool	can_decode (const image_params &params) const noexcept override
	Checks if this codec can decode data with given parameters.

Configuration
bool	is_lossless_mode () const noexcept
	Checks if this codec is configured for lossless mode.

float	compression_ratio () const noexcept
	Gets the current compression ratio setting.

int	resolution_levels () const noexcept
	Gets the number of DWT resolution levels.

Compression Operations
codec_result	encode (std::span< const uint8_t > pixel_data, const image_params &params, const compression_options &options={}) const override
	Compresses pixel data to JPEG 2000 format.

codec_result	decode (std::span< const uint8_t > compressed_data, const image_params &params) const override
	Decompresses JPEG 2000 data.

Public Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
virtual	~compression_codec ()=default

Static Public Attributes
static constexpr std::string_view	kTransferSyntaxUIDLossless
	DICOM Transfer Syntax UID for JPEG 2000 Lossless Only.

static constexpr std::string_view	kTransferSyntaxUIDLossy
	DICOM Transfer Syntax UID for JPEG 2000 (Lossy or Lossless)

static constexpr float	kDefaultCompressionRatio = 20.0f
	Default compression ratio for lossy mode (20:1)

static constexpr int	kDefaultResolutionLevels = 6
	Default number of resolution levels.

Private Attributes
std::unique_ptr< impl >	impl_

Additional Inherited Members
Protected Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
	compression_codec ()=default

	compression_codec (const compression_codec &)=default

compression_codec &	operator= (const compression_codec &)=default

	compression_codec (compression_codec &&)=default

compression_codec &	operator= (compression_codec &&)=default

Detailed Description

JPEG 2000 codec implementation supporting both lossless and lossy modes.

Implements DICOM Transfer Syntaxes:

1.2.840.10008.1.2.4.90 (JPEG 2000 Image Compression - Lossless Only)
1.2.840.10008.1.2.4.91 (JPEG 2000 Image Compression)

Uses OpenJPEG library for high-performance wavelet-based compression/decompression.

Supported Features:

8-bit, 12-bit, 16-bit grayscale images
8-bit color images (RGB, YCbCr)
Lossless mode (reversible 5/3 wavelet transform)
Lossy mode (irreversible 9/7 wavelet transform)
Configurable compression ratio for lossy mode
Progressive decoding support

Limitations:

Maximum image size: 2^32-1 x 2^32-1 pixels (practical limit: memory)
Requires OpenJPEG 2.4+ for full feature support

Thread Safety:

This class is NOT thread-safe
Create separate instances per thread for concurrent operations

Integration:

Uses thread_system for parallel tile encoding (via thread_pool_adapter)
Logs operations via logger_system (via logger_adapter)
Reports metrics to monitoring_system (via monitoring_adapter)

See also: DICOM PS3.5 Annex A.4.4 - JPEG 2000 Image Compression; ISO/IEC 15444-1 (JPEG 2000 Part 1)

Definition at line 51 of file jpeg2000_codec.h.

Constructor & Destructor Documentation

◆ jpeg2000_codec() [1/3]

kcenon::pacs::encoding::compression::jpeg2000_codec::jpeg2000_codec	(	bool	lossless = true,
		float	compression_ratio = kDefaultCompressionRatio,
		int	resolution_levels = kDefaultResolutionLevels )

explicit

Constructs a JPEG 2000 codec instance.

Parameters

lossless	If true, use lossless mode (Transfer Syntax 1.2.840.10008.1.2.4.90). If false, use lossy mode (Transfer Syntax 1.2.840.10008.1.2.4.91).
compression_ratio	Target compression ratio for lossy mode (ignored in lossless). Higher values = smaller files but lower quality. Typical range: 10-50 for medical imaging.
resolution_levels	Number of DWT resolution levels (1-32, default: 6). More levels enable progressive decoding at multiple resolutions.

Definition at line 579 of file jpeg2000_codec.cpp.

582 : impl_(std::make_unique<impl>(lossless, compression_ratio, resolution_levels)) {}

kcenon::pacs::encoding::compression::jpeg2000_codec::impl_

std::unique_ptr< impl > impl_

Definition jpeg2000_codec.h:169

kcenon::pacs::encoding::compression::jpeg2000_codec::compression_ratio

float compression_ratio() const noexcept

Gets the current compression ratio setting.

Definition jpeg2000_codec.cpp:640

kcenon::pacs::encoding::compression::jpeg2000_codec::resolution_levels

int resolution_levels() const noexcept

Gets the number of DWT resolution levels.

Definition jpeg2000_codec.cpp:644

◆ ~jpeg2000_codec()

kcenon::pacs::encoding::compression::jpeg2000_codec::~jpeg2000_codec ( )

overridedefault

◆ jpeg2000_codec() [2/3]

kcenon::pacs::encoding::compression::jpeg2000_codec::jpeg2000_codec ( const jpeg2000_codec & )

delete

◆ jpeg2000_codec() [3/3]

kcenon::pacs::encoding::compression::jpeg2000_codec::jpeg2000_codec ( jpeg2000_codec && )

defaultnoexcept

Member Function Documentation

◆ can_decode()

bool kcenon::pacs::encoding::compression::jpeg2000_codec::can_decode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec can decode data with given parameters.

Parameters

params The image parameters

Returns: true if decoding is supported

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 625 of file jpeg2000_codec.cpp.

                                                                         {
    // For decoding, we're more lenient as actual parameters come from the codestream
    // Just validate samples_per_pixel if specified
    if (params.samples_per_pixel != 0 &&
        params.samples_per_pixel != 1 &&
        params.samples_per_pixel != 3) {
        return false;
    }
    return true;
}

◆ can_encode()

bool kcenon::pacs::encoding::compression::jpeg2000_codec::can_encode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec supports the given image parameters.

Parameters

params The image parameters to check

Returns: true if the codec can handle these parameters

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 601 of file jpeg2000_codec.cpp.

                                                                         {
    // JPEG 2000 supports wide range of bit depths
    if (params.bits_stored < 1 || params.bits_stored > 16) {
        return false;
    }

    // bits_allocated must be 8 or 16
    if (params.bits_allocated != 8 && params.bits_allocated != 16) {
        return false;
    }

    // Support grayscale (1) and color (3) images
    if (params.samples_per_pixel != 1 && params.samples_per_pixel != 3) {
        return false;
    }

    // Require valid dimensions
    if (params.width == 0 || params.height == 0) {
        return false;
    }

    return true;
}

◆ compression_ratio()

float kcenon::pacs::encoding::compression::jpeg2000_codec::compression_ratio ( ) const

nodiscardnoexcept

Gets the current compression ratio setting.

Returns: Compression ratio (only meaningful for lossy mode)

Definition at line 640 of file jpeg2000_codec.cpp.

                                                       {
    return impl_->compression_ratio();
}

References kcenon::pacs::encoding::compression::jpeg2000_codec::impl::compression_ratio(), and impl_.

Here is the call graph for this function:

◆ decode()

codec_result kcenon::pacs::encoding::compression::jpeg2000_codec::decode	(	std::span< const uint8_t >	compressed_data,
		const image_params &	params ) const

nodiscardoverridevirtual

Decompresses JPEG 2000 data.

Parameters

compressed_data	JPEG 2000 compressed data (J2K or JP2 format)
params	Image parameters (width/height for validation)

Returns: Decompressed pixel data or error

Output format matches the original bit depth:

8-bit: single byte per sample
12/16-bit: two bytes per sample (little-endian)

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 654 of file jpeg2000_codec.cpp.

                                                                       {
    return impl_->decode(compressed_data, params);
}

References kcenon::pacs::encoding::compression::jpeg2000_codec::impl::decode(), and impl_.

Here is the call graph for this function:

◆ encode()

codec_result kcenon::pacs::encoding::compression::jpeg2000_codec::encode	(	std::span< const uint8_t >	pixel_data,
		const image_params &	params,
		const compression_options &	options = {} ) const

nodiscardoverridevirtual

Compresses pixel data to JPEG 2000 format.

Parameters

pixel_data	Uncompressed pixel data (8/12/16-bit, grayscale or color)
params	Image parameters
options	Compression options: quality: 1-100 for lossy mode (maps to compression ratio) lossless: Override codec's lossless setting

Returns: Compressed J2K codestream or error

For lossless mode:

Uses reversible 5/3 integer wavelet transform
Output is exactly reconstructible

For lossy mode:

Uses irreversible 9/7 floating-point wavelet transform
Compression ratio is determined by quality setting or constructor parameter

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 648 of file jpeg2000_codec.cpp.

                                                                               {
    return impl_->encode(pixel_data, params, options);
}

References kcenon::pacs::encoding::compression::jpeg2000_codec::impl::encode(), and impl_.

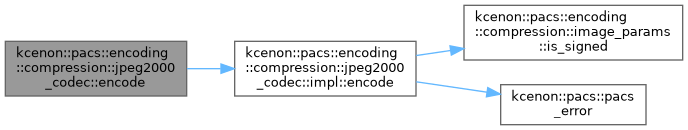

Here is the call graph for this function:

◆ is_lossless_mode()

bool kcenon::pacs::encoding::compression::jpeg2000_codec::is_lossless_mode ( ) const

nodiscardnoexcept

Checks if this codec is configured for lossless mode.

Returns: true if lossless, false if lossy

Definition at line 636 of file jpeg2000_codec.cpp.

                                                     {
    return impl_->is_lossless_mode();
}

References impl_, and kcenon::pacs::encoding::compression::jpeg2000_codec::impl::is_lossless_mode().

Referenced by transfer_syntax_uid().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_lossy()

bool kcenon::pacs::encoding::compression::jpeg2000_codec::is_lossy ( ) const

nodiscardoverridevirtualnoexcept

Checks if this codec produces lossy compression.

Returns: true if lossy, false if lossless

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 597 of file jpeg2000_codec.cpp.

                                             {
    return !impl_->is_lossless_mode();
}

References impl_, and kcenon::pacs::encoding::compression::jpeg2000_codec::impl::is_lossless_mode().

Here is the call graph for this function:

◆ name()

std::string_view kcenon::pacs::encoding::compression::jpeg2000_codec::name ( ) const

nodiscardoverridevirtualnoexcept

Returns a human-readable name for the codec.

Returns: The codec name (e.g., "JPEG Baseline")

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 593 of file jpeg2000_codec.cpp.

                                                   {
    return impl_->is_lossless_mode() ? "JPEG 2000 Lossless" : "JPEG 2000";
}

References impl_, and kcenon::pacs::encoding::compression::jpeg2000_codec::impl::is_lossless_mode().

Here is the call graph for this function:

◆ operator=() [1/2]

jpeg2000_codec & kcenon::pacs::encoding::compression::jpeg2000_codec::operator= ( const jpeg2000_codec & )

delete

◆ operator=() [2/2]

jpeg2000_codec & kcenon::pacs::encoding::compression::jpeg2000_codec::operator= ( jpeg2000_codec && )

defaultnoexcept

◆ resolution_levels()

int kcenon::pacs::encoding::compression::jpeg2000_codec::resolution_levels ( ) const

nodiscardnoexcept

Gets the number of DWT resolution levels.

Returns: Resolution levels (1-32)

Definition at line 644 of file jpeg2000_codec.cpp.

                                                     {
    return impl_->resolution_levels();
}

References impl_, and kcenon::pacs::encoding::compression::jpeg2000_codec::impl::resolution_levels().

Here is the call graph for this function:

◆ transfer_syntax_uid()

std::string_view kcenon::pacs::encoding::compression::jpeg2000_codec::transfer_syntax_uid ( ) const

nodiscardoverridevirtualnoexcept

Returns the Transfer Syntax UID supported by this codec.

Returns: The DICOM Transfer Syntax UID

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 589 of file jpeg2000_codec.cpp.

                                                                  {
    return impl_->is_lossless_mode() ? kTransferSyntaxUIDLossless : kTransferSyntaxUIDLossy;
}

References is_lossless_mode().

Here is the call graph for this function:

Member Data Documentation

◆ impl_

std::unique_ptr<impl> kcenon::pacs::encoding::compression::jpeg2000_codec::impl_

private

Definition at line 169 of file jpeg2000_codec.h.

Referenced by compression_ratio(), decode(), encode(), is_lossless_mode(), is_lossy(), name(), and resolution_levels().

◆ kDefaultCompressionRatio

float kcenon::pacs::encoding::compression::jpeg2000_codec::kDefaultCompressionRatio = 20.0f

staticconstexpr

Default compression ratio for lossy mode (20:1)

Definition at line 62 of file jpeg2000_codec.h.

◆ kDefaultResolutionLevels

int kcenon::pacs::encoding::compression::jpeg2000_codec::kDefaultResolutionLevels = 6

staticconstexpr

Default number of resolution levels.

Definition at line 65 of file jpeg2000_codec.h.

◆ kTransferSyntaxUIDLossless

std::string_view kcenon::pacs::encoding::compression::jpeg2000_codec::kTransferSyntaxUIDLossless

staticconstexpr

Initial value:

=

"1.2.840.10008.1.2.4.90"

DICOM Transfer Syntax UID for JPEG 2000 Lossless Only.

Definition at line 54 of file jpeg2000_codec.h.

Referenced by kcenon::pacs::encoding::compression::codec_factory::create().

◆ kTransferSyntaxUIDLossy

std::string_view kcenon::pacs::encoding::compression::jpeg2000_codec::kTransferSyntaxUIDLossy

staticconstexpr

Initial value:

=

"1.2.840.10008.1.2.4.91"

DICOM Transfer Syntax UID for JPEG 2000 (Lossy or Lossless)

Definition at line 58 of file jpeg2000_codec.h.

Referenced by kcenon::pacs::encoding::compression::codec_factory::create().

The documentation for this class was generated from the following files:

include/kcenon/pacs/encoding/compression/jpeg2000_codec.h
src/encoding/compression/jpeg2000_codec.cpp

Classes

Public Member Functions

Static Public Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ jpeg2000_codec() [1/3]

◆ ~jpeg2000_codec()

◆ jpeg2000_codec() [2/3]

◆ jpeg2000_codec() [3/3]

Member Function Documentation

◆ can_decode()

◆ can_encode()

◆ compression_ratio()

◆ decode()

◆ encode()

◆ is_lossless_mode()

◆ is_lossy()

◆ name()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ resolution_levels()

◆ transfer_syntax_uid()

Member Data Documentation

◆ impl_

◆ kDefaultCompressionRatio

◆ kDefaultResolutionLevels

◆ kTransferSyntaxUIDLossless

◆ kTransferSyntaxUIDLossy
