HEVC/H.265 codec implementation for video-encoded multi-frame DICOM. More...

#include <hevc_codec.h>

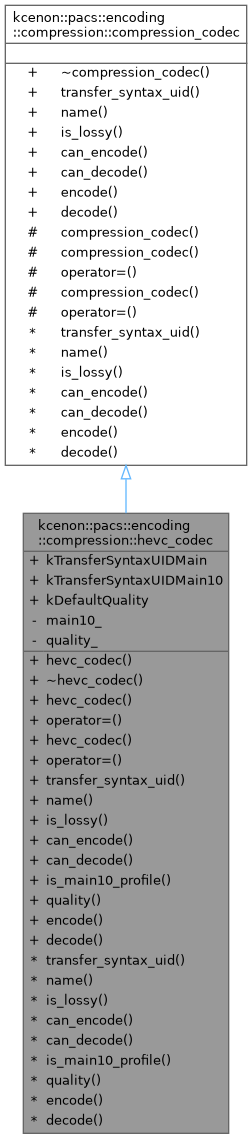

Inheritance diagram for kcenon::pacs::encoding::compression::hevc_codec:

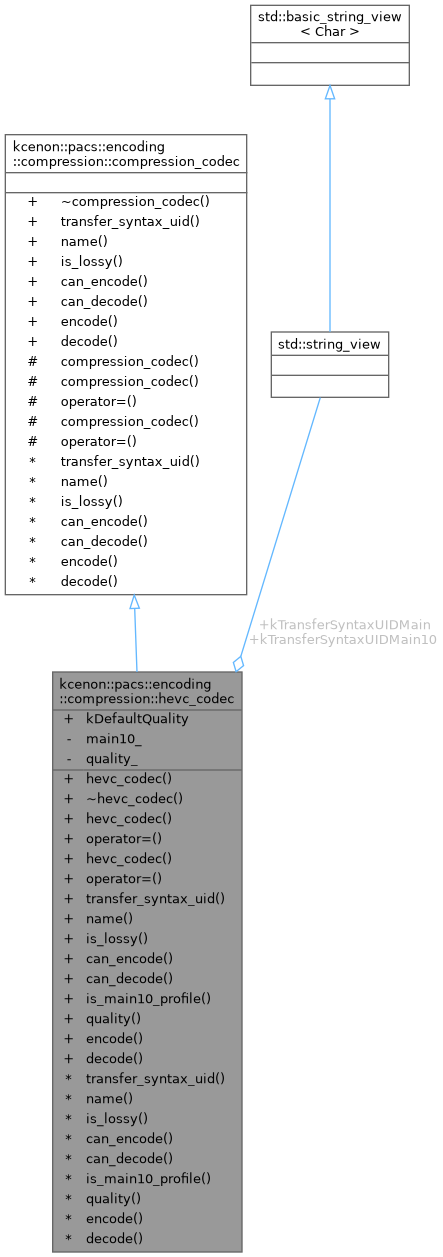

Collaboration diagram for kcenon::pacs::encoding::compression::hevc_codec:

Public Member Functions
	hevc_codec (bool main10=false, int quality=kDefaultQuality)
	Constructs an HEVC codec instance.

	~hevc_codec () override

	hevc_codec (const hevc_codec &)=delete

hevc_codec &	operator= (const hevc_codec &)=delete

	hevc_codec (hevc_codec &&) noexcept

hevc_codec &	operator= (hevc_codec &&) noexcept

Codec Information
std::string_view	transfer_syntax_uid () const noexcept override
	Returns the Transfer Syntax UID supported by this codec.

std::string_view	name () const noexcept override
	Returns a human-readable name for the codec.

bool	is_lossy () const noexcept override
	Checks if this codec produces lossy compression.

bool	can_encode (const image_params &params) const noexcept override
	Checks if this codec supports the given image parameters.

bool	can_decode (const image_params &params) const noexcept override
	Checks if this codec can decode data with given parameters.

Configuration
bool	is_main10_profile () const noexcept
	Checks if this codec is configured for Main 10 Profile.

int	quality () const noexcept
	Gets the current quality setting (CRF).

Compression Operations
codec_result	encode (std::span< const uint8_t > pixel_data, const image_params &params, const compression_options &options={}) const override
	Compresses uncompressed pixel data.

codec_result	decode (std::span< const uint8_t > compressed_data, const image_params &params) const override
	Decompresses compressed pixel data.

Public Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
virtual	~compression_codec ()=default

Static Public Attributes
static constexpr std::string_view	kTransferSyntaxUIDMain
	DICOM Transfer Syntax UID for HEVC/H.265 Main Profile / Level 5.1.

static constexpr std::string_view	kTransferSyntaxUIDMain10
	DICOM Transfer Syntax UID for HEVC/H.265 Main 10 Profile / Level 5.1.

static constexpr int	kDefaultQuality = 23
	Default quality for lossy encoding (CRF value, 0-51, lower = better)

Private Attributes
bool	main10_

int	quality_

Additional Inherited Members
Protected Member Functions inherited from kcenon::pacs::encoding::compression::compression_codec
	compression_codec ()=default

	compression_codec (const compression_codec &)=default

compression_codec &	operator= (const compression_codec &)=default

	compression_codec (compression_codec &&)=default

compression_codec &	operator= (compression_codec &&)=default

Detailed Description

HEVC/H.265 codec implementation for video-encoded multi-frame DICOM.

Implements DICOM Transfer Syntaxes for HEVC:

1.2.840.10008.1.2.4.107 (HEVC/H.265 Main Profile / Level 5.1)
1.2.840.10008.1.2.4.108 (HEVC/H.265 Main 10 Profile / Level 5.1)

HEVC provides approximately 50% bitrate reduction compared to H.264/AVC for equivalent video quality. Intended for video-encoded multi-frame DICOM objects such as cine MRI, ultrasound clips, and XA sequences.

Supported Features:

8-bit grayscale and color images (Main Profile)
10-bit grayscale and color images (Main 10 Profile)
Lossy compression with configurable quality
Encapsulated pixel data per PS3.5 Annex A.4

Thread Safety:

This class is NOT thread-safe
Create separate instances per thread for concurrent operations

Note: Actual encode/decode operations require an HEVC library (libde265, x265, or ffmpeg). Without a library, encode/decode return an error.

See also: DICOM PS3.5 – HEVC/H.265 Transfer Syntax; ITU-T H.265 / ISO/IEC 23008-2

Definition at line 45 of file hevc_codec.h.

Constructor & Destructor Documentation

◆ hevc_codec() [1/3]

kcenon::pacs::encoding::compression::hevc_codec::hevc_codec	(	bool	main10 = false,
		int	quality = kDefaultQuality )

explicit

Constructs an HEVC codec instance.

Parameters

main10	If true, use Main 10 Profile (10-bit, UID .108). If false, use Main Profile (8-bit, UID .107).
quality	Constant Rate Factor for encoding (0-51, lower = better).

Definition at line 10 of file hevc_codec.cpp.

11 : main10_(main10),

12 quality_(quality) {}

kcenon::pacs::encoding::compression::hevc_codec::quality

int quality() const noexcept

Gets the current quality setting (CRF).

Definition hevc_codec.cpp:63

kcenon::pacs::encoding::compression::hevc_codec::main10_

bool main10_

Definition hevc_codec.h:119

kcenon::pacs::encoding::compression::hevc_codec::quality_

int quality_

Definition hevc_codec.h:120

◆ ~hevc_codec()

kcenon::pacs::encoding::compression::hevc_codec::~hevc_codec ( )

overridedefault

◆ hevc_codec() [2/3]

kcenon::pacs::encoding::compression::hevc_codec::hevc_codec ( const hevc_codec & )

delete

◆ hevc_codec() [3/3]

kcenon::pacs::encoding::compression::hevc_codec::hevc_codec ( hevc_codec && )

defaultnoexcept

Member Function Documentation

◆ can_decode()

bool kcenon::pacs::encoding::compression::hevc_codec::can_decode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec can decode data with given parameters.

Parameters

params The image parameters

Returns: true if decoding is supported

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 55 of file hevc_codec.cpp.

                                                                     {
    return can_encode(params);
}

◆ can_encode()

bool kcenon::pacs::encoding::compression::hevc_codec::can_encode ( const image_params & params ) const

nodiscardoverridevirtualnoexcept

Checks if this codec supports the given image parameters.

Parameters

params The image parameters to check

Returns: true if the codec can handle these parameters

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 31 of file hevc_codec.cpp.

                                                                     {
    if (params.width == 0 || params.height == 0) {
        return false;
    }

    if (params.samples_per_pixel != 1 && params.samples_per_pixel != 3) {
        return false;
    }

    if (main10_) {
        // Main 10 Profile supports up to 10-bit
        if (params.bits_stored < 1 || params.bits_stored > 10) {
            return false;
        }
    } else {
        // Main Profile supports up to 8-bit
        if (params.bits_stored < 1 || params.bits_stored > 8) {
            return false;
        }
    }

    return true;
}

◆ decode()

codec_result kcenon::pacs::encoding::compression::hevc_codec::decode	(	std::span< const uint8_t >	compressed_data,
		const image_params &	params ) const

nodiscardoverridevirtual

Decompresses compressed pixel data.

Parameters

compressed_data	The compressed pixel data (single frame)
params	Image parameters (width, height, samples_per_pixel)

Returns: codec_result containing decompressed data or error

The output pixel data is always in interleaved format (planar_configuration=0).

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 79 of file hevc_codec.cpp.

                                                       {
    return kcenon::pacs::pacs_error<compression_result>(
        kcenon::pacs::error_codes::decompression_error,
        "HEVC codec not available: HEVC library not found at build time. "
        "Build with PACS_WITH_HEVC=ON to enable.");
}

References kcenon::pacs::error_codes::decompression_error, and kcenon::pacs::pacs_error().

Here is the call graph for this function:

◆ encode()

codec_result kcenon::pacs::encoding::compression::hevc_codec::encode	(	std::span< const uint8_t >	pixel_data,
		const image_params &	params,
		const compression_options &	options = {} ) const

nodiscardoverridevirtual

Compresses uncompressed pixel data.

Parameters

pixel_data	The raw, uncompressed pixel data
params	Image parameters describing the pixel data
options	Compression settings

Returns: codec_result containing compressed data or error

The input pixel_data must match the format specified by params:

For planar_configuration=0: interleaved (RGBRGB...)
For planar_configuration=1: separate planes (RRR...GGG...BBB...)

Note: This is a potentially expensive operation. Consider using thread_pool_adapter for batch processing.

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 69 of file hevc_codec.cpp.

                                                               {
    return kcenon::pacs::pacs_error<compression_result>(
        kcenon::pacs::error_codes::compression_error,
        "HEVC codec not available: HEVC library not found at build time. "
        "Build with PACS_WITH_HEVC=ON to enable.");
}

References kcenon::pacs::error_codes::compression_error, and kcenon::pacs::pacs_error().

Here is the call graph for this function:

◆ is_lossy()

bool kcenon::pacs::encoding::compression::hevc_codec::is_lossy ( ) const

nodiscardoverridevirtualnoexcept

Checks if this codec produces lossy compression.

Returns: true if lossy, false if lossless

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 27 of file hevc_codec.cpp.

                                         {
    return true;
}

◆ is_main10_profile()

bool kcenon::pacs::encoding::compression::hevc_codec::is_main10_profile ( ) const

nodiscardnoexcept

Checks if this codec is configured for Main 10 Profile.

Returns: true if Main 10 (10-bit), false if Main (8-bit)

Definition at line 59 of file hevc_codec.cpp.

                                                  {
    return main10_;
}

References main10_.

◆ name()

std::string_view kcenon::pacs::encoding::compression::hevc_codec::name ( ) const

nodiscardoverridevirtualnoexcept

Returns a human-readable name for the codec.

Returns: The codec name (e.g., "JPEG Baseline")

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 23 of file hevc_codec.cpp.

                                               {
    return main10_ ? "HEVC/H.265 Main 10 Profile" : "HEVC/H.265 Main Profile";
}

References main10_.

◆ operator=() [1/2]

hevc_codec & kcenon::pacs::encoding::compression::hevc_codec::operator= ( const hevc_codec & )

delete

◆ operator=() [2/2]

hevc_codec & kcenon::pacs::encoding::compression::hevc_codec::operator= ( hevc_codec && )

defaultnoexcept

◆ quality()

int kcenon::pacs::encoding::compression::hevc_codec::quality ( ) const

nodiscardnoexcept

Gets the current quality setting (CRF).

Returns: Quality value (0-51)

Definition at line 63 of file hevc_codec.cpp.

                                       {
    return quality_;
}

References quality_.

◆ transfer_syntax_uid()

std::string_view kcenon::pacs::encoding::compression::hevc_codec::transfer_syntax_uid ( ) const

nodiscardoverridevirtualnoexcept

Returns the Transfer Syntax UID supported by this codec.

Returns: The DICOM Transfer Syntax UID

Implements kcenon::pacs::encoding::compression::compression_codec.

Definition at line 19 of file hevc_codec.cpp.

                                                              {
    return main10_ ? kTransferSyntaxUIDMain10 : kTransferSyntaxUIDMain;
}

Member Data Documentation

◆ kDefaultQuality

int kcenon::pacs::encoding::compression::hevc_codec::kDefaultQuality = 23

staticconstexpr

Default quality for lossy encoding (CRF value, 0-51, lower = better)

Definition at line 56 of file hevc_codec.h.

◆ kTransferSyntaxUIDMain

std::string_view kcenon::pacs::encoding::compression::hevc_codec::kTransferSyntaxUIDMain

staticconstexpr

Initial value:

=

"1.2.840.10008.1.2.4.107"

DICOM Transfer Syntax UID for HEVC/H.265 Main Profile / Level 5.1.

Definition at line 48 of file hevc_codec.h.

Referenced by kcenon::pacs::encoding::compression::codec_factory::create().

◆ kTransferSyntaxUIDMain10

std::string_view kcenon::pacs::encoding::compression::hevc_codec::kTransferSyntaxUIDMain10

staticconstexpr

Initial value:

=

"1.2.840.10008.1.2.4.108"

DICOM Transfer Syntax UID for HEVC/H.265 Main 10 Profile / Level 5.1.

Definition at line 52 of file hevc_codec.h.

Referenced by kcenon::pacs::encoding::compression::codec_factory::create().

◆ main10_

bool kcenon::pacs::encoding::compression::hevc_codec::main10_

private

Definition at line 119 of file hevc_codec.h.

Referenced by is_main10_profile(), and name().

◆ quality_

int kcenon::pacs::encoding::compression::hevc_codec::quality_

private

Definition at line 120 of file hevc_codec.h.

Referenced by quality().

The documentation for this class was generated from the following files:

include/kcenon/pacs/encoding/compression/hevc_codec.h
src/encoding/compression/hevc_codec.cpp

Public Member Functions

Static Public Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ hevc_codec() [1/3]

◆ ~hevc_codec()

◆ hevc_codec() [2/3]

◆ hevc_codec() [3/3]

Member Function Documentation

◆ can_decode()

◆ can_encode()

◆ decode()

◆ encode()

◆ is_lossy()

◆ is_main10_profile()

◆ name()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ quality()

◆ transfer_syntax_uid()

Member Data Documentation

◆ kDefaultQuality

◆ kTransferSyntaxUIDMain

◆ kTransferSyntaxUIDMain10

◆ main10_

◆ quality_
