kcenon::pacs::dcm_modify::anonymizer Class Reference

DICOM Anonymizer - removes or replaces PHI from datasets. More...

#include <anonymizer.h>

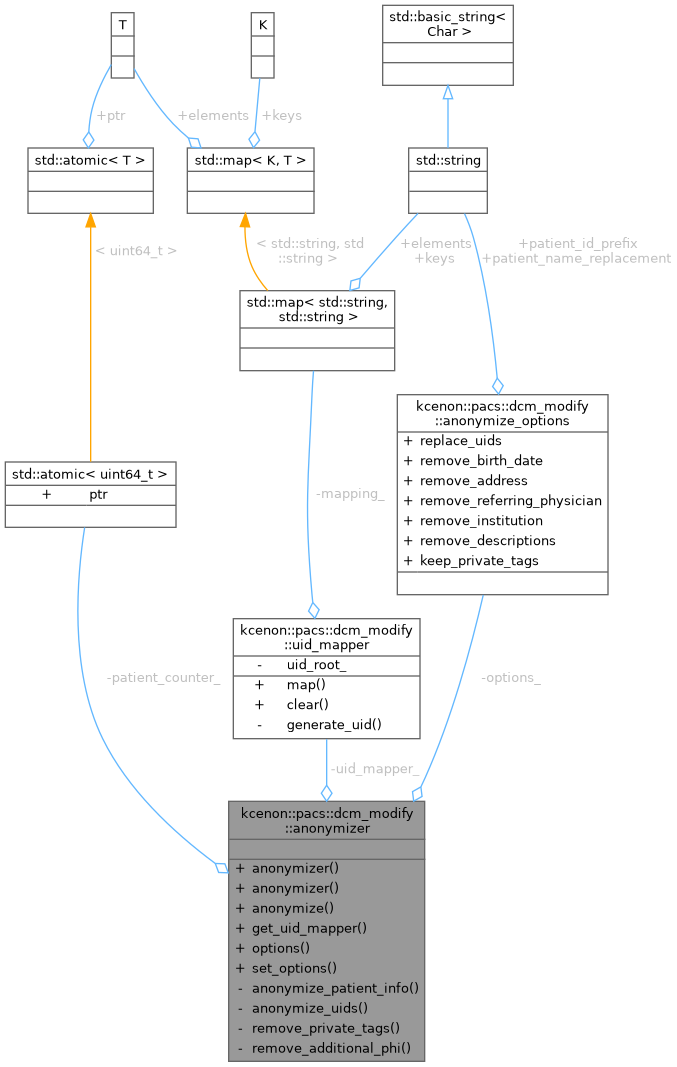

Collaboration diagram for kcenon::pacs::dcm_modify::anonymizer:

Public Member Functions
	anonymizer ()=default
	Construct an anonymizer with default options.
	anonymizer (anonymize_options opts)
	Construct an anonymizer with custom options.
void	anonymize (core::dicom_dataset &dataset)
	Anonymize a DICOM dataset in place.
uid_mapper &	get_uid_mapper ()
	Get the UID mapper for consistent UID replacement.
const anonymize_options &	options () const
	Get the current options.
void	set_options (anonymize_options opts)
	Set new options.

Private Member Functions
void	anonymize_patient_info (core::dicom_dataset &dataset)
void	anonymize_uids (core::dicom_dataset &dataset)
void	remove_private_tags (core::dicom_dataset &dataset)
void	remove_additional_phi (core::dicom_dataset &dataset)

Private Attributes
anonymize_options	options_
uid_mapper	uid_mapper_
std::atomic< uint64_t >	patient_counter_ {0}

Detailed Description

DICOM Anonymizer - removes or replaces PHI from datasets.

Implements basic DICOM anonymization as specified in DICOM PS3.15. This includes removal/replacement of:

• Patient identifying information
• UIDs (to prevent correlation)
• Dates (optional shifting)
• Free-text fields that may contain PHI

Definition at line 113 of file anonymizer.h.

Constructor & Destructor Documentation

anonymizer() [1/2]

kcenon::pacs::dcm_modify::anonymizer::anonymizer ( )

default

Construct an anonymizer with default options.

anonymizer() [2/2]

kcenon::pacs::dcm_modify::anonymizer::anonymizer ( anonymize_options opts )

inlineexplicit

Construct an anonymizer with custom options.

Parameters

opts	Anonymization options

Definition at line 124 of file anonymizer.h.

: options_(std::move(opts)) {}

Member Function Documentation

anonymize()

void kcenon::pacs::dcm_modify::anonymizer::anonymize ( core::dicom_dataset & dataset )

inline

Anonymize a DICOM dataset in place.

Parameters

dataset

The dataset to anonymize

Definition at line 130 of file anonymizer.h.

                                               {
        using namespace kcenon::pacs::core;
        using namespace kcenon::pacs::encoding;

        // Patient identifying information
        anonymize_patient_info(dataset);

        // UIDs
        if (options_.replace_uids) {
            anonymize_uids(dataset);
        }

        // Dates
        if (options_.remove_birth_date) {
            dataset.remove(tags::patient_birth_date);
        }

        // Referring physician
        if (options_.remove_referring_physician) {
            dataset.remove(tags::referring_physician_name);
        }

        // Institution
        if (options_.remove_institution) {
            dataset.remove(dicom_tag{0x0008, 0x0080});  // InstitutionName
            dataset.remove(dicom_tag{0x0008, 0x0081});  // InstitutionAddress
        }

        // Descriptions (may contain PHI in free text)
        if (options_.remove_descriptions) {
            dataset.remove(tags::study_description);
            dataset.remove(dicom_tag{0x0008, 0x103E});  // SeriesDescription
        }

        // Address and other contact info
        if (options_.remove_address) {
            dataset.remove(dicom_tag{0x0010, 0x1040});  // PatientAddress
            dataset.remove(dicom_tag{0x0010, 0x2154});  // PatientTelephoneNumbers
        }

        // Remove private tags unless explicitly kept
        if (!options_.keep_private_tags) {
            remove_private_tags(dataset);
        }

        // Additional PHI tags
        remove_additional_phi(dataset);
    }

References anonymize_patient_info(), anonymize_uids(), kcenon::pacs::dcm_modify::anonymize_options::keep_private_tags, options_, kcenon::pacs::core::tags::patient_birth_date, kcenon::pacs::core::tags::referring_physician_name, kcenon::pacs::core::dicom_dataset::remove(), remove_additional_phi(), kcenon::pacs::dcm_modify::anonymize_options::remove_address, kcenon::pacs::dcm_modify::anonymize_options::remove_birth_date, kcenon::pacs::dcm_modify::anonymize_options::remove_descriptions, kcenon::pacs::dcm_modify::anonymize_options::remove_institution, remove_private_tags(), kcenon::pacs::dcm_modify::anonymize_options::remove_referring_physician, kcenon::pacs::dcm_modify::anonymize_options::replace_uids, and kcenon::pacs::core::tags::study_description.

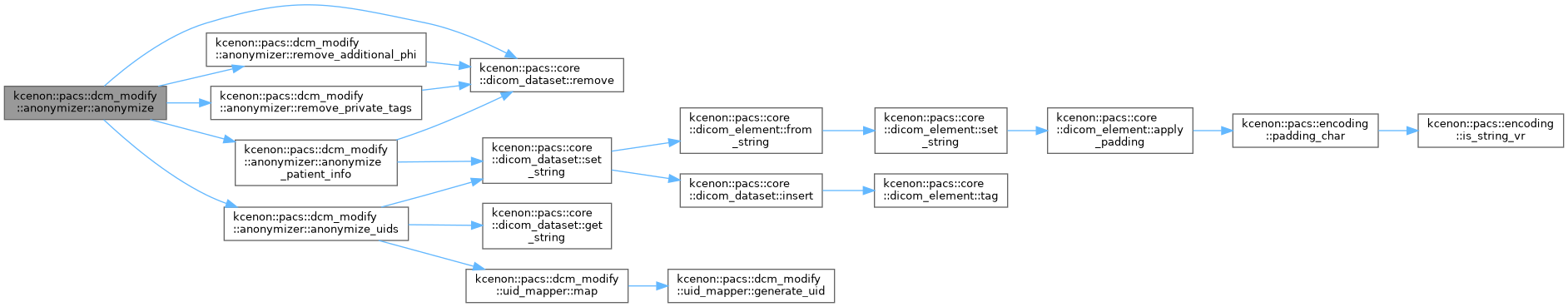

Here is the call graph for this function:

anonymize_patient_info()

void kcenon::pacs::dcm_modify::anonymizer::anonymize_patient_info ( core::dicom_dataset & dataset )

inlineprivate

Definition at line 198 of file anonymizer.h.

                                                            {
        using namespace kcenon::pacs::core;
        using namespace kcenon::pacs::encoding;

        // Patient Name
        if (!options_.patient_name_replacement.empty()) {
            dataset.set_string(tags::patient_name, vr_type::PN,
                               options_.patient_name_replacement);
        } else {
            dataset.remove(tags::patient_name);
        }

        // Patient ID
        std::string patient_id = options_.patient_id_prefix +
                                 std::to_string(++patient_counter_);
        dataset.set_string(tags::patient_id, vr_type::LO, patient_id);

        // Patient's Birth Name, Mother's Maiden Name
        dataset.remove(dicom_tag{0x0010, 0x1005});  // PatientBirthName
        dataset.remove(dicom_tag{0x0010, 0x1060});  // PatientMotherBirthName

        // Other patient IDs
        dataset.remove(dicom_tag{0x0010, 0x1000});  // OtherPatientIDs
        dataset.remove(dicom_tag{0x0010, 0x1001});  // OtherPatientNames
    }

References options_, patient_counter_, kcenon::pacs::core::tags::patient_id, kcenon::pacs::dcm_modify::anonymize_options::patient_id_prefix, kcenon::pacs::core::tags::patient_name, kcenon::pacs::dcm_modify::anonymize_options::patient_name_replacement, kcenon::pacs::core::dicom_dataset::remove(), and kcenon::pacs::core::dicom_dataset::set_string().

Referenced by anonymize().

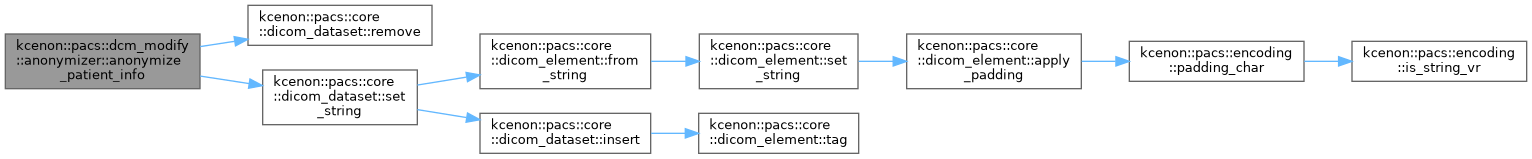

Here is the call graph for this function:

Here is the caller graph for this function:

anonymize_uids()

void kcenon::pacs::dcm_modify::anonymizer::anonymize_uids ( core::dicom_dataset & dataset )

inlineprivate

Definition at line 224 of file anonymizer.h.

                                                    {
        using namespace kcenon::pacs::core;
        using namespace kcenon::pacs::encoding;

        // Study Instance UID
        auto study_uid = dataset.get_string(tags::study_instance_uid);
        if (!study_uid.empty()) {
            dataset.set_string(tags::study_instance_uid, vr_type::UI,
                               uid_mapper_.map(study_uid));
        }

        // Series Instance UID
        auto series_uid = dataset.get_string(tags::series_instance_uid);
        if (!series_uid.empty()) {
            dataset.set_string(tags::series_instance_uid, vr_type::UI,
                               uid_mapper_.map(series_uid));
        }

        // SOP Instance UID
        auto sop_uid = dataset.get_string(tags::sop_instance_uid);
        if (!sop_uid.empty()) {
            dataset.set_string(tags::sop_instance_uid, vr_type::UI,
                               uid_mapper_.map(sop_uid));
        }

        // Frame of Reference UID
        auto frame_uid = dataset.get_string(dicom_tag{0x0020, 0x0052});
        if (!frame_uid.empty()) {
            dataset.set_string(dicom_tag{0x0020, 0x0052}, vr_type::UI,
                               uid_mapper_.map(frame_uid));
        }
    }

References kcenon::pacs::core::dicom_dataset::get_string(), kcenon::pacs::dcm_modify::uid_mapper::map(), kcenon::pacs::core::tags::series_instance_uid, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_instance_uid, kcenon::pacs::core::tags::study_instance_uid, and uid_mapper_.

Referenced by anonymize().

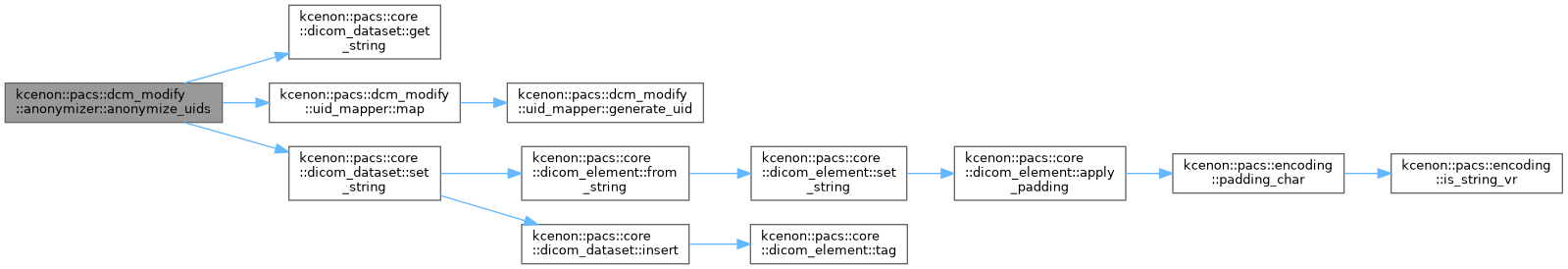

Here is the call graph for this function:

Here is the caller graph for this function:

get_uid_mapper()

uid_mapper & kcenon::pacs::dcm_modify::anonymizer::get_uid_mapper ( )

inline

Get the UID mapper for consistent UID replacement.

Returns

Reference to the UID mapper

Definition at line 183 of file anonymizer.h.

{ return uid_mapper_; }

References uid_mapper_.

options()

const anonymize_options & kcenon::pacs::dcm_modify::anonymizer::options ( ) const

inline

Get the current options.

Returns

Reference to the options

Definition at line 189 of file anonymizer.h.

{ return options_; }

References options_.

remove_additional_phi()

void kcenon::pacs::dcm_modify::anonymizer::remove_additional_phi ( core::dicom_dataset & dataset )

inlineprivate

Definition at line 271 of file anonymizer.h.

                                                           {
        // Accession Number (may be linked to hospital records)
        dataset.remove(core::dicom_tag{0x0008, 0x0050});

        // Patient comments
        dataset.remove(core::dicom_tag{0x0010, 0x4000});

        // Study comments
        dataset.remove(core::dicom_tag{0x0032, 0x4000});

        // Requested Procedure Description
        dataset.remove(core::dicom_tag{0x0032, 0x1060});

        // Performed Procedure Step Description
        dataset.remove(core::dicom_tag{0x0040, 0x0254});

        // Device Serial Number
        dataset.remove(core::dicom_tag{0x0018, 0x1000});
    }

References kcenon::pacs::core::dicom_dataset::remove().

Referenced by anonymize().

Here is the call graph for this function:

Here is the caller graph for this function:

remove_private_tags()

void kcenon::pacs::dcm_modify::anonymizer::remove_private_tags ( core::dicom_dataset & dataset )

inlineprivate

Definition at line 257 of file anonymizer.h.

                                                         {
        std::vector<core::dicom_tag> private_tags;

        for (const auto& [tag, element] : dataset) {
            if (tag.is_private()) {
                private_tags.push_back(tag);
            }
        }

        for (const auto& tag : private_tags) {
            dataset.remove(tag);
        }
    }

References kcenon::pacs::core::dicom_dataset::remove().

Referenced by anonymize().

Here is the call graph for this function:

Here is the caller graph for this function:

set_options()

void kcenon::pacs::dcm_modify::anonymizer::set_options ( anonymize_options opts )

inline

Set new options.

Parameters

opts	New options

Definition at line 195 of file anonymizer.h.

{ options_ = std::move(opts); }

References options_.

Member Data Documentation

options_

anonymize_options kcenon::pacs::dcm_modify::anonymizer::options_

private

Definition at line 291 of file anonymizer.h.

Referenced by anonymize(), anonymize_patient_info(), options(), and set_options().

patient_counter_

std::atomic<uint64_t> kcenon::pacs::dcm_modify::anonymizer::patient_counter_ {0}

private

Definition at line 293 of file anonymizer.h.

{0};

Referenced by anonymize_patient_info().

uid_mapper_

uid_mapper kcenon::pacs::dcm_modify::anonymizer::uid_mapper_

private

Definition at line 292 of file anonymizer.h.

Referenced by anonymize_uids(), and get_uid_mapper().

---

The documentation for this class was generated from the following file:

• examples/dcm_modify/anonymizer.h
