kcenon::pacs::core::dicom_element Class Reference

#include <dicom_element.h>

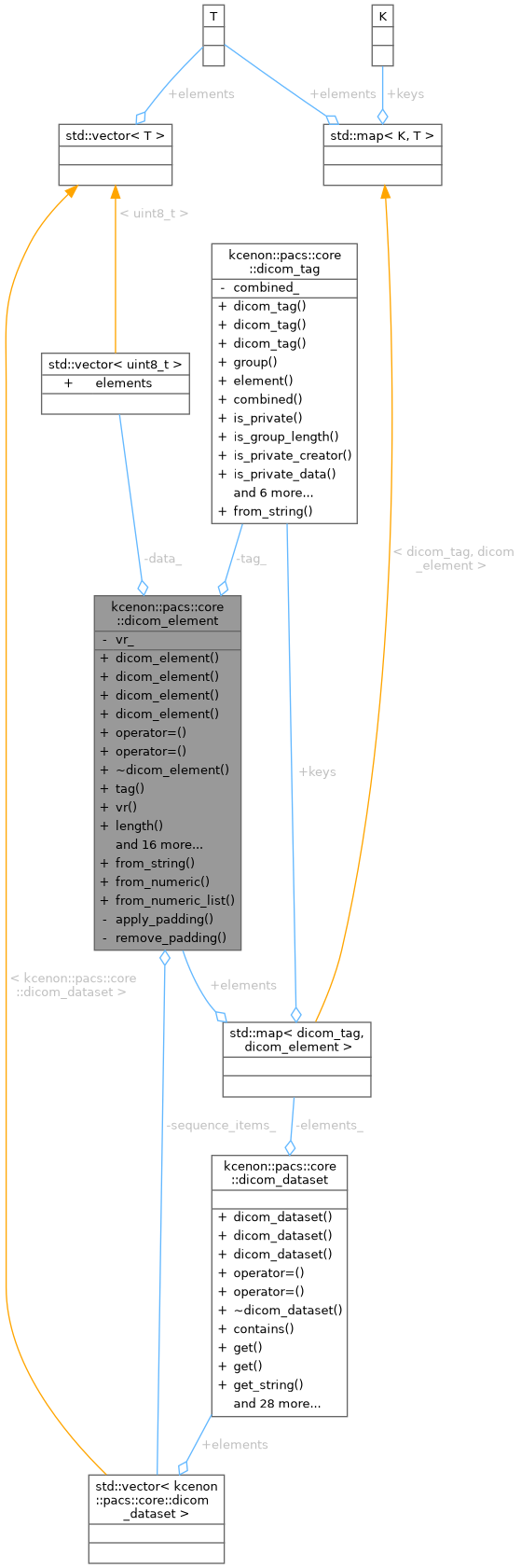

Collaboration diagram for kcenon::pacs::core::dicom_element:

Public Member Functions
	dicom_element (dicom_tag tag, encoding::vr_type vr) noexcept
	Construct an empty element with given tag and VR.
	dicom_element (dicom_tag tag, encoding::vr_type vr, std::span< const uint8_t > data)
	Construct an element with raw data.
	dicom_element (const dicom_element &)
	Copy constructor.
	dicom_element (dicom_element &&) noexcept
	Move constructor.
auto	operator= (const dicom_element &) -> dicom_element &
	Copy assignment.
auto	operator= (dicom_element &&) noexcept -> dicom_element &
	Move assignment.
	~dicom_element ()
	Destructor.
constexpr auto	tag () const noexcept -> dicom_tag
	Get the element's tag.
constexpr auto	vr () const noexcept -> encoding::vr_type
	Get the element's VR.
auto	length () const noexcept -> uint32_t
	Get the value length in bytes.
auto	raw_data () const noexcept -> std::span< const uint8_t >
	Get the raw data bytes.
auto	is_empty () const noexcept -> bool
	Check if the element has no value.
auto	as_string () const -> kcenon::pacs::Result< std::string >
	Get the value as a string.
auto	as_string_list () const -> kcenon::pacs::Result< std::vector< std::string > >
	Get multi-valued string as a list.
template<typename T > requires std::is_arithmetic_v<T>
auto	as_numeric () const -> kcenon::pacs::Result< T >
	Get the value as a numeric type.
template<typename T > requires std::is_arithmetic_v<T>
auto	as_numeric_list () const -> kcenon::pacs::Result< std::vector< T > >
	Get multi-valued numeric data as a list.
auto	is_sequence () const noexcept -> bool
	Check if this element is a sequence.
auto	sequence_item_count () const noexcept -> std::size_t
	Get the number of items in the sequence.
auto	sequence_item (std::size_t index) const -> const dicom_dataset &
	Get a specific sequence item by index.
auto	sequence_item (std::size_t index) -> dicom_dataset &
	Get a specific sequence item by index (mutable)
auto	sequence_items () -> std::vector< dicom_dataset > &
	Get mutable access to sequence items.
auto	sequence_items () const -> const std::vector< dicom_dataset > &
	Get read-only access to sequence items.
void	add_sequence_item (dicom_dataset item)
	Add a new item to the sequence.
void	set_value (std::span< const uint8_t > data)
	Set the raw value data.
void	set_string (std::string_view value)
	Set the value from a string.
template<typename T > requires std::is_arithmetic_v<T>
void	set_numeric (T value)
	Set the value from a numeric value.

Static Public Member Functions
static auto	from_string (dicom_tag tag, encoding::vr_type vr, std::string_view value) -> dicom_element
	Create an element from a string value.
template<typename T > requires std::is_arithmetic_v<T>
static auto	from_numeric (dicom_tag tag, encoding::vr_type vr, T value) -> dicom_element
	Create an element from a numeric value.
template<typename T > requires std::is_arithmetic_v<T>
static auto	from_numeric_list (dicom_tag tag, encoding::vr_type vr, std::span< const T > values) -> dicom_element
	Create an element from multiple numeric values.

Private Member Functions
auto	apply_padding (std::string_view str) const -> std::string
	Apply DICOM padding to ensure even length.

Static Private Member Functions
static auto	remove_padding (std::string_view str, encoding::vr_type vr) -> std::string
	Remove DICOM padding from a string value.

Private Attributes
dicom_tag	tag_
encoding::vr_type	vr_
std::vector< uint8_t >	data_
std::vector< dicom_dataset >	sequence_items_

Detailed Description

Examples

dcm_dump/main.cpp, dcm_to_json/main.cpp, dcm_to_xml/main.cpp, json_to_dcm/main.cpp, and xml_to_dcm/main.cpp.

Definition at line 67 of file dicom_element.h.

Constructor & Destructor Documentation

dicom_element() [1/4]

kcenon::pacs::core::dicom_element::dicom_element ( dicom_tag tag, encoding::vr_type vr )

noexcept

Construct an empty element with given tag and VR.

Parameters

tag	The DICOM tag
vr	The value representation

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 24 of file dicom_element.cpp.

    : tag_{tag}, vr_{vr}, data_{}, sequence_items_{} {}

dicom_element() [2/4]

kcenon::pacs::core::dicom_element::dicom_element	(	dicom_tag	tag,
		encoding::vr_type	vr,
		std::span< const uint8_t >	data )

Construct an element with raw data.

Parameters

tag	The DICOM tag
vr	The value representation
data	The raw byte data

Definition at line 27 of file dicom_element.cpp.

    : tag_{tag}, vr_{vr}, data_(data.begin(), data.end()), sequence_items_{} {}

dicom_element() [3/4]

kcenon::pacs::core::dicom_element::dicom_element ( const dicom_element & )

default

Copy constructor.

dicom_element() [4/4]

kcenon::pacs::core::dicom_element::dicom_element ( dicom_element && )

defaultnoexcept

Move constructor.

~dicom_element()

kcenon::pacs::core::dicom_element::~dicom_element ( )

default

Destructor.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Member Function Documentation

add_sequence_item()

void kcenon::pacs::core::dicom_element::add_sequence_item

(

dicom_dataset

item

)

Add a new item to the sequence.

Parameters

item	The dataset to add (will be moved)

Note

Only valid if is_sequence() returns true

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 179 of file dicom_element.cpp.

                                                        {
    sequence_items_.push_back(std::move(item));
}

References sequence_items_.

apply_padding()

auto kcenon::pacs::core::dicom_element::apply_padding ( std::string_view str ) const -> std::string

nodiscardprivate

Apply DICOM padding to ensure even length.

Parameters

str	The input string

Returns

Padded string with even length

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 201 of file dicom_element.cpp.

                                                                       {
    std::string result{str};

    // DICOM requires even length for all values
    if (result.length() % 2 != 0) {
        result += encoding::padding_char(vr_);
    }

    return result;
}

References kcenon::pacs::encoding::padding_char().

Referenced by set_string().

Here is the call graph for this function:

Here is the caller graph for this function:

as_numeric()

template<typename T >
requires std::is_arithmetic_v<T>

auto kcenon::pacs::core::dicom_element::as_numeric ( ) const -> kcenon::pacs::Result<T>

nodiscard

Get the value as a numeric type.

Template Parameters

T	The target numeric type

Returns

Result containing the numeric value, or error if conversion fails

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h, and dcm_dump/main.cpp.

Definition at line 369 of file dicom_element.h.

                                                            {
    if (data_.size() < sizeof(T)) {
        return kcenon::pacs::pacs_error<T>(
            kcenon::pacs::error_codes::data_size_mismatch,
            "Insufficient data for numeric conversion: expected " +
                std::to_string(sizeof(T)) + " bytes, got " +
                std::to_string(data_.size()));
    }

    T result{};
    std::memcpy(&result, data_.data(), sizeof(T));
    return kcenon::pacs::ok(result);
}

References data_, kcenon::pacs::error_codes::data_size_mismatch, and kcenon::pacs::pacs_error().

Referenced by as_string().

Here is the call graph for this function:

Here is the caller graph for this function:

as_numeric_list()

template<typename T >
requires std::is_arithmetic_v<T>

auto kcenon::pacs::core::dicom_element::as_numeric_list ( ) const -> kcenon::pacs::Result<std::vector<T>>

nodiscard

Get multi-valued numeric data as a list.

Template Parameters

T	The target numeric type

Returns

Result containing vector of numeric values, or error if conversion fails

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h, dcm_to_json/main.cpp, and dcm_to_xml/main.cpp.

Definition at line 385 of file dicom_element.h.

                                                                            {
    if (data_.size() % sizeof(T) != 0) {
        return kcenon::pacs::pacs_error<std::vector<T>>(
            kcenon::pacs::error_codes::data_size_mismatch,
            "Data size not aligned for numeric type: " +
                std::to_string(data_.size()) + " bytes is not divisible by " +
                std::to_string(sizeof(T)));
    }

    const size_t count = data_.size() / sizeof(T);
    std::vector<T> result(count);

    for (size_t i = 0; i < count; ++i) {
        std::memcpy(&result[i], data_.data() + i * sizeof(T), sizeof(T));
    }

    return kcenon::pacs::ok(result);
}

References data_, and kcenon::pacs::error_codes::data_size_mismatch.

as_string()

auto kcenon::pacs::core::dicom_element::as_string ( ) const -> kcenon::pacs::Result<std::string>

nodiscard

Get the value as a string.

For string VRs, returns the value with trailing padding removed. For numeric VRs, converts the value to a string representation.

Returns

Result containing the string value, or error if conversion fails

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h, dcm_dump/main.cpp, dcm_to_json/main.cpp, and dcm_to_xml/main.cpp.

Definition at line 52 of file dicom_element.cpp.

                                                                   {
    if (data_.empty()) {
        return kcenon::pacs::ok(std::string{});
    }

    // For string VRs, convert bytes to string and remove padding
    if (encoding::is_string_vr(vr_)) {
        std::string_view raw{reinterpret_cast<const char*>(data_.data()),
                             data_.size()};
        return kcenon::pacs::ok(remove_padding(raw, vr_));
    }

    // For numeric VRs, convert to string representation
    if (encoding::is_numeric_vr(vr_)) {
        switch (vr_) {
            case encoding::vr_type::US:
                if (data_.size() >= 2) {
                    if (auto val = as_numeric<uint16_t>(); val.is_ok())
                        return kcenon::pacs::ok(std::to_string(val.value()));
                }
                break;
            case encoding::vr_type::SS:
                if (data_.size() >= 2) {
                    if (auto val = as_numeric<int16_t>(); val.is_ok())
                        return kcenon::pacs::ok(std::to_string(val.value()));
                }
                break;
            case encoding::vr_type::UL:
                if (data_.size() >= 4) {
                    if (auto val = as_numeric<uint32_t>(); val.is_ok())
                        return kcenon::pacs::ok(std::to_string(val.value()));
                }
                break;
            case encoding::vr_type::SL:
                if (data_.size() >= 4) {
                    if (auto val = as_numeric<int32_t>(); val.is_ok())
                        return kcenon::pacs::ok(std::to_string(val.value()));
                }
                break;
            case encoding::vr_type::UV:
                if (data_.size() >= 8) {
                    if (auto val = as_numeric<uint64_t>(); val.is_ok())
                        return kcenon::pacs::ok(std::to_string(val.value()));
                }
                break;
            case encoding::vr_type::SV:
                if (data_.size() >= 8) {
                    if (auto val = as_numeric<int64_t>(); val.is_ok())
                        return kcenon::pacs::ok(std::to_string(val.value()));
                }
                break;
            case encoding::vr_type::FL:
                if (data_.size() >= 4) {
                    if (auto val = as_numeric<float>(); val.is_ok())
                        return kcenon::pacs::ok(std::to_string(val.value()));
                }
                break;
            case encoding::vr_type::FD:
                if (data_.size() >= 8) {
                    if (auto val = as_numeric<double>(); val.is_ok())
                        return kcenon::pacs::ok(std::to_string(val.value()));
                }
                break;
            default:
                break;
        }
    }

    // For binary VRs or unknown, return raw bytes as string
    return kcenon::pacs::ok(
        std::string{reinterpret_cast<const char*>(data_.data()), data_.size()});
}

References as_numeric(), data_, kcenon::pacs::encoding::FD, kcenon::pacs::encoding::FL, kcenon::pacs::encoding::is_numeric_vr(), kcenon::pacs::encoding::is_string_vr(), remove_padding(), kcenon::pacs::encoding::SL, kcenon::pacs::encoding::SS, kcenon::pacs::encoding::SV, kcenon::pacs::encoding::UL, kcenon::pacs::encoding::US, kcenon::pacs::encoding::UV, and vr_.

Referenced by as_string_list().

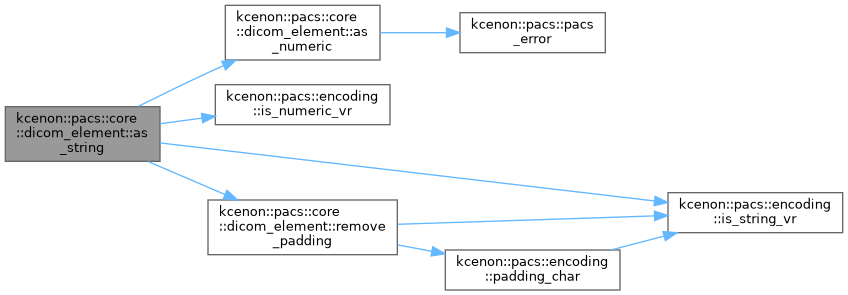

Here is the call graph for this function:

Here is the caller graph for this function:

as_string_list()

auto kcenon::pacs::core::dicom_element::as_string_list ( ) const -> kcenon::pacs::Result<std::vector<std::string>>

nodiscard

Get multi-valued string as a list.

Splits the value by backslash delimiter (DICOM VM > 1).

Returns

Result containing vector of individual string values, or error

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 125 of file dicom_element.cpp.

                                              {
    auto str_result = as_string();
    if (str_result.is_err()) {
        return kcenon::pacs::pacs_error<std::vector<std::string>>(
            str_result.error().code, str_result.error().message);
    }
    const std::string str = str_result.value();

    std::vector<std::string> result;
    if (str.empty()) {
        return kcenon::pacs::ok(result);
    }

    // Split by backslash (DICOM VM delimiter)
    std::string::size_type start = 0;
    std::string::size_type pos = 0;

    while ((pos = str.find('\\', start)) != std::string::npos) {
        result.push_back(str.substr(start, pos - start));
        start = pos + 1;
    }

    // Add the last segment
    result.push_back(str.substr(start));

    return kcenon::pacs::ok(result);
}

References as_string(), and code.

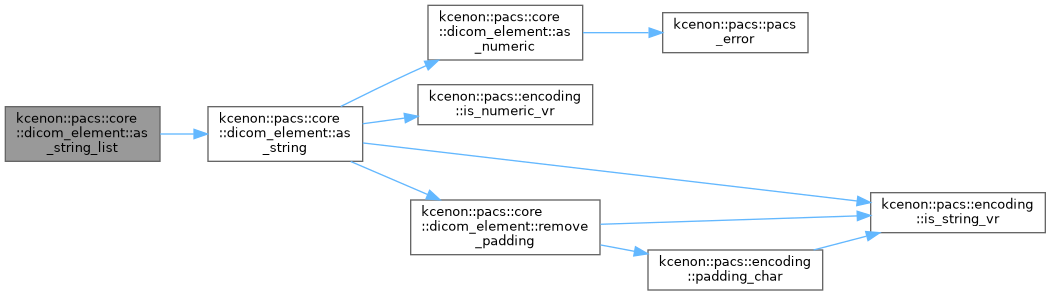

Here is the call graph for this function:

from_numeric()

template<typename T >
requires std::is_arithmetic_v<T>

auto kcenon::pacs::core::dicom_element::from_numeric ( dicom_tag tag, encoding::vr_type vr, T value ) -> dicom_element

staticnodiscard

Create an element from a numeric value.

Template Parameters

T	The numeric type (uint16_t, int32_t, float, double, etc.)

Parameters

tag	The DICOM tag
vr	The value representation (should be a numeric VR)
value	The numeric value

Returns

A new dicom_element containing the value

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_dataset.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 345 of file dicom_element.h.

                                                           {
    dicom_element elem{tag, vr};
    elem.set_numeric(value);
    return elem;
}

References set_numeric(), tag(), and vr().

Referenced by kcenon::pacs::integration::container_adapter::from_container_value(), and kcenon::pacs::core::dicom_dataset::set_numeric().

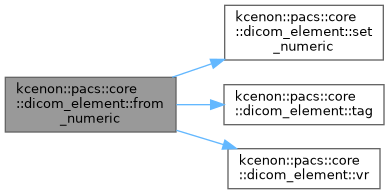

Here is the call graph for this function:

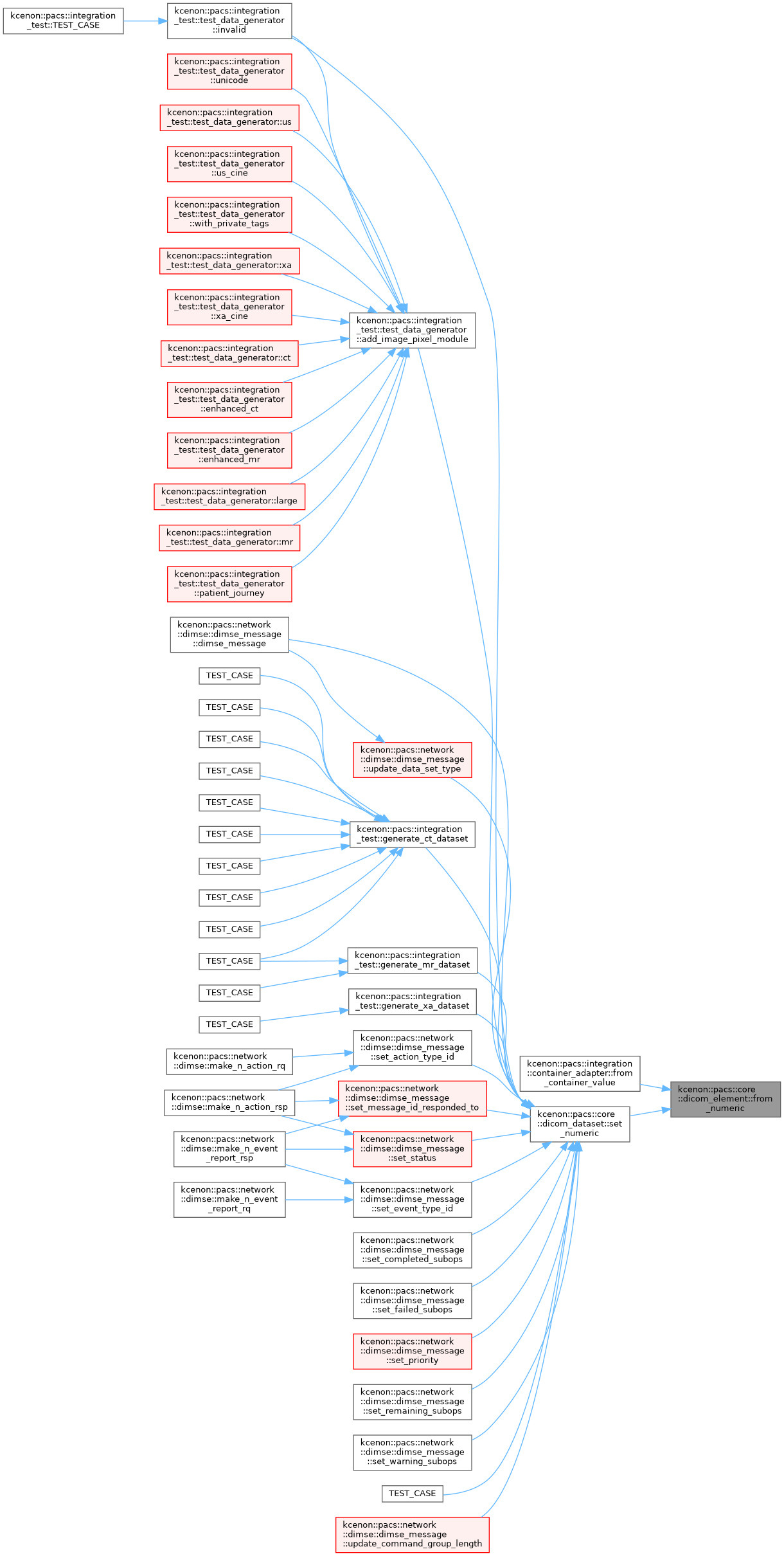

Here is the caller graph for this function:

from_numeric_list()

template<typename T >
requires std::is_arithmetic_v<T>

auto kcenon::pacs::core::dicom_element::from_numeric_list ( dicom_tag tag, encoding::vr_type vr, std::span< const T > values ) -> dicom_element

staticnodiscard

Create an element from multiple numeric values.

Template Parameters

T	The numeric type

Parameters

tag	The DICOM tag
vr	The value representation
values	The numeric values

Returns

A new dicom_element containing all values

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 354 of file dicom_element.h.

                                                                                {
    dicom_element elem{tag, vr};
    std::vector<uint8_t> data(values.size() * sizeof(T));

    for (size_t i = 0; i < values.size(); ++i) {
        std::memcpy(data.data() + i * sizeof(T), &values[i], sizeof(T));
    }

    elem.set_value(data);
    return elem;
}

References tag(), and vr().

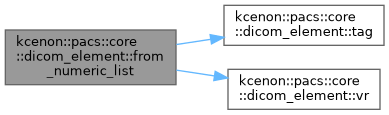

Here is the call graph for this function:

from_string()

auto kcenon::pacs::core::dicom_element::from_string ( dicom_tag tag, encoding::vr_type vr, std::string_view value ) -> dicom_element

staticnodiscard

Create an element from a string value.

Parameters

tag	The DICOM tag
vr	The value representation (should be a string VR)
value	The string value

Returns

A new dicom_element containing the string

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 41 of file dicom_element.cpp.

                                                                       {
    dicom_element elem{tag, vr};
    elem.set_string(value);
    return elem;
}

References set_string(), and vr.

Referenced by kcenon::pacs::integration::container_adapter::from_container_value(), kcenon::pacs::encoding::set_encoded_string(), and kcenon::pacs::core::dicom_dataset::set_string().

Here is the call graph for this function:

Here is the caller graph for this function:

is_empty()

auto kcenon::pacs::core::dicom_element::is_empty ( ) const -> bool

inlinenodiscardnoexcept

Check if the element has no value.

Returns

true if the value is empty

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h, dcm_dump/main.cpp, dcm_to_json/main.cpp, and dcm_to_xml/main.cpp.

Definition at line 186 of file dicom_element.h.

{ return data_.empty(); }

References data_.

is_sequence()

auto kcenon::pacs::core::dicom_element::is_sequence ( ) const -> bool

inlinenodiscardnoexcept

Check if this element is a sequence.

Returns

true if VR is SQ

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h, dcm_dump/main.cpp, dcm_to_json/main.cpp, and dcm_to_xml/main.cpp.

Definition at line 242 of file dicom_element.h.

                                                            {
        return vr_ == encoding::vr_type::SQ;
    }

References kcenon::pacs::encoding::SQ, and vr_.

Referenced by kcenon::pacs::encoding::explicit_vr_big_endian_codec::encode_element(), kcenon::pacs::encoding::explicit_vr_codec::encode_element(), and kcenon::pacs::encoding::implicit_vr_codec::encode_element().

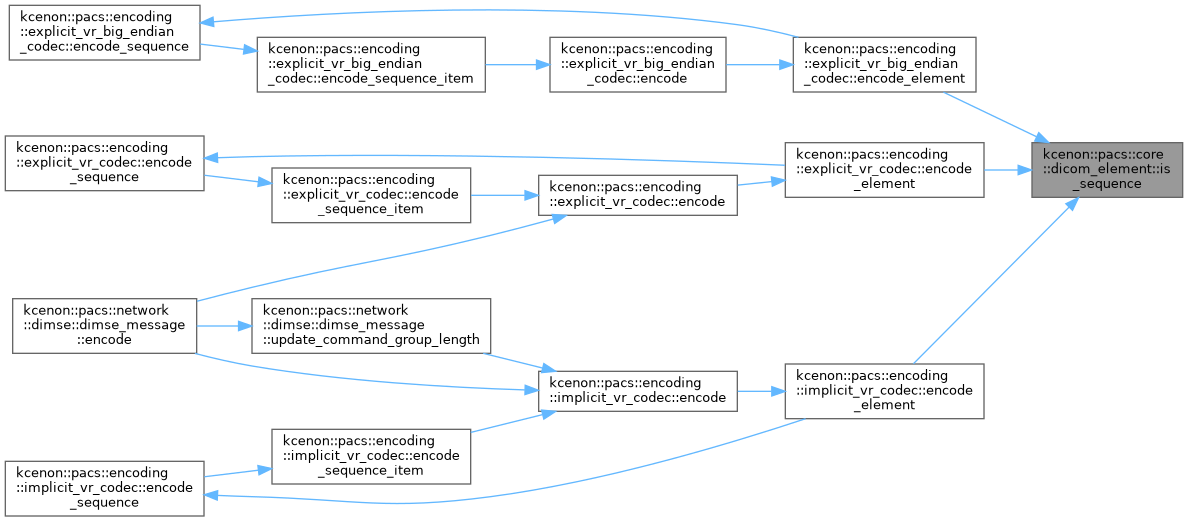

Here is the caller graph for this function:

length()

auto kcenon::pacs::core::dicom_element::length ( ) const -> uint32_t

inlinenodiscardnoexcept

Get the value length in bytes.

Returns

The number of bytes in the value

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 170 of file dicom_element.h.

                                                           {
        return static_cast<uint32_t>(data_.size());
    }

References data_.

operator=() [1/2]

auto kcenon::pacs::core::dicom_element::operator= ( const dicom_element & ) -> dicom_element &

default

Copy assignment.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

operator=() [2/2]

auto kcenon::pacs::core::dicom_element::operator= ( dicom_element && ) -> dicom_element &

defaultnoexcept

Move assignment.

raw_data()

auto kcenon::pacs::core::dicom_element::raw_data ( ) const -> std::span<const uint8_t>

inlinenodiscardnoexcept

Get the raw data bytes.

Returns

A span view of the raw data

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h, dcm_dump/main.cpp, dcm_to_json/main.cpp, and dcm_to_xml/main.cpp.

Definition at line 178 of file dicom_element.h.

                                                                           {
        return data_;
    }

References data_.

Referenced by kcenon::pacs::encoding::explicit_vr_big_endian_codec::encode_element(), kcenon::pacs::encoding::explicit_vr_codec::encode_element(), and kcenon::pacs::encoding::implicit_vr_codec::encode_element().

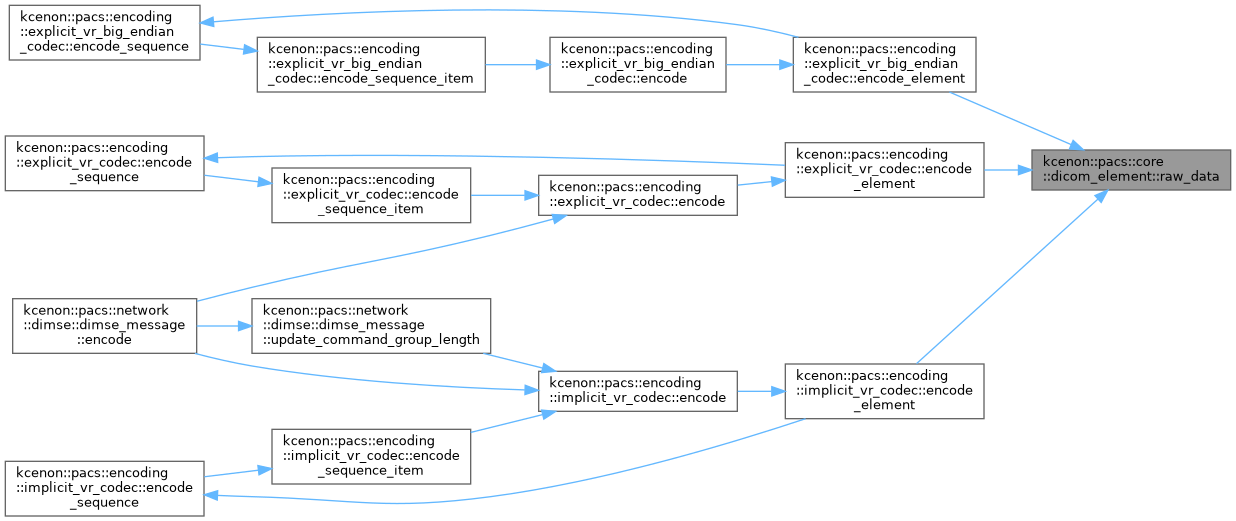

Here is the caller graph for this function:

remove_padding()

auto kcenon::pacs::core::dicom_element::remove_padding ( std::string_view str, encoding::vr_type vr ) -> std::string

staticnodiscardprivate

Remove DICOM padding from a string value.

Parameters

str	The padded string

Returns

String with padding removed

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 212 of file dicom_element.cpp.

                                                                    {
    if (str.empty()) {
        return {};
    }

    std::string result{str};

    // Determine padding character based on VR
    const char pad = encoding::padding_char(vr);

    // Remove trailing padding characters
    while (!result.empty() && result.back() == pad) {
        result.pop_back();
    }

    // For string VRs (except UI), also trim trailing spaces
    if (encoding::is_string_vr(vr) && vr != encoding::vr_type::UI) {
        while (!result.empty() && result.back() == ' ') {
            result.pop_back();
        }
    }

    return result;
}

References kcenon::pacs::encoding::is_string_vr(), kcenon::pacs::encoding::padding_char(), kcenon::pacs::encoding::UI, and vr.

Referenced by as_string().

Here is the call graph for this function:

Here is the caller graph for this function:

sequence_item() [1/2]

auto kcenon::pacs::core::dicom_element::sequence_item ( std::size_t index ) -> dicom_dataset&

nodiscard

Get a specific sequence item by index (mutable)

Parameters

index

The zero-based index of the item

Returns

Reference to the dataset at the given index

Exceptions

std::out_of_range

if index >= sequence_item_count()

Note

Only valid if is_sequence() returns true

Definition at line 167 of file dicom_element.cpp.

                                                                   {
    return sequence_items_.at(index);
}

sequence_item() [2/2]

auto kcenon::pacs::core::dicom_element::sequence_item ( std::size_t index ) const -> const dicom_dataset&

nodiscard

Get a specific sequence item by index.

Parameters

index

The zero-based index of the item

Returns

Const reference to the dataset at the given index

Exceptions

std::out_of_range

if index >= sequence_item_count()

Note

Only valid if is_sequence() returns true

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 162 of file dicom_element.cpp.

                            {
    return sequence_items_.at(index);
}

sequence_item_count()

auto kcenon::pacs::core::dicom_element::sequence_item_count ( ) const -> std::size_t

nodiscardnoexcept

Get the number of items in the sequence.

Returns

Number of sequence items, or 0 if not a sequence or empty

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 158 of file dicom_element.cpp.

                                                                    {
    return sequence_items_.size();
}

References sequence_items_.

sequence_items() [1/2]

auto kcenon::pacs::core::dicom_element::sequence_items ( ) -> std::vector<dicom_dataset>&

nodiscard

Get mutable access to sequence items.

Returns

Reference to the sequence items vector

Note

Only valid if is_sequence() returns true

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h, dcm_dump/main.cpp, dcm_to_json/main.cpp, and dcm_to_xml/main.cpp.

Definition at line 171 of file dicom_element.cpp.

                                                                {
    return sequence_items_;
}

Referenced by kcenon::pacs::encoding::explicit_vr_big_endian_codec::decode_undefined_length(), kcenon::pacs::encoding::explicit_vr_codec::decode_undefined_length(), kcenon::pacs::encoding::implicit_vr_codec::decode_undefined_length(), kcenon::pacs::encoding::explicit_vr_big_endian_codec::encode_sequence(), kcenon::pacs::encoding::explicit_vr_codec::encode_sequence(), and kcenon::pacs::encoding::implicit_vr_codec::encode_sequence().

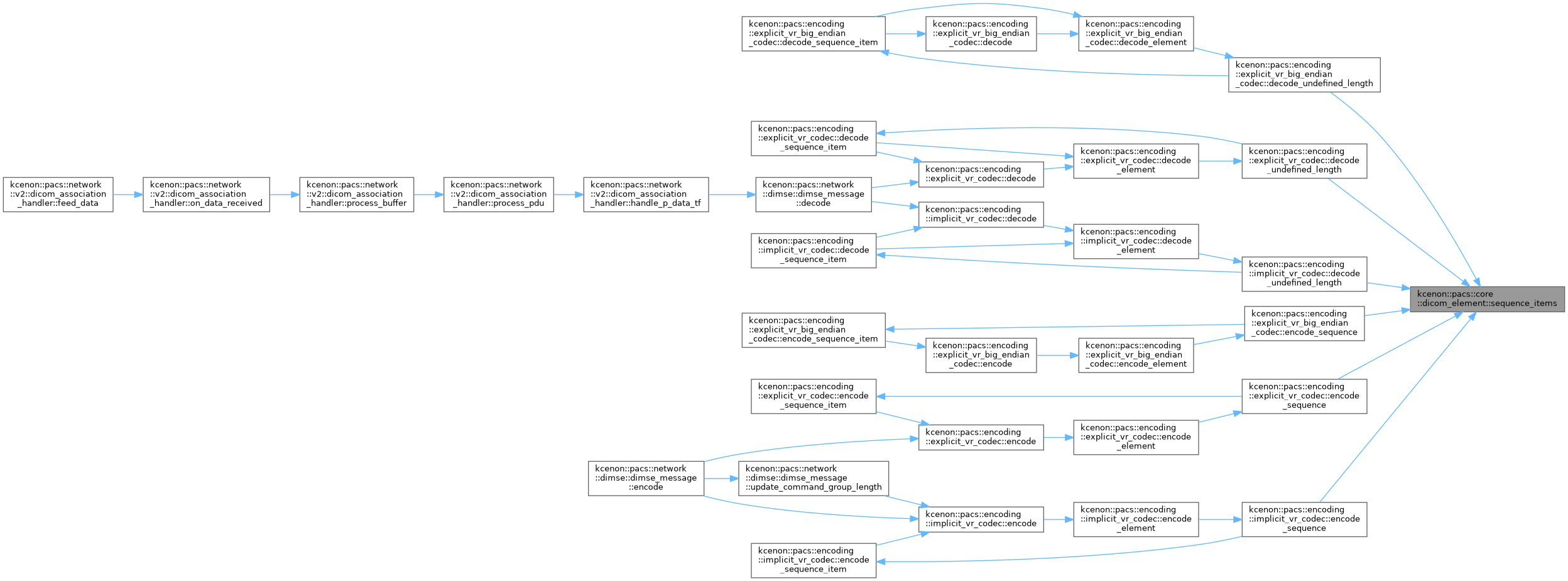

Here is the caller graph for this function:

sequence_items() [2/2]

auto kcenon::pacs::core::dicom_element::sequence_items ( ) const -> const std::vector<dicom_dataset>&

nodiscard

Get read-only access to sequence items.

Returns

Const reference to the sequence items vector

Note

Only valid if is_sequence() returns true

Definition at line 175 of file dicom_element.cpp.

                                                                            {
    return sequence_items_;
}

References sequence_items_.

set_numeric()

template<typename T >
requires std::is_arithmetic_v<T>

void kcenon::pacs::core::dicom_element::set_numeric

(

T

value

)

Set the value from a numeric value.

Template Parameters

T	The numeric type

Parameters

value

The numeric value

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 406 of file dicom_element.h.

                                       {
    data_.resize(sizeof(T));
    std::memcpy(data_.data(), &value, sizeof(T));
}

References data_.

Referenced by from_numeric().

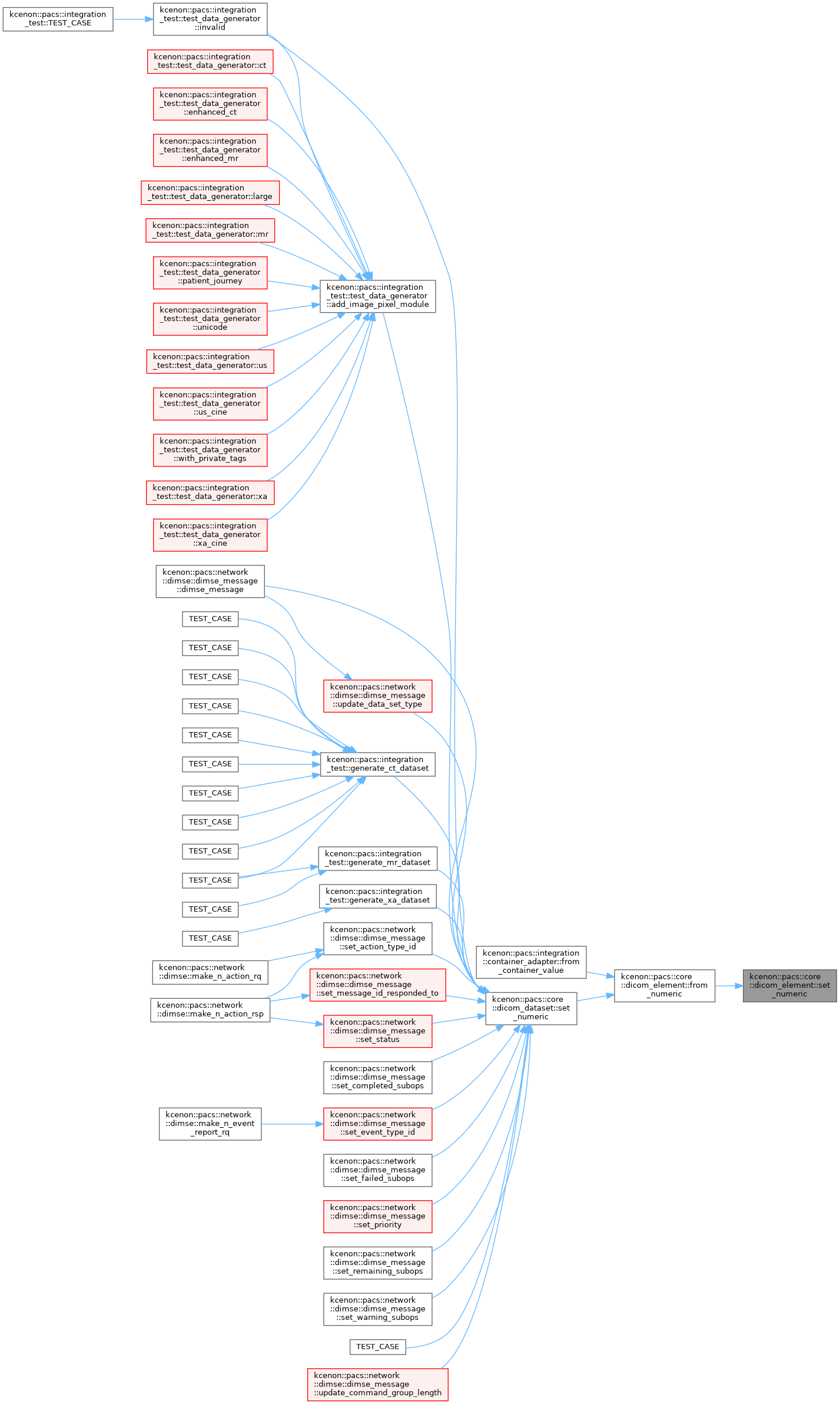

Here is the caller graph for this function:

set_string()

void kcenon::pacs::core::dicom_element::set_string

(

std::string_view

value

)

Set the value from a string.

Parameters

value

The string value (will be padded if needed)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 191 of file dicom_element.cpp.

                                                   {
    // Apply padding for string VRs
    std::string padded = apply_padding(value);
    data_.assign(padded.begin(), padded.end());
}

References apply_padding(), and data_.

Referenced by from_string().

Here is the call graph for this function:

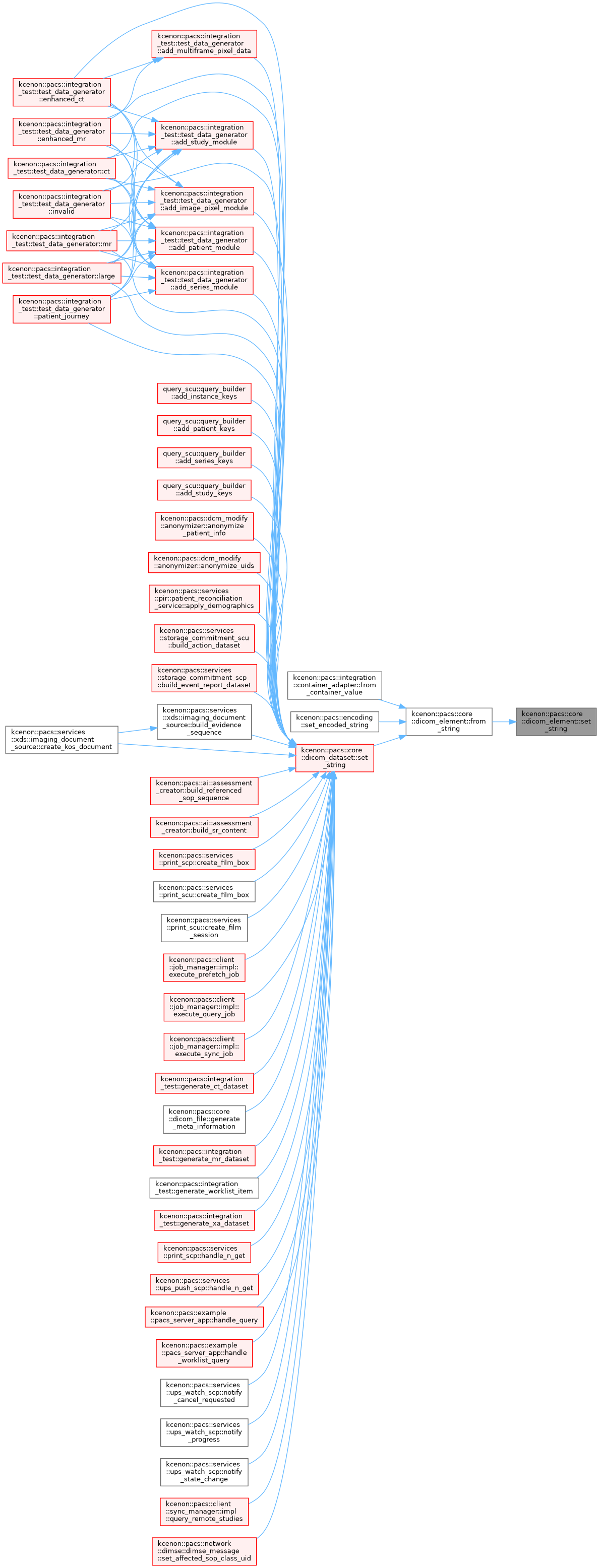

Here is the caller graph for this function:

set_value()

void kcenon::pacs::core::dicom_element::set_value

(

std::span< const uint8_t >

data

)

Set the raw value data.

Parameters

data	The new raw data

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 187 of file dicom_element.cpp.

                                                         {
    data_.assign(data.begin(), data.end());
}

References data_.

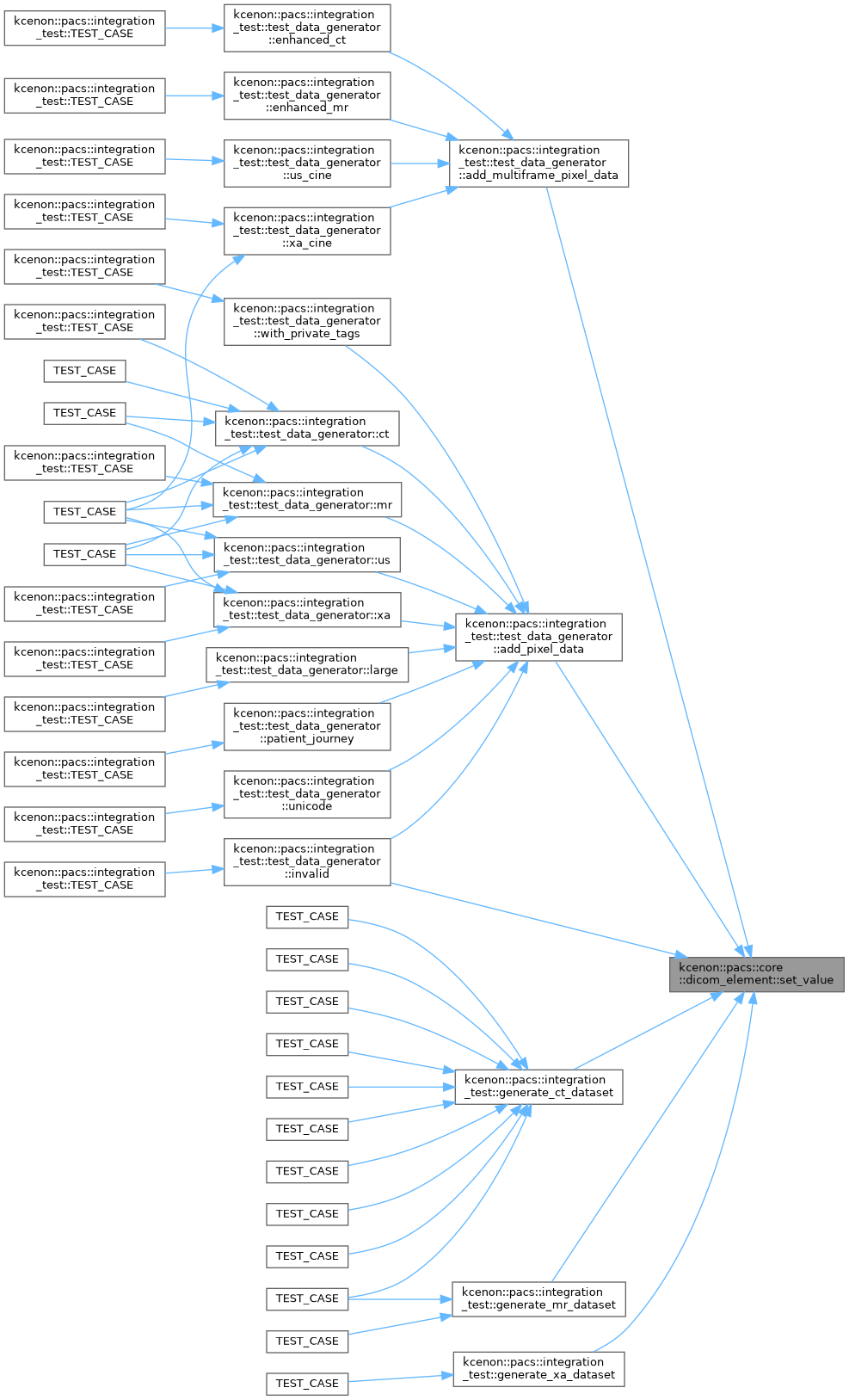

Referenced by kcenon::pacs::integration_test::test_data_generator::add_multiframe_pixel_data(), kcenon::pacs::integration_test::test_data_generator::add_pixel_data(), kcenon::pacs::integration_test::generate_ct_dataset(), kcenon::pacs::integration_test::generate_mr_dataset(), kcenon::pacs::integration_test::generate_xa_dataset(), and kcenon::pacs::integration_test::test_data_generator::invalid().

Here is the caller graph for this function:

tag()

auto kcenon::pacs::core::dicom_element::tag ( ) const -> dicom_tag

inlinenodiscardconstexprnoexcept

Get the element's tag.

Returns

The DICOM tag

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 158 of file dicom_element.h.

{ return tag_; }

References tag_.

Referenced by kcenon::pacs::encoding::explicit_vr_big_endian_codec::encode_element(), kcenon::pacs::encoding::explicit_vr_codec::encode_element(), kcenon::pacs::encoding::implicit_vr_codec::encode_element(), from_numeric(), from_numeric_list(), and kcenon::pacs::core::dicom_dataset::insert().

Here is the caller graph for this function:

vr()

auto kcenon::pacs::core::dicom_element::vr ( ) const -> encoding::vr_type

inlinenodiscardconstexprnoexcept

Get the element's VR.

Returns

The value representation

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h, dcm_dump/main.cpp, dcm_to_json/main.cpp, and dcm_to_xml/main.cpp.

Definition at line 164 of file dicom_element.h.

{ return vr_; }

References vr_.

Referenced by kcenon::pacs::encoding::explicit_vr_big_endian_codec::encode_element(), kcenon::pacs::encoding::explicit_vr_codec::encode_element(), kcenon::pacs::encoding::implicit_vr_codec::encode_element(), from_numeric(), and from_numeric_list().

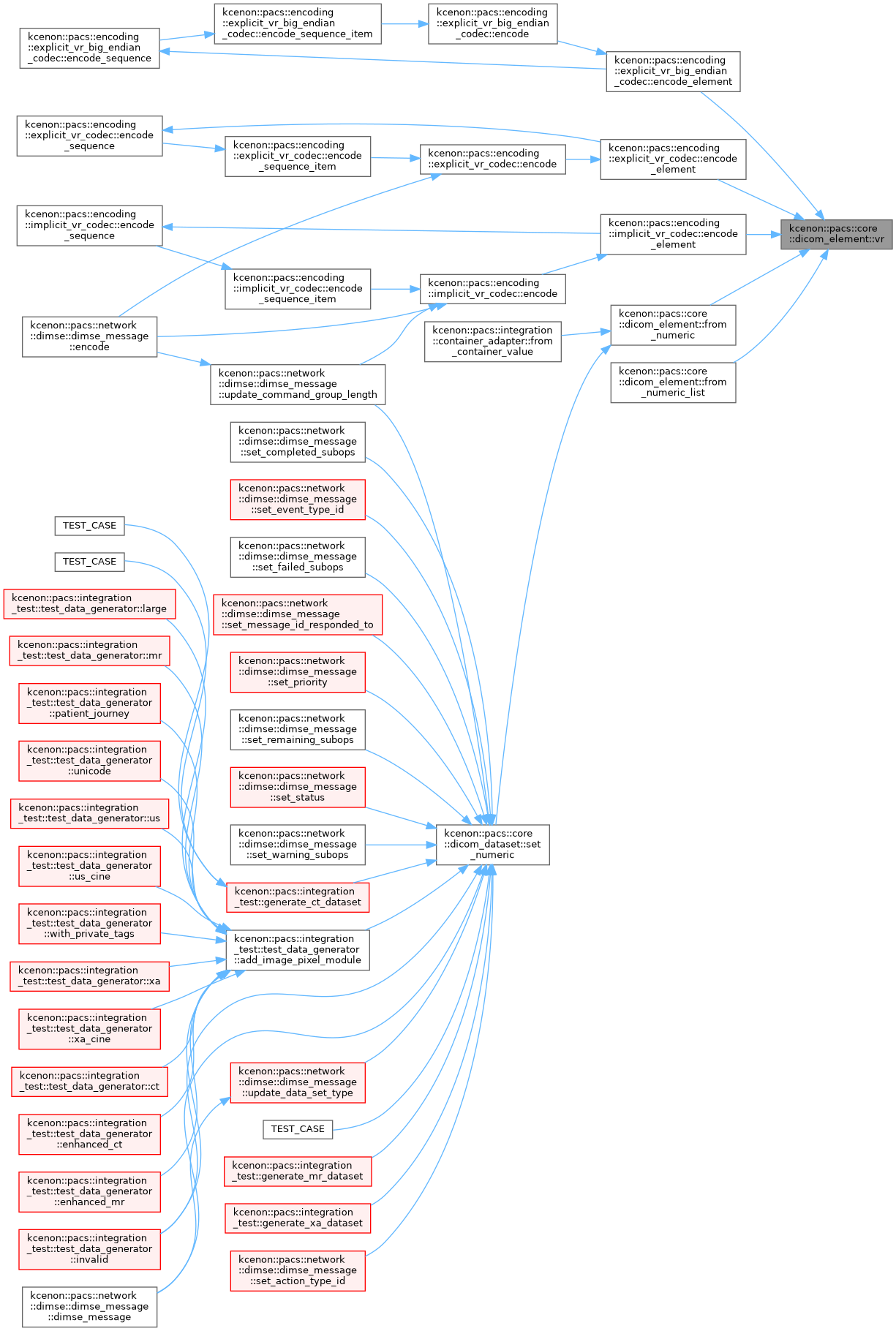

Here is the caller graph for this function:

Member Data Documentation

data_

std::vector<uint8_t> kcenon::pacs::core::dicom_element::data_

private

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 320 of file dicom_element.h.

Referenced by as_numeric(), as_numeric_list(), as_string(), is_empty(), length(), raw_data(), set_numeric(), set_string(), and set_value().

sequence_items_

std::vector<dicom_dataset> kcenon::pacs::core::dicom_element::sequence_items_

private

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 321 of file dicom_element.h.

Referenced by add_sequence_item(), sequence_item_count(), and sequence_items().

tag_

dicom_tag kcenon::pacs::core::dicom_element::tag_

private

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 318 of file dicom_element.h.

Referenced by tag().

vr_

encoding::vr_type kcenon::pacs::core::dicom_element::vr_

private

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/core/dicom_element.h.

Definition at line 319 of file dicom_element.h.

Referenced by as_string(), is_sequence(), and vr().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/core/dicom_element.h
• src/core/dicom_element.cpp
