kcenon::pacs::ai::assessment_creator Class Reference

IHE AIRA Assessment Creator Actor. More...

#include <aira_assessment.h>

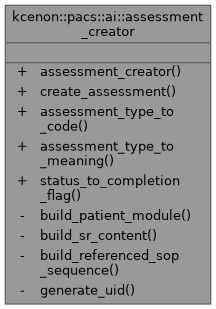

Collaboration diagram for kcenon::pacs::ai::assessment_creator:

Public Member Functions
	assessment_creator ()=default
assessment_creation_result	create_assessment (const ai_assessment &assessment) const
	Create an assessment SR document for an AI result.

Static Public Member Functions
static std::string	assessment_type_to_code (assessment_type type)
	Convert assessment_type to DICOM coded value.
static std::string	assessment_type_to_meaning (assessment_type type)
	Convert assessment_type to human-readable meaning.
static std::string	status_to_completion_flag (assessment_status status)
	Convert assessment_status to DICOM completion flag value.

Private Member Functions
void	build_patient_module (core::dicom_dataset &sr, const ai_assessment &assessment) const
void	build_sr_content (core::dicom_dataset &sr, const ai_assessment &assessment) const
void	build_referenced_sop_sequence (core::dicom_dataset &sr, const ai_assessment &assessment) const
std::string	generate_uid () const

Detailed Description

IHE AIRA Assessment Creator Actor.

Creates structured assessment documents for AI results encoded as DICOM Enhanced SR, following the IHE AIRA profile.

Workflow

1. Create an ai_assessment structure with the assessment decision
2. Call create_assessment() to generate the SR document
3. Store the resulting dataset using a storage backend

Example:

assessment_creator creator;

ai_assessment assessment;
assessment.type = assessment_type::accept;
assessment.ai_result.sop_instance_uid = "1.2.3.4.5";
assessment.assessor_name = "DR^SMITH";

auto result = creator.create_assessment(assessment);
if (result.success) {
    // Store result.sr_dataset
}

Definition at line 210 of file aira_assessment.h.

Constructor & Destructor Documentation

assessment_creator()

kcenon::pacs::ai::assessment_creator::assessment_creator ( )

default

Member Function Documentation

assessment_type_to_code()

std::string kcenon::pacs::ai::assessment_creator::assessment_type_to_code ( assessment_type type )

staticnodiscard

Convert assessment_type to DICOM coded value.

Parameters

type	Assessment type

Returns

Coded string representation

Definition at line 330 of file aira_assessment.cpp.

                                                                          {
    switch (type) {
    case assessment_type::accept: return "AIRA-ACCEPT";
    case assessment_type::modify: return "AIRA-MODIFY";
    case assessment_type::reject: return "AIRA-REJECT";
    }
    return "AIRA-ACCEPT";
}

References kcenon::pacs::ai::accept, kcenon::pacs::ai::modify, and kcenon::pacs::ai::reject.

Referenced by build_sr_content().

Here is the caller graph for this function:

assessment_type_to_meaning()

std::string kcenon::pacs::ai::assessment_creator::assessment_type_to_meaning ( assessment_type type )

staticnodiscard

Convert assessment_type to human-readable meaning.

Parameters

type	Assessment type

Returns

Display string

Definition at line 339 of file aira_assessment.cpp.

                                                                             {
    switch (type) {
    case assessment_type::accept: return "AI Result Accepted";
    case assessment_type::modify: return "AI Result Modified";
    case assessment_type::reject: return "AI Result Rejected";
    }
    return "AI Result Accepted";
}

References kcenon::pacs::ai::accept, kcenon::pacs::ai::modify, and kcenon::pacs::ai::reject.

Referenced by build_sr_content().

Here is the caller graph for this function:

build_patient_module()

void kcenon::pacs::ai::assessment_creator::build_patient_module ( core::dicom_dataset & sr, const ai_assessment & assessment ) const

private

Definition at line 162 of file aira_assessment.cpp.

                                                            {

    sr.set_string(tags::patient_name, vr_type::PN, "");
    sr.set_string(tags::patient_id, vr_type::LO, "");
    sr.set_string(tags::patient_birth_date, vr_type::DA, "");
    sr.set_string(tags::patient_sex, vr_type::CS, "");
}

References kcenon::pacs::core::tags::patient_birth_date, kcenon::pacs::core::tags::patient_id, kcenon::pacs::core::tags::patient_name, and kcenon::pacs::core::tags::patient_sex.

Referenced by create_assessment().

Here is the caller graph for this function:

build_referenced_sop_sequence()

void kcenon::pacs::ai::assessment_creator::build_referenced_sop_sequence ( core::dicom_dataset & sr, const ai_assessment & assessment ) const

private

Definition at line 282 of file aira_assessment.cpp.

                                           {

    std::vector<dicom_dataset> ref_items;

    // Reference to the assessed AI result
    dicom_dataset ref_item;
    ref_item.set_string(aira_tags::referenced_sop_class_uid, vr_type::UI,
                        assessment.ai_result.sop_class_uid);
    ref_item.set_string(aira_tags::referenced_sop_instance_uid, vr_type::UI,
                        assessment.ai_result.sop_instance_uid);
    ref_items.push_back(std::move(ref_item));

    // Reference to modified result (if applicable)
    if (assessment.type == assessment_type::modify &&
        assessment.modification &&
        assessment.modification->modified_result_uid) {
        dicom_dataset mod_ref;
        mod_ref.set_string(aira_tags::referenced_sop_class_uid, vr_type::UI,
                           assessment.modification->modified_result_class_uid
                               .value_or(assessment.ai_result.sop_class_uid));
        mod_ref.set_string(aira_tags::referenced_sop_instance_uid, vr_type::UI,
                           assessment.modification->modified_result_uid.value());
        ref_items.push_back(std::move(mod_ref));
    }

    insert_sequence(sr, aira_tags::referenced_sop_sequence,
                    std::move(ref_items));
}

References kcenon::pacs::ai::ai_assessment::ai_result, kcenon::pacs::ai::ai_assessment::modification, kcenon::pacs::ai::modify, kcenon::pacs::ai::aira_tags::referenced_sop_class_uid, kcenon::pacs::ai::aira_tags::referenced_sop_instance_uid, kcenon::pacs::ai::aira_tags::referenced_sop_sequence, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::ai::assessed_result_reference::sop_class_uid, kcenon::pacs::ai::assessed_result_reference::sop_instance_uid, and kcenon::pacs::ai::ai_assessment::type.

Referenced by create_assessment().

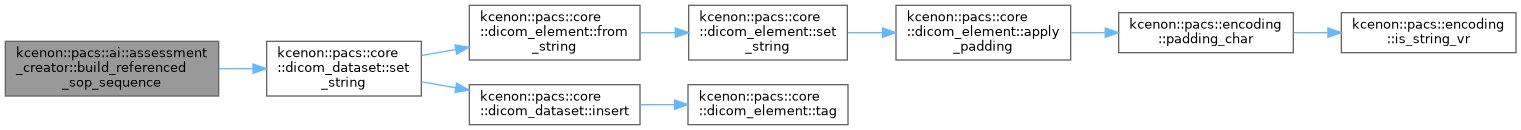

Here is the call graph for this function:

Here is the caller graph for this function:

build_sr_content()

void kcenon::pacs::ai::assessment_creator::build_sr_content ( core::dicom_dataset & sr, const ai_assessment & assessment ) const

private

Definition at line 172 of file aira_assessment.cpp.

                                           {

    // Root content: CONTAINER
    sr.set_string(aira_tags::value_type, vr_type::CS, "CONTAINER");

    // Concept Name: AI Result Assessment (custom code)
    auto concept_name = make_code_item(
        "AIRA-001", "99PACS", "AI Result Assessment");
    insert_sequence(sr, aira_tags::concept_name_code_sequence, {concept_name});

    // Content Template Sequence (IHE AIRA assessment template)
    dicom_dataset template_item;
    template_item.set_string(aira_tags::template_identifier, vr_type::CS,
                             "AIRA");
    template_item.set_string(aira_tags::mapping_resource, vr_type::CS, "99PACS");
    insert_sequence(sr, aira_tags::content_template_sequence, {template_item});

    // Content Sequence items
    std::vector<dicom_dataset> content_items;

    // Item 1: Assessment Type (CODE)
    {
        dicom_dataset item;
        item.set_string(aira_tags::relationship_type, vr_type::CS, "CONTAINS");
        item.set_string(aira_tags::value_type, vr_type::CS, "CODE");

        auto name = make_code_item("AIRA-010", "99PACS", "Assessment Decision");
        insert_sequence(item, aira_tags::concept_name_code_sequence, {name});

        auto value = make_code_item(
            assessment_type_to_code(assessment.type),
            "99PACS",
            assessment_type_to_meaning(assessment.type));
        // Concept Code Sequence (0040,A168) for CODE value type
        constexpr dicom_tag concept_code_sequence{0x0040, 0xA168};
        insert_sequence(item, concept_code_sequence, {value});

        content_items.push_back(std::move(item));
    }

    // Item 2: Assessor (PNAME)
    {
        dicom_dataset item;
        item.set_string(aira_tags::relationship_type, vr_type::CS, "HAS OBS CONTEXT");
        item.set_string(aira_tags::value_type, vr_type::CS, "PNAME");

        auto name = make_code_item("AIRA-020", "99PACS", "Assessor");
        insert_sequence(item, aira_tags::concept_name_code_sequence, {name});

        constexpr dicom_tag person_name{0x0040, 0xA123};
        item.set_string(person_name, vr_type::PN, assessment.assessor_name);

        content_items.push_back(std::move(item));
    }

    // Item 3: Comment (TEXT, optional)
    if (assessment.comment && !assessment.comment->empty()) {
        dicom_dataset item;
        item.set_string(aira_tags::relationship_type, vr_type::CS, "CONTAINS");
        item.set_string(aira_tags::value_type, vr_type::CS, "TEXT");

        auto name = make_code_item("AIRA-030", "99PACS", "Assessment Comment");
        insert_sequence(item, aira_tags::concept_name_code_sequence, {name});

        item.set_string(aira_tags::text_value, vr_type::UT,
                        assessment.comment.value());

        content_items.push_back(std::move(item));
    }

    // Item 4: Modification description (TEXT, only for modify type)
    if (assessment.type == assessment_type::modify && assessment.modification) {
        dicom_dataset item;
        item.set_string(aira_tags::relationship_type, vr_type::CS, "CONTAINS");
        item.set_string(aira_tags::value_type, vr_type::CS, "TEXT");

        auto name = make_code_item("AIRA-040", "99PACS",
                                   "Modification Description");
        insert_sequence(item, aira_tags::concept_name_code_sequence, {name});

        item.set_string(aira_tags::text_value, vr_type::UT,
                        assessment.modification->description);

        content_items.push_back(std::move(item));
    }

    // Item 5: Rejection reason (CODE, only for reject type)
    if (assessment.type == assessment_type::reject && assessment.rejection) {
        dicom_dataset item;
        item.set_string(aira_tags::relationship_type, vr_type::CS, "CONTAINS");
        item.set_string(aira_tags::value_type, vr_type::CS, "CODE");

        auto name = make_code_item("AIRA-050", "99PACS", "Rejection Reason");
        insert_sequence(item, aira_tags::concept_name_code_sequence, {name});

        auto value = make_code_item(
            assessment.rejection->reason_code,
            assessment.rejection->reason_scheme,
            assessment.rejection->reason_description);
        constexpr dicom_tag concept_code_sequence{0x0040, 0xA168};
        insert_sequence(item, concept_code_sequence, {value});

        content_items.push_back(std::move(item));
    }

    insert_sequence(sr, aira_tags::content_sequence, std::move(content_items));
}

References assessment_type_to_code(), assessment_type_to_meaning(), kcenon::pacs::ai::ai_assessment::assessor_name, kcenon::pacs::ai::ai_assessment::comment, kcenon::pacs::ai::aira_tags::concept_name_code_sequence, kcenon::pacs::ai::aira_tags::content_sequence, kcenon::pacs::ai::aira_tags::content_template_sequence, kcenon::pacs::ai::aira_tags::mapping_resource, kcenon::pacs::ai::ai_assessment::modification, kcenon::pacs::ai::modify, name, kcenon::pacs::ai::reject, kcenon::pacs::ai::ai_assessment::rejection, kcenon::pacs::ai::aira_tags::relationship_type, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::ai::aira_tags::template_identifier, kcenon::pacs::ai::aira_tags::text_value, kcenon::pacs::ai::ai_assessment::type, and kcenon::pacs::ai::aira_tags::value_type.

Referenced by create_assessment().

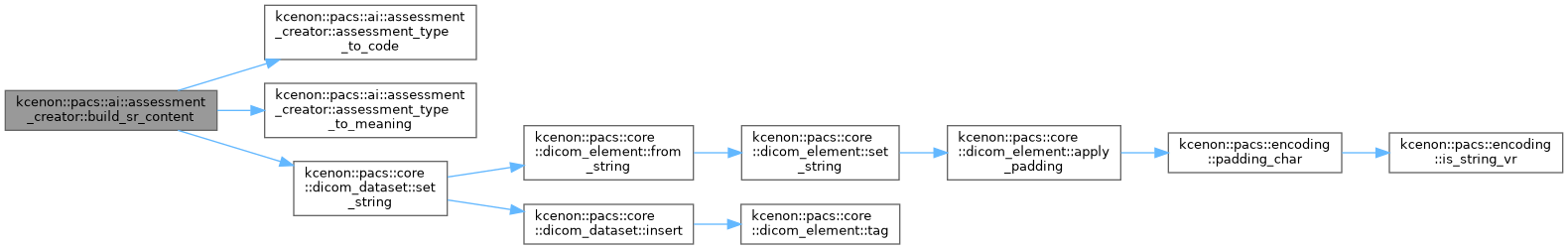

Here is the call graph for this function:

Here is the caller graph for this function:

create_assessment()

assessment_creation_result kcenon::pacs::ai::assessment_creator::create_assessment ( const ai_assessment & assessment ) const

nodiscard

Create an assessment SR document for an AI result.

Parameters

assessment

The assessment data

Returns

Creation result with the SR dataset

Definition at line 98 of file aira_assessment.cpp.

                                           {

    assessment_creation_result result;

    // Validate required fields
    if (assessment.ai_result.sop_instance_uid.empty()) {
        result.error_message = "AI result SOP Instance UID is required";
        return result;
    }

    if (assessment.assessor_name.empty()) {
        result.error_message = "Assessor name is required";
        return result;
    }

    core::dicom_dataset sr;

    // --- SOP Common Module ---
    sr.set_string(tags::sop_class_uid, vr_type::UI,
                  "1.2.840.10008.5.1.4.1.1.88.22");  // Enhanced SR
    result.assessment_uid = generate_uid();
    sr.set_string(tags::sop_instance_uid, vr_type::UI, result.assessment_uid);

    // --- Patient Module (Type 2 - empty if not provided) ---
    build_patient_module(sr, assessment);

    // --- General Study Module ---
    sr.set_string(tags::study_instance_uid, vr_type::UI,
                  assessment.ai_result.study_instance_uid);
    sr.set_string(tags::study_date, vr_type::DA, current_date());
    sr.set_string(tags::study_time, vr_type::TM, current_time());
    sr.set_string(tags::referring_physician_name, vr_type::PN, "");
    sr.set_string(tags::study_id, vr_type::SH, "");
    sr.set_string(tags::accession_number, vr_type::SH, "");

    // --- General Series Module ---
    sr.set_string(tags::modality, vr_type::CS, "SR");
    sr.set_string(tags::series_instance_uid, vr_type::UI, generate_uid());
    sr.set_string(tags::series_number, vr_type::IS, "1");

    // --- General Equipment Module ---
    sr.set_string(dicom_tag{0x0008, 0x0070}, vr_type::LO, "");  // Manufacturer

    // --- SR Document General Module ---
    sr.set_string(tags::instance_number, vr_type::IS, "1");
    sr.set_string(tags::content_date, vr_type::DA, current_date());
    sr.set_string(tags::content_time, vr_type::TM, current_time());
    sr.set_string(aira_tags::completion_flag, vr_type::CS,
                  status_to_completion_flag(assessment.status));
    sr.set_string(aira_tags::verification_flag, vr_type::CS, "UNVERIFIED");

    // --- SR Document Content Module ---
    build_sr_content(sr, assessment);

    // --- Referenced SOP Sequence ---
    build_referenced_sop_sequence(sr, assessment);

    result.success = true;
    result.sr_dataset = std::move(sr);

    return result;
}

References kcenon::pacs::core::tags::accession_number, kcenon::pacs::ai::ai_assessment::ai_result, kcenon::pacs::ai::assessment_creation_result::assessment_uid, kcenon::pacs::ai::ai_assessment::assessor_name, build_patient_module(), build_referenced_sop_sequence(), build_sr_content(), kcenon::pacs::ai::aira_tags::completion_flag, kcenon::pacs::core::tags::content_date, kcenon::pacs::core::tags::content_time, kcenon::pacs::ai::assessment_creation_result::error_message, generate_uid(), kcenon::pacs::core::tags::instance_number, kcenon::pacs::core::tags::modality, kcenon::pacs::core::tags::referring_physician_name, kcenon::pacs::core::tags::series_instance_uid, kcenon::pacs::core::tags::series_number, kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::ai::assessed_result_reference::sop_instance_uid, kcenon::pacs::core::tags::sop_instance_uid, kcenon::pacs::ai::assessment_creation_result::sr_dataset, kcenon::pacs::ai::ai_assessment::status, status_to_completion_flag(), kcenon::pacs::core::tags::study_date, kcenon::pacs::core::tags::study_id, kcenon::pacs::ai::assessed_result_reference::study_instance_uid, kcenon::pacs::core::tags::study_instance_uid, kcenon::pacs::core::tags::study_time, kcenon::pacs::ai::assessment_creation_result::success, and kcenon::pacs::ai::aira_tags::verification_flag.

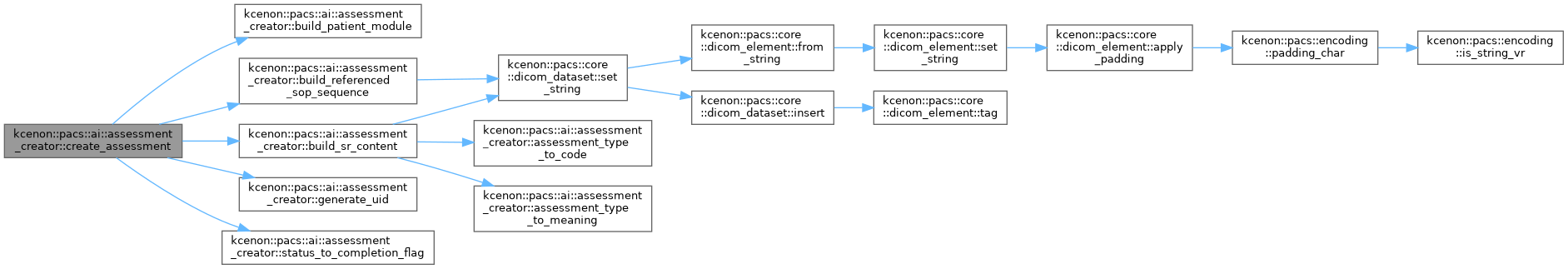

Here is the call graph for this function:

generate_uid()

std::string kcenon::pacs::ai::assessment_creator::generate_uid ( ) const

nodiscardprivate

Definition at line 313 of file aira_assessment.cpp.

                                                 {
    static constexpr const char* uid_root = "1.2.826.0.1.3680043.2.1545.1";
    static std::mt19937_64 gen{std::random_device{}()};
    static std::uniform_int_distribution<uint64_t> dist;

    auto now = std::chrono::system_clock::now();
    auto timestamp = std::chrono::duration_cast<std::chrono::milliseconds>(
        now.time_since_epoch()).count();

    return std::string(uid_root) + "." + std::to_string(timestamp) +
           "." + std::to_string(dist(gen) % 100000);
}

Referenced by create_assessment().

Here is the caller graph for this function:

status_to_completion_flag()

std::string kcenon::pacs::ai::assessment_creator::status_to_completion_flag ( assessment_status status )

staticnodiscard

Convert assessment_status to DICOM completion flag value.

Parameters

status

Assessment status

Returns

Completion flag string (COMPLETE or PARTIAL)

Definition at line 348 of file aira_assessment.cpp.

                              {
    switch (status) {
    case assessment_status::draft:   return "PARTIAL";
    case assessment_status::final_:  return "COMPLETE";
    case assessment_status::amended: return "COMPLETE";
    }
    return "PARTIAL";
}

References kcenon::pacs::ai::amended, kcenon::pacs::ai::draft, and kcenon::pacs::ai::final_.

Referenced by create_assessment().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/ai/aira_assessment.h
• src/ai/aira_assessment.cpp
