atna_audit_logger.h File Reference

IHE ATNA-compliant audit message generator (RFC 3881 XML format) More...

#include <chrono>
#include <cstdint>
#include <string>
#include <vector>

Include dependency graph for atna_audit_logger.h:

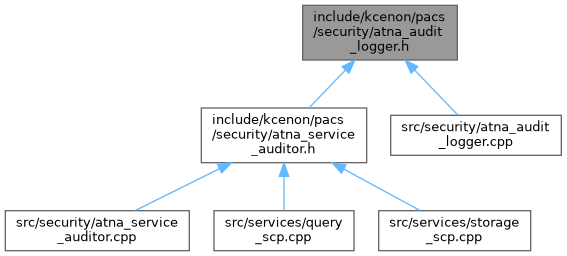

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::security::atna_coded_value
	A coded value with code, code system name, and display name. More...
struct	kcenon::pacs::security::atna_active_participant
	An active participant in the audit event. More...
struct	kcenon::pacs::security::atna_audit_source
	Identifies the audit source system. More...
struct	kcenon::pacs::security::atna_object_detail
	Additional detail about a participant object. More...
struct	kcenon::pacs::security::atna_participant_object
	An object (patient, study, query) involved in the event. More...
struct	kcenon::pacs::security::atna_audit_message
	Complete RFC 3881 audit message. More...
class	kcenon::pacs::security::atna_audit_logger
	RFC 3881 XML audit message generator. More...

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::security
namespace	kcenon::pacs::security::atna_event_ids
namespace	kcenon::pacs::security::atna_event_types
namespace	kcenon::pacs::security::atna_role_ids
namespace	kcenon::pacs::security::atna_object_id_types

Enumerations
enum class	kcenon::pacs::security::atna_event_action : char {   kcenon::pacs::security::create = 'C' , kcenon::pacs::security::read = 'R' , kcenon::pacs::security::update = 'U' , kcenon::pacs::security::delete_action = 'D' ,   kcenon::pacs::security::execute = 'E' }
	Action that triggered the audit event. More...
enum class	kcenon::pacs::security::atna_event_outcome : uint8_t { kcenon::pacs::security::success = 0 , kcenon::pacs::security::minor_failure = 4 , kcenon::pacs::security::serious_failure = 8 , kcenon::pacs::security::major_failure = 12 }
	Outcome of the audited event. More...
enum class	kcenon::pacs::security::atna_network_access_type : uint8_t { kcenon::pacs::security::machine_name = 1 , kcenon::pacs::security::ip_address = 2 , kcenon::pacs::security::phone_number = 3 }
	Type of network access point identifier. More...
enum class	kcenon::pacs::security::atna_object_type : uint8_t { kcenon::pacs::security::person = 1 , kcenon::pacs::security::system_object = 2 , kcenon::pacs::security::organization = 3 , kcenon::pacs::security::other = 4 }
	Type of participant object. More...
enum class	kcenon::pacs::security::atna_object_role : uint8_t {   kcenon::pacs::security::patient = 1 , kcenon::pacs::security::location = 2 , kcenon::pacs::security::report = 3 , kcenon::pacs::security::resource = 4 ,   kcenon::pacs::security::master_file = 5 , kcenon::pacs::security::user = 6 , kcenon::pacs::security::list = 7 , kcenon::pacs::security::doctor = 8 ,   kcenon::pacs::security::subscriber = 9 , kcenon::pacs::security::guarantor = 10 , kcenon::pacs::security::security_user_entity = 11 , kcenon::pacs::security::security_user_group = 12 ,   kcenon::pacs::security::security_resource = 13 , kcenon::pacs::security::security_granularity_def = 14 , kcenon::pacs::security::provider = 15 , kcenon::pacs::security::data_destination = 16 ,   kcenon::pacs::security::data_repository = 17 , kcenon::pacs::security::schedule = 18 , kcenon::pacs::security::customer = 19 , kcenon::pacs::security::job = 20 ,   kcenon::pacs::security::job_stream = 21 , kcenon::pacs::security::table = 22 , kcenon::pacs::security::routing_criteria = 23 , kcenon::pacs::security::query = 24 }
	Role of the participant object in the event. More...

Variables
const atna_coded_value	kcenon::pacs::security::atna_event_ids::application_activity
	Application Activity (110100) — Start/Stop.
const atna_coded_value	kcenon::pacs::security::atna_event_ids::audit_log_used
	Audit Log Used (110101)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::begin_transferring
	Begin Transferring DICOM Instances (110102)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::dicom_instances_accessed
	DICOM Instances Accessed (110103)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::dicom_instances_transferred
	DICOM Instances Transferred (110104)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::dicom_study_deleted
	DICOM Study Deleted (110105)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::data_export
	Export (110106)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::data_import
	Import (110107)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::network_entry
	Network Entry (110108)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::order_record
	Order Record (110109)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::patient_record
	Patient Record (110110)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::procedure_record
	Procedure Record (110111)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::query
	Query (110112)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::security_alert
	Security Alert (110113)
const atna_coded_value	kcenon::pacs::security::atna_event_ids::user_authentication
	User Authentication (110114)
const atna_coded_value	kcenon::pacs::security::atna_event_types::application_start
	Application Start.
const atna_coded_value	kcenon::pacs::security::atna_event_types::application_stop
	Application Stop.
const atna_coded_value	kcenon::pacs::security::atna_event_types::login
	Login.
const atna_coded_value	kcenon::pacs::security::atna_event_types::logout
	Logout.
const atna_coded_value	kcenon::pacs::security::atna_role_ids::application
	Application (110150)
const atna_coded_value	kcenon::pacs::security::atna_role_ids::application_launcher
	Application Launcher (110151)
const atna_coded_value	kcenon::pacs::security::atna_role_ids::destination
	Destination Role ID (110152)
const atna_coded_value	kcenon::pacs::security::atna_role_ids::source
	Source Role ID (110153)
const atna_coded_value	kcenon::pacs::security::atna_role_ids::destination_media
	Destination Media (110154)
const atna_coded_value	kcenon::pacs::security::atna_role_ids::source_media
	Source Media (110155)
const atna_coded_value	kcenon::pacs::security::atna_object_id_types::patient_number
	Patient Number (RFC 3881 defined)
const atna_coded_value	kcenon::pacs::security::atna_object_id_types::study_instance_uid
	Study Instance UID.
const atna_coded_value	kcenon::pacs::security::atna_object_id_types::sop_class_uid
	SOP Class UID.
const atna_coded_value	kcenon::pacs::security::atna_object_id_types::node_id
	Node ID.

Detailed Description

IHE ATNA-compliant audit message generator (RFC 3881 XML format)

Generates RFC 3881 / DICOM PS3.15 Annex A.5 compliant XML audit messages for security-relevant events in DICOM systems.

See also

DICOM PS3.15 Annex A.5 — Audit Trail Message Format Profile

IHE ITI TF-1 Section 9 — Audit Trail and Node Authentication (ATNA)

RFC 3881 — Security Audit and Access Accountability Message XML

Issue #817 - ATNA Audit Message Generator

Author

kcenon

Since

1.0.0

Definition in file atna_audit_logger.h.
