association.h File Reference

DICOM Association management per PS3.8. More...

#include "kcenon/pacs/network/pdu_types.h"
#include "kcenon/pacs/network/dimse/dimse_message.h"
#include "kcenon/pacs/encoding/transfer_syntax.h"
#include <chrono>
#include <cstdint>
#include <functional>
#include <map>
#include <memory>
#include <mutex>
#include <optional>
#include <string>
#include <string_view>
#include <variant>
#include <vector>
#include <kcenon/thread/lockfree/lockfree_queue.h>
#include "kcenon/pacs/core/result.h"

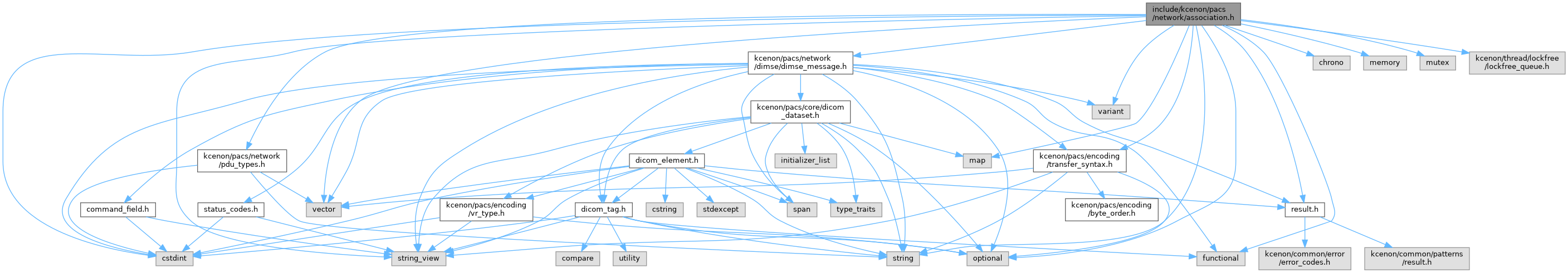

Include dependency graph for association.h:

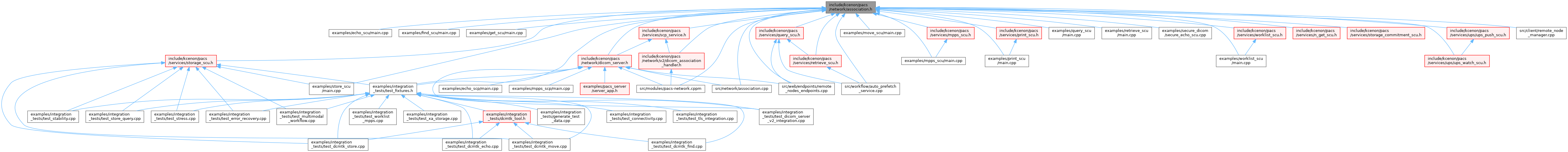

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::network::proposed_presentation_context
	Proposed presentation context for SCU association request. More...
struct	kcenon::pacs::network::accepted_presentation_context
	Accepted presentation context after negotiation. More...
struct	kcenon::pacs::network::association_config
	Configuration for SCU association request. More...
struct	kcenon::pacs::network::scp_config
	Configuration for SCP to accept associations. More...
struct	kcenon::pacs::network::rejection_info
	Information about an association rejection. More...
class	kcenon::pacs::network::association

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::network

Typedefs
template<typename T >
using	kcenon::pacs::network::Result = kcenon::pacs::Result<T>
	Result type alias using standardized kcenon::pacs::Result<T>
using	kcenon::pacs::network::VoidResult = kcenon::pacs::VoidResult
	VoidResult type alias for operations without return value.

Enumerations
enum class	kcenon::pacs::network::association_state {   kcenon::pacs::network::idle , kcenon::pacs::network::awaiting_associate_ac , kcenon::pacs::network::awaiting_associate_rq , kcenon::pacs::network::established ,   kcenon::pacs::network::awaiting_release_rp , kcenon::pacs::network::awaiting_release_rq , kcenon::pacs::network::released , kcenon::pacs::network::aborted }
	DICOM Association state machine states per PS3.8. More...
enum class	kcenon::pacs::network::association_error {   kcenon::pacs::network::success = 0 , kcenon::pacs::network::connection_failed , kcenon::pacs::network::connection_timeout , kcenon::pacs::network::association_rejected ,   kcenon::pacs::network::association_aborted , kcenon::pacs::network::invalid_state , kcenon::pacs::network::negotiation_failed , kcenon::pacs::network::no_acceptable_context ,   kcenon::pacs::network::pdu_encoding_error , kcenon::pacs::network::pdu_decoding_error , kcenon::pacs::network::send_failed , kcenon::pacs::network::receive_failed ,   kcenon::pacs::network::receive_timeout , kcenon::pacs::network::protocol_error , kcenon::pacs::network::release_failed , kcenon::pacs::network::already_released }
	Error codes for association operations. More...

Functions
constexpr const char *	kcenon::pacs::network::to_string (association_state state) noexcept
	Convert association_state to string representation.
constexpr std::string_view	kcenon::pacs::network::to_string (association_error err) noexcept
	Convert association_error to string representation.

Detailed Description

DICOM Association management per PS3.8.

This file provides the association class for managing DICOM network associations, including state machine, presentation context negotiation, and DIMSE message exchange.

See also

DICOM PS3.8 - Network Communication Support for Message Exchange

DES-NET-004 - Association Class Design Specification

Author

kcenon

Since

1.0.0

Definition in file association.h.
