kcenon::pacs::network::association_config Struct Reference

Configuration for SCU association request. More...

#include <association.h>

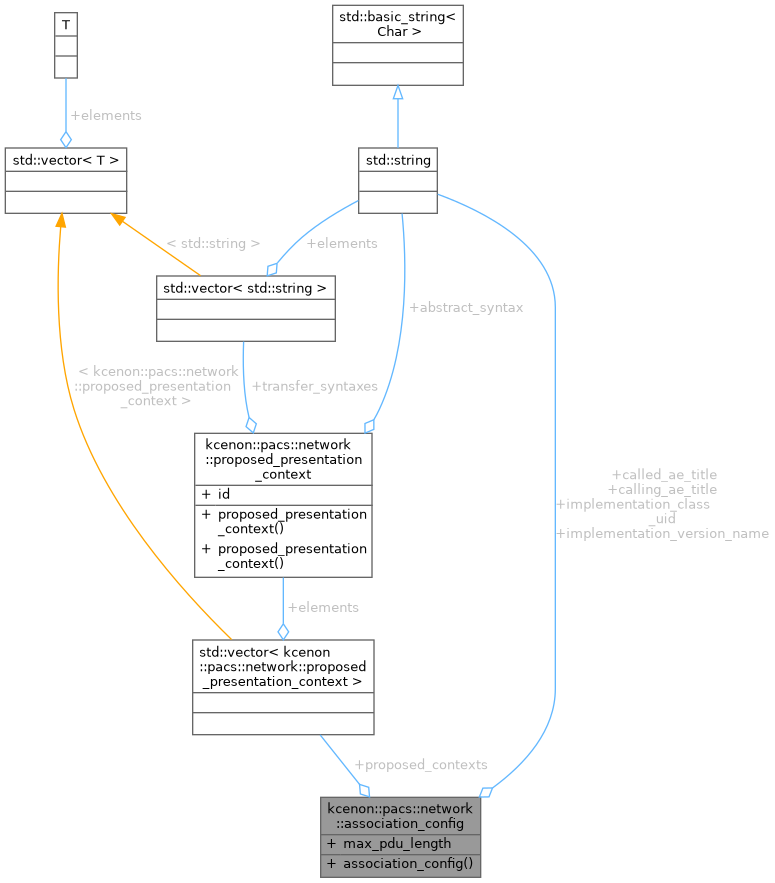

Collaboration diagram for kcenon::pacs::network::association_config:

Public Member Functions
	association_config ()=default

Public Attributes
std::string	calling_ae_title
	Our AE Title (16 chars max)
std::string	called_ae_title
	Remote AE Title (16 chars max)
std::vector< proposed_presentation_context >	proposed_contexts
uint32_t	max_pdu_length = DEFAULT_MAX_PDU_LENGTH
std::string	implementation_class_uid
std::string	implementation_version_name

Detailed Description

Configuration for SCU association request.

Examples

echo_scu/main.cpp, find_scu/main.cpp, get_scu/main.cpp, move_scu/main.cpp, mpps_scu/main.cpp, print_scu/main.cpp, query_scu/main.cpp, retrieve_scu/main.cpp, secure_dicom/secure_echo_scu.cpp, store_scu/main.cpp, and worklist_scu/main.cpp.

Definition at line 197 of file association.h.

Constructor & Destructor Documentation

association_config()

kcenon::pacs::network::association_config::association_config ( )

default

Member Data Documentation

called_ae_title

std::string kcenon::pacs::network::association_config::called_ae_title

Remote AE Title (16 chars max)

Examples

echo_scu/main.cpp, find_scu/main.cpp, get_scu/main.cpp, move_scu/main.cpp, mpps_scu/main.cpp, print_scu/main.cpp, query_scu/main.cpp, retrieve_scu/main.cpp, secure_dicom/secure_echo_scu.cpp, store_scu/main.cpp, and worklist_scu/main.cpp.

Definition at line 199 of file association.h.

Referenced by kcenon::pacs::client::remote_node_manager::acquire_association(), kcenon::pacs::network::association::connect(), kcenon::pacs::workflow::auto_prefetch_service::prefetch_study(), kcenon::pacs::workflow::auto_prefetch_service::query_prior_studies(), kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

calling_ae_title

std::string kcenon::pacs::network::association_config::calling_ae_title

Our AE Title (16 chars max)

Examples

echo_scu/main.cpp, find_scu/main.cpp, get_scu/main.cpp, move_scu/main.cpp, mpps_scu/main.cpp, print_scu/main.cpp, query_scu/main.cpp, retrieve_scu/main.cpp, secure_dicom/secure_echo_scu.cpp, store_scu/main.cpp, and worklist_scu/main.cpp.

Definition at line 198 of file association.h.

Referenced by kcenon::pacs::client::remote_node_manager::acquire_association(), kcenon::pacs::network::association::connect(), kcenon::pacs::workflow::auto_prefetch_service::prefetch_study(), kcenon::pacs::workflow::auto_prefetch_service::query_prior_studies(), kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

implementation_class_uid

std::string kcenon::pacs::network::association_config::implementation_class_uid

Examples

echo_scu/main.cpp, find_scu/main.cpp, get_scu/main.cpp, move_scu/main.cpp, mpps_scu/main.cpp, print_scu/main.cpp, query_scu/main.cpp, retrieve_scu/main.cpp, secure_dicom/secure_echo_scu.cpp, store_scu/main.cpp, and worklist_scu/main.cpp.

Definition at line 202 of file association.h.

Referenced by kcenon::pacs::network::association::connect(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

implementation_version_name

std::string kcenon::pacs::network::association_config::implementation_version_name

Examples

echo_scu/main.cpp, find_scu/main.cpp, get_scu/main.cpp, move_scu/main.cpp, mpps_scu/main.cpp, print_scu/main.cpp, query_scu/main.cpp, retrieve_scu/main.cpp, secure_dicom/secure_echo_scu.cpp, store_scu/main.cpp, and worklist_scu/main.cpp.

Definition at line 203 of file association.h.

Referenced by kcenon::pacs::network::association::connect().

max_pdu_length

uint32_t kcenon::pacs::network::association_config::max_pdu_length = DEFAULT_MAX_PDU_LENGTH

Definition at line 201 of file association.h.

Referenced by kcenon::pacs::network::association::connect().

proposed_contexts

std::vector<proposed_presentation_context> kcenon::pacs::network::association_config::proposed_contexts

Examples

echo_scu/main.cpp, find_scu/main.cpp, get_scu/main.cpp, move_scu/main.cpp, mpps_scu/main.cpp, print_scu/main.cpp, query_scu/main.cpp, retrieve_scu/main.cpp, secure_dicom/secure_echo_scu.cpp, store_scu/main.cpp, and worklist_scu/main.cpp.

Definition at line 200 of file association.h.

Referenced by kcenon::pacs::client::remote_node_manager::acquire_association(), kcenon::pacs::network::association::connect(), kcenon::pacs::workflow::auto_prefetch_service::prefetch_study(), kcenon::pacs::workflow::auto_prefetch_service::query_prior_studies(), kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/network/association.h
