kcenon::network::tracing::span::impl Struct Reference

Internal implementation structure for span. More...

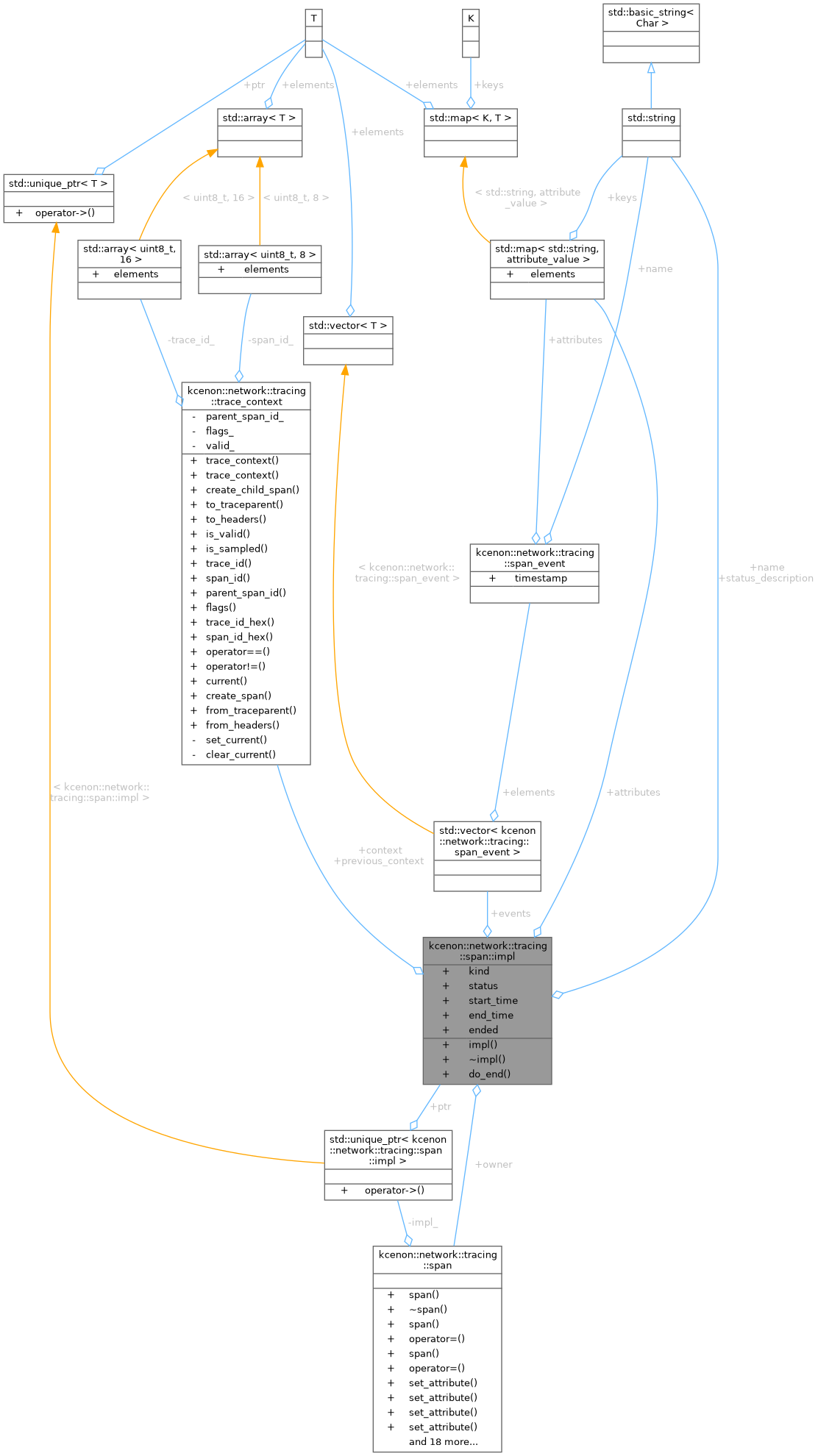

Collaboration diagram for kcenon::network::tracing::span::impl:

Public Member Functions
	impl (std::string_view span_name, trace_context ctx, span_kind span_kind_value)
	~impl ()
void	do_end ()

Public Attributes
std::string	name
trace_context	context
span_kind	kind
span_status	status {span_status::unset}
std::string	status_description
std::map< std::string, attribute_value >	attributes
std::vector< span_event >	events
std::chrono::steady_clock::time_point	start_time
std::chrono::steady_clock::time_point	end_time
bool	ended {false}
trace_context	previous_context
span *	owner {nullptr}

Detailed Description

Internal implementation structure for span.

Definition at line 20 of file span.cpp.

Constructor & Destructor Documentation

impl()

kcenon::network::tracing::span::impl::impl ( std::string_view span_name, trace_context ctx, span_kind span_kind_value )

inline

Definition at line 35 of file span.cpp.

        : name(span_name)
        , context(std::move(ctx))
        , kind(span_kind_value)
        , start_time(std::chrono::steady_clock::now())
        , end_time(start_time)
        , previous_context(trace_context::current())
    {
        // Set this span's context as the current context
        trace_context::set_current(context);
    }

References context, and kcenon::network::tracing::trace_context::set_current().

Here is the call graph for this function:

~impl()

kcenon::network::tracing::span::impl::~impl ( )

inline

Definition at line 47 of file span.cpp.

    {
        // Note: do_end() is now called from span::~span() before impl_ destruction
        // to ensure owner->impl_ is still valid when export_span is called.
        // This is necessary because libc++'s unique_ptr sets its internal pointer
        // to null before calling the deleter, which would cause owner->impl_ to
        // be null when export_span tries to access span data.
    }

Member Function Documentation

do_end()

void kcenon::network::tracing::span::impl::do_end ( )

inline

Definition at line 56 of file span.cpp.

    {
        if (ended)
        {
            return;
        }

        ended = true;
        end_time = std::chrono::steady_clock::now();

        // Restore previous context
        if (previous_context.is_valid())
        {
            trace_context::set_current(previous_context);
        }
        else
        {
            trace_context::clear_current();
        }

        // Export the span
        if (owner)
        {
            export_span(*owner);
        }
    }

References kcenon::network::tracing::trace_context::clear_current(), end_time, ended, kcenon::network::tracing::export_span(), kcenon::network::tracing::trace_context::is_valid(), owner, previous_context, and kcenon::network::tracing::trace_context::set_current().

Referenced by kcenon::network::tracing::span::end(), and kcenon::network::tracing::span::~span().

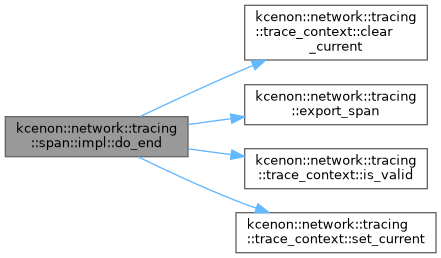

Here is the call graph for this function:

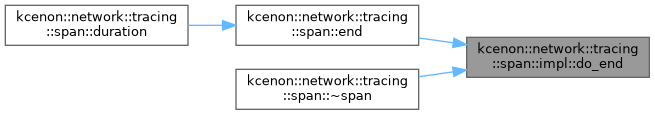

Here is the caller graph for this function:

Member Data Documentation

attributes

std::map<std::string, attribute_value> kcenon::network::tracing::span::impl::attributes

Definition at line 27 of file span.cpp.

Referenced by kcenon::network::tracing::span::attributes().

context

trace_context kcenon::network::tracing::span::impl::context

Definition at line 23 of file span.cpp.

Referenced by kcenon::network::tracing::span::context(), and impl().

end_time

std::chrono::steady_clock::time_point kcenon::network::tracing::span::impl::end_time

Definition at line 30 of file span.cpp.

Referenced by do_end(), kcenon::network::tracing::span::duration(), and kcenon::network::tracing::span::end_time().

ended

bool kcenon::network::tracing::span::impl::ended {false}

Definition at line 31 of file span.cpp.

{false};

Referenced by do_end(), kcenon::network::tracing::span::duration(), kcenon::network::tracing::span::is_ended(), and kcenon::network::tracing::span::~span().

events

std::vector<span_event> kcenon::network::tracing::span::impl::events

Definition at line 28 of file span.cpp.

Referenced by kcenon::network::tracing::span::events().

kind

span_kind kcenon::network::tracing::span::impl::kind

Definition at line 24 of file span.cpp.

Referenced by kcenon::network::tracing::span::kind().

name

std::string kcenon::network::tracing::span::impl::name

Definition at line 22 of file span.cpp.

Referenced by kcenon::network::tracing::span::name().

owner

span* kcenon::network::tracing::span::impl::owner {nullptr}

Definition at line 33 of file span.cpp.

{nullptr};

Referenced by do_end(), and kcenon::network::tracing::span::span().

previous_context

trace_context kcenon::network::tracing::span::impl::previous_context

Definition at line 32 of file span.cpp.

Referenced by do_end().

start_time

std::chrono::steady_clock::time_point kcenon::network::tracing::span::impl::start_time

Definition at line 29 of file span.cpp.

Referenced by kcenon::network::tracing::span::duration(), and kcenon::network::tracing::span::start_time().

status

span_status kcenon::network::tracing::span::impl::status {span_status::unset}

Definition at line 25 of file span.cpp.

{span_status::unset};

Referenced by kcenon::network::tracing::span::status().

status_description

std::string kcenon::network::tracing::span::impl::status_description

Definition at line 26 of file span.cpp.

Referenced by kcenon::network::tracing::span::status_description().

---

The documentation for this struct was generated from the following file:

• src/tracing/span.cpp
