kcenon::network::tracing::trace_context Class Reference

Immutable trace context for distributed tracing. More...

#include <trace_context.h>

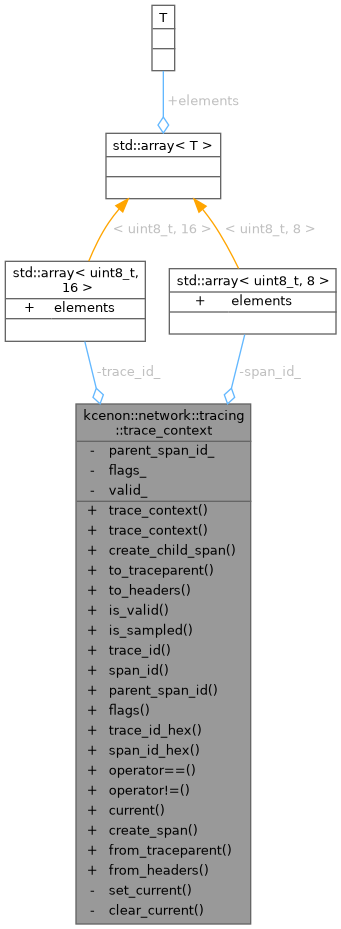

Collaboration diagram for kcenon::network::tracing::trace_context:

Public Member Functions
	trace_context ()=default
	Default constructor creates an invalid context.
	trace_context (trace_id_t trace_id, span_id_t span_id, trace_flags flags, std::optional< span_id_t > parent_span_id=std::nullopt)
	Construct a trace context with all components.
auto	create_child_span (std::string_view name) const -> span
	Create a child span inheriting this context.
auto	to_traceparent () const -> std::string
	Convert context to W3C traceparent header value.
auto	to_headers () const -> std::vector< std::pair< std::string, std::string > >
	Convert context to HTTP headers for propagation.
auto	is_valid () const noexcept -> bool
	Check if this context is valid.
auto	is_sampled () const noexcept -> bool
	Check if this trace is sampled.
auto	trace_id () const noexcept -> const trace_id_t &
	Get the trace ID.
auto	span_id () const noexcept -> const span_id_t &
	Get the span ID.
auto	parent_span_id () const noexcept -> const std::optional< span_id_t > &
	Get the parent span ID.
auto	flags () const noexcept -> trace_flags
	Get the trace flags.
auto	trace_id_hex () const -> std::string
	Convert trace ID to hex string.
auto	span_id_hex () const -> std::string
	Convert span ID to hex string.
auto	operator== (const trace_context &other) const noexcept -> bool
	Equality comparison.
auto	operator!= (const trace_context &other) const noexcept -> bool
	Inequality comparison.

Static Public Member Functions
static auto	current () -> trace_context
	Get the current trace context from thread-local storage.
static auto	create_span (std::string_view name) -> span
	Create a new root span with a new trace context.
static auto	from_traceparent (std::string_view traceparent) -> trace_context
	Parse trace context from W3C traceparent header.
static auto	from_headers (const std::vector< std::pair< std::string, std::string > > &headers) -> trace_context
	Parse trace context from HTTP headers.

Static Private Member Functions
static void	set_current (const trace_context &ctx)
	Set the current thread-local trace context.
static void	clear_current ()
	Clear the current thread-local trace context.

Private Attributes
trace_id_t	trace_id_ {}
span_id_t	span_id_ {}
std::optional< span_id_t >	parent_span_id_
trace_flags	flags_ {trace_flags::none}
bool	valid_ {false}

Friends
class	span

Detailed Description

Immutable trace context for distributed tracing.

This class represents a W3C Trace Context compatible trace context that can be propagated across network boundaries. It stores trace ID, span ID, parent span ID, and sampling decision.

Thread-local storage is used to maintain the current trace context, enabling automatic context propagation within a thread.

Example usage:

// Create a new root span
auto span = trace_context::create_span("http.request");

// Get current context for propagation
auto ctx = trace_context::current();
auto headers = ctx.to_headers();

// Parse context from incoming request
auto parsed_ctx = trace_context::from_headers(incoming_headers);

See also

span

https://www.w3.org/TR/trace-context/

Examples

network_tracing_example.cpp.

Definition at line 77 of file trace_context.h.

Constructor & Destructor Documentation

trace_context() [1/2]

kcenon::network::tracing::trace_context::trace_context ( )

default

Default constructor creates an invalid context.

trace_context() [2/2]

kcenon::network::tracing::trace_context::trace_context	(	trace_id_t	trace_id,
		span_id_t	span_id,
		trace_flags	flags,
		std::optional< span_id_t >	parent_span_id = std::nullopt )

Construct a trace context with all components.

Parameters

trace_id	128-bit trace identifier
span_id	64-bit span identifier
flags	Trace flags (sampling decision)
parent_span_id	Optional parent span identifier

Definition at line 80 of file trace_context.cpp.

    : trace_id_(trace_id)
    , span_id_(span_id)
    , parent_span_id_(std::move(parent_span_id))
    , flags_(flags)
    , valid_(!is_zero_trace_id(trace_id) && !is_zero_span_id(span_id))
{
}

Member Function Documentation

clear_current()

void kcenon::network::tracing::trace_context::clear_current ( )

staticprivate

Clear the current thread-local trace context.

Definition at line 100 of file trace_context.cpp.

{
    tls_current_context = trace_context{};
}

Referenced by kcenon::network::tracing::span::impl::do_end().

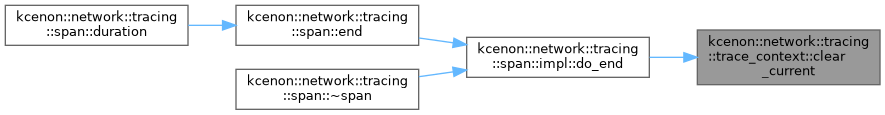

Here is the caller graph for this function:

create_child_span()

auto kcenon::network::tracing::trace_context::create_child_span ( std::string_view name ) const -> span

nodiscard

Create a child span inheriting this context.

Parameters

name	Name of the child span

Returns

New span that is a child of this context

Definition at line 121 of file trace_context.cpp.

{
    if (!is_valid())
    {
        // If parent context is invalid, create a new root span
        auto new_trace_id = generate_trace_id();
        auto new_span_id = generate_span_id();

        trace_context new_ctx(new_trace_id, new_span_id, trace_flags::sampled);
        return span(name, new_ctx);
    }

    // Create child span with same trace ID but new span ID
    auto new_span_id = generate_span_id();
    trace_context child_ctx(trace_id_, new_span_id, flags_, span_id_);

    return span(name, child_ctx);
}

References kcenon::network::tracing::generate_span_id(), kcenon::network::tracing::generate_trace_id(), and kcenon::network::tracing::sampled.

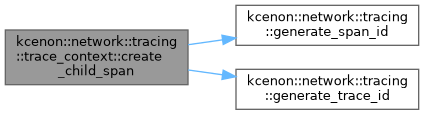

Here is the call graph for this function:

create_span()

auto kcenon::network::tracing::trace_context::create_span ( std::string_view name ) -> span

staticnodiscard

Create a new root span with a new trace context.

Parameters

name	Name of the span

Returns

New span with a fresh trace context

Examples

network_tracing_example.cpp.

Definition at line 105 of file trace_context.cpp.

{
    // If there's a current context, create a child span
    if (tls_current_context.is_valid())
    {
        return tls_current_context.create_child_span(name);
    }

    // Create a new root span with a fresh trace context
    auto new_trace_id = generate_trace_id();
    auto new_span_id = generate_span_id();

    trace_context new_ctx(new_trace_id, new_span_id, trace_flags::sampled);
    return span(name, new_ctx);
}

References kcenon::network::tracing::generate_span_id(), kcenon::network::tracing::generate_trace_id(), and kcenon::network::tracing::sampled.

Referenced by kcenon::network::protocols::grpc::grpc_client::impl::call_raw(), kcenon::network::protocols::quic::connection::close(), kcenon::network::protocols::quic::connection::close_application(), kcenon::network::protocols::grpc::grpc_client::impl::connect(), kcenon::network::protocols::http2::http2_client::connect(), kcenon::network::protocols::quic::connection::init_server_handshake(), kcenon::network::core::messaging_server::on_accept(), kcenon::network::protocols::quic::connection::receive_packet(), kcenon::network::core::messaging_quic_client::send_on_stream(), kcenon::network::core::messaging_client::send_packet(), kcenon::network::core::messaging_quic_client::send_packet(), kcenon::network::protocols::http2::http2_client::send_request(), simulate_cache_lookup(), simulate_database_query(), kcenon::network::protocols::grpc::grpc_server::impl::start(), kcenon::network::core::messaging_client::start_client(), kcenon::network::core::messaging_quic_client::start_client(), kcenon::network::protocols::quic::connection::start_handshake(), and kcenon::network::core::messaging_server::start_server().

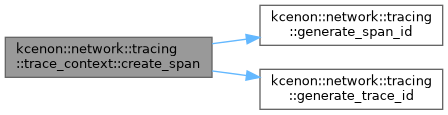

Here is the call graph for this function:

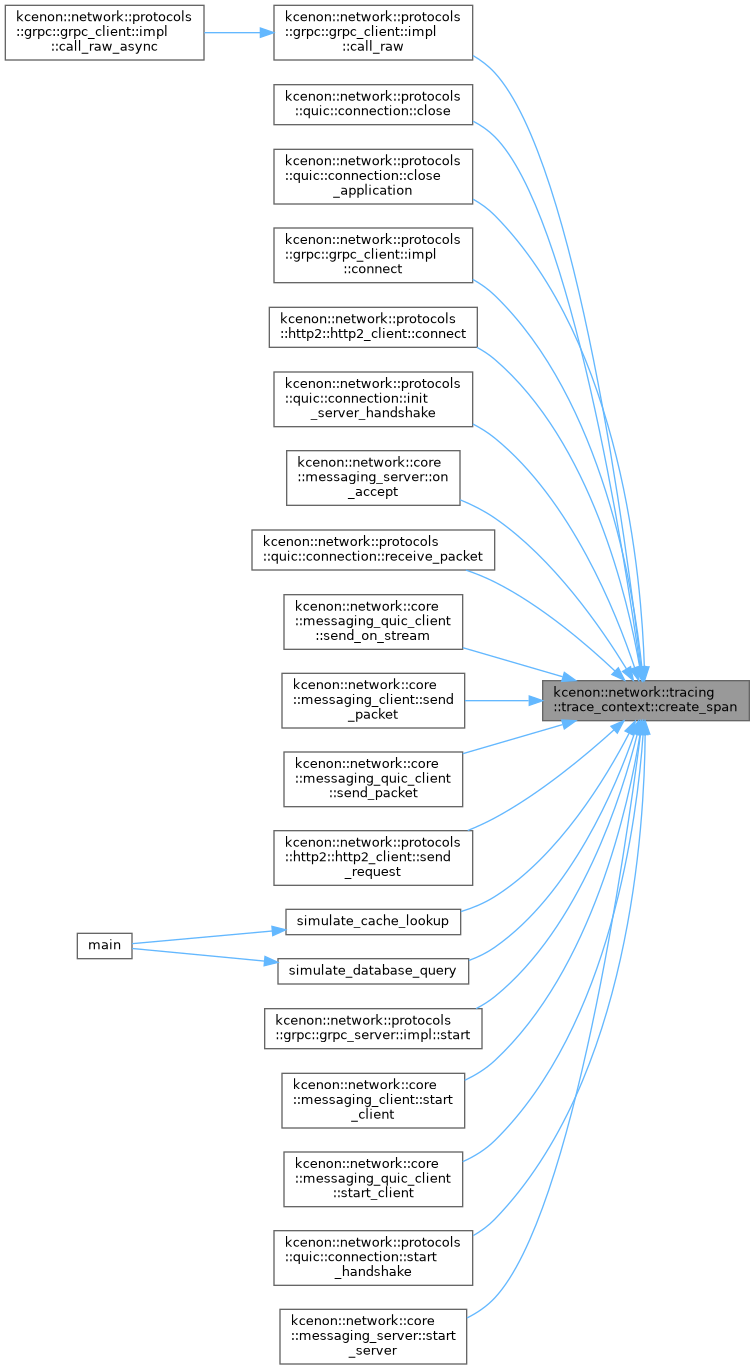

Here is the caller graph for this function:

current()

auto kcenon::network::tracing::trace_context::current ( ) -> trace_context

staticnodiscard

Get the current trace context from thread-local storage.

Returns

Current trace context, or invalid context if none set

Definition at line 90 of file trace_context.cpp.

{
    return tls_current_context;
}

flags()

auto kcenon::network::tracing::trace_context::flags ( ) const -> trace_flags

nodiscardnoexcept

Get the trace flags.

Returns

Trace flags

Definition at line 274 of file trace_context.cpp.

{
    return flags_;
}

References flags_.

from_headers()

auto kcenon::network::tracing::trace_context::from_headers ( const std::vector< std::pair< std::string, std::string > > & headers ) -> trace_context

staticnodiscard

Parse trace context from HTTP headers.

Parameters

headers

Vector of header name-value pairs

Returns

Parsed trace context, or invalid context if not found

Definition at line 226 of file trace_context.cpp.

{
    for (const auto& [name, value] : headers)
    {
        // Case-insensitive comparison
        std::string lower_name = name;
        std::transform(lower_name.begin(), lower_name.end(), lower_name.begin(),
                       [](unsigned char c) { return static_cast<char>(std::tolower(c)); });

        if (lower_name == "traceparent")
        {
            auto ctx = from_traceparent(value);
            if (ctx.is_valid())
            {
                return ctx;
            }
        }
    }

    return trace_context{};
}

Referenced by main().

Here is the caller graph for this function:

from_traceparent()

auto kcenon::network::tracing::trace_context::from_traceparent ( std::string_view traceparent ) -> trace_context

staticnodiscard

Parse trace context from W3C traceparent header.

Parameters

traceparent

The traceparent header value

Returns

Parsed trace context, or invalid context if parsing fails

Definition at line 173 of file trace_context.cpp.

{
    // Minimum length check: 00-{32}-{16}-{2} = 55 characters
    if (traceparent.size() < 55)
    {
        return trace_context{};
    }

    // Parse version
    if (traceparent[0] != '0' || traceparent[1] != '0' || traceparent[2] != '-')
    {
        return trace_context{};
    }

    // Parse trace ID (32 hex chars)
    trace_id_t trace_id{};
    if (!hex_to_bytes(traceparent.substr(3, 32), trace_id.data(), 16))
    {
        return trace_context{};
    }

    // Check separator
    if (traceparent[35] != '-')
    {
        return trace_context{};
    }

    // Parse span ID (16 hex chars)
    span_id_t span_id{};
    if (!hex_to_bytes(traceparent.substr(36, 16), span_id.data(), 8))
    {
        return trace_context{};
    }

    // Check separator
    if (traceparent[52] != '-')
    {
        return trace_context{};
    }

    // Parse flags (2 hex chars)
    int high = hex_char_to_value(traceparent[53]);
    int low = hex_char_to_value(traceparent[54]);
    if (high < 0 || low < 0)
    {
        return trace_context{};
    }

    auto flags = static_cast<trace_flags>((high << 4) | low);

    return trace_context(trace_id, span_id, flags);
}

References kcenon::network::tracing::hex_to_bytes(), and kcenon::network::tracing::trace_id.

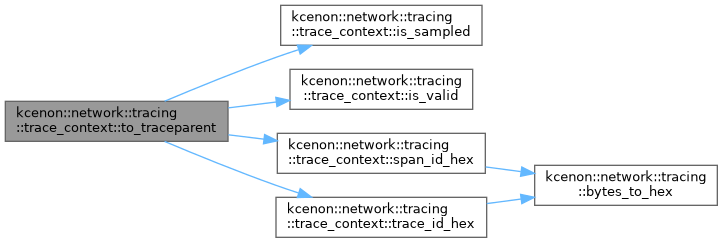

Here is the call graph for this function:

is_sampled()

auto kcenon::network::tracing::trace_context::is_sampled ( ) const -> bool

nodiscardnoexcept

Check if this trace is sampled.

Returns

true if the trace should be recorded

Definition at line 254 of file trace_context.cpp.

{
    return (static_cast<uint8_t>(flags_) & static_cast<uint8_t>(trace_flags::sampled)) != 0;
}

References flags_, and kcenon::network::tracing::sampled.

Referenced by to_traceparent().

Here is the caller graph for this function:

is_valid()

auto kcenon::network::tracing::trace_context::is_valid ( ) const -> bool

nodiscardnoexcept

Check if this context is valid.

Returns

true if the context has valid trace and span IDs

Definition at line 249 of file trace_context.cpp.

{
    return valid_;
}

References valid_.

Referenced by kcenon::network::tracing::span::impl::do_end(), to_headers(), and to_traceparent().

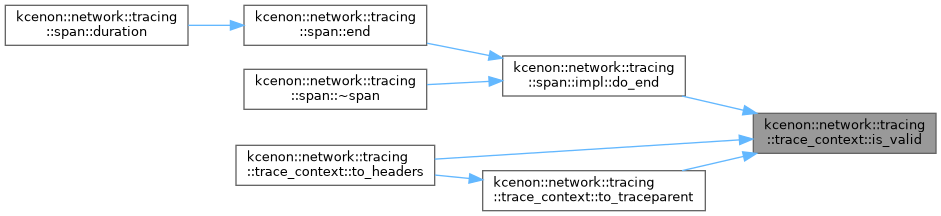

Here is the caller graph for this function:

operator!=()

auto kcenon::network::tracing::trace_context::operator!= ( const trace_context & other ) const -> bool

nodiscardnoexcept

Inequality comparison.

Definition at line 296 of file trace_context.cpp.

{
    return !(*this == other);
}

operator==()

auto kcenon::network::tracing::trace_context::operator== ( const trace_context & other ) const -> bool

nodiscardnoexcept

Equality comparison.

Definition at line 289 of file trace_context.cpp.

{
    return trace_id_ == other.trace_id_ && span_id_ == other.span_id_ &&
           parent_span_id_ == other.parent_span_id_ && flags_ == other.flags_ &&
           valid_ == other.valid_;
}

parent_span_id()

auto kcenon::network::tracing::trace_context::parent_span_id ( ) const -> const std::optional<span_id_t>&

nodiscardnoexcept

Get the parent span ID.

Returns

Optional parent span identifier

Definition at line 269 of file trace_context.cpp.

{
    return parent_span_id_;
}

References parent_span_id_.

set_current()

void kcenon::network::tracing::trace_context::set_current ( const trace_context & ctx )

staticprivate

Set the current thread-local trace context.

Parameters

ctx	Context to set

Definition at line 95 of file trace_context.cpp.

{
    tls_current_context = ctx;
}

Referenced by kcenon::network::tracing::span::impl::do_end(), and kcenon::network::tracing::span::impl::impl().

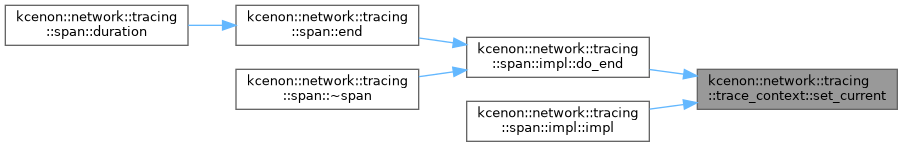

Here is the caller graph for this function:

span_id()

auto kcenon::network::tracing::trace_context::span_id ( ) const -> const span_id_t&

nodiscardnoexcept

Get the span ID.

Returns

64-bit span identifier

Definition at line 264 of file trace_context.cpp.

{
    return span_id_;
}

References span_id_.

span_id_hex()

auto kcenon::network::tracing::trace_context::span_id_hex ( ) const -> std::string

nodiscard

Convert span ID to hex string.

Returns

16-character lowercase hex string

Definition at line 284 of file trace_context.cpp.

{
    return bytes_to_hex(span_id_.data(), span_id_.size());
}

References kcenon::network::tracing::bytes_to_hex(), and span_id_.

Referenced by to_traceparent().

Here is the call graph for this function:

Here is the caller graph for this function:

to_headers()

auto kcenon::network::tracing::trace_context::to_headers ( ) const -> std::vector<std::pair<std::string, std::string>>

nodiscard

Convert context to HTTP headers for propagation.

Returns

Vector of header name-value pairs

Returns headers conforming to W3C Trace Context specification.

Examples

network_tracing_example.cpp.

Definition at line 160 of file trace_context.cpp.

{
    std::vector<std::pair<std::string, std::string>> headers;

    if (is_valid())
    {
        headers.emplace_back("traceparent", to_traceparent());
    }

    return headers;
}

References is_valid(), and to_traceparent().

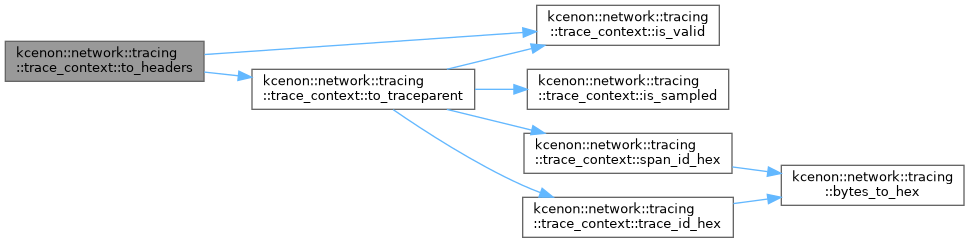

Here is the call graph for this function:

to_traceparent()

auto kcenon::network::tracing::trace_context::to_traceparent ( ) const -> std::string

nodiscard

Convert context to W3C traceparent header value.

Returns

traceparent header value string

Format: {version}-{trace-id}-{parent-id}-{trace-flags} Example: 00-0af7651916cd43dd8448eb211c80319c-b7ad6b7169203331-01

Definition at line 140 of file trace_context.cpp.

{
    if (!is_valid())
    {
        return {};
    }

    // Format: {version}-{trace-id}-{parent-id}-{trace-flags}
    // Example: 00-0af7651916cd43dd8448eb211c80319c-b7ad6b7169203331-01
    std::ostringstream oss;
    oss << "00-";
    oss << trace_id_hex();
    oss << "-";
    oss << span_id_hex();
    oss << "-";
    oss << (is_sampled() ? "01" : "00");

    return oss.str();
}

References is_sampled(), is_valid(), span_id_hex(), and trace_id_hex().

Referenced by to_headers().

Here is the call graph for this function:

Here is the caller graph for this function:

trace_id()

auto kcenon::network::tracing::trace_context::trace_id ( ) const -> const trace_id_t&

nodiscardnoexcept

Get the trace ID.

Returns

128-bit trace identifier

Definition at line 259 of file trace_context.cpp.

{
    return trace_id_;
}

References trace_id_.

trace_id_hex()

auto kcenon::network::tracing::trace_context::trace_id_hex ( ) const -> std::string

nodiscard

Convert trace ID to hex string.

Returns

32-character lowercase hex string

Definition at line 279 of file trace_context.cpp.

{
    return bytes_to_hex(trace_id_.data(), trace_id_.size());
}

References kcenon::network::tracing::bytes_to_hex(), and trace_id_.

Referenced by to_traceparent().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Symbol Documentation

span

friend class span

friend

Definition at line 230 of file trace_context.h.

Member Data Documentation

flags_

trace_flags kcenon::network::tracing::trace_context::flags_ {trace_flags::none}

private

Definition at line 215 of file trace_context.h.

{trace_flags::none};

Referenced by flags(), and is_sampled().

parent_span_id_

std::optional<span_id_t> kcenon::network::tracing::trace_context::parent_span_id_

private

Definition at line 214 of file trace_context.h.

Referenced by parent_span_id().

span_id_

span_id_t kcenon::network::tracing::trace_context::span_id_ {}

private

Definition at line 213 of file trace_context.h.

{};

Referenced by span_id(), and span_id_hex().

trace_id_

trace_id_t kcenon::network::tracing::trace_context::trace_id_ {}

private

Definition at line 212 of file trace_context.h.

{};

Referenced by trace_id(), and trace_id_hex().

valid_

bool kcenon::network::tracing::trace_context::valid_ {false}

private

Definition at line 216 of file trace_context.h.

{false};

Referenced by is_valid().

---

The documentation for this class was generated from the following files:

• include/kcenon/network/detail/tracing/trace_context.h
• src/tracing/trace_context.cpp
