span.h File Reference

RAII span implementation for distributed tracing. More...

#include "trace_context.h"
#include <chrono>
#include <map>
#include <memory>
#include <string>
#include <string_view>
#include <variant>
#include <vector>

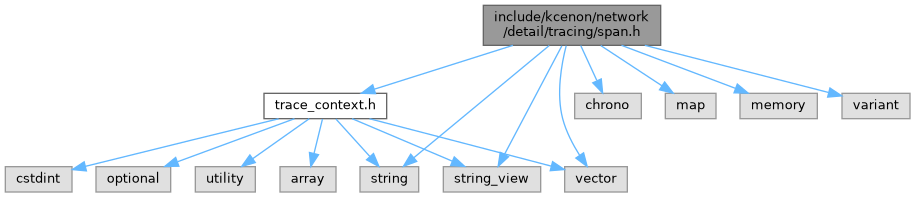

Include dependency graph for span.h:

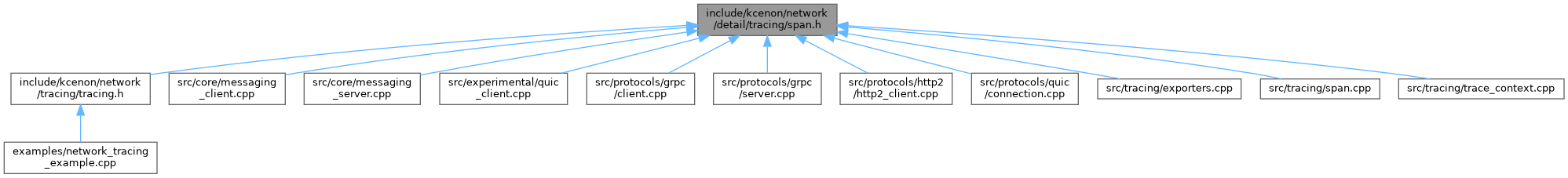

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::network::tracing::span_event
	Span event (timestamped annotation) More...
class	kcenon::network::tracing::span
	RAII span for distributed tracing. More...

Namespaces
namespace	kcenon
namespace	kcenon::network
	Main namespace for all Network System components.
namespace	kcenon::network::tracing

Macros
#define	NETWORK_TRACE_SPAN(name)
	RAII helper macro for creating spans.
#define	NETWORK_TRACE_CLIENT_SPAN(name)
	RAII helper macro for creating client spans.
#define	NETWORK_TRACE_SERVER_SPAN(name)
	RAII helper macro for creating server spans.

Typedefs
using	kcenon::network::tracing::attribute_value = std::variant<std::string, int64_t, double, bool>
	Attribute value type (supports string, int64, double, bool)

Enumerations
enum class	kcenon::network::tracing::span_status { kcenon::network::tracing::unset = 0 , kcenon::network::tracing::ok = 1 , kcenon::network::tracing::error = 2 }
	Span status codes following OpenTelemetry conventions. More...
enum class	kcenon::network::tracing::span_kind {   kcenon::network::tracing::internal = 0 , kcenon::network::tracing::server = 1 , kcenon::network::tracing::client = 2 , kcenon::network::tracing::producer = 3 ,   kcenon::network::tracing::consumer = 4 }
	Span kind following OpenTelemetry conventions. More...

Detailed Description

RAII span implementation for distributed tracing.

Provides a span class that automatically manages its lifecycle and integrates with the trace context for distributed tracing.

Author

kcenon

Date

2025-01-15

Definition in file span.h.

Macro Definition Documentation

NETWORK_TRACE_CLIENT_SPAN

#define NETWORK_TRACE_CLIENT_SPAN

(

name

)

Value:

    auto _span = ::kcenon::network::tracing::span(                          \
        name, ::kcenon::network::tracing::trace_context::current().is_valid() \
                  ? ::kcenon::network::tracing::trace_context::current()      \
                        .create_child_span(name)                              \
                        .context()                                            \
                  : ::kcenon::network::tracing::trace_context(),              \
        ::kcenon::network::tracing::span_kind::client)

RAII helper macro for creating client spans.

Definition at line 311 of file span.h.

#define NETWORK_TRACE_CLIENT_SPAN(name)                                     \
    auto _span = ::kcenon::network::tracing::span(                          \
        name, ::kcenon::network::tracing::trace_context::current().is_valid() \
                  ? ::kcenon::network::tracing::trace_context::current()      \
                        .create_child_span(name)                              \
                        .context()                                            \
                  : ::kcenon::network::tracing::trace_context(),              \
        ::kcenon::network::tracing::span_kind::client)

NETWORK_TRACE_SERVER_SPAN

#define NETWORK_TRACE_SERVER_SPAN

(

name

)

Value:

    auto _span = ::kcenon::network::tracing::span(                          \
        name, ::kcenon::network::tracing::trace_context::current().is_valid() \
                  ? ::kcenon::network::tracing::trace_context::current()      \
                        .create_child_span(name)                              \
                        .context()                                            \
                  : ::kcenon::network::tracing::trace_context(),              \
        ::kcenon::network::tracing::span_kind::server)

RAII helper macro for creating server spans.

Definition at line 323 of file span.h.

#define NETWORK_TRACE_SERVER_SPAN(name)                                     \
    auto _span = ::kcenon::network::tracing::span(                          \
        name, ::kcenon::network::tracing::trace_context::current().is_valid() \
                  ? ::kcenon::network::tracing::trace_context::current()      \
                        .create_child_span(name)                              \
                        .context()                                            \
                  : ::kcenon::network::tracing::trace_context(),              \
        ::kcenon::network::tracing::span_kind::server)

NETWORK_TRACE_SPAN

#define NETWORK_TRACE_SPAN

(

name

)

Value:

    auto _span = ::kcenon::network::tracing::trace_context::create_span(name)

RAII helper macro for creating spans.

Creates a span named '_span' that automatically ends on scope exit.

Parameters

name	Span name (string literal)

Example:

void my_function() {
    NETWORK_TRACE_SPAN("my_function");
    _span.set_attribute("key", "value");
    // span ends when function returns
}

Definition at line 305 of file span.h.

#define NETWORK_TRACE_SPAN(name) \
    auto _span = ::kcenon::network::tracing::trace_context::create_span(name)
