#include <array>
#include <cstdint>
#include <optional>
#include <string>
#include <tuple>
#include <variant>
#include <vector>

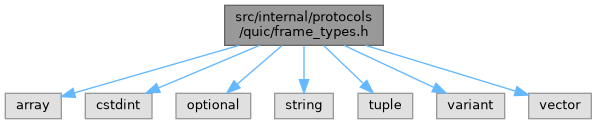

Include dependency graph for frame_types.h:

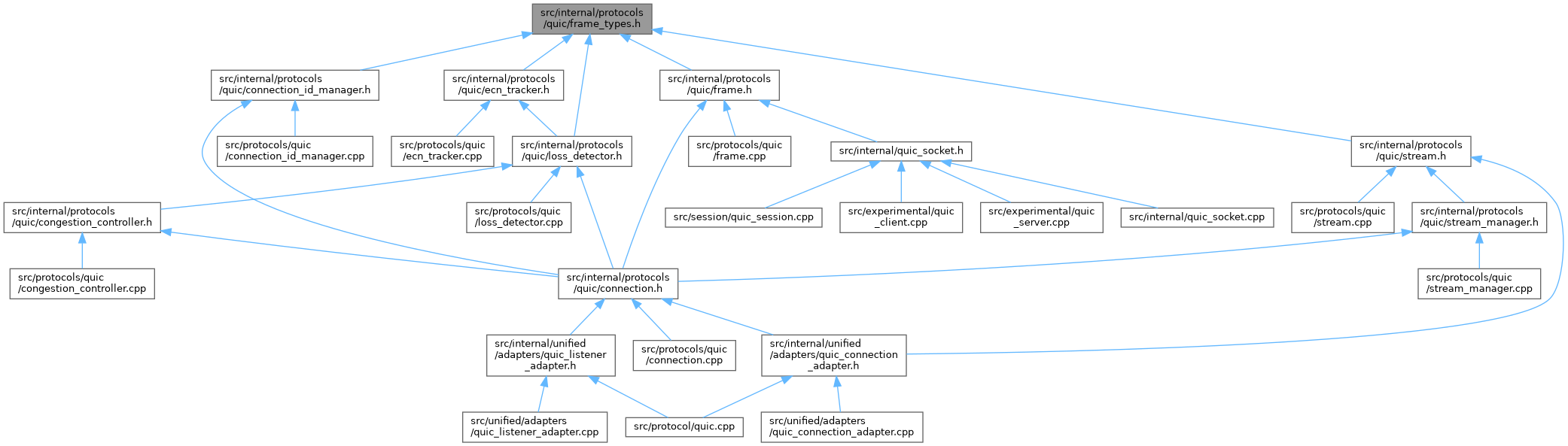

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::network::protocols::quic::padding_frame
	PADDING frame (RFC 9000 Section 19.1) More...

struct	kcenon::network::protocols::quic::ping_frame
	PING frame (RFC 9000 Section 19.2) More...

struct	kcenon::network::protocols::quic::ack_range
	ACK Range for ACK frames. More...

struct	kcenon::network::protocols::quic::ecn_counts
	ECN counts for ACK_ECN frames. More...

struct	kcenon::network::protocols::quic::ack_frame
	ACK frame (RFC 9000 Section 19.3) More...

struct	kcenon::network::protocols::quic::reset_stream_frame
	RESET_STREAM frame (RFC 9000 Section 19.4) More...

struct	kcenon::network::protocols::quic::stop_sending_frame
	STOP_SENDING frame (RFC 9000 Section 19.5) More...

struct	kcenon::network::protocols::quic::crypto_frame
	CRYPTO frame (RFC 9000 Section 19.6) More...

struct	kcenon::network::protocols::quic::new_token_frame
	NEW_TOKEN frame (RFC 9000 Section 19.7) More...

struct	kcenon::network::protocols::quic::stream_frame
	STREAM frame (RFC 9000 Section 19.8) More...

struct	kcenon::network::protocols::quic::max_data_frame
	MAX_DATA frame (RFC 9000 Section 19.9) More...

struct	kcenon::network::protocols::quic::max_stream_data_frame
	MAX_STREAM_DATA frame (RFC 9000 Section 19.10) More...

struct	kcenon::network::protocols::quic::max_streams_frame
	MAX_STREAMS frame (RFC 9000 Section 19.11) More...

struct	kcenon::network::protocols::quic::data_blocked_frame
	DATA_BLOCKED frame (RFC 9000 Section 19.12) More...

struct	kcenon::network::protocols::quic::stream_data_blocked_frame
	STREAM_DATA_BLOCKED frame (RFC 9000 Section 19.13) More...

struct	kcenon::network::protocols::quic::streams_blocked_frame
	STREAMS_BLOCKED frame (RFC 9000 Section 19.14) More...

struct	kcenon::network::protocols::quic::new_connection_id_frame
	NEW_CONNECTION_ID frame (RFC 9000 Section 19.15) More...

struct	kcenon::network::protocols::quic::retire_connection_id_frame
	RETIRE_CONNECTION_ID frame (RFC 9000 Section 19.16) More...

struct	kcenon::network::protocols::quic::path_challenge_frame
	PATH_CHALLENGE frame (RFC 9000 Section 19.17) More...

struct	kcenon::network::protocols::quic::path_response_frame
	PATH_RESPONSE frame (RFC 9000 Section 19.18) More...

struct	kcenon::network::protocols::quic::connection_close_frame
	CONNECTION_CLOSE frame (RFC 9000 Section 19.19) More...

struct	kcenon::network::protocols::quic::handshake_done_frame
	HANDSHAKE_DONE frame (RFC 9000 Section 19.20) More...

Namespaces
namespace	kcenon

namespace	kcenon::network
	Main namespace for all Network System components.

namespace	kcenon::network::protocols

namespace	kcenon::network::protocols::quic

namespace	kcenon::network::protocols::quic::stream_flags
	STREAM frame type flags (bits 0-2 of type byte)

Typedefs
using	kcenon::network::protocols::quic::frame
	Variant type holding any QUIC frame.

Enumerations
enum class	kcenon::network::protocols::quic::frame_type : uint64_t { kcenon::network::protocols::quic::padding = 0x00 , kcenon::network::protocols::quic::ping = 0x01 , kcenon::network::protocols::quic::ack = 0x02 , kcenon::network::protocols::quic::ack_ecn = 0x03 , kcenon::network::protocols::quic::reset_stream = 0x04 , kcenon::network::protocols::quic::stop_sending = 0x05 , kcenon::network::protocols::quic::crypto = 0x06 , kcenon::network::protocols::quic::new_token = 0x07 , kcenon::network::protocols::quic::stream_base = 0x08 , kcenon::network::protocols::quic::max_data = 0x10 , kcenon::network::protocols::quic::max_stream_data = 0x11 , kcenon::network::protocols::quic::max_streams_bidi = 0x12 , kcenon::network::protocols::quic::max_streams_uni = 0x13 , kcenon::network::protocols::quic::data_blocked = 0x14 , kcenon::network::protocols::quic::stream_data_blocked = 0x15 , kcenon::network::protocols::quic::streams_blocked_bidi = 0x16 , kcenon::network::protocols::quic::streams_blocked_uni = 0x17 , kcenon::network::protocols::quic::new_connection_id = 0x18 , kcenon::network::protocols::quic::retire_connection_id = 0x19 , kcenon::network::protocols::quic::path_challenge = 0x1a , kcenon::network::protocols::quic::path_response = 0x1b , kcenon::network::protocols::quic::connection_close = 0x1c , kcenon::network::protocols::quic::connection_close_app = 0x1d , kcenon::network::protocols::quic::handshake_done = 0x1e }
	QUIC frame types as defined in RFC 9000 Section 12.4. More...

Functions
constexpr auto	kcenon::network::protocols::quic::is_stream_frame (uint64_t type) noexcept -> bool
	Check if a frame type value represents a STREAM frame.

constexpr auto	kcenon::network::protocols::quic::get_stream_flags (uint64_t type) noexcept -> uint8_t
	Extract STREAM flags from frame type.

constexpr auto	kcenon::network::protocols::quic::make_stream_type (bool has_fin, bool has_length, bool has_offset) noexcept -> uint8_t
	Build STREAM frame type from flags.

auto	kcenon::network::protocols::quic::get_frame_type (const frame &f) -> frame_type
	Get the frame type for a frame variant.

auto	kcenon::network::protocols::quic::frame_type_to_string (frame_type type) -> std::string
	Get string name for a frame type.

Variables
constexpr uint8_t	kcenon::network::protocols::quic::stream_flags::fin = 0x01
	Stream is finished.

constexpr uint8_t	kcenon::network::protocols::quic::stream_flags::len = 0x02
	Length field present.

constexpr uint8_t	kcenon::network::protocols::quic::stream_flags::off = 0x04
	Offset field present.

constexpr uint8_t	kcenon::network::protocols::quic::stream_flags::mask = 0x07
	Mask for all flags.

constexpr uint8_t	kcenon::network::protocols::quic::stream_flags::base = 0x08
	Base type for STREAM frames.
