kcenon::network::session::messaging_session Class Reference

Manages a single connected client session on the server side, providing asynchronous read/write operations and pipeline transformations. More...

#include <messaging_session.h>

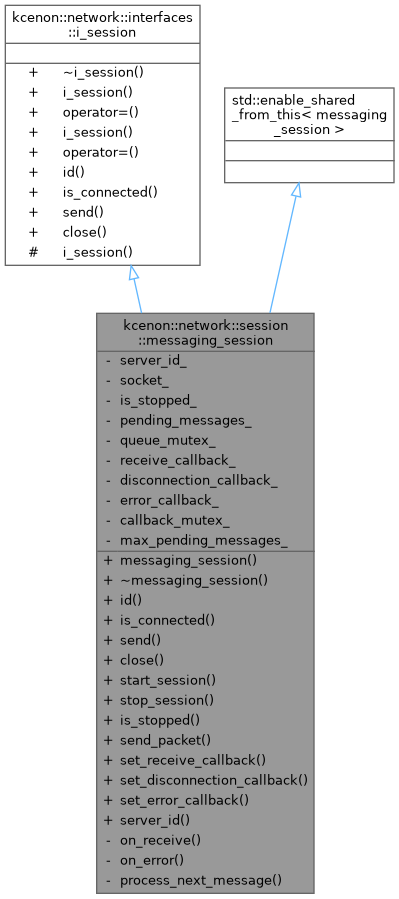

Inheritance diagram for kcenon::network::session::messaging_session:

Collaboration diagram for kcenon::network::session::messaging_session:

Public Member Functions
	messaging_session (asio::ip::tcp::socket socket, std::string_view server_id)
	Constructs a session with a given socket and server_id.
	~messaging_session () noexcept override
	Destructor; calls stop_session() if not already stopped.
auto	id () const -> std::string_view override
	Gets the unique identifier for this session.
auto	is_connected () const -> bool override
	Checks if the session is currently connected.
auto	send (std::vector< uint8_t > &&data) -> VoidResult override
	Sends data to the client.
auto	close () -> void override
	Closes the session.
auto	start_session () -> void
	Starts the session: sets up read/error callbacks and begins reading data.
auto	stop_session () -> void
	Stops the session by closing the socket and marking the session as inactive.
auto	is_stopped () const noexcept -> bool
	Checks if the session has been stopped.
auto	send_packet (std::vector< uint8_t > &&data) -> void
	Sends data to the connected client, optionally using compression/encryption.
auto	set_receive_callback (std::function< void(const std::vector< uint8_t > &)> callback) -> void
	Sets the callback for received data.
auto	set_disconnection_callback (std::function< void(const std::string &)> callback) -> void
	Sets the callback for disconnection.
auto	set_error_callback (std::function< void(std::error_code)> callback) -> void
	Sets the callback for errors.
auto	server_id () const -> const std::string &
	Gets the server identifier.
Public Member Functions inherited from kcenon::network::interfaces::i_session
virtual	~i_session ()=default
	Virtual destructor for proper cleanup.
	i_session (const i_session &)=delete
i_session &	operator= (const i_session &)=delete
	i_session (i_session &&)=delete
i_session &	operator= (i_session &&)=delete

Private Member Functions
auto	on_receive (std::span< const uint8_t > data) -> void
	Callback for when data arrives from the client.
auto	on_error (std::error_code ec) -> void
	Callback for handling socket errors from tcp_socket.
auto	process_next_message () -> void
	Processes pending messages from the queue.

Private Attributes
std::string	server_id_
std::shared_ptr< internal::tcp_socket >	socket_
std::atomic< bool >	is_stopped_
std::deque< std::vector< uint8_t > >	pending_messages_
	Queue of pending received messages awaiting processing.
std::mutex	queue_mutex_
	Mutex protecting access to pending_messages_ queue.
std::function< void(const std::vector< uint8_t > &)>	receive_callback_
	Callbacks for session events.
std::function< void(const std::string &)>	disconnection_callback_
std::function< void(std::error_code)>	error_callback_
std::mutex	callback_mutex_
	Mutex protecting callback access.

Static Private Attributes
static constexpr size_t	max_pending_messages_ = 1000
	Maximum number of pending messages before applying backpressure.

Additional Inherited Members
Protected Member Functions inherited from kcenon::network::interfaces::i_session
	i_session ()=default
	Default constructor (only for derived classes)

Detailed Description

Manages a single connected client session on the server side, providing asynchronous read/write operations and pipeline transformations.

This class implements the i_session interface, providing a composition-based design for TCP sessions. It replaces the previous inheritance-heavy approach with a cleaner interface-based model.

Responsibilities

• Owns a tcp_socket for non-blocking I/O.
• Optionally applies compression/encryption via pipeline_ before sending, and can do the reverse upon receiving data (if needed).
• Provides callbacks (on_receive, on_error) for data handling and error detection.

Lifecycle

• Constructed with an accepted asio::ip::tcp::socket.
• start_session() sets up callbacks and begins socket_->start_read().
• stop_session() closes the underlying socket, stopping further I/O.

Thread Safety

• All public methods are thread-safe.
• Session state (is_stopped_) is protected by atomic operations.
• Pipeline mode flags are protected by mode_mutex_.
• Socket operations are serialized through ASIO's io_context.

Interface Compliance

This class implements interfaces::i_session for composition-based usage.

Definition at line 77 of file messaging_session.h.

Constructor & Destructor Documentation

messaging_session()

kcenon::network::session::messaging_session::messaging_session	(	asio::ip::tcp::socket	socket,
		std::string_view	server_id )

Constructs a session with a given socket and server_id.

Parameters

socket	The asio::ip::tcp::socket (already connected).
server_id	An identifier for this server instance or context.

Definition at line 18 of file messaging_session.cpp.

        : server_id_(server_id)
    {
        // Create the tcp_socket wrapper
        socket_ = std::make_shared<internal::tcp_socket>(std::move(socket));
    }

References socket_.

~messaging_session()

kcenon::network::session::messaging_session::~messaging_session ( )

overridenoexcept

Destructor; calls stop_session() if not already stopped.

Definition at line 26 of file messaging_session.cpp.

    {
        try
        {
            // Call stop_session to clean up resources
            stop_session();
        }
        catch (...)
        {
            // Destructor must not throw - swallow all exceptions
        }
    }

References stop_session().

Here is the call graph for this function:

Member Function Documentation

close()

auto kcenon::network::session::messaging_session::close ( ) -> void

inlineoverridevirtual

Closes the session.

Implements i_session::close(). Delegates to stop_session().

Implements kcenon::network::interfaces::i_session.

Definition at line 136 of file messaging_session.h.

{ stop_session(); }

References stop_session().

Here is the call graph for this function:

id()

auto kcenon::network::session::messaging_session::id ( ) const -> std::string_view

inlinenodiscardoverridevirtual

Gets the unique identifier for this session.

Returns

A string view of the session ID.

Implements i_session::id(). Returns the server_id that was provided during construction.

Implements kcenon::network::interfaces::i_session.

Definition at line 107 of file messaging_session.h.

                                                                 {
            return server_id_;
        }

References server_id_.

is_connected()

auto kcenon::network::session::messaging_session::is_connected ( ) const -> bool

inlinenodiscardoverridevirtual

Checks if the session is currently connected.

Returns

true if connected, false otherwise.

Implements i_session::is_connected(). Returns the opposite of is_stopped().

Implements kcenon::network::interfaces::i_session.

Definition at line 118 of file messaging_session.h.

                                                                 {
            return !is_stopped_.load(std::memory_order_acquire);
        }

References is_stopped_.

is_stopped()

auto kcenon::network::session::messaging_session::is_stopped ( ) const -> bool

inlinenodiscardnoexcept

Checks if the session has been stopped.

Returns

true if the session is stopped, false otherwise.

Definition at line 158 of file messaging_session.h.

                                                               {
            return is_stopped_.load(std::memory_order_relaxed);
        }

References is_stopped_.

on_error()

auto kcenon::network::session::messaging_session::on_error ( std::error_code ec ) -> void

private

Callback for handling socket errors from tcp_socket.

Parameters

ec	The std::error_code describing the error.

By default, logs the error and calls stop_session().

Definition at line 180 of file messaging_session.cpp.

    {
        // NOTE: No logging in async handlers to prevent heap corruption during
        // static destruction.

        // Invoke error callback if set
        {
            std::lock_guard<std::mutex> lock(callback_mutex_);
            if (error_callback_)
            {
                try
                {
                    error_callback_(ec);
                }
                catch (...)
                {
                    // Silently ignore exceptions - no logging during potential static destruction
                }
            }
        }

        stop_session();
    }

on_receive()

auto kcenon::network::session::messaging_session::on_receive ( std::span< const uint8_t > data ) -> void

private

Callback for when data arrives from the client.

Parameters

data	A span view containing a chunk of received bytes.

Zero-Copy Performance

The span provides a non-owning view directly into the socket's internal read buffer, avoiding per-read vector allocations.

Lifetime Contract

• The span is valid only until this callback returns.
• Data must be copied into pending_messages_ for retention.

Override or extend the logic here to parse messages, handle commands, etc. If decompression/decryption is needed, apply pipeline_ accordingly.

Definition at line 145 of file messaging_session.cpp.

    {
        // NOTE: No logging in async handlers to prevent heap corruption during
        // static destruction.

        if (is_stopped_.load())
        {
            return;
        }

        // Report bytes received metric
        metrics::metric_reporter::report_bytes_received(data.size());

        // Check queue size before adding
        {
            std::lock_guard<std::mutex> lock(queue_mutex_);
            size_t queue_size = pending_messages_.size();

            // Apply backpressure if queue is getting full
            // If queue is severely overflowing, disconnect the session
            if (queue_size >= max_pending_messages_ * 2)
            {
                stop_session();
                return;
            }

            // Copy span data into vector only when adding to queue (single copy point)
            // This is the only allocation in the receive path
            pending_messages_.emplace_back(data.begin(), data.end());
        }

        // Process messages from queue
        process_next_message();
    }

References kcenon::network::metrics::metric_reporter::report_bytes_received().

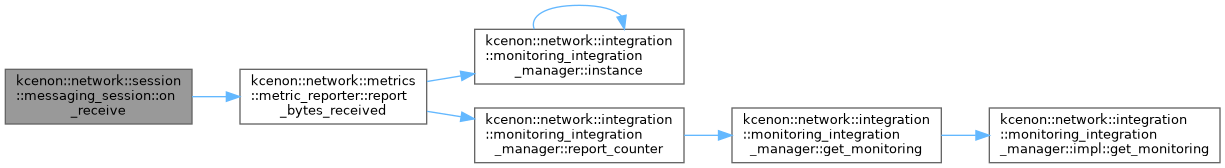

Here is the call graph for this function:

process_next_message()

auto kcenon::network::session::messaging_session::process_next_message ( ) -> void

private

Processes pending messages from the queue.

This method dequeues and processes messages one at a time. Implement actual message handling logic here.

Definition at line 204 of file messaging_session.cpp.

    {
        // NOTE: No logging in message processing to prevent heap corruption during
        // static destruction.

        std::vector<uint8_t> message;

        // Dequeue one message
        {
            std::lock_guard<std::mutex> lock(queue_mutex_);
            if (pending_messages_.empty())
            {
                return;
            }

            message = std::move(pending_messages_.front());
            pending_messages_.pop_front();
        }

        // Invoke receive callback if set
        {
            std::lock_guard<std::mutex> lock(callback_mutex_);
            if (receive_callback_)
            {
                try
                {
                    receive_callback_(message);
                }
                catch (...)
                {
                    // Silently ignore exceptions - no logging during potential static destruction
                }
            }
        }

        // If there are more messages, process them asynchronously
        // to avoid blocking the receive thread
        std::lock_guard<std::mutex> lock(queue_mutex_);
        if (!pending_messages_.empty())
        {
            // In a production system, you might want to post this to a thread pool
            // or use a work queue to process messages asynchronously
            // For now, we just process one message per call
        }
    }

References kcenon::network::message.

send()

auto kcenon::network::session::messaging_session::send ( std::vector< uint8_t > && data ) -> VoidResult

nodiscardoverridevirtual

Sends data to the client.

Parameters

data	The data to send.

Returns

VoidResult indicating success or failure.

Implements i_session::send(). Wraps send_packet() with Result type.

Implements kcenon::network::interfaces::i_session.

Definition at line 121 of file messaging_session.cpp.

    {
        if (is_stopped_.load())
        {
            return error_void(
                error_codes::network_system::connection_closed,
                "Session is closed",
                "messaging_session");
        }

        if (data.empty())
        {
            return error_void(
                error_codes::common_errors::invalid_argument,
                "Data cannot be empty",
                "messaging_session");
        }

        // Delegate to send_packet for actual sending
        send_packet(std::move(data));

        return ok();
    }

References kcenon::network::error_codes::network_system::connection_closed, kcenon::network::error_void(), kcenon::network::error_codes::common_errors::invalid_argument, and kcenon::network::ok().

Here is the call graph for this function:

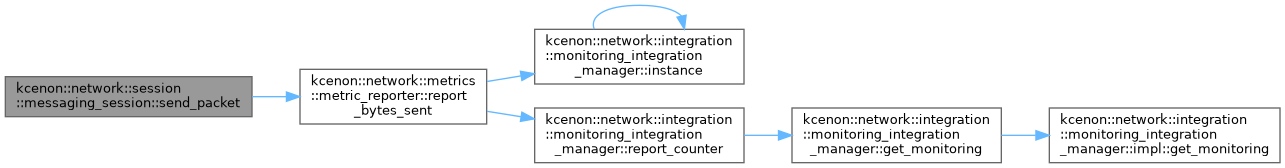

send_packet()

auto kcenon::network::session::messaging_session::send_packet

(

std::vector< uint8_t > &&

data

)

-> void

Sends data to the connected client, optionally using compression/encryption.

Parameters

data	The raw bytes to transmit (moved for efficiency).

Notes

• If compress_mode_ or encrypt_mode_ is true, the data will be processed by the pipeline's compress/encrypt functions before writing.
• Data is moved (not copied) to avoid memory allocation overhead.
• After calling this function, the original vector will be empty.

Definition at line 103 of file messaging_session.cpp.

    {
        if (is_stopped_.load())
        {
            return;
        }

        // Report bytes sent metric
        metrics::metric_reporter::report_bytes_sent(data.size());

        // Send data directly without pipeline transformation
        // NOTE: No logging in async callbacks to prevent heap corruption during static destruction
        socket_->async_send(std::move(data),
            [](std::error_code, std::size_t) {
                // Silently ignore errors - no logging during potential static destruction
            });
    }

References kcenon::network::metrics::metric_reporter::report_bytes_sent().

Here is the call graph for this function:

server_id()

auto kcenon::network::session::messaging_session::server_id ( ) const -> const std::string&

inlinenodiscard

Gets the server identifier.

Returns

The server_id string.

Definition at line 210 of file messaging_session.h.

                                                                 {
            return server_id_;
        }

References server_id_.

set_disconnection_callback()

auto kcenon::network::session::messaging_session::set_disconnection_callback

(

std::function< void(const std::string &)>

callback

)

-> void

Sets the callback for disconnection.

Parameters

callback

Function called when the session stops.

The callback receives the server_id as identification.

Definition at line 257 of file messaging_session.cpp.

    {
        std::lock_guard<std::mutex> lock(callback_mutex_);
        disconnection_callback_ = std::move(callback);
    }

set_error_callback()

auto kcenon::network::session::messaging_session::set_error_callback

(

std::function< void(std::error_code)>

callback

)

-> void

Sets the callback for errors.

Parameters

callback

Function called when an error occurs.

The callback receives the error code.

Definition at line 264 of file messaging_session.cpp.

    {
        std::lock_guard<std::mutex> lock(callback_mutex_);
        error_callback_ = std::move(callback);
    }

set_receive_callback()

auto kcenon::network::session::messaging_session::set_receive_callback

(

std::function< void(const std::vector< uint8_t > &)>

callback

)

-> void

Sets the callback for received data.

Parameters

callback

Function called when data is received.

The callback receives a const reference to the received data. It is invoked on the I/O thread, so keep processing minimal or dispatch to a worker thread.

Definition at line 250 of file messaging_session.cpp.

    {
        std::lock_guard<std::mutex> lock(callback_mutex_);
        receive_callback_ = std::move(callback);
    }

start_session()

auto kcenon::network::session::messaging_session::start_session

(

)

-> void

Starts the session: sets up read/error callbacks and begins reading data.

Definition at line 39 of file messaging_session.cpp.

    {
        // NOTE: No logging in session methods to prevent heap corruption during
        // static destruction. These methods may run in async handlers when
        // GlobalLoggerRegistry is already destroyed.

        if (is_stopped_.load())
        {
            return;
        }

        // Set up callbacks with weak_ptr to avoid circular reference
        // Use span-based callback for zero-copy receive path (no per-read allocation)
        auto weak_self = weak_from_this();
        socket_->set_receive_callback_view(
            [weak_self](std::span<const uint8_t> data)
            {
                if (auto self = weak_self.lock())
                {
                    self->on_receive(data);
                }
            });
        socket_->set_error_callback([weak_self](std::error_code ec)
            {
                if (auto self = weak_self.lock())
                {
                    self->on_error(ec);
                }
            });

        // Begin reading
        socket_->start_read();
    }

stop_session()

auto kcenon::network::session::messaging_session::stop_session

(

)

-> void

Stops the session by closing the socket and marking the session as inactive.

Definition at line 73 of file messaging_session.cpp.

    {
        if (is_stopped_.exchange(true))
        {
            return;
        }
        // Close socket safely using atomic close() method
        // This prevents data races between close and async read operations
        if (socket_)
        {
            socket_->close();
        }

        // Invoke disconnection callback if set
        {
            std::lock_guard<std::mutex> lock(callback_mutex_);
            if (disconnection_callback_)
            {
                try
                {
                    disconnection_callback_(server_id_);
                }
                catch (...)
                {
                    // Silently ignore exceptions - no logging during potential static destruction
                }
            }
        }
    }

Referenced by close(), and ~messaging_session().

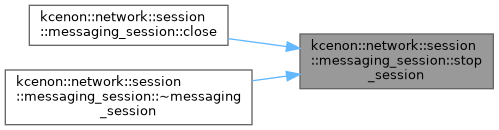

Here is the caller graph for this function:

Member Data Documentation

callback_mutex_

std::mutex kcenon::network::session::messaging_session::callback_mutex_

mutableprivate

Mutex protecting callback access.

Definition at line 287 of file messaging_session.h.

disconnection_callback_

std::function<void(const std::string&)> kcenon::network::session::messaging_session::disconnection_callback_

private

Definition at line 281 of file messaging_session.h.

error_callback_

std::function<void(std::error_code)> kcenon::network::session::messaging_session::error_callback_

private

Definition at line 282 of file messaging_session.h.

is_stopped_

std::atomic<bool> kcenon::network::session::messaging_session::is_stopped_

private

Initial value:

{
            false
        }

Indicates whether this session is stopped.

Definition at line 255 of file messaging_session.h.

                                   {
            false
        };

Referenced by is_connected(), and is_stopped().

max_pending_messages_

size_t kcenon::network::session::messaging_session::max_pending_messages_ = 1000

staticconstexprprivate

Maximum number of pending messages before applying backpressure.

When this limit is reached, a warning is logged. If doubled, the session is disconnected.

Definition at line 275 of file messaging_session.h.

pending_messages_

std::deque<std::vector<uint8_t> > kcenon::network::session::messaging_session::pending_messages_

private

Queue of pending received messages awaiting processing.

Definition at line 262 of file messaging_session.h.

queue_mutex_

std::mutex kcenon::network::session::messaging_session::queue_mutex_

mutableprivate

Mutex protecting access to pending_messages_ queue.

Definition at line 267 of file messaging_session.h.

receive_callback_

std::function<void(const std::vector<uint8_t>&)> kcenon::network::session::messaging_session::receive_callback_

private

Callbacks for session events.

Definition at line 280 of file messaging_session.h.

server_id_

std::string kcenon::network::session::messaging_session::server_id_

private

Identifier for the server side.

Definition at line 250 of file messaging_session.h.

Referenced by id(), and server_id().

socket_

std::shared_ptr<internal::tcp_socket> kcenon::network::session::messaging_session::socket_

private

The wrapped TCP socket for this session.

Definition at line 253 of file messaging_session.h.

Referenced by messaging_session().

---

The documentation for this class was generated from the following files:

• include/kcenon/network/detail/session/messaging_session.h
• src/session/messaging_session.cpp
