kcenon::network::metrics::metric_reporter Class Reference

Helper class for reporting network metrics. More...

#include <network_metrics.h>

Collaboration diagram for kcenon::network::metrics::metric_reporter:

Static Public Member Functions
static void	report_connection_accepted ()
	Report a new connection accepted.
static void	report_connection_failed (const std::string &reason)
	Report a failed connection attempt.
static void	report_bytes_sent (size_t bytes)
	Report bytes sent.
static void	report_bytes_received (size_t bytes)
	Report bytes received.
static void	report_latency (double ms)
	Report network latency.
static void	report_error (const std::string &error_type)
	Report a network error.
static void	report_timeout ()
	Report a timeout.
static void	report_active_connections (size_t count)
	Report active connections count.
static void	report_session_duration (double ms)
	Report session duration.
static void	record_latency (double ms)
	Record latency to internal histogram.
static void	record_connection_time (double ms)
	Record connection time to internal histogram.
static void	record_request_duration (double ms)
	Record request duration to internal histogram.
static auto	get_latency_p50 () -> double
	Get latency 50th percentile (median)
static auto	get_latency_p95 () -> double
	Get latency 95th percentile.
static auto	get_latency_p99 () -> double
	Get latency 99th percentile.
static auto	get_connection_time_p99 () -> double
	Get connection time 99th percentile.
static auto	get_request_duration_p99 () -> double
	Get request duration 99th percentile.
static auto	get_all_histograms () -> std::map< std::string, histogram_snapshot >
	Get all histogram snapshots for export.
static void	reset_histograms ()
	Reset all histogram data.

Detailed Description

Helper class for reporting network metrics.

This class provides convenient methods to report network-related metrics to the monitoring system (if available).

Definition at line 67 of file network_metrics.h.

Member Function Documentation

get_all_histograms()

auto kcenon::network::metrics::metric_reporter::get_all_histograms ( ) -> std::map<std::string, histogram_snapshot>

staticnodiscard

Get all histogram snapshots for export.

Returns

Map of histogram name to snapshot

Definition at line 255 of file network_metrics.cpp.

{
    auto& storage = histogram_storage::instance();
    std::map<std::string, histogram_snapshot> result;

    result[metric_names::LATENCY_HISTOGRAM] =
        storage.latency.snapshot({{"metric", "latency"}});
    result[metric_names::CONNECTION_TIME_HISTOGRAM] =
        storage.connection_time.snapshot({{"metric", "connection_time"}});
    result[metric_names::REQUEST_DURATION_HISTOGRAM] =
        storage.request_duration.snapshot({{"metric", "request_duration"}});

    return result;
}

References kcenon::network::metrics::metric_names::CONNECTION_TIME_HISTOGRAM, kcenon::network::metrics::metric_names::LATENCY_HISTOGRAM, and kcenon::network::metrics::metric_names::REQUEST_DURATION_HISTOGRAM.

get_connection_time_p99()

auto kcenon::network::metrics::metric_reporter::get_connection_time_p99 ( ) -> double

staticnodiscard

Get connection time 99th percentile.

Returns

Estimated p99 connection time in milliseconds

Definition at line 243 of file network_metrics.cpp.

{
    auto& storage = histogram_storage::instance();
    return storage.connection_time.p99();
}

get_latency_p50()

auto kcenon::network::metrics::metric_reporter::get_latency_p50 ( ) -> double

staticnodiscard

Get latency 50th percentile (median)

Returns

Estimated median latency in milliseconds

Definition at line 225 of file network_metrics.cpp.

{
    auto& storage = histogram_storage::instance();
    return storage.latency.p50();
}

get_latency_p95()

auto kcenon::network::metrics::metric_reporter::get_latency_p95 ( ) -> double

staticnodiscard

Get latency 95th percentile.

Returns

Estimated p95 latency in milliseconds

Definition at line 231 of file network_metrics.cpp.

{
    auto& storage = histogram_storage::instance();
    return storage.latency.p95();
}

get_latency_p99()

auto kcenon::network::metrics::metric_reporter::get_latency_p99 ( ) -> double

staticnodiscard

Get latency 99th percentile.

Returns

Estimated p99 latency in milliseconds

Definition at line 237 of file network_metrics.cpp.

{
    auto& storage = histogram_storage::instance();
    return storage.latency.p99();
}

get_request_duration_p99()

auto kcenon::network::metrics::metric_reporter::get_request_duration_p99 ( ) -> double

staticnodiscard

Get request duration 99th percentile.

Returns

Estimated p99 request duration in milliseconds

Definition at line 249 of file network_metrics.cpp.

{
    auto& storage = histogram_storage::instance();
    return storage.request_duration.p99();
}

record_connection_time()

void kcenon::network::metrics::metric_reporter::record_connection_time ( double ms )

static

Record connection time to internal histogram.

Parameters

ms	Connection time in milliseconds

Definition at line 197 of file network_metrics.cpp.

{
    auto& storage = histogram_storage::instance();
    storage.connection_time.record(ms);

#if KCENON_WITH_COMMON_SYSTEM
    publish_metric(metric_names::CONNECTION_TIME_HISTOGRAM, ms,
                   events::network_metric_type::histogram);
#endif

    integration::monitoring_integration_manager::instance().report_histogram(
        metric_names::CONNECTION_TIME_HISTOGRAM, ms);
}

References kcenon::network::metrics::metric_names::CONNECTION_TIME_HISTOGRAM, kcenon::network::events::histogram, kcenon::network::integration::monitoring_integration_manager::instance(), and kcenon::network::integration::monitoring_integration_manager::report_histogram().

Here is the call graph for this function:

record_latency()

void kcenon::network::metrics::metric_reporter::record_latency ( double ms )

static

Record latency to internal histogram.

Parameters

ms	Latency in milliseconds

Records latency to a sliding histogram for percentile calculations. Also reports to the traditional monitoring integration.

Definition at line 187 of file network_metrics.cpp.

{
    // Record to sliding histogram for percentile calculations
    auto& storage = histogram_storage::instance();
    storage.latency.record(ms);

    // Also report to traditional monitoring integration
    report_latency(ms);
}

References report_latency().

Here is the call graph for this function:

record_request_duration()

void kcenon::network::metrics::metric_reporter::record_request_duration ( double ms )

static

Record request duration to internal histogram.

Parameters

ms	Request duration in milliseconds

Definition at line 211 of file network_metrics.cpp.

{
    auto& storage = histogram_storage::instance();
    storage.request_duration.record(ms);

#if KCENON_WITH_COMMON_SYSTEM
    publish_metric(metric_names::REQUEST_DURATION_HISTOGRAM, ms,
                   events::network_metric_type::histogram);
#endif

    integration::monitoring_integration_manager::instance().report_histogram(
        metric_names::REQUEST_DURATION_HISTOGRAM, ms);
}

References kcenon::network::events::histogram, kcenon::network::integration::monitoring_integration_manager::instance(), kcenon::network::integration::monitoring_integration_manager::report_histogram(), and kcenon::network::metrics::metric_names::REQUEST_DURATION_HISTOGRAM.

Here is the call graph for this function:

report_active_connections()

void kcenon::network::metrics::metric_reporter::report_active_connections ( size_t count )

static

Report active connections count.

Parameters

count

Number of active connections

Definition at line 159 of file network_metrics.cpp.

{
    auto count_value = static_cast<double>(count);

#if KCENON_WITH_COMMON_SYSTEM
    publish_metric(metric_names::CONNECTIONS_ACTIVE, count_value,
                   events::network_metric_type::gauge);
#endif

    integration::monitoring_integration_manager::instance().report_gauge(
        metric_names::CONNECTIONS_ACTIVE, count_value);
}

References kcenon::network::metrics::metric_names::CONNECTIONS_ACTIVE, kcenon::network::events::gauge, kcenon::network::integration::monitoring_integration_manager::instance(), and kcenon::network::integration::monitoring_integration_manager::report_gauge().

Referenced by kcenon::network::core::messaging_quic_server::find_or_create_session(), kcenon::network::core::messaging_server::on_accept(), and kcenon::network::core::messaging_quic_server::on_session_close().

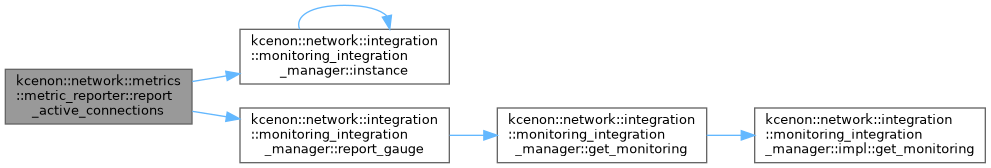

Here is the call graph for this function:

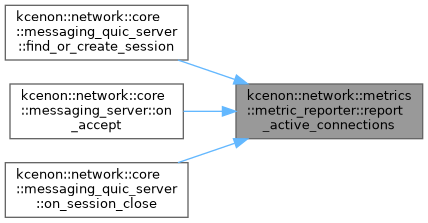

Here is the caller graph for this function:

report_bytes_received()

void kcenon::network::metrics::metric_reporter::report_bytes_received ( size_t bytes )

static

Report bytes received.

Parameters

bytes

Number of bytes received

Definition at line 108 of file network_metrics.cpp.

{
    auto byte_value = static_cast<double>(bytes);

#if KCENON_WITH_COMMON_SYSTEM
    publish_metric(metric_names::BYTES_RECEIVED, byte_value,
                   events::network_metric_type::counter);
    publish_metric(metric_names::PACKETS_RECEIVED, 1.0,
                   events::network_metric_type::counter);
#endif

    integration::monitoring_integration_manager::instance().report_counter(
        metric_names::BYTES_RECEIVED, byte_value);
    integration::monitoring_integration_manager::instance().report_counter(
        metric_names::PACKETS_RECEIVED, 1.0);
}

References kcenon::network::metrics::metric_names::BYTES_RECEIVED, kcenon::network::events::counter, kcenon::network::integration::monitoring_integration_manager::instance(), kcenon::network::metrics::metric_names::PACKETS_RECEIVED, and kcenon::network::integration::monitoring_integration_manager::report_counter().

Referenced by kcenon::network::session::messaging_session::on_receive(), and kcenon::network::session::quic_session::on_stream_data().

Here is the call graph for this function:

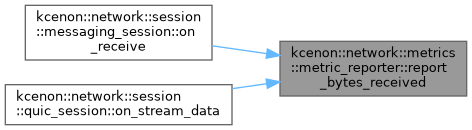

Here is the caller graph for this function:

report_bytes_sent()

void kcenon::network::metrics::metric_reporter::report_bytes_sent ( size_t bytes )

static

Report bytes sent.

Parameters

bytes

Number of bytes sent

Definition at line 91 of file network_metrics.cpp.

{
    auto byte_value = static_cast<double>(bytes);

#if KCENON_WITH_COMMON_SYSTEM
    publish_metric(metric_names::BYTES_SENT, byte_value,
                   events::network_metric_type::counter);
    publish_metric(metric_names::PACKETS_SENT, 1.0,
                   events::network_metric_type::counter);
#endif

    integration::monitoring_integration_manager::instance().report_counter(
        metric_names::BYTES_SENT, byte_value);
    integration::monitoring_integration_manager::instance().report_counter(
        metric_names::PACKETS_SENT, 1.0);
}

References kcenon::network::metrics::metric_names::BYTES_SENT, kcenon::network::events::counter, kcenon::network::integration::monitoring_integration_manager::instance(), kcenon::network::metrics::metric_names::PACKETS_SENT, and kcenon::network::integration::monitoring_integration_manager::report_counter().

Referenced by main(), kcenon::network::session::quic_session::send(), kcenon::network::session::quic_session::send_on_stream(), and kcenon::network::session::messaging_session::send_packet().

Here is the call graph for this function:

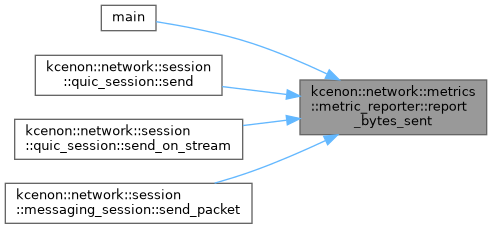

Here is the caller graph for this function:

report_connection_accepted()

void kcenon::network::metrics::metric_reporter::report_connection_accepted ( )

static

Report a new connection accepted.

Definition at line 65 of file network_metrics.cpp.

{
#if KCENON_WITH_COMMON_SYSTEM
    // Publish via EventBus for external consumers (e.g., monitoring_system)
    publish_metric(metric_names::CONNECTIONS_TOTAL, 1.0,
                   events::network_metric_type::counter,
                   {{"event", "accepted"}});
#endif

    // Report to local monitoring integration
    integration::monitoring_integration_manager::instance().report_counter(
        metric_names::CONNECTIONS_TOTAL, 1.0);
}

References kcenon::network::metrics::metric_names::CONNECTIONS_TOTAL, kcenon::network::events::counter, kcenon::network::integration::monitoring_integration_manager::instance(), and kcenon::network::integration::monitoring_integration_manager::report_counter().

Referenced by kcenon::network::core::messaging_quic_server::find_or_create_session(), main(), and kcenon::network::core::messaging_server::on_accept().

Here is the call graph for this function:

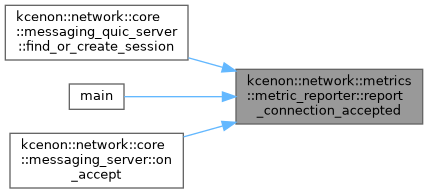

Here is the caller graph for this function:

report_connection_failed()

void kcenon::network::metrics::metric_reporter::report_connection_failed ( const std::string & reason )

static

Report a failed connection attempt.

Parameters

reason

Reason for the failure

Definition at line 79 of file network_metrics.cpp.

{
#if KCENON_WITH_COMMON_SYSTEM
    publish_metric(metric_names::CONNECTIONS_FAILED, 1.0,
                   events::network_metric_type::counter,
                   {{"reason", reason}});
#endif

    integration::monitoring_integration_manager::instance().report_counter(
        metric_names::CONNECTIONS_FAILED, 1.0, {{"reason", reason}});
}

References kcenon::network::metrics::metric_names::CONNECTIONS_FAILED, kcenon::network::events::counter, kcenon::network::integration::monitoring_integration_manager::instance(), and kcenon::network::integration::monitoring_integration_manager::report_counter().

Referenced by main(), and kcenon::network::core::messaging_server::on_accept().

Here is the call graph for this function:

Here is the caller graph for this function:

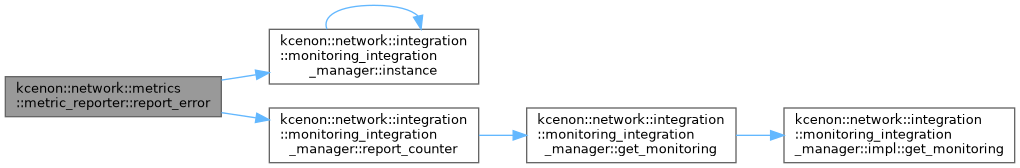

report_error()

void kcenon::network::metrics::metric_reporter::report_error ( const std::string & error_type )

static

Report a network error.

Parameters

error_type

Type of error

Definition at line 136 of file network_metrics.cpp.

{
#if KCENON_WITH_COMMON_SYSTEM
    publish_metric(metric_names::ERRORS_TOTAL, 1.0,
                   events::network_metric_type::counter,
                   {{"error_type", error_type}});
#endif

    integration::monitoring_integration_manager::instance().report_counter(
        metric_names::ERRORS_TOTAL, 1.0, {{"error_type", error_type}});
}

References kcenon::network::events::counter, kcenon::network::metrics::metric_names::ERRORS_TOTAL, kcenon::network::integration::monitoring_integration_manager::instance(), and kcenon::network::integration::monitoring_integration_manager::report_counter().

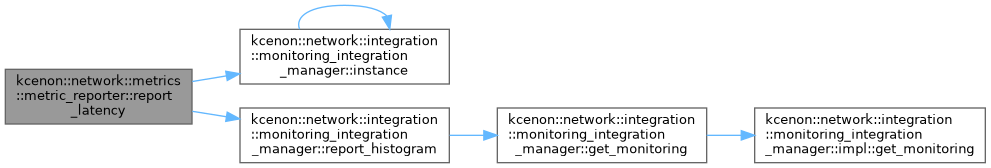

Here is the call graph for this function:

report_latency()

void kcenon::network::metrics::metric_reporter::report_latency ( double ms )

static

Report network latency.

Parameters

ms	Latency in milliseconds

Definition at line 125 of file network_metrics.cpp.

{
#if KCENON_WITH_COMMON_SYSTEM
    publish_metric(metric_names::LATENCY_MS, ms,
                   events::network_metric_type::histogram);
#endif

    integration::monitoring_integration_manager::instance().report_histogram(
        metric_names::LATENCY_MS, ms);
}

References kcenon::network::events::histogram, kcenon::network::integration::monitoring_integration_manager::instance(), kcenon::network::metrics::metric_names::LATENCY_MS, and kcenon::network::integration::monitoring_integration_manager::report_histogram().

Referenced by main(), and record_latency().

Here is the call graph for this function:

Here is the caller graph for this function:

report_session_duration()

void kcenon::network::metrics::metric_reporter::report_session_duration ( double ms )

static

Report session duration.

Parameters

ms	Duration in milliseconds

Definition at line 172 of file network_metrics.cpp.

{
#if KCENON_WITH_COMMON_SYSTEM
    publish_metric(metric_names::SESSION_DURATION_MS, ms,
                   events::network_metric_type::histogram);
#endif

    integration::monitoring_integration_manager::instance().report_histogram(
        metric_names::SESSION_DURATION_MS, ms);
}

References kcenon::network::events::histogram, kcenon::network::integration::monitoring_integration_manager::instance(), kcenon::network::integration::monitoring_integration_manager::report_histogram(), and kcenon::network::metrics::metric_names::SESSION_DURATION_MS.

Here is the call graph for this function:

report_timeout()

void kcenon::network::metrics::metric_reporter::report_timeout ( )

static

Report a timeout.

Definition at line 148 of file network_metrics.cpp.

{
#if KCENON_WITH_COMMON_SYSTEM
    publish_metric(metric_names::TIMEOUTS_TOTAL, 1.0,
                   events::network_metric_type::counter);
#endif

    integration::monitoring_integration_manager::instance().report_counter(
        metric_names::TIMEOUTS_TOTAL, 1.0);
}

References kcenon::network::events::counter, kcenon::network::integration::monitoring_integration_manager::instance(), kcenon::network::integration::monitoring_integration_manager::report_counter(), and kcenon::network::metrics::metric_names::TIMEOUTS_TOTAL.

Here is the call graph for this function:

reset_histograms()

void kcenon::network::metrics::metric_reporter::reset_histograms ( )

static

Reset all histogram data.

Clears all histogram observations. Useful for testing or when starting a new measurement period.

Definition at line 270 of file network_metrics.cpp.

{
    auto& storage = histogram_storage::instance();
    storage.latency.reset();
    storage.connection_time.reset();
    storage.request_duration.reset();
}

---

The documentation for this class was generated from the following files:

• include/kcenon/network/detail/metrics/network_metrics.h
• src/metrics/network_metrics.cpp
