kcenon::network::integration::monitoring_integration_manager Class Reference

Manager for monitoring system integration. More...

#include <monitoring_integration.h>

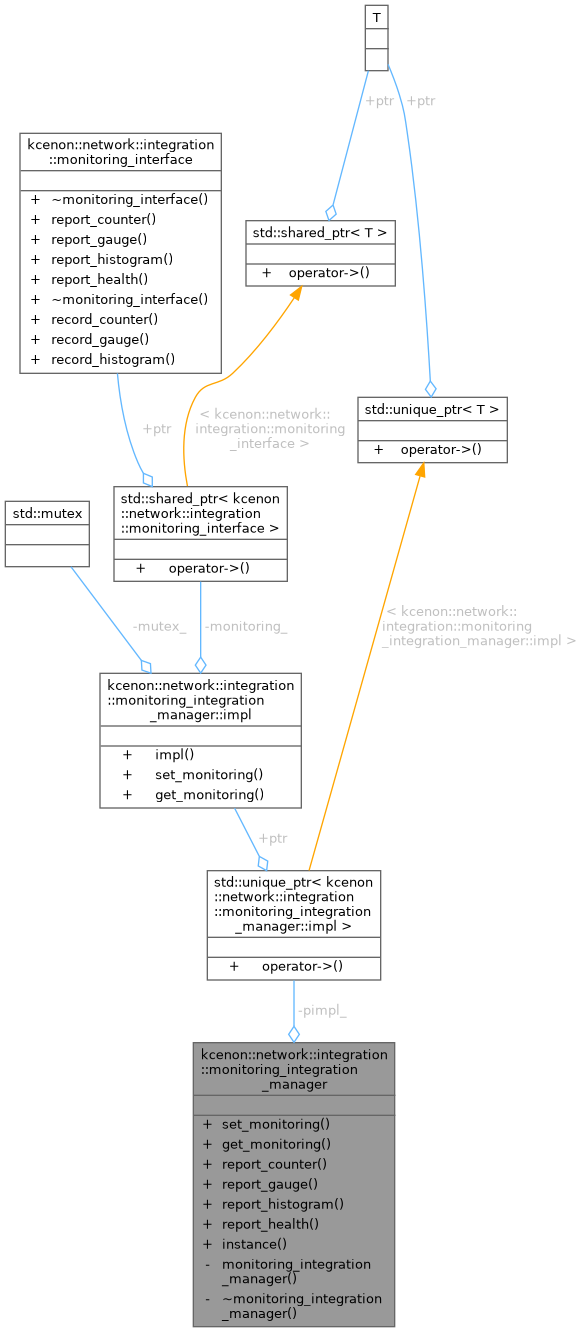

Collaboration diagram for kcenon::network::integration::monitoring_integration_manager:

Classes
class	impl

Public Member Functions
void	set_monitoring (std::shared_ptr< monitoring_interface > monitoring)
	Set the monitoring implementation.
std::shared_ptr< monitoring_interface >	get_monitoring ()
	Get the current monitoring implementation.
void	report_counter (const std::string &name, double value, const std::map< std::string, std::string > &labels={})
	Report a counter metric.
void	report_gauge (const std::string &name, double value, const std::map< std::string, std::string > &labels={})
	Report a gauge metric.
void	report_histogram (const std::string &name, double value, const std::map< std::string, std::string > &labels={})
	Report a histogram metric.
void	report_health (const std::string &connection_id, bool is_alive, double response_time_ms, size_t missed_heartbeats, double packet_loss_rate)
	Report connection health metrics.

Static Public Member Functions
static monitoring_integration_manager &	instance ()
	Get the singleton instance.

Private Member Functions
	monitoring_integration_manager ()
	~monitoring_integration_manager ()

Private Attributes
std::unique_ptr< impl >	pimpl_

Detailed Description

Manager for monitoring system integration.

This class manages the integration between network_system and monitoring implementations.

Definition at line 164 of file monitoring_integration.h.

Constructor & Destructor Documentation

monitoring_integration_manager()

kcenon::network::integration::monitoring_integration_manager::monitoring_integration_manager ( )

private

Definition at line 194 of file monitoring_integration.cpp.

        : pimpl_(std::make_unique<impl>())
    {
    }

~monitoring_integration_manager()

kcenon::network::integration::monitoring_integration_manager::~monitoring_integration_manager ( )

privatedefault

Member Function Documentation

get_monitoring()

std::shared_ptr< monitoring_interface > kcenon::network::integration::monitoring_integration_manager::get_monitoring

(

)

Get the current monitoring implementation.

Returns

Current monitoring implementation (creates basic monitoring if none set)

Definition at line 213 of file monitoring_integration.cpp.

    {
        return pimpl_->get_monitoring();
    }

References kcenon::network::integration::monitoring_integration_manager::impl::get_monitoring(), and pimpl_.

Referenced by kcenon::network::core::network_context::get_monitoring(), kcenon::network::core::network_context::initialize(), report_counter(), report_gauge(), report_health(), and report_histogram().

Here is the call graph for this function:

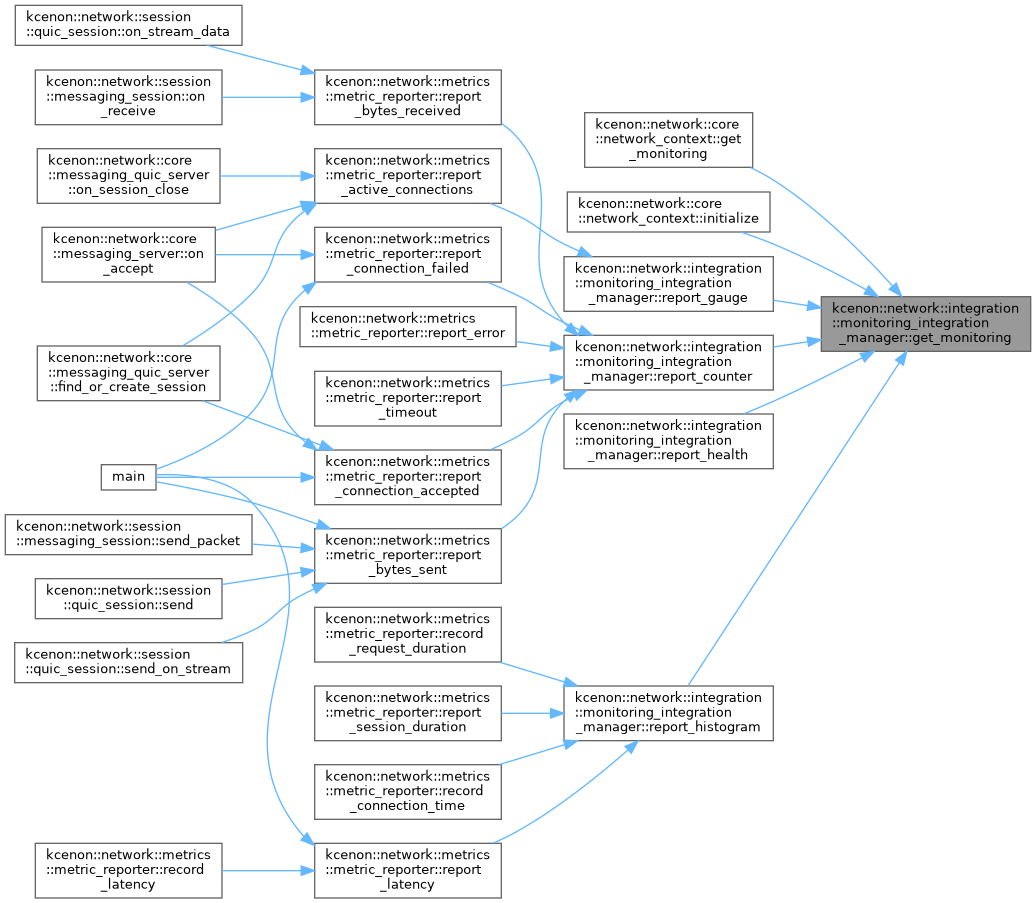

Here is the caller graph for this function:

instance()

monitoring_integration_manager & kcenon::network::integration::monitoring_integration_manager::instance ( )

static

Get the singleton instance.

Returns

Reference to the singleton instance

Definition at line 201 of file monitoring_integration.cpp.

    {
        static monitoring_integration_manager instance;
        return instance;
    }

References instance().

Referenced by kcenon::network::core::network_context::get_monitoring(), kcenon::network::core::network_context::initialize(), instance(), kcenon::network::metrics::metric_reporter::record_connection_time(), kcenon::network::metrics::metric_reporter::record_request_duration(), kcenon::network::metrics::metric_reporter::report_active_connections(), kcenon::network::metrics::metric_reporter::report_bytes_received(), kcenon::network::metrics::metric_reporter::report_bytes_sent(), kcenon::network::metrics::metric_reporter::report_connection_accepted(), kcenon::network::metrics::metric_reporter::report_connection_failed(), kcenon::network::metrics::metric_reporter::report_error(), kcenon::network::metrics::metric_reporter::report_latency(), kcenon::network::metrics::metric_reporter::report_session_duration(), kcenon::network::metrics::metric_reporter::report_timeout(), kcenon::network::core::network_context::set_monitoring(), and kcenon::network::utils::health_monitor::update_health().

Here is the call graph for this function:

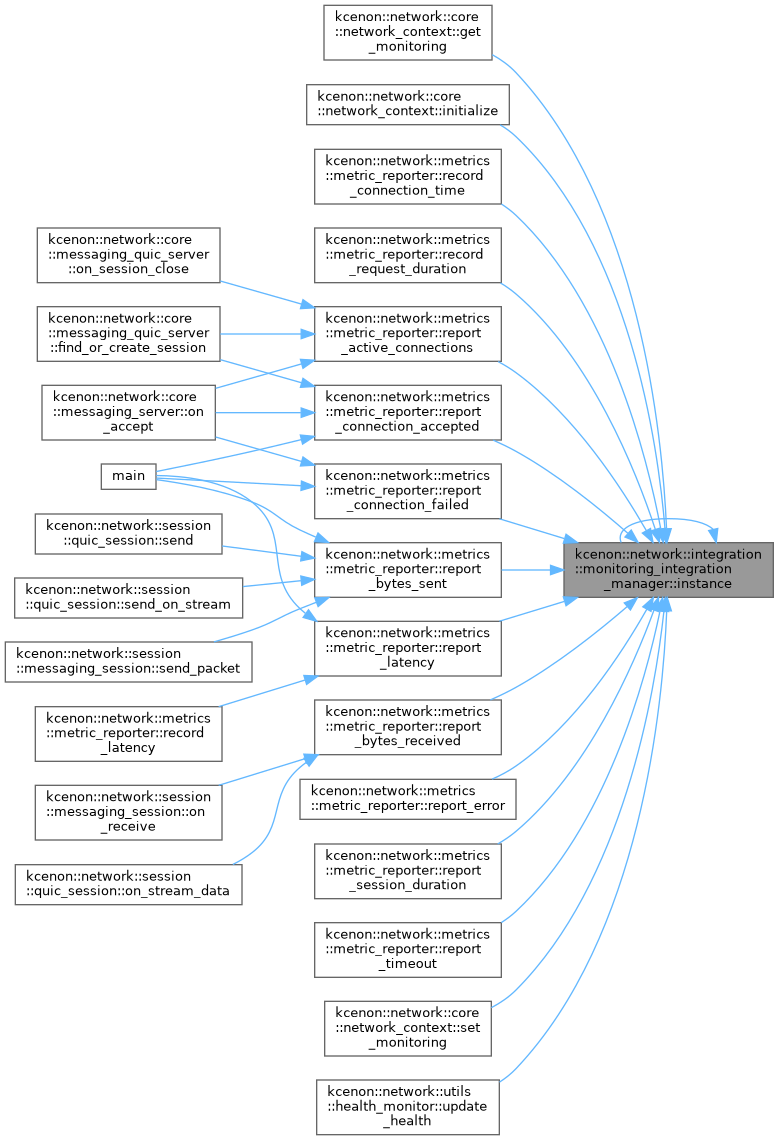

Here is the caller graph for this function:

report_counter()

void kcenon::network::integration::monitoring_integration_manager::report_counter	(	const std::string &	name,
		double	value,
		const std::map< std::string, std::string > &	labels = {} )

Report a counter metric.

Parameters

name	Metric name
value	Counter value
labels	Optional labels

Definition at line 218 of file monitoring_integration.cpp.

    {
        get_monitoring()->report_counter(name, value, labels);
    }

References get_monitoring().

Referenced by kcenon::network::metrics::metric_reporter::report_bytes_received(), kcenon::network::metrics::metric_reporter::report_bytes_sent(), kcenon::network::metrics::metric_reporter::report_connection_accepted(), kcenon::network::metrics::metric_reporter::report_connection_failed(), kcenon::network::metrics::metric_reporter::report_error(), and kcenon::network::metrics::metric_reporter::report_timeout().

Here is the call graph for this function:

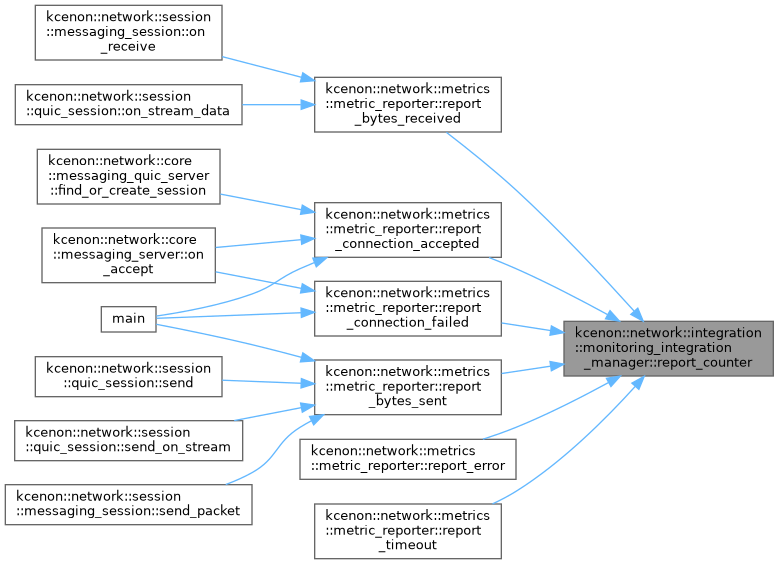

Here is the caller graph for this function:

report_gauge()

void kcenon::network::integration::monitoring_integration_manager::report_gauge	(	const std::string &	name,
		double	value,
		const std::map< std::string, std::string > &	labels = {} )

Report a gauge metric.

Parameters

name	Metric name
value	Gauge value
labels	Optional labels

Definition at line 224 of file monitoring_integration.cpp.

    {
        get_monitoring()->report_gauge(name, value, labels);
    }

References get_monitoring().

Referenced by kcenon::network::metrics::metric_reporter::report_active_connections().

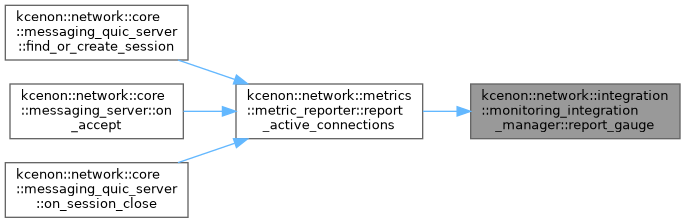

Here is the call graph for this function:

Here is the caller graph for this function:

report_health()

void kcenon::network::integration::monitoring_integration_manager::report_health	(	const std::string &	connection_id,
		bool	is_alive,
		double	response_time_ms,
		size_t	missed_heartbeats,
		double	packet_loss_rate )

Report connection health metrics.

Parameters

connection_id	Connection identifier
is_alive	Connection alive status
response_time_ms	Response time in milliseconds
missed_heartbeats	Number of missed heartbeats
packet_loss_rate	Packet loss rate (0.0-1.0)

Definition at line 236 of file monitoring_integration.cpp.

    {
        get_monitoring()->report_health(connection_id, is_alive, response_time_ms,
                                        missed_heartbeats, packet_loss_rate);
    }

References get_monitoring().

Here is the call graph for this function:

report_histogram()

void kcenon::network::integration::monitoring_integration_manager::report_histogram	(	const std::string &	name,
		double	value,
		const std::map< std::string, std::string > &	labels = {} )

Report a histogram metric.

Parameters

name	Metric name
value	Histogram value
labels	Optional labels

Definition at line 230 of file monitoring_integration.cpp.

    {
        get_monitoring()->report_histogram(name, value, labels);
    }

References get_monitoring().

Referenced by kcenon::network::metrics::metric_reporter::record_connection_time(), kcenon::network::metrics::metric_reporter::record_request_duration(), kcenon::network::metrics::metric_reporter::report_latency(), and kcenon::network::metrics::metric_reporter::report_session_duration().

Here is the call graph for this function:

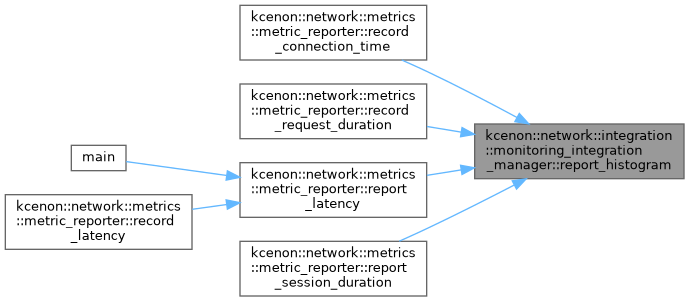

Here is the caller graph for this function:

set_monitoring()

void kcenon::network::integration::monitoring_integration_manager::set_monitoring

(

std::shared_ptr< monitoring_interface >

monitoring

)

Set the monitoring implementation.

Parameters

monitoring

Monitoring implementation to use

Definition at line 207 of file monitoring_integration.cpp.

    {
        pimpl_->set_monitoring(monitoring);
    }

References pimpl_, and kcenon::network::integration::monitoring_integration_manager::impl::set_monitoring().

Referenced by kcenon::network::core::network_context::set_monitoring().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

pimpl_

std::unique_ptr<impl> kcenon::network::integration::monitoring_integration_manager::pimpl_

private

Definition at line 229 of file monitoring_integration.h.

Referenced by get_monitoring(), and set_monitoring().

---

The documentation for this class was generated from the following files:

• src/internal/integration/monitoring_integration.h
• src/integration/monitoring_integration.cpp
